THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

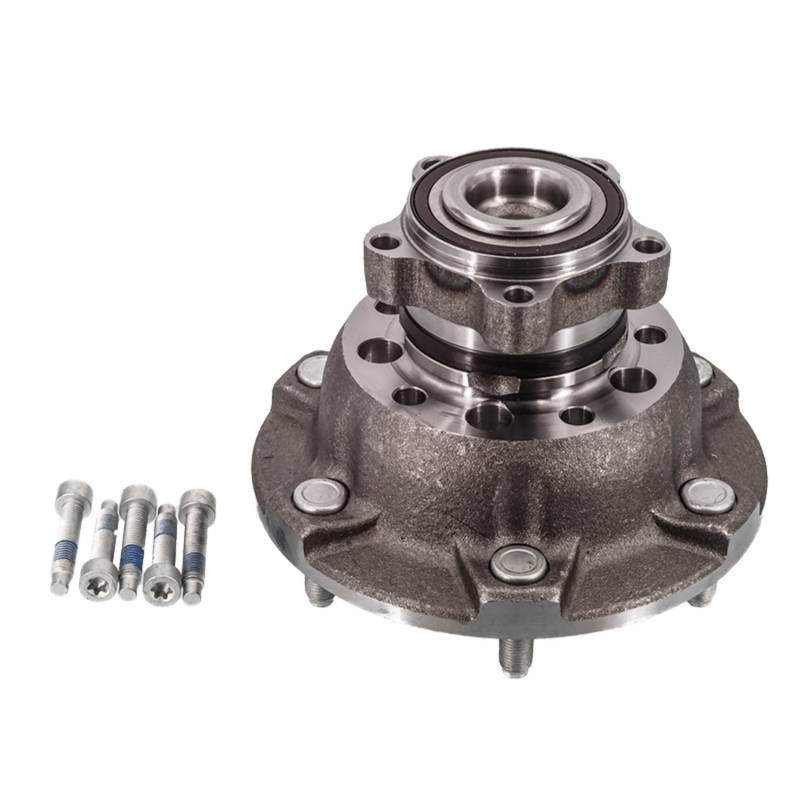

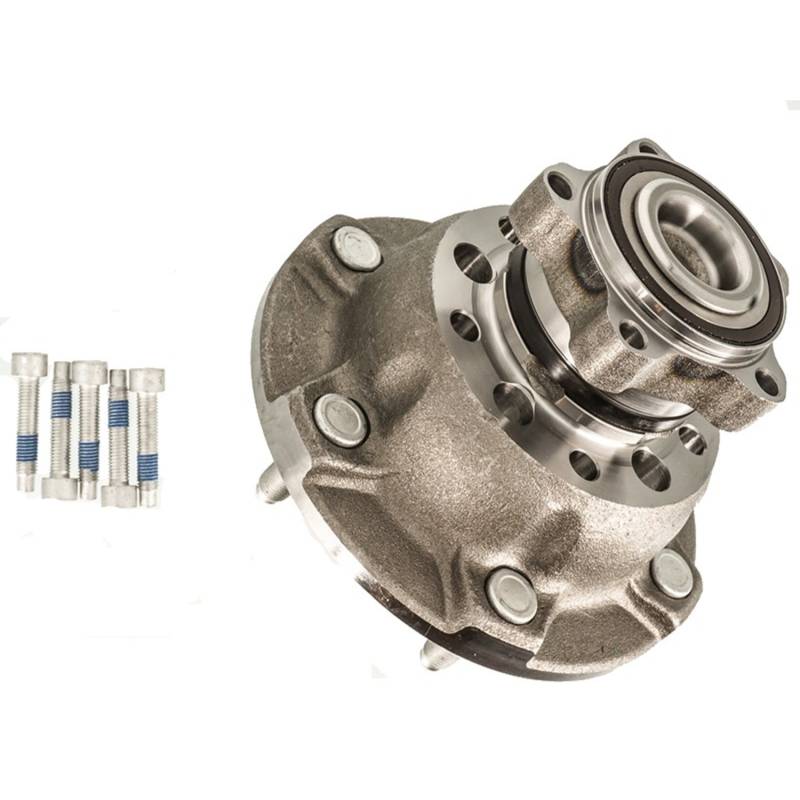

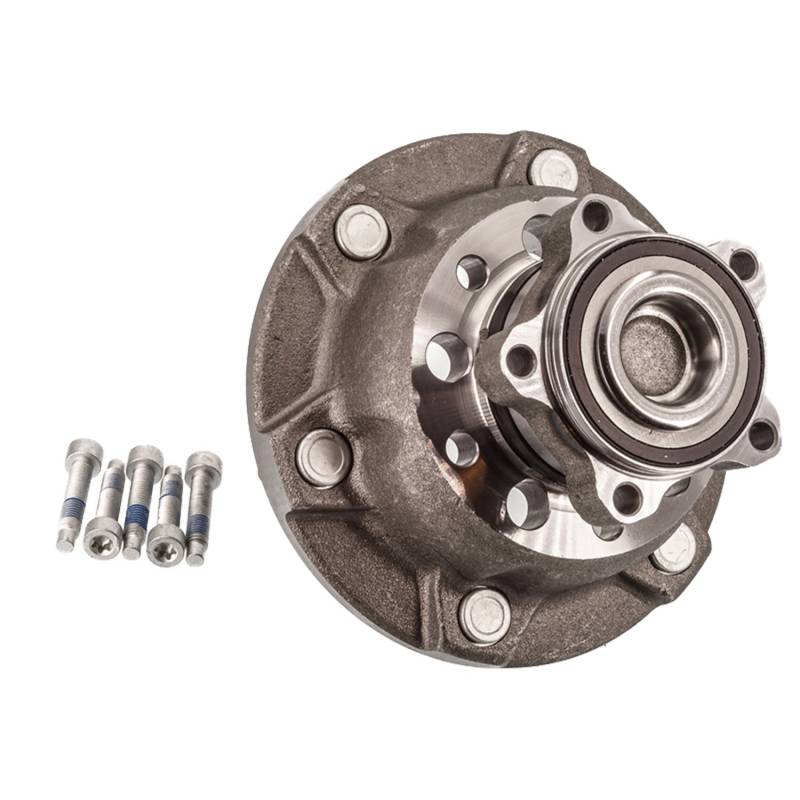

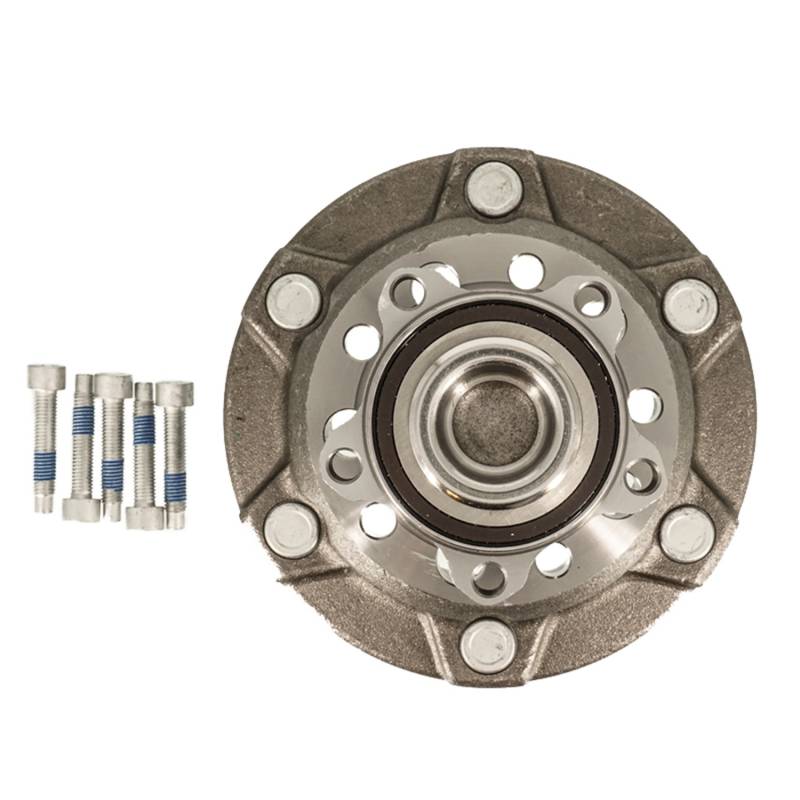

PRODUCT TYPE: HUB ASSEMBLY

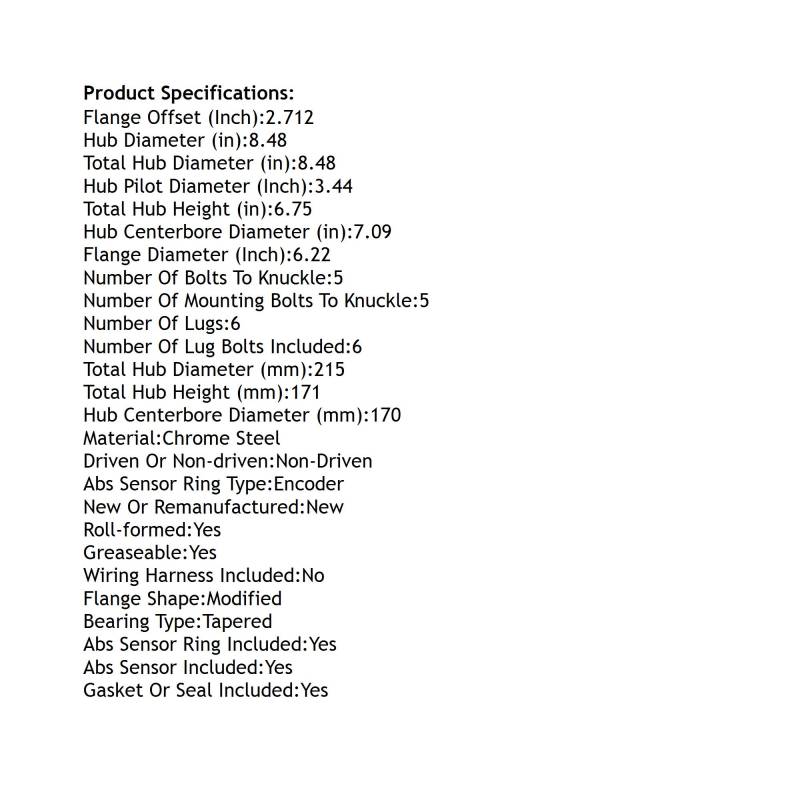

SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: ENCODER
BEARING TYPE: TAPERED
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE DIAMETER (INCH): 6.22
FLANGE OFFSET (INCH): 2.712
FLANGE SHAPE: MODIFIED
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 7.09
HUB CENTERBORE DIAMETER (MM): 170
HUB DIAMETER (IN): 8.48
HUB PILOT DIAMETER (INCH): 3.44
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLTS TO KNUCKLE: 5
NUMBER OF LUG BOLTS INCLUDED: 6
NUMBER OF LUGS: 6
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 5
ROLL-FORMED: YES
TOTAL HUB DIAMETER (IN): 8.48
TOTAL HUB DIAMETER (MM): 215
TOTAL HUB HEIGHT (IN): 6.75
TOTAL HUB HEIGHT (MM): 171
WIRING HARNESS INCLUDED: NO
REPLACES:
AUTOPART INTERNATIONAL: 1411-605367 1411-686602
CENTRIC PARTS: 40765013
COAST TO COAST: 515152
FAG US: 585805
FORD: CK4Z 1104 D CK4Z-1104-F
GSP: 116152
MOOG HUB ASSEMBLIES: 515152
MOTORCRAFT: HUB422
NAPA: PBR930937
APPLICATIONS:
FORD TRANSIT-350 HD (2015-2019)
FORD TRANSIT-350 (2015-2018)
FORD TRANSIT-250 (2017-2017)
