THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

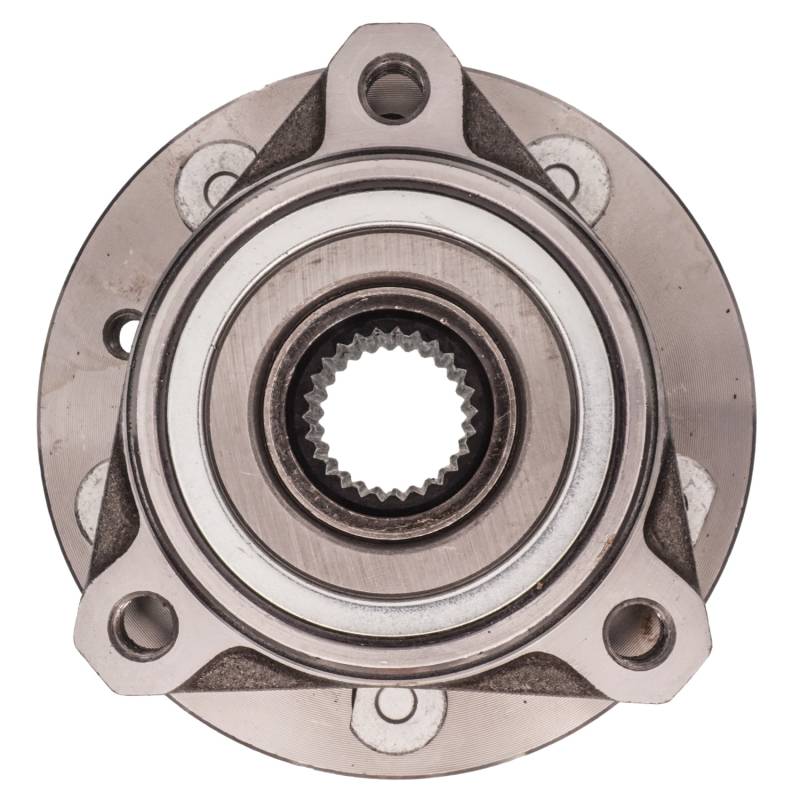

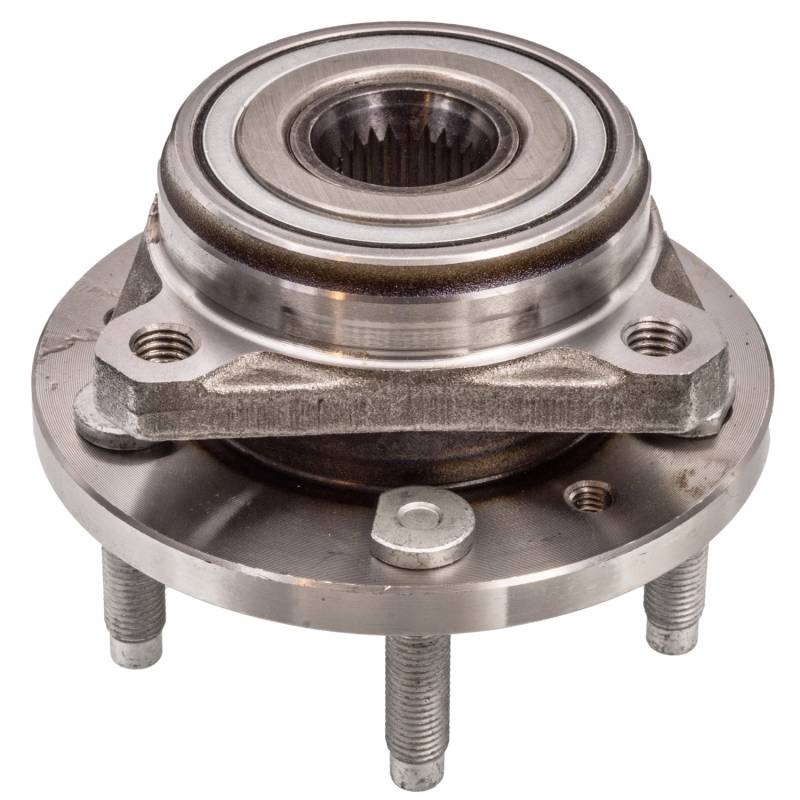

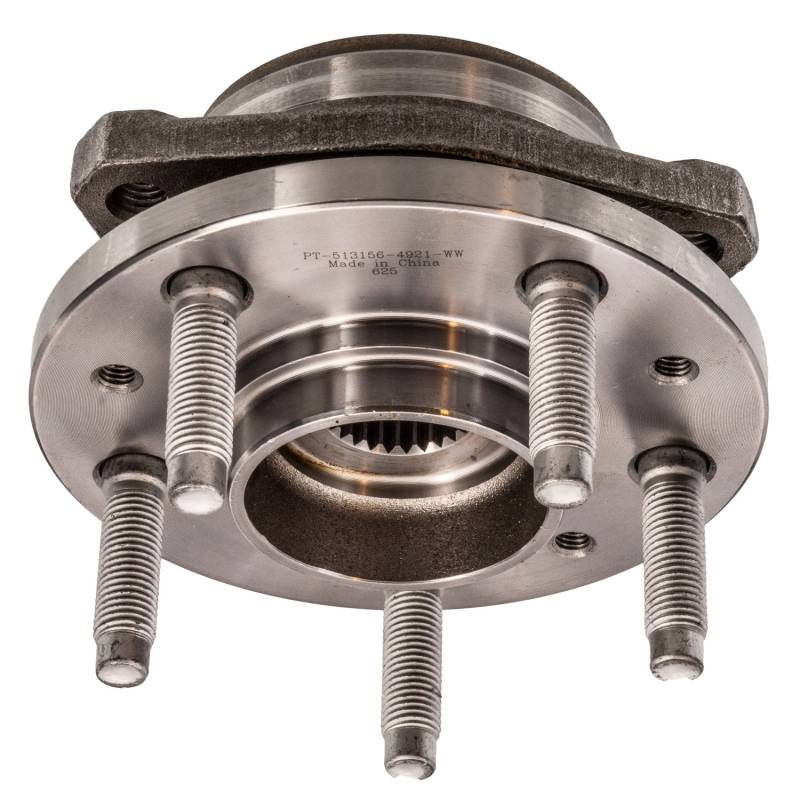

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

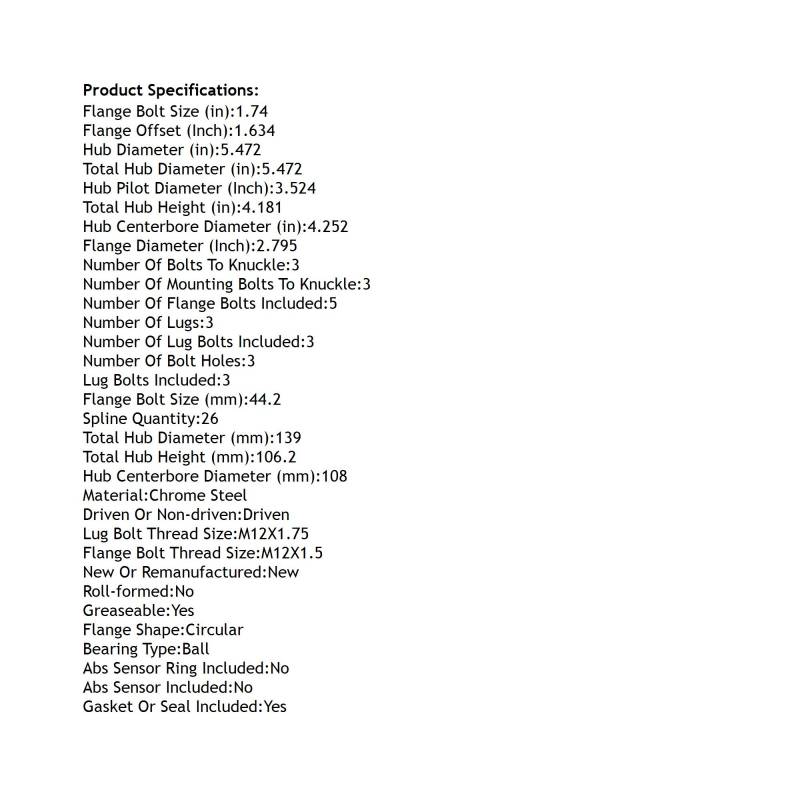

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.74
FLANGE BOLT SIZE (MM): 44.2
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 2.795
FLANGE OFFSET (INCH): 1.634
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.252
HUB CENTERBORE DIAMETER (MM): 108
HUB DIAMETER (IN): 5.472
HUB PILOT DIAMETER (INCH): 3.524
LUG BOLT THREAD SIZE: M12X1.75
LUG BOLTS INCLUDED: 3
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLT HOLES: 3
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 3
NUMBER OF LUGS: 3
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
ROLL-FORMED: NO
SPLINE QUANTITY: 26
TOTAL HUB DIAMETER (IN): 5.472
TOTAL HUB DIAMETER (MM): 139
TOTAL HUB HEIGHT (IN): 4.181
TOTAL HUB HEIGHT (MM): 106.2
REPLACES:
OTHER PART NUMBER: PT513156
SKF: BR930246
TIMKEN: 513156
AUTOPART INTERNATIONAL: 1411-45597
BCA: WE61521
CENTRIC PARTS: 40061003E
FAG US: 559360D
FORD: 1F2Z 1104 AB
GSP: 114156
MEVOTECH: H513156
MOOG HUB ASSEMBLIES: 513156
MOTORCRAFT: HUB78
NAPA: PBR930246
APPLICATIONS:
FORD WINDSTAR (1999-2003)
