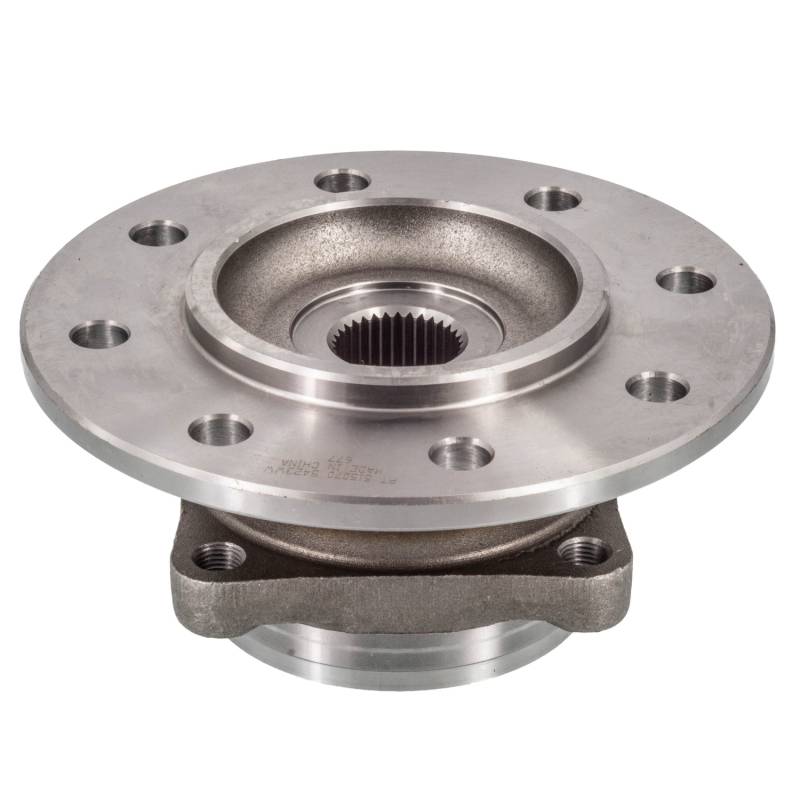

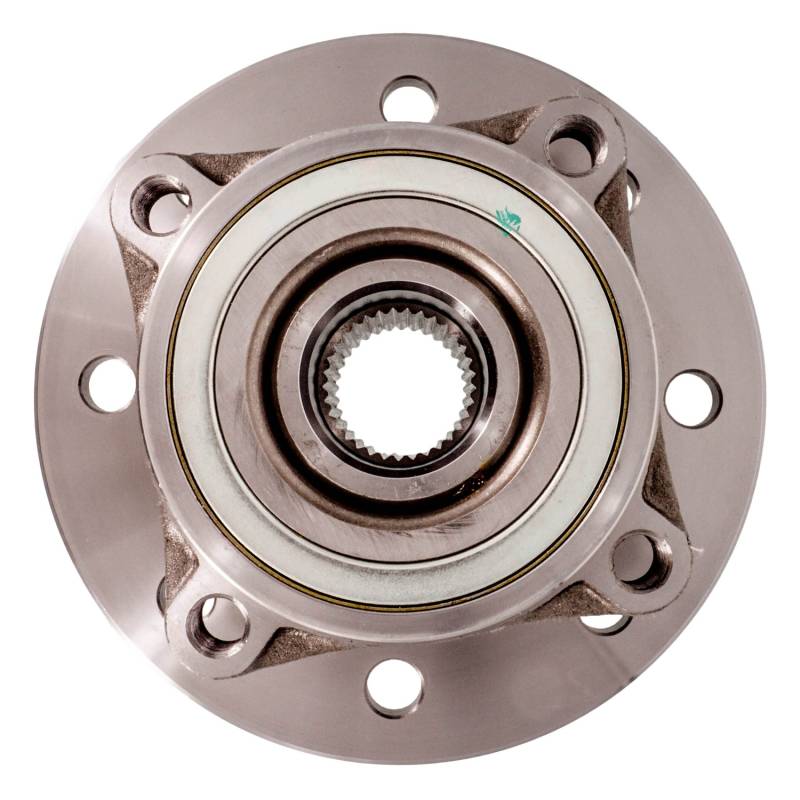

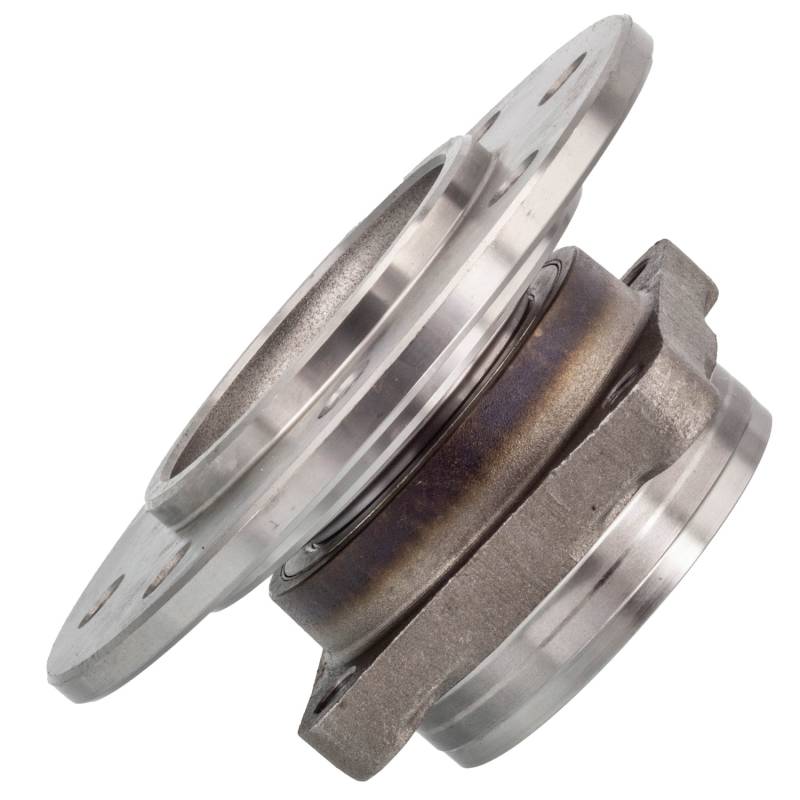

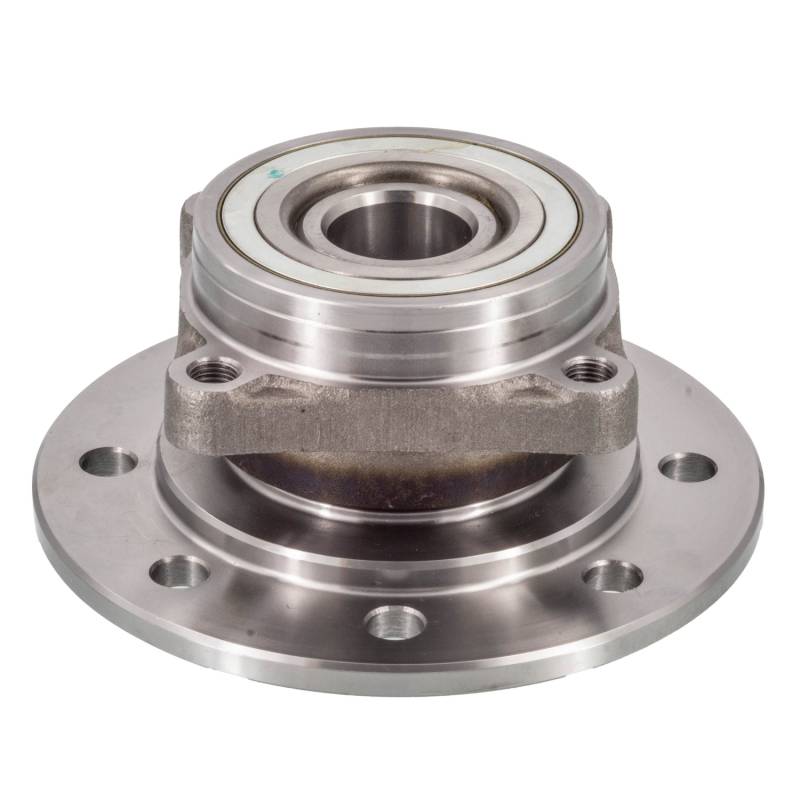

New Hub Assembly Compatible With Dodge Ram 3500 Ram 3500 Van 5.2L 5.9L 8.0L 1994 1995 1996 1997 1998

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

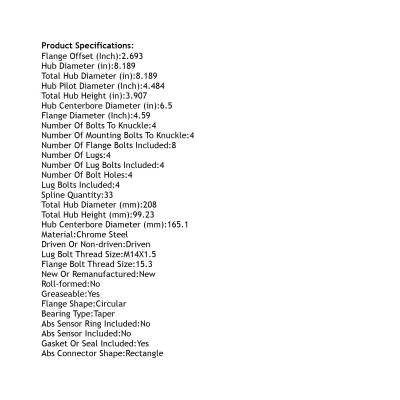

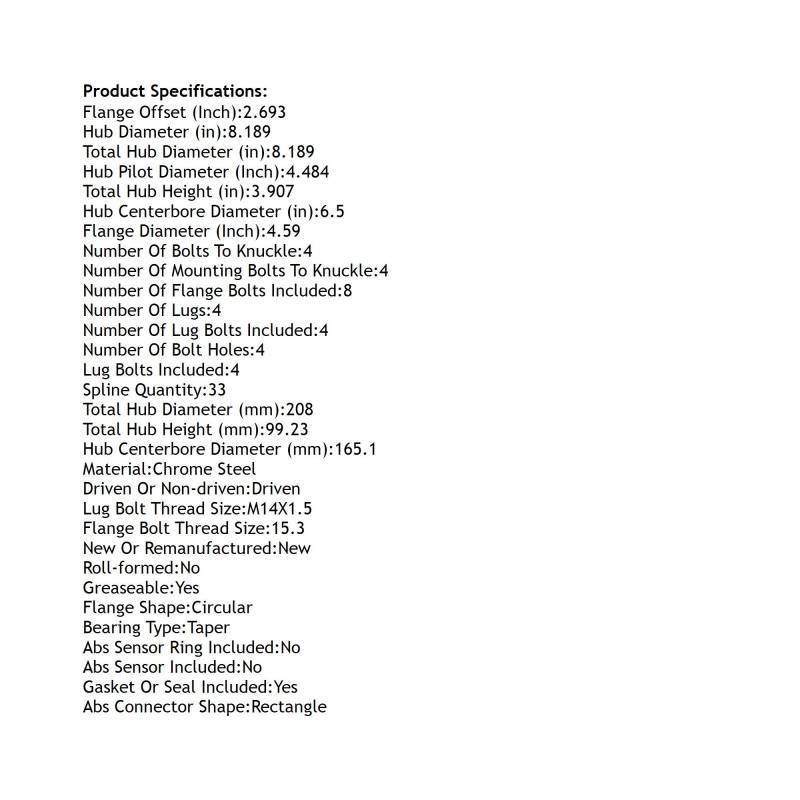

SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
BEARING TYPE: TAPER
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT THREAD SIZE: 15.3
FLANGE DIAMETER (INCH): 4.59
FLANGE OFFSET (INCH): 2.693
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 6.5
HUB CENTERBORE DIAMETER (MM): 165.1
HUB DIAMETER (IN): 8.189
HUB PILOT DIAMETER (INCH): 4.484
LUG BOLT THREAD SIZE: M14X1.5
LUG BOLTS INCLUDED: 4
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLT HOLES: 4
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 8
NUMBER OF LUG BOLTS INCLUDED: 4
NUMBER OF LUGS: 4
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: NO
SPLINE QUANTITY: 33
TOTAL HUB DIAMETER (IN): 8.189
TOTAL HUB DIAMETER (MM): 208
TOTAL HUB HEIGHT (IN): 3.907
TOTAL HUB HEIGHT (MM): 99.23

REPLACES:
AUTOPART INTERNATIONAL: 1411-44716
BCA: WE61196
CENTRIC PARTS: 40067011
FAG US: 102010
GSP: 126070
MEVOTECH: H515070
MOOG HUB ASSEMBLIES: 515070
NAPA: PBR930451

APPLICATIONS:
DODGE RAM 3500 (1994-1999)
DODGE RAM 3500 VAN (1996-1999)
