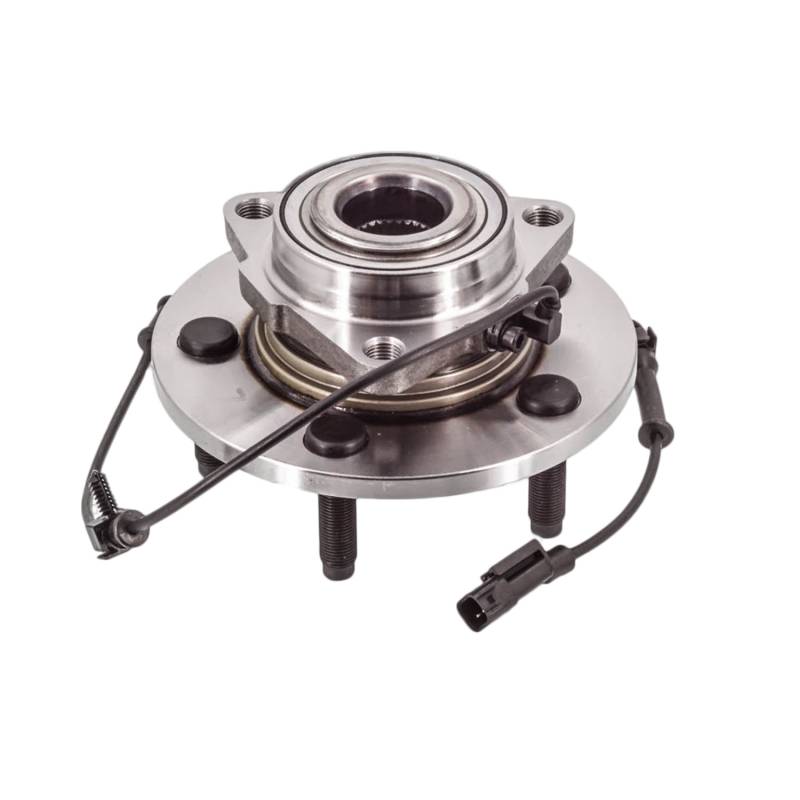

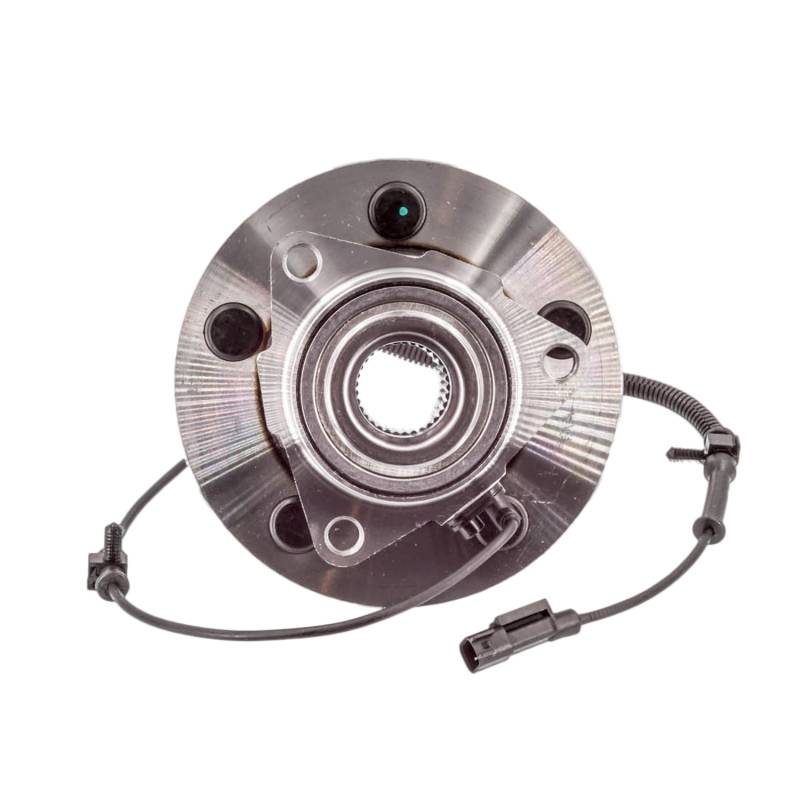

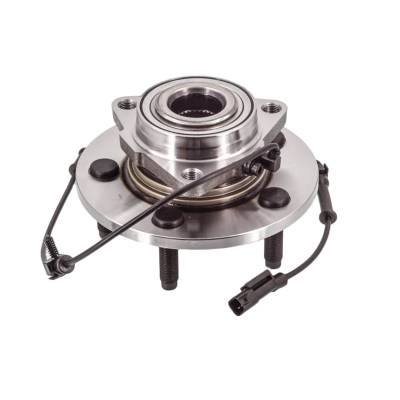

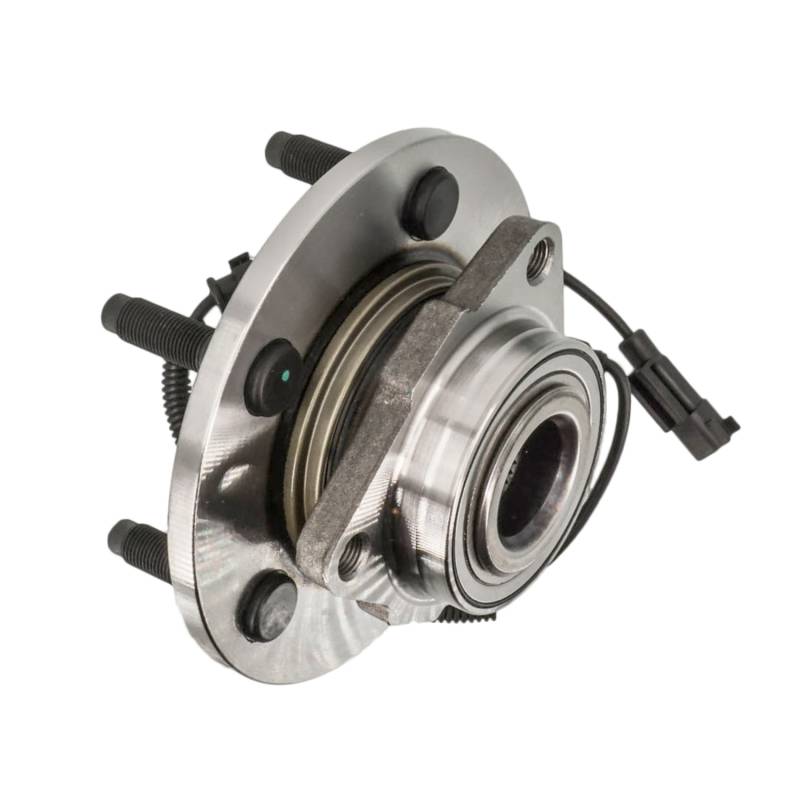

New Hub Assembly Compatible With Dodge Ram Ram 1500 1500 3.7L 4.7L 5.7L 2009 2010 2011 By Part

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

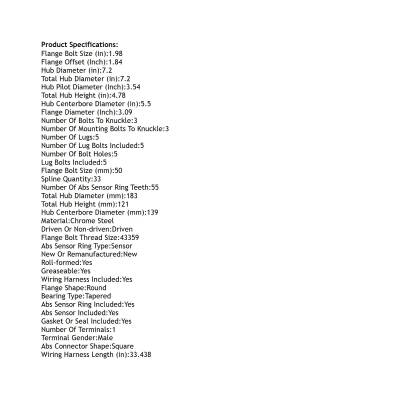

SPECIFICATIONS:
ABS CONNECTOR SHAPE: SQUARE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: TAPERED
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.98
FLANGE BOLT SIZE (MM): 50
FLANGE BOLT THREAD SIZE: 43359
FLANGE DIAMETER (INCH): 3.09
FLANGE OFFSET (INCH): 1.84
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 5.5
HUB CENTERBORE DIAMETER (MM): 139
HUB DIAMETER (IN): 7.2
HUB PILOT DIAMETER (INCH): 3.54
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 55
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
SPLINE QUANTITY: 33
TERMINAL GENDER: MALE
TOTAL HUB DIAMETER (IN): 7.2
TOTAL HUB DIAMETER (MM): 183
TOTAL HUB HEIGHT (IN): 4.78
TOTAL HUB HEIGHT (MM): 121
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 33.438

REPLACES:
AUTOPART INTERNATIONAL: 1411-424854
BCA: WE61050
CENTRIC PARTS: 40267020E 40267020
FAG US: 102172
GSP: 126126HD
MEVOTECH: H515126
MOOG HUB ASSEMBLIES: 515126
NAPA: PBR930808

APPLICATIONS:
DODGE RAM 1500 (2009-2010)
RAM 1500 (2011-2011)
