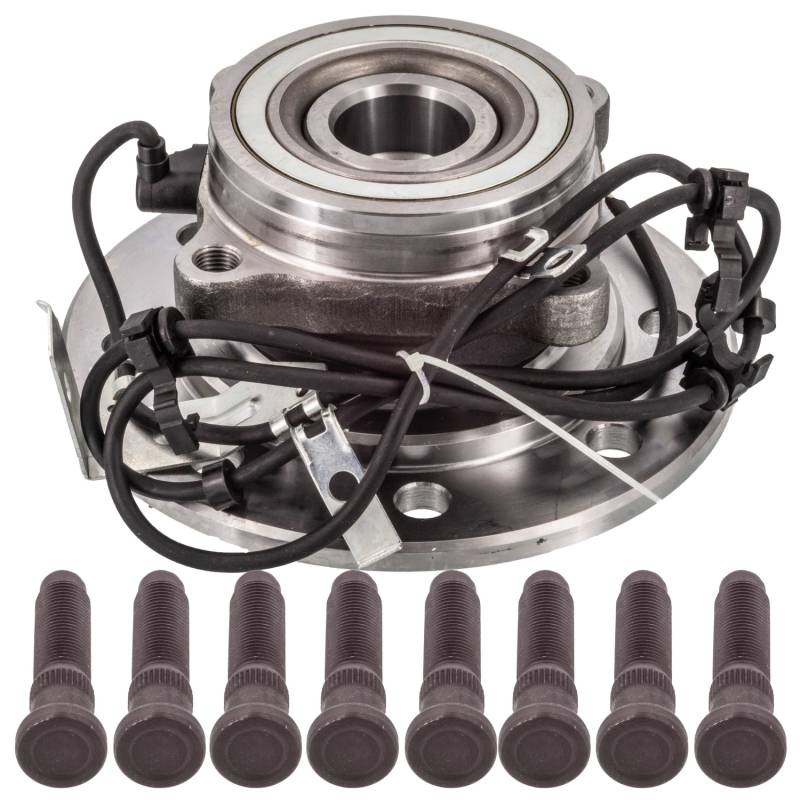

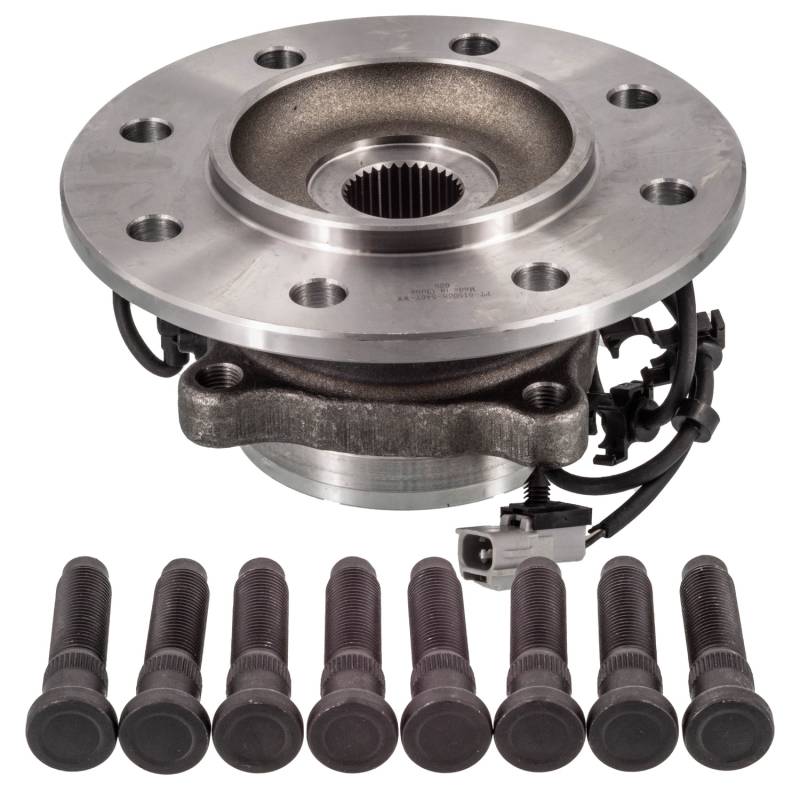

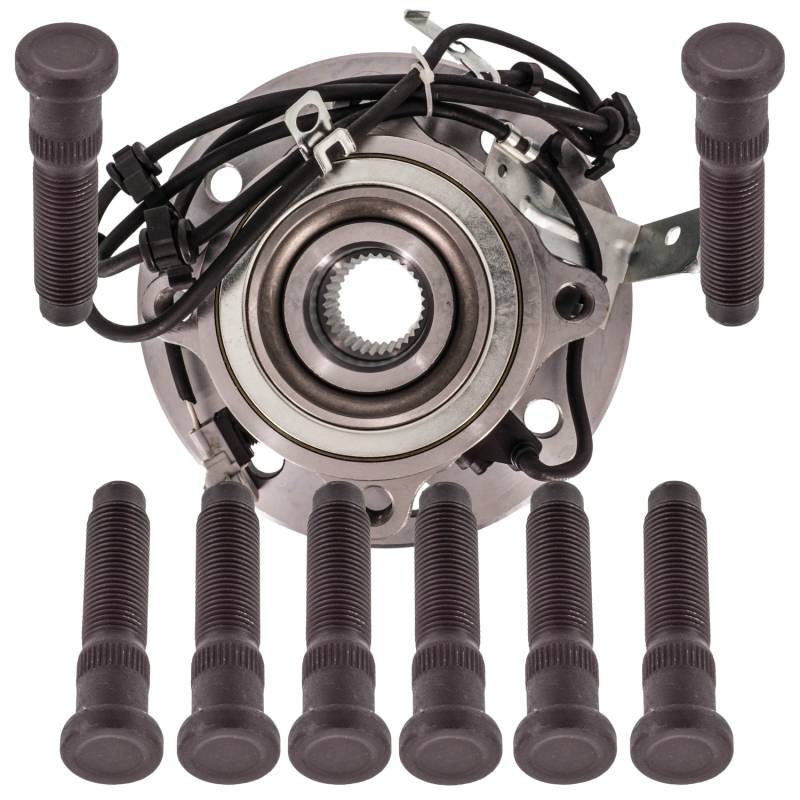

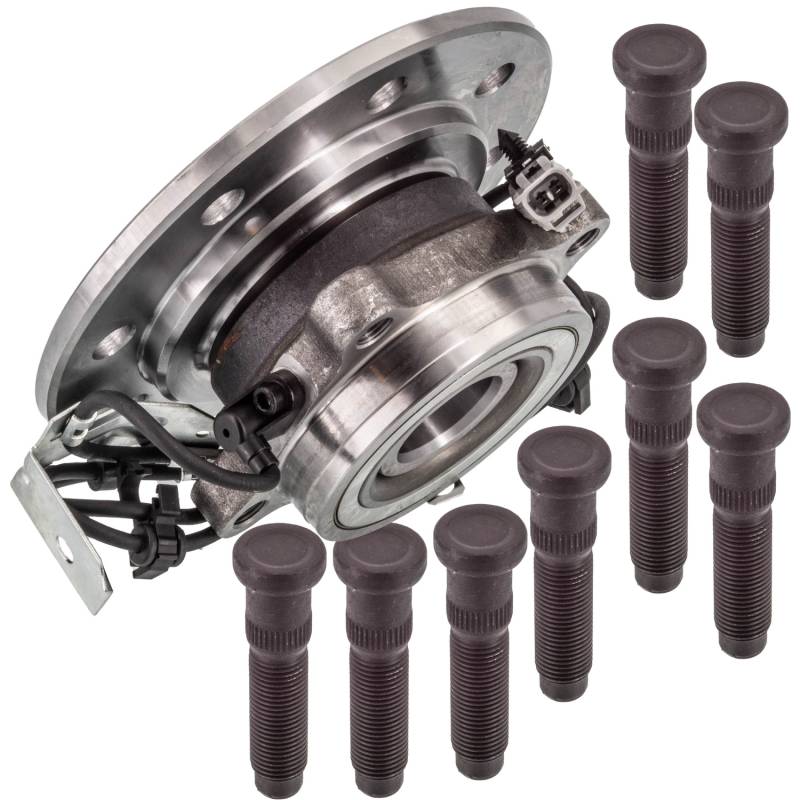

New Hub Assembly Compatible With Dodge Ram 3500 Ram 3500 Van 5.2L 5.9L 8.0L 1994 1995 1996 1997 1998

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

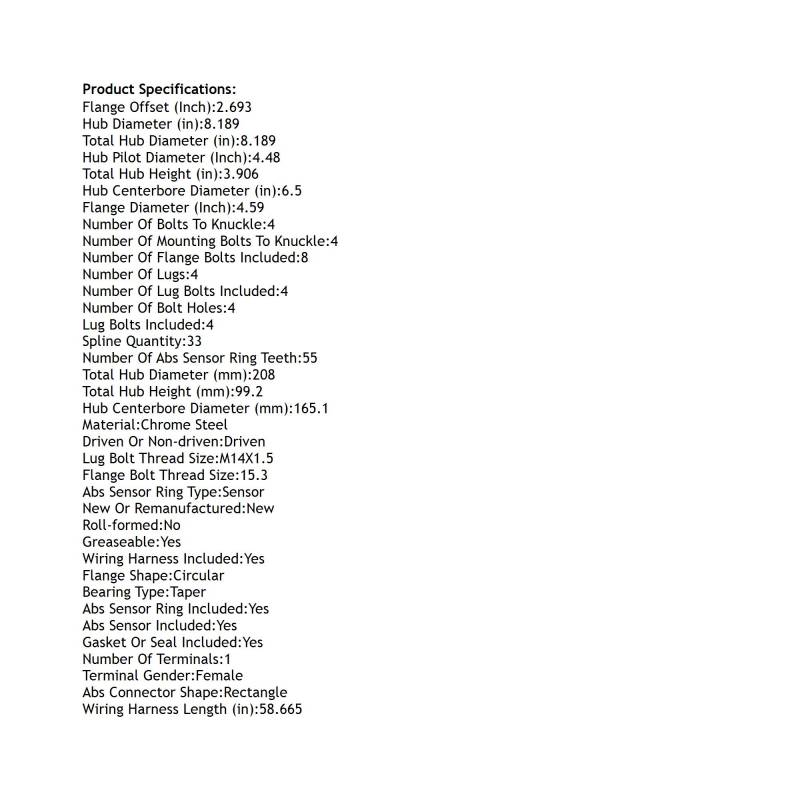

SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: TAPER
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT THREAD SIZE: 15.3
FLANGE DIAMETER (INCH): 4.59
FLANGE OFFSET (INCH): 2.693
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 6.5
HUB CENTERBORE DIAMETER (MM): 165.1
HUB DIAMETER (IN): 8.189
HUB PILOT DIAMETER (INCH): 4.48
LUG BOLT THREAD SIZE: M14X1.5
LUG BOLTS INCLUDED: 4
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 55
NUMBER OF BOLT HOLES: 4
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 8
NUMBER OF LUG BOLTS INCLUDED: 4
NUMBER OF LUGS: 4
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 1
ROLL-FORMED: NO
SPLINE QUANTITY: 33
TERMINAL GENDER: FEMALE
TOTAL HUB DIAMETER (IN): 8.189
TOTAL HUB DIAMETER (MM): 208
TOTAL HUB HEIGHT (IN): 3.906
TOTAL HUB HEIGHT (MM): 99.2
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 58.665

REPLACES:
AUTOPART INTERNATIONAL: 1411-44709
BCA: WE61377
CENTRIC PARTS: 40267013
FAG US: 102191
GSP: 126068
MEVOTECH: H515068
MOOG HUB ASSEMBLIES: 515068
NAPA: PBR930491

APPLICATIONS:
DODGE RAM 3500 (1994-1999)
DODGE RAM 3500 VAN (1996-1999)
