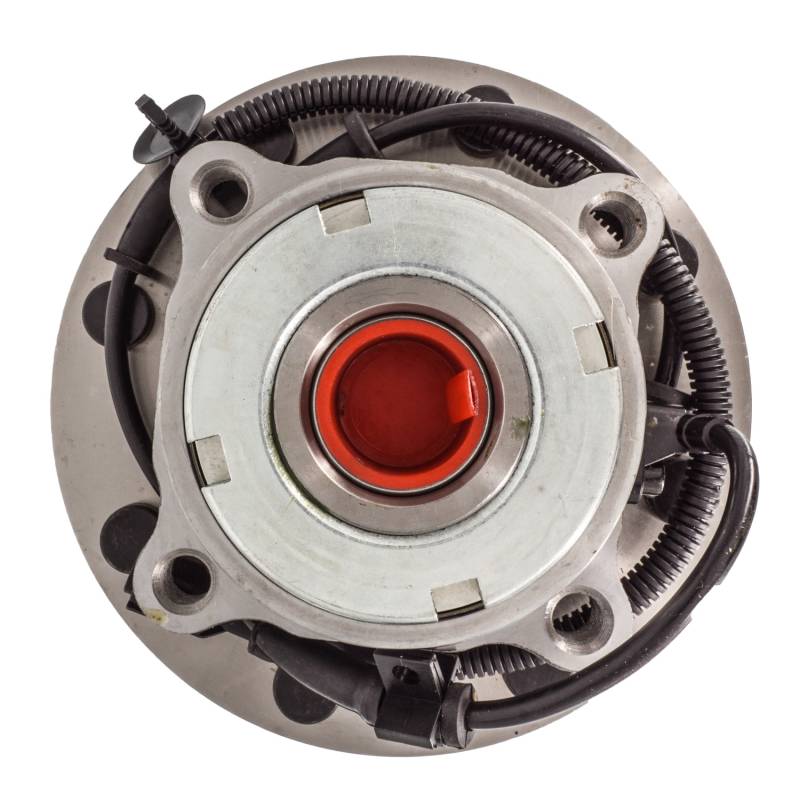

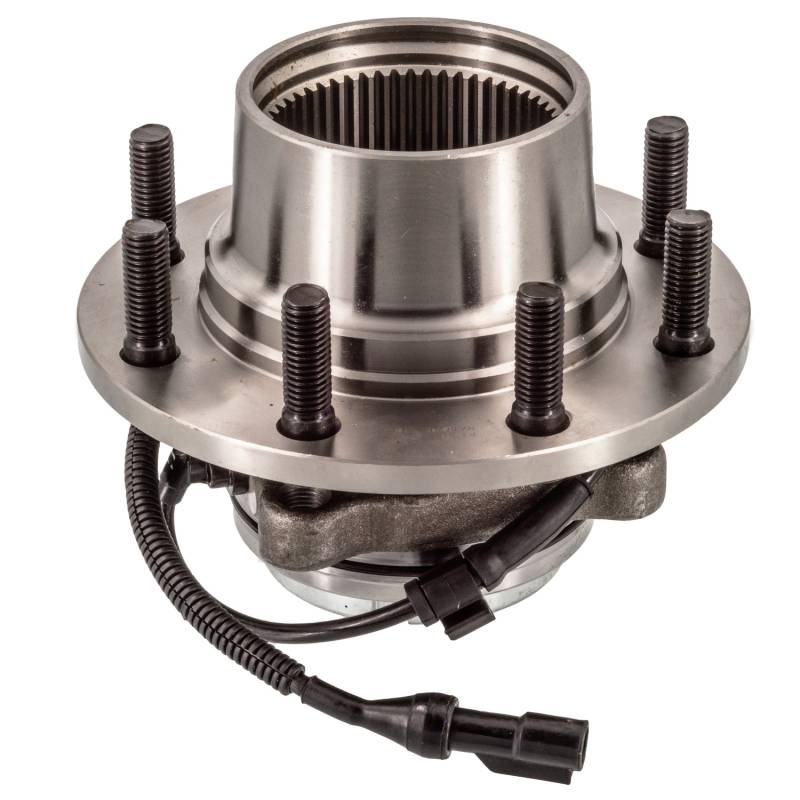

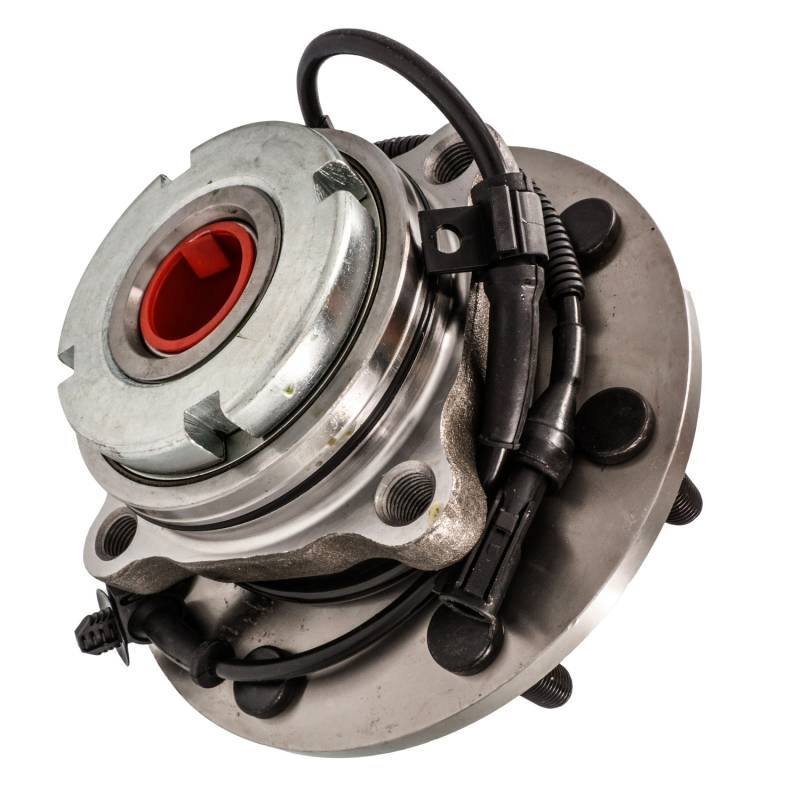

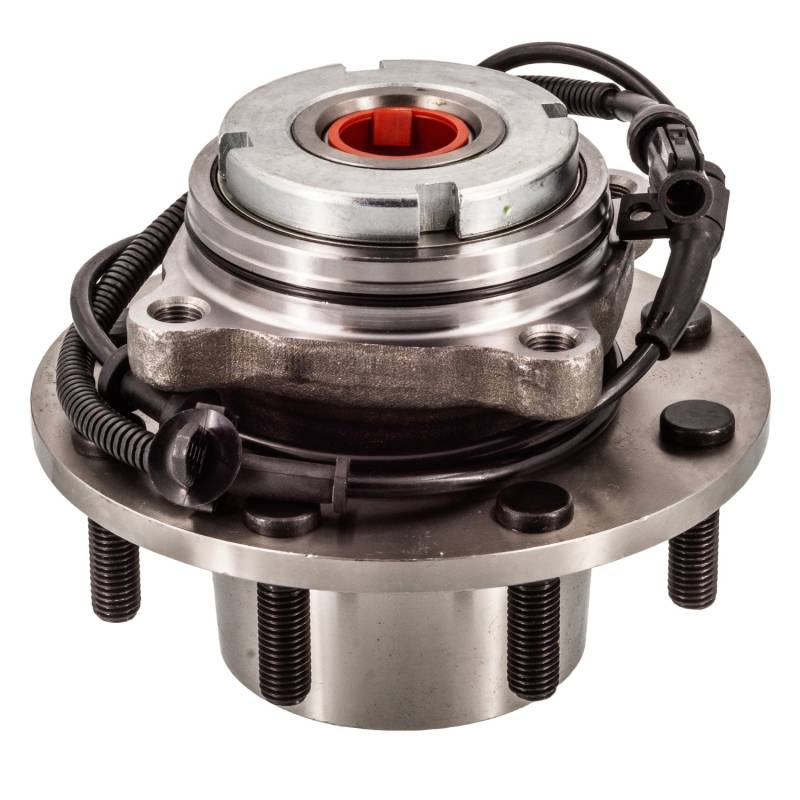

New Front Hub Assembly Compatible With Ford F-250 Super Duty 1999 4Wd F-350 Super Duty 1999 4Wd

    • Free Shipping!
    MSRP $297.24
    Price: $169.85
    Save: 43%
    Save: $127.39
    (0) Reviews: Write first review
    PT515077-PIO
    Qty:

    PRODUCT NOTICE:
    As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

    WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

    Description

    PRODUCT TYPE: HUB ASSEMBLY

    SPECIFICATIONS:
    ABS CONNECTOR SHAPE: RECTANGLE
    ABS SENSOR INCLUDED: YES
    ABS SENSOR RING INCLUDED: YES
    ABS SENSOR RING TYPE: SENSOR
    BEARING TYPE: TAPER
    DRIVEN OR NON-DRIVEN: DRIVEN
    FLANGE BOLT SIZE (IN): 1.654
    FLANGE BOLT SIZE (MM): 42
    FLANGE BOLT THREAD SIZE: M14X2
    FLANGE DIAMETER (INCH): 5.077
    FLANGE OFFSET (INCH): 2.028
    FLANGE SHAPE: CIRCULAR
    GASKET OR SEAL INCLUDED: YES
    GREASEABLE: YES
    HUB CENTERBORE DIAMETER (IN): 6.693
    HUB CENTERBORE DIAMETER (MM): 170
    HUB DIAMETER (IN): 7.992
    HUB PILOT DIAMETER (INCH): 4.48
    LUG BOLT THREAD SIZE: M14X1.5
    LUG BOLTS INCLUDED: 4
    MATERIAL: CHROME STEEL
    NEW OR REMANUFACTURED: NEW
    NUMBER OF ABS SENSOR RING TEETH: 60
    NUMBER OF BOLT HOLES: 4
    NUMBER OF BOLTS TO KNUCKLE: 4
    NUMBER OF FLANGE BOLTS INCLUDED: 8
    NUMBER OF LUG BOLTS INCLUDED: 4
    NUMBER OF LUGS: 4
    NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
    NUMBER OF TERMINALS: 1
    ROLL-FORMED: YES
    SPLINE QUANTITY: 55
    TERMINAL GENDER: FEMALE
    TOTAL HUB DIAMETER (IN): 7.992
    TOTAL HUB DIAMETER (MM): 203
    TOTAL HUB HEIGHT (IN): 6.195
    TOTAL HUB HEIGHT (MM): 157.35
    WIRING HARNESS INCLUDED: YES
    WIRING HARNESS LENGTH (IN): 47.244

    REPLACES:
    AUTOPART INTERNATIONAL: 1411-44717
    BCA: WE61906
    CENTRIC PARTS: 40265022
    FAG US: 102195
    GSP: 126077
    MEVOTECH: H515077
    MOOG HUB ASSEMBLIES: 515077
    NAPA: PBR930425

    THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

    FORD F-450 SUPER DUTY 1999 4-WHEEL ABS 4 X 4
    FORD F-550 SUPER DUTY 1999 4-WHEEL ABS 4 X 4
    FORD F-250 SUPER DUTY 1999 4-WHEEL ABS 4WD
    FORD F-350 SUPER DUTY 1999 4-WHEEL ABS 4WD
