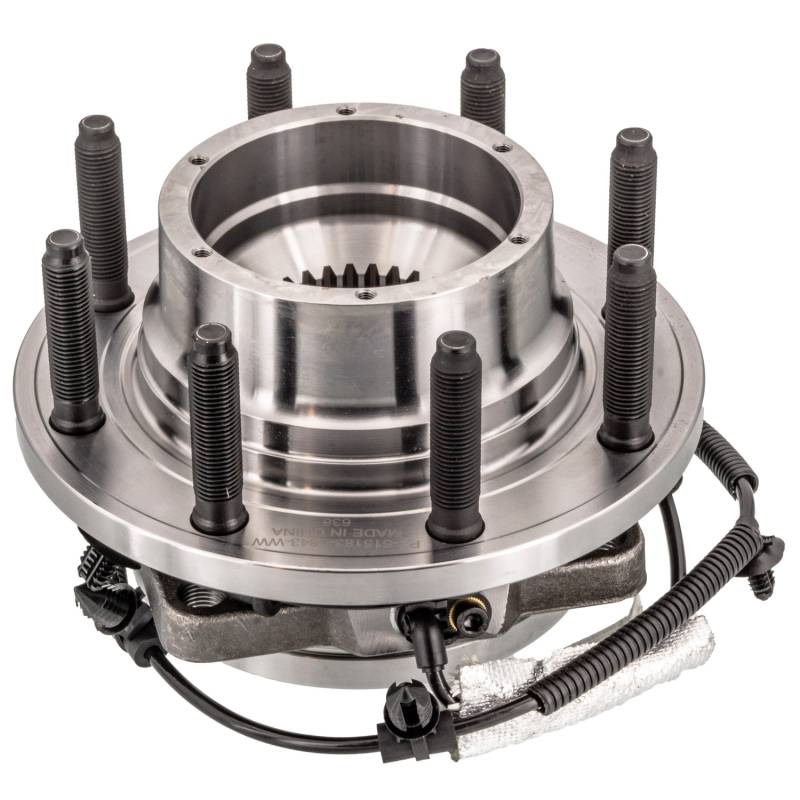

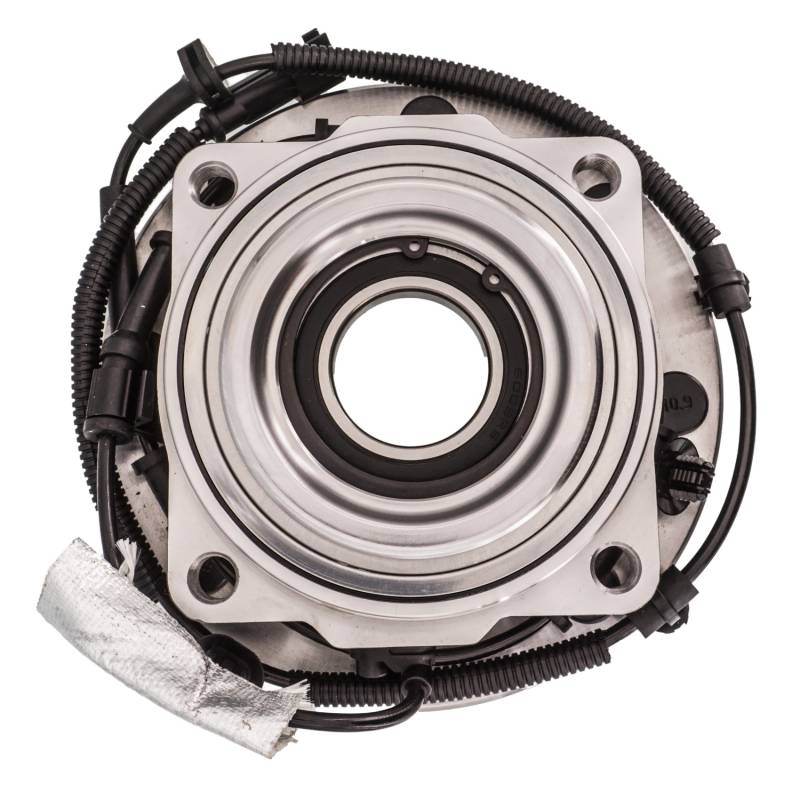

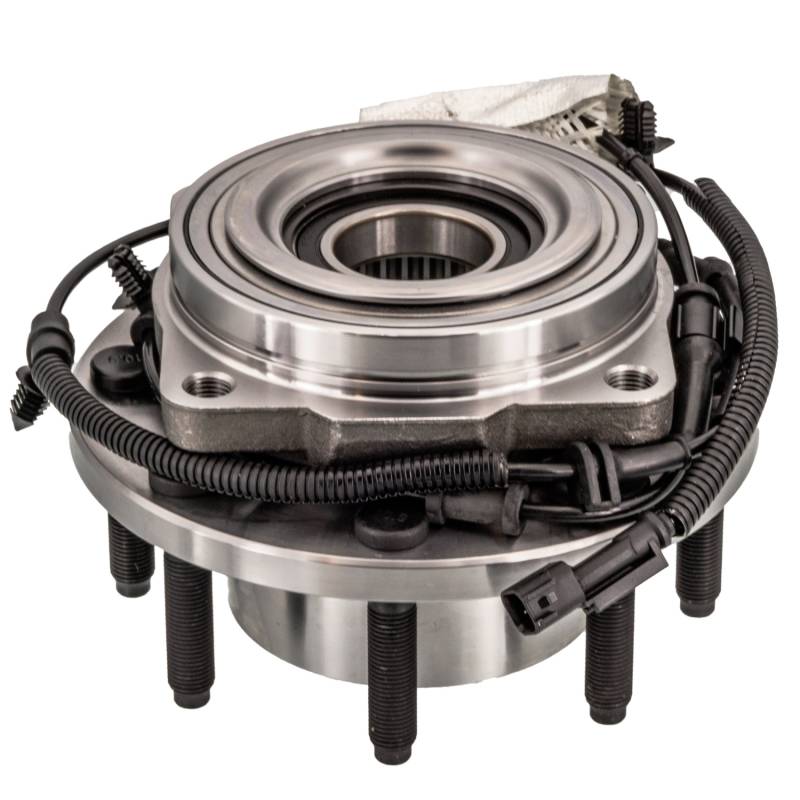

New Front Hub Assembly Compatible With Ford F-250 Super Duty 2017-2022 F-350 Super Duty 2017-2022

PRODUCT TYPE: HUB ASSEMBLY

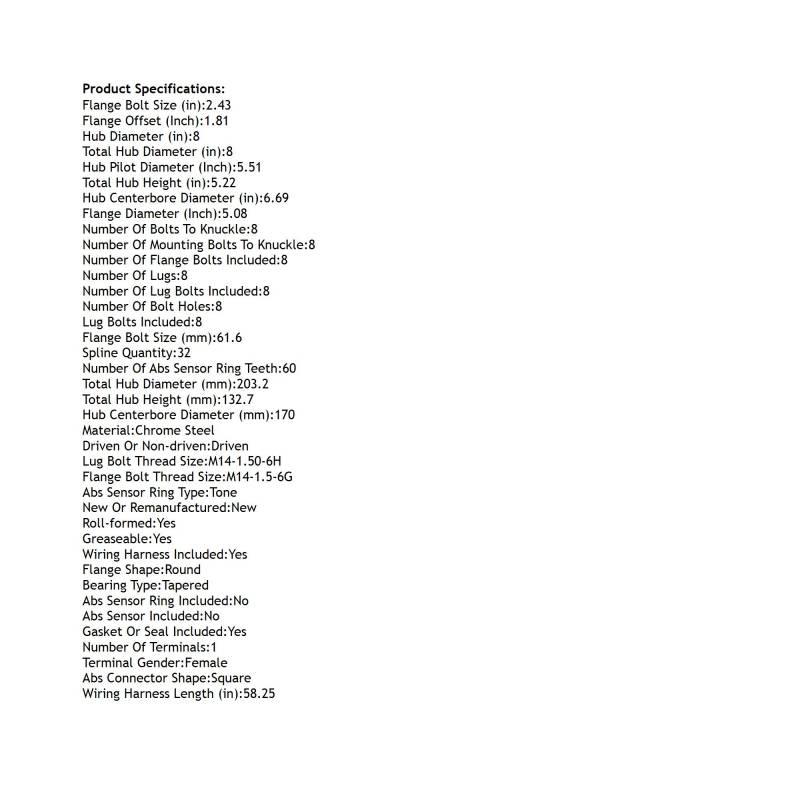

SPECIFICATIONS:
ABS CONNECTOR SHAPE: SQUARE
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
ABS SENSOR RING TYPE: TONE
BEARING TYPE: TAPERED
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 2.43
FLANGE BOLT SIZE (MM): 61.6
FLANGE BOLT THREAD SIZE: M14-1.5-6G
FLANGE DIAMETER (INCH): 5.08
FLANGE OFFSET (INCH): 1.81
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 6.69
HUB CENTERBORE DIAMETER (MM): 170
HUB DIAMETER (IN): 8
HUB PILOT DIAMETER (INCH): 5.51
LUG BOLT THREAD SIZE: M14-1.50-6H
LUG BOLTS INCLUDED: 8
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 60
NUMBER OF BOLT HOLES: 8
NUMBER OF BOLTS TO KNUCKLE: 8
NUMBER OF FLANGE BOLTS INCLUDED: 8
NUMBER OF LUG BOLTS INCLUDED: 8
NUMBER OF LUGS: 8
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 8
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
SPLINE QUANTITY: 32
TERMINAL GENDER: FEMALE
TOTAL HUB DIAMETER (IN): 8
TOTAL HUB DIAMETER (MM): 203.2
TOTAL HUB HEIGHT (IN): 5.22
TOTAL HUB HEIGHT (MM): 132.7
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 58.25

REPLACES:
AUTOPART INTERNATIONAL: 1411-605381
BCA: WE61854
FORD: HC3Z 1104 C
GSP: 531253
MOOG HUB ASSEMBLIES: 515183
MOTORCRAFT: HC3Z1104C HUB344
NAPA: PBR930963

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

FORD F-250 SUPER DUTY 2017–2022 4WD
FORD F-350 SUPER DUTY 2017–2022 4WD
