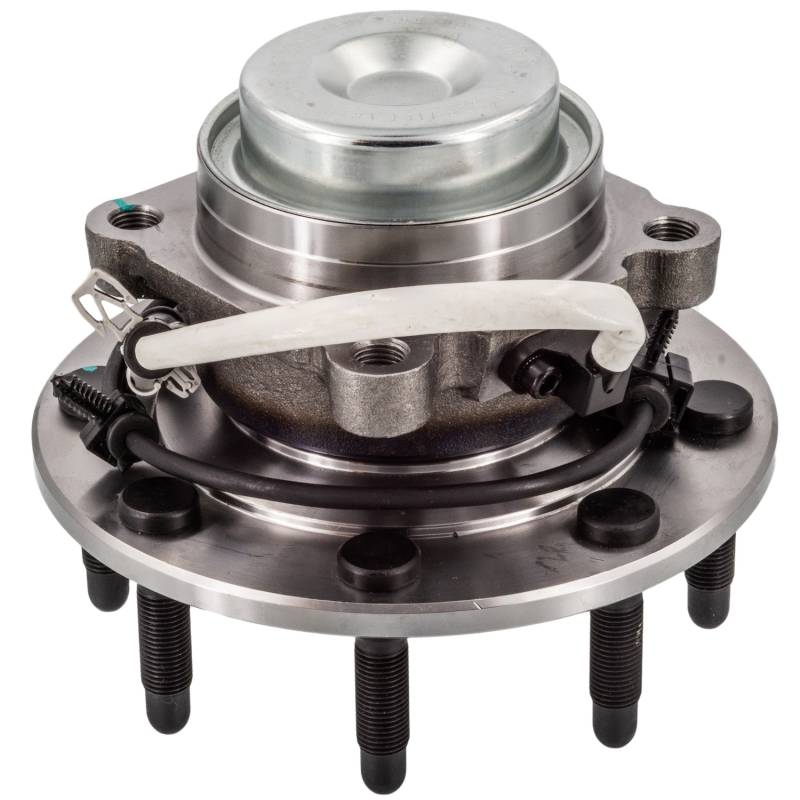

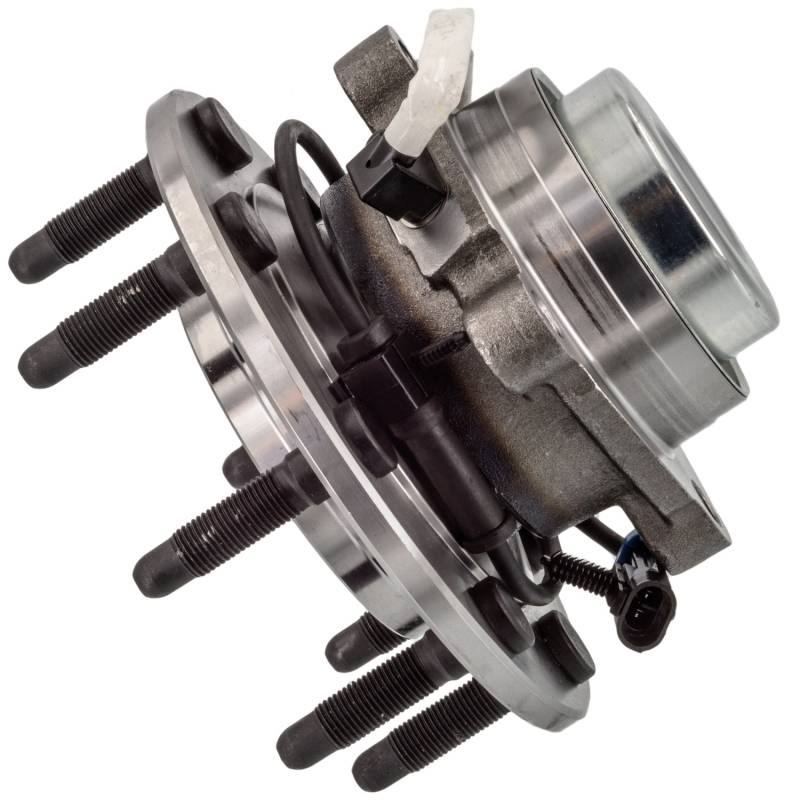

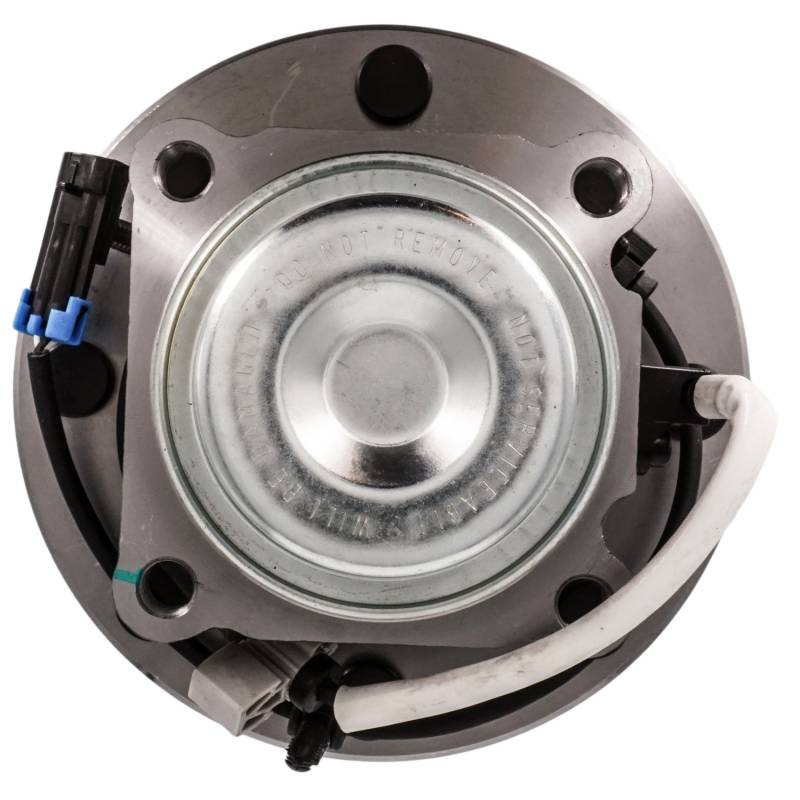

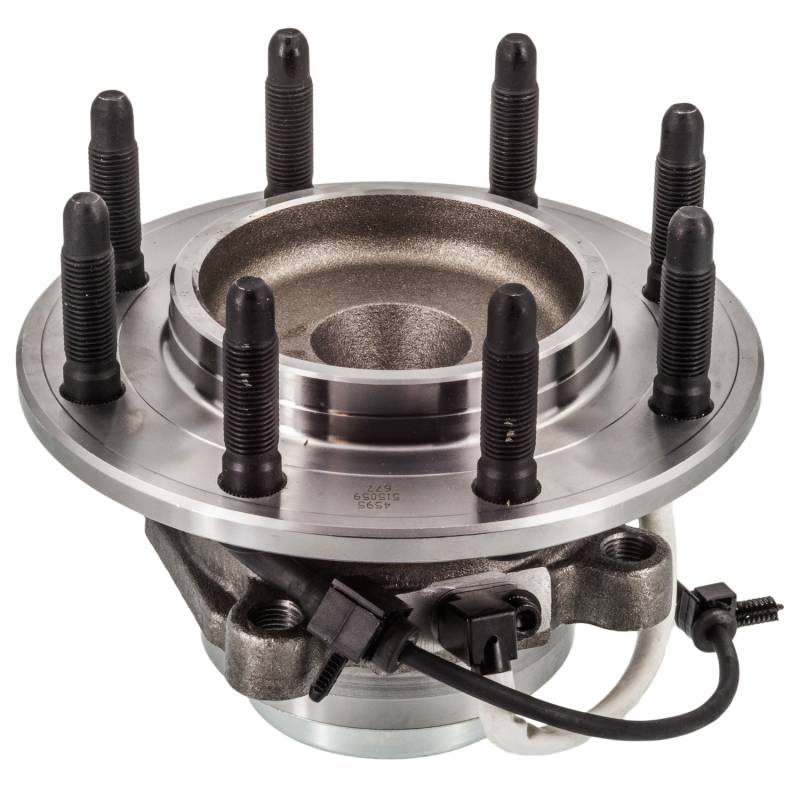

New Front Hub Assembly Compatible With Gmc Chevrolet Savana 2500 2003-2005 Yukon Xl 2500 2000

PRODUCT TYPE: HUB ASSEMBLY

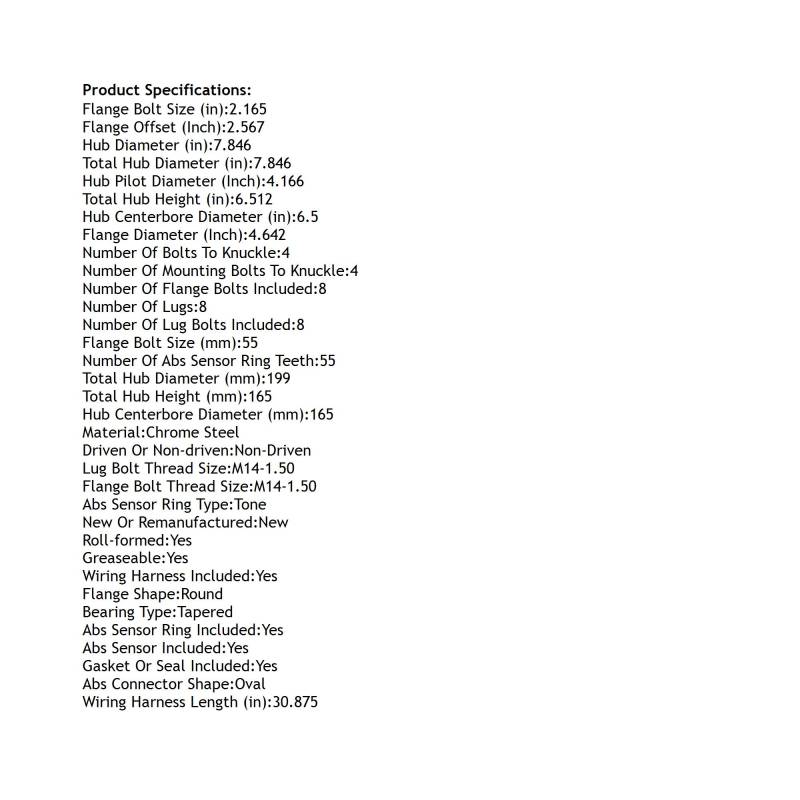

SPECIFICATIONS:
ABS CONNECTOR SHAPE: OVAL
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE
BEARING TYPE: TAPERED
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 2.165
FLANGE BOLT SIZE (MM): 55
FLANGE BOLT THREAD SIZE: M14-1.50
FLANGE DIAMETER (INCH): 4.642
FLANGE OFFSET (INCH): 2.567
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 6.5
HUB CENTERBORE DIAMETER (MM): 165
HUB DIAMETER (IN): 7.846
HUB PILOT DIAMETER (INCH): 4.166
LUG BOLT THREAD SIZE: M14-1.50
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 55
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 8
NUMBER OF LUG BOLTS INCLUDED: 8
NUMBER OF LUGS: 8
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: YES
TOTAL HUB DIAMETER (IN): 7.846
TOTAL HUB DIAMETER (MM): 199
TOTAL HUB HEIGHT (IN): 6.512
TOTAL HUB HEIGHT (MM): 165
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 30.875

REPLACES:
ACDELCO: 85137056 FW246 FW419
AUTOPART INTERNATIONAL: 1411-49072
BCA: WE61343
CENTRIC PARTS: 40766004
FAG US: 102004
GENERAL MOTORS: 18061146 84231007
GSP: 106059
MEVOTECH: H515059
MOOG HUB ASSEMBLIES: 515059
NAPA: PBR930352

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

CHEVROLET EXPRESS 2500 2003–2005 RWD
CHEVROLET EXPRESS 2500 2006–2017
CHEVROLET EXPRESS 3500 2003–2017
CHEVROLET EXPRESS 4500 2009–2016
GMC SAVANA 2500 2003–2005 RWD
GMC YUKON XL 2500 2000 RWD
GMC SAVANA 2500 2006–2017
GMC SAVANA 3500 2003–2017
GMC SAVANA 4500 2009–2016
