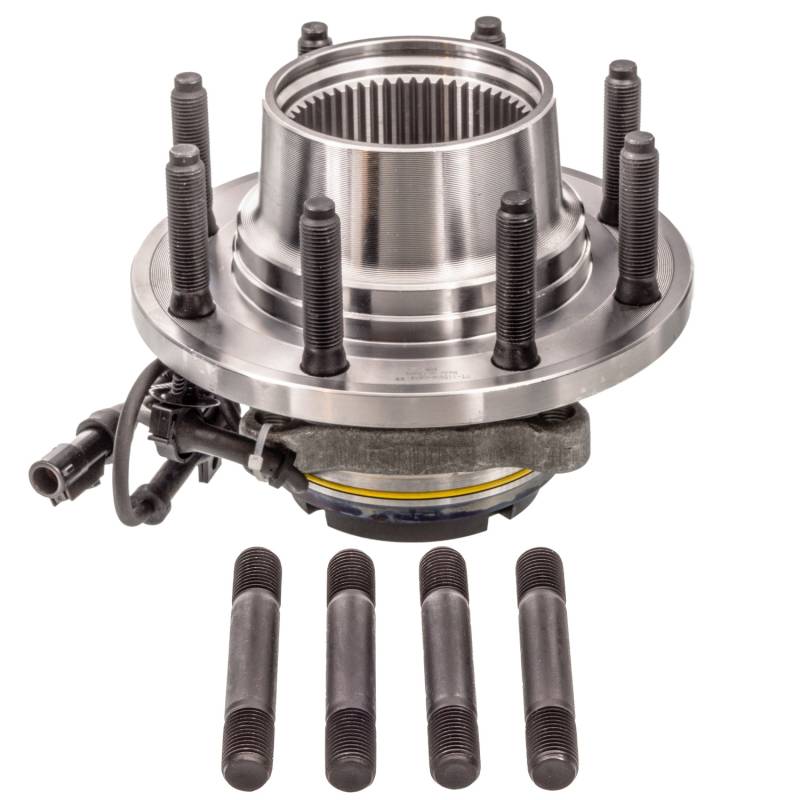

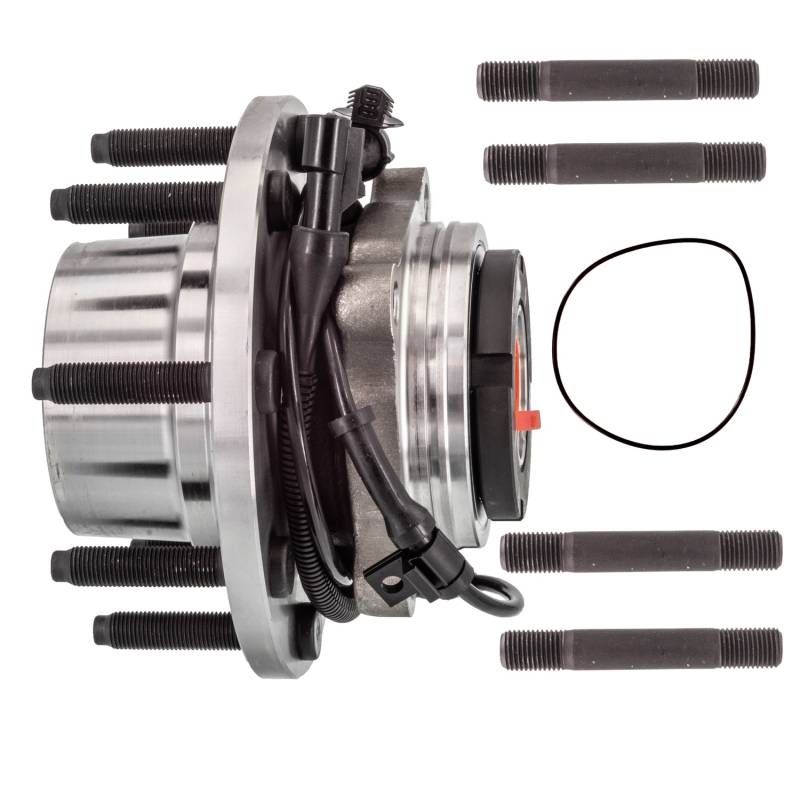

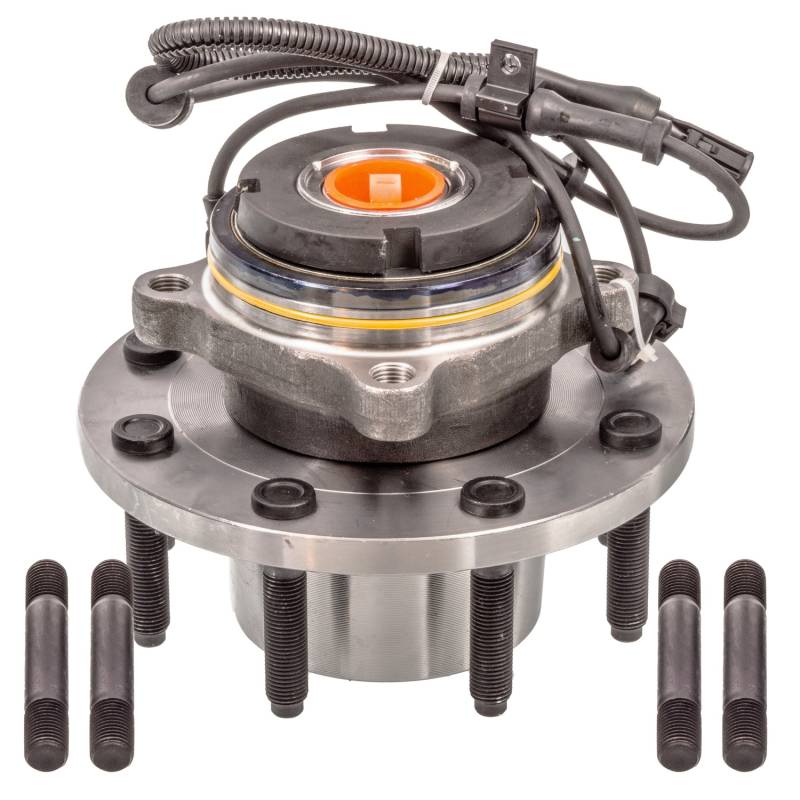

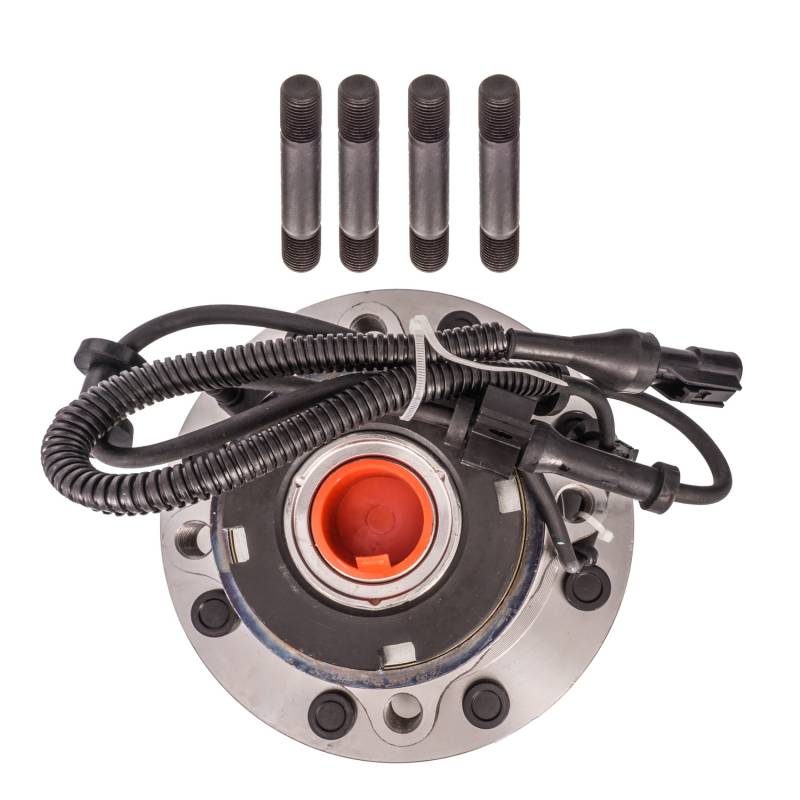

New Hub Assembly Compatible With Ford F-350 Super Duty F-250 Super Duty Excursion 1999 2000 2001

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

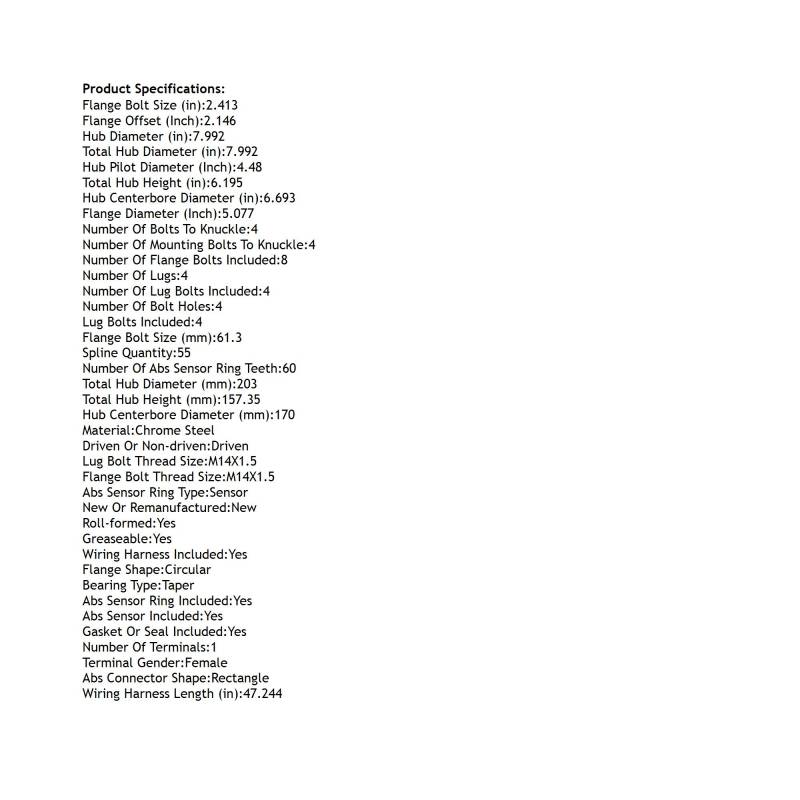

SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: TAPER
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 2.413
FLANGE BOLT SIZE (MM): 61.3
FLANGE BOLT THREAD SIZE: M14X1.5
FLANGE DIAMETER (INCH): 5.077
FLANGE OFFSET (INCH): 2.146
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 6.693
HUB CENTERBORE DIAMETER (MM): 170
HUB DIAMETER (IN): 7.992
HUB PILOT DIAMETER (INCH): 4.48
LUG BOLT THREAD SIZE: M14X1.5
LUG BOLTS INCLUDED: 4
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 60
NUMBER OF BOLT HOLES: 4
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 8
NUMBER OF LUG BOLTS INCLUDED: 4
NUMBER OF LUGS: 4
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
SPLINE QUANTITY: 55
TERMINAL GENDER: FEMALE
TOTAL HUB DIAMETER (IN): 7.992
TOTAL HUB DIAMETER (MM): 203
TOTAL HUB HEIGHT (IN): 6.195
TOTAL HUB HEIGHT (MM): 157.35
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 47.244

REPLACES:
AUTOPART INTERNATIONAL: 1411-248391
BCA: WE61564
CENTRIC PARTS: 40265002
FAG US: 102188
FORD: 3C3Z1104A
GSP: 116056
MEVOTECH: H515056
MOOG HUB ASSEMBLIES: 515056
MOTORCRAFT: 3C3Z1104A HUB111 HUB223 PT515056
NAPA: PBR930438

APPLICATIONS:
FORD F-350 SUPER DUTY (1999-2004)
FORD F-250 SUPER DUTY (2000-2004)
FORD EXCURSION (2002-2005)
