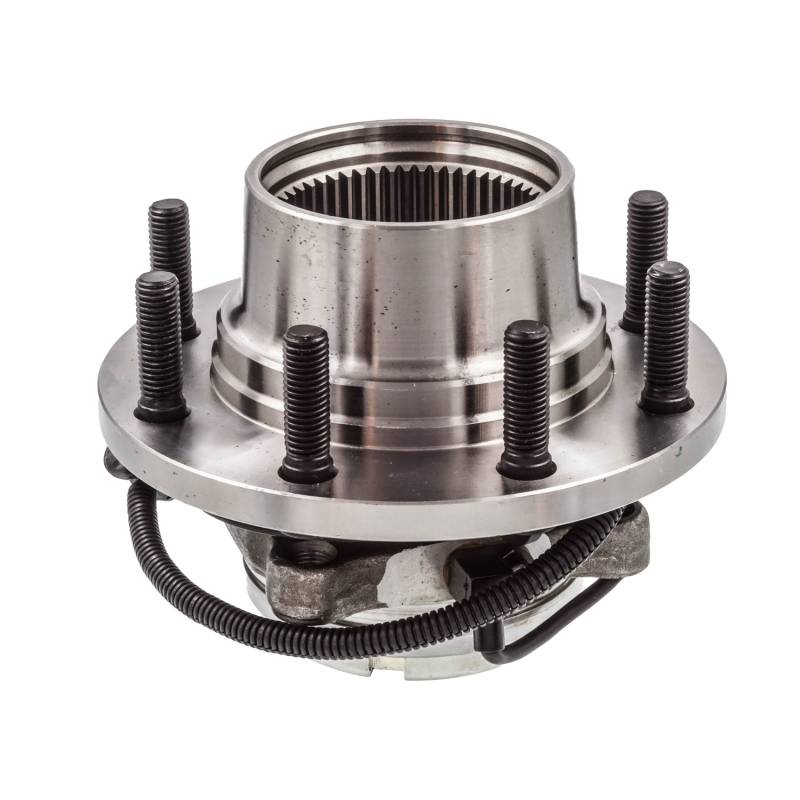

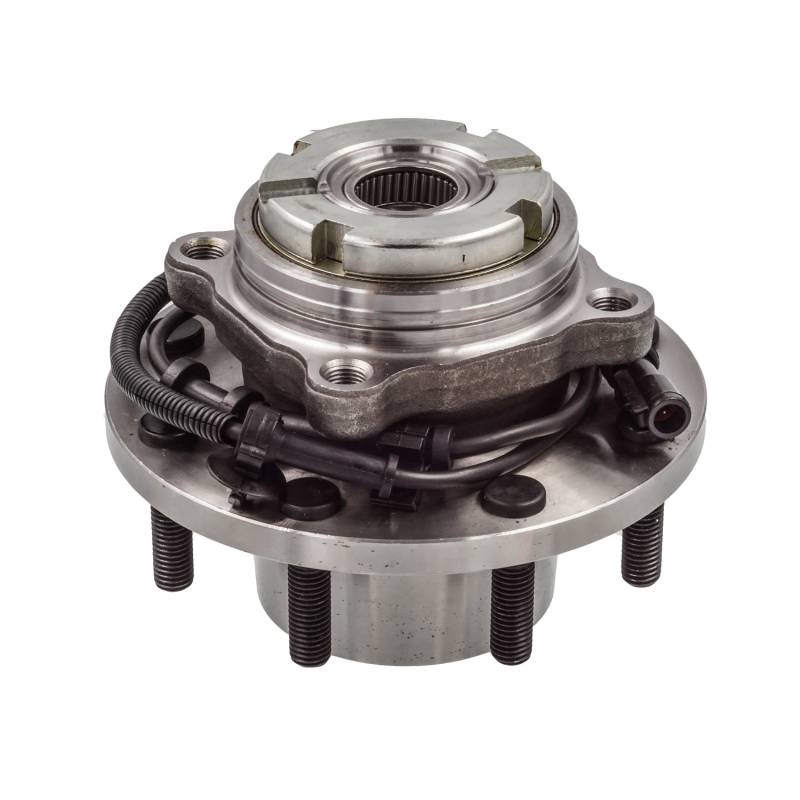

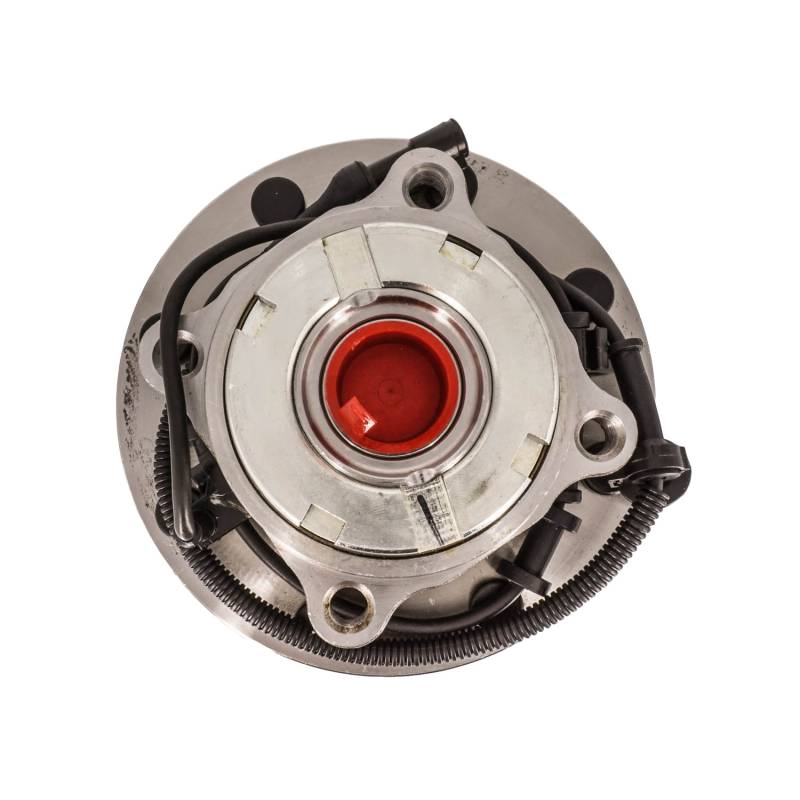

New Hub Assembly Compatible With Ford F-350 Super Duty F-450 Super Duty F-550 Super Duty F-250 Super

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

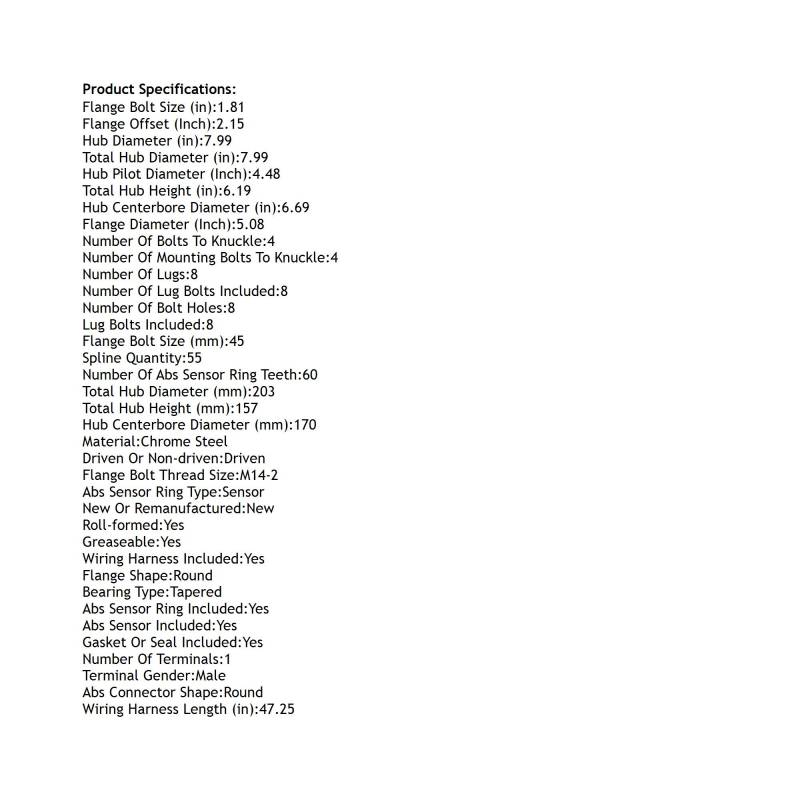

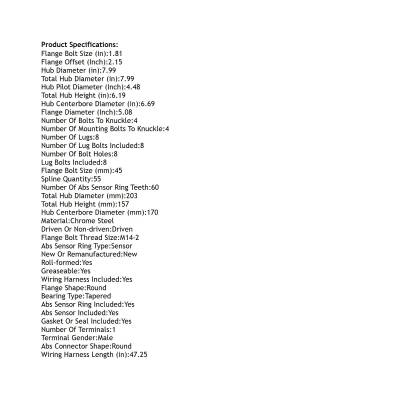

SPECIFICATIONS:
ABS CONNECTOR SHAPE: ROUND
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: TAPERED
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.81
FLANGE BOLT SIZE (MM): 45
FLANGE BOLT THREAD SIZE: M14-2
FLANGE DIAMETER (INCH): 5.08
FLANGE OFFSET (INCH): 2.15
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 6.69
HUB CENTERBORE DIAMETER (MM): 170
HUB DIAMETER (IN): 7.99
HUB PILOT DIAMETER (INCH): 4.48
LUG BOLTS INCLUDED: 8
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 60
NUMBER OF BOLT HOLES: 8
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF LUG BOLTS INCLUDED: 8
NUMBER OF LUGS: 8
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
SPLINE QUANTITY: 55
TERMINAL GENDER: MALE
TOTAL HUB DIAMETER (IN): 7.99
TOTAL HUB DIAMETER (MM): 203
TOTAL HUB HEIGHT (IN): 6.19
TOTAL HUB HEIGHT (MM): 157
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 47.25

REPLACES:
AUTOPART INTERNATIONAL: 1411-49139
BCA: WE61326
CENTRIC PARTS: 40265017
FAG US: 102003
GSP: 116025
MEVOTECH: H515057
MOOG HUB ASSEMBLIES: 515025
MOTORCRAFT: PT515025
NAPA: PBR930425

APPLICATIONS:
FORD F-350 SUPER DUTY (1999-2004)
FORD F-450 SUPER DUTY (1999-2004)
FORD F-550 SUPER DUTY (1999-2004)
FORD F-250 SUPER DUTY (2000-2004)
