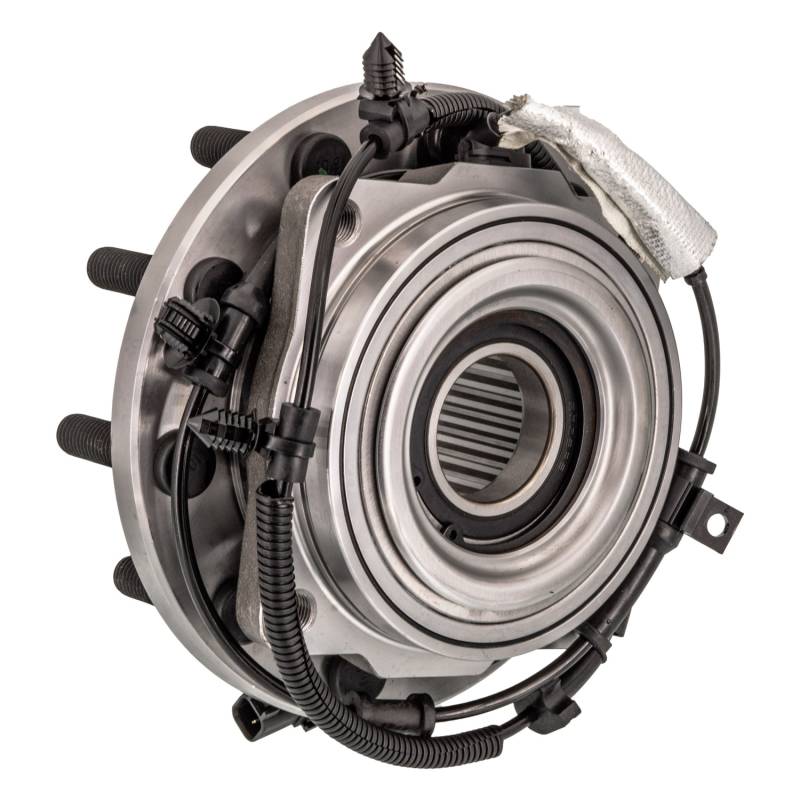

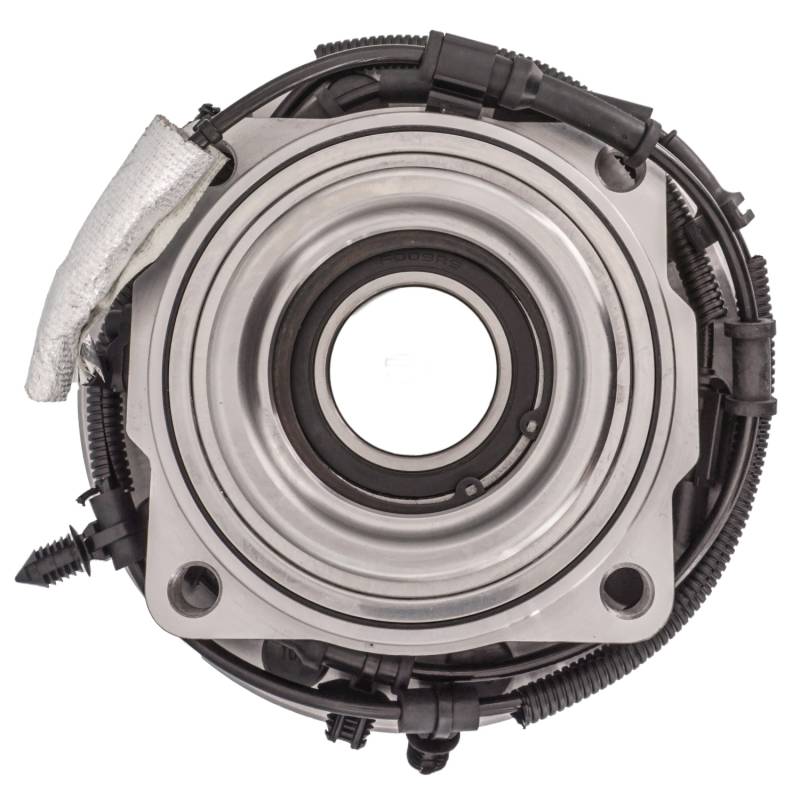

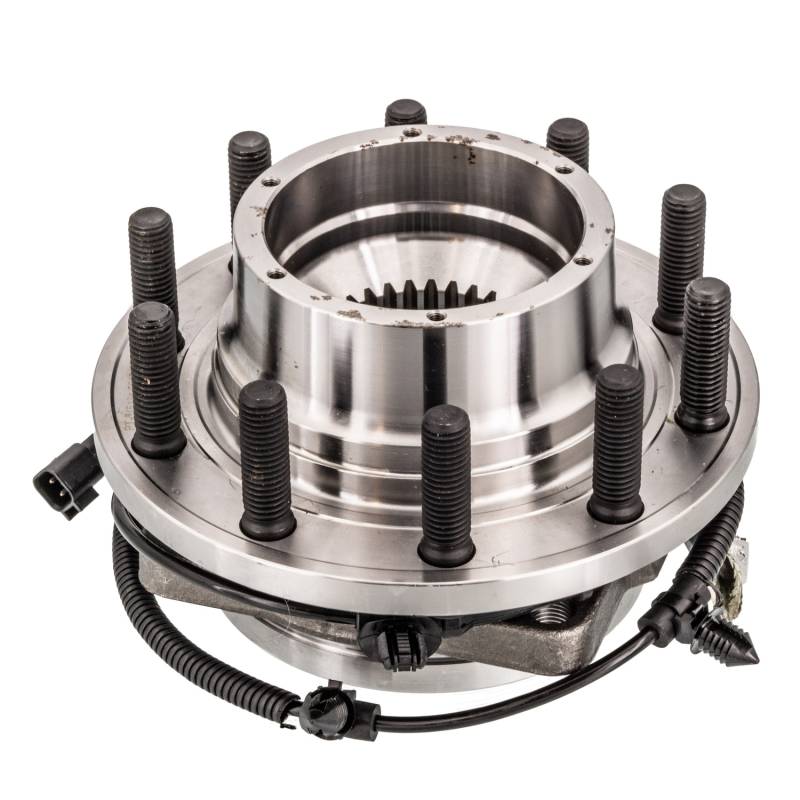

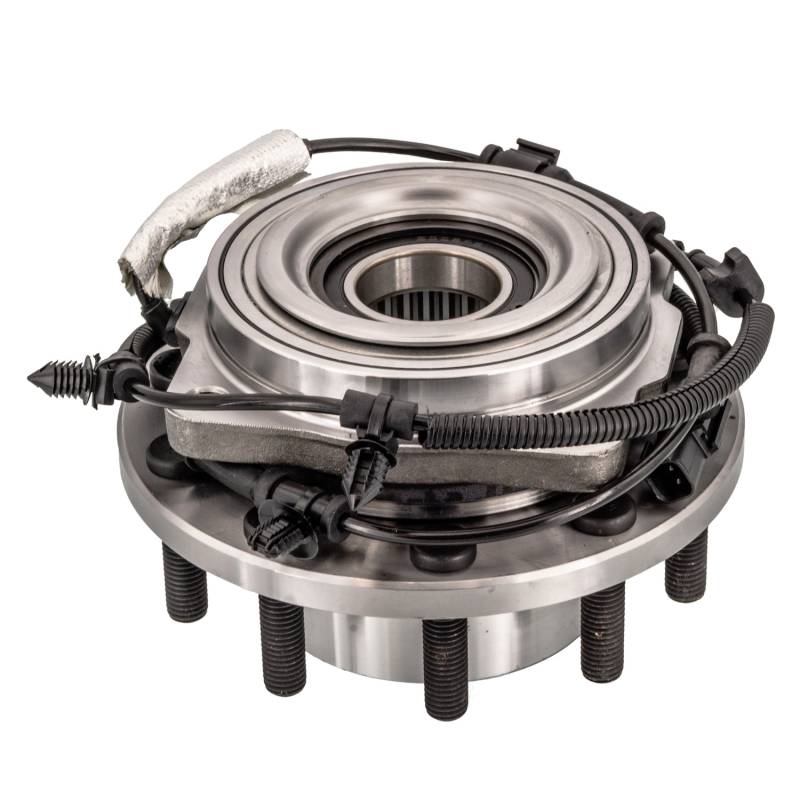

New Hub Assembly Compatible With Ford F-450 Super Duty F-550 Super Duty 6.7L 6.8L 7.3L 2017 2018

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

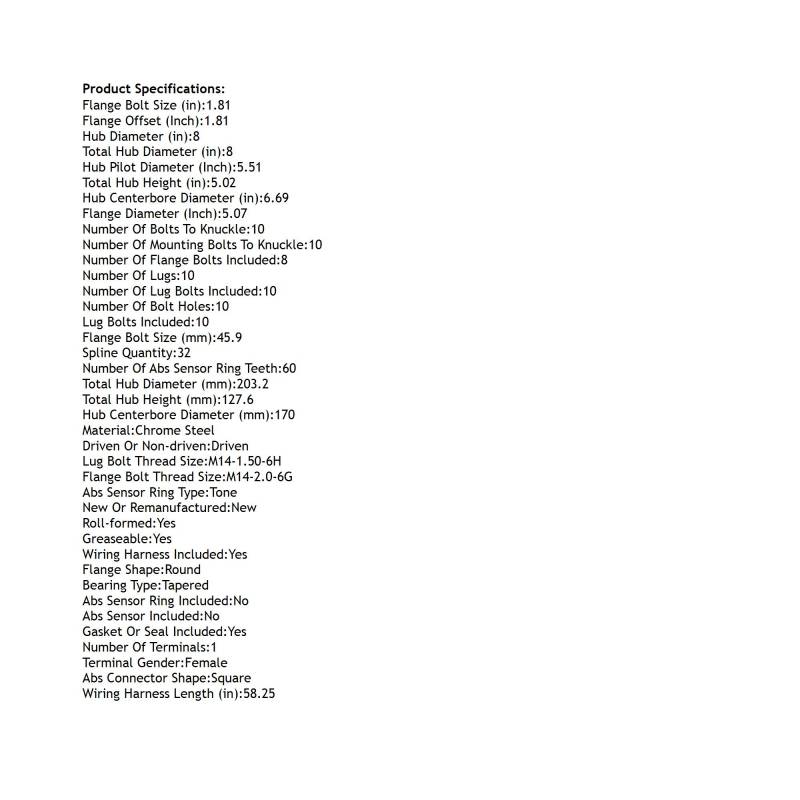

SPECIFICATIONS:
ABS CONNECTOR SHAPE: SQUARE
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
ABS SENSOR RING TYPE: TONE
BEARING TYPE: TAPERED
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.81
FLANGE BOLT SIZE (MM): 45.9
FLANGE BOLT THREAD SIZE: M14-2.0-6G
FLANGE DIAMETER (INCH): 5.07
FLANGE OFFSET (INCH): 1.81
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 6.69
HUB CENTERBORE DIAMETER (MM): 170
HUB DIAMETER (IN): 8
HUB PILOT DIAMETER (INCH): 5.51
LUG BOLT THREAD SIZE: M14-1.50-6H
LUG BOLTS INCLUDED: 10
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 60
NUMBER OF BOLT HOLES: 10
NUMBER OF BOLTS TO KNUCKLE: 10
NUMBER OF FLANGE BOLTS INCLUDED: 8
NUMBER OF LUG BOLTS INCLUDED: 10
NUMBER OF LUGS: 10
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 10
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
SPLINE QUANTITY: 32
TERMINAL GENDER: FEMALE
TOTAL HUB DIAMETER (IN): 8
TOTAL HUB DIAMETER (MM): 203.2
TOTAL HUB HEIGHT (IN): 5.02
TOTAL HUB HEIGHT (MM): 127.6
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 58.25

REPLACES:
AUTOPART INTERNATIONAL: 1411-605383
BCA: WE61853
FORD: HC3Z 1104 F
MOOG HUB ASSEMBLIES: 515184
MOTORCRAFT: HC3Z1104F HUB347
NAPA: PBR930962

APPLICATIONS:
FORD F-450 SUPER DUTY (2017-2022)
FORD F-550 SUPER DUTY (2017-2022)
