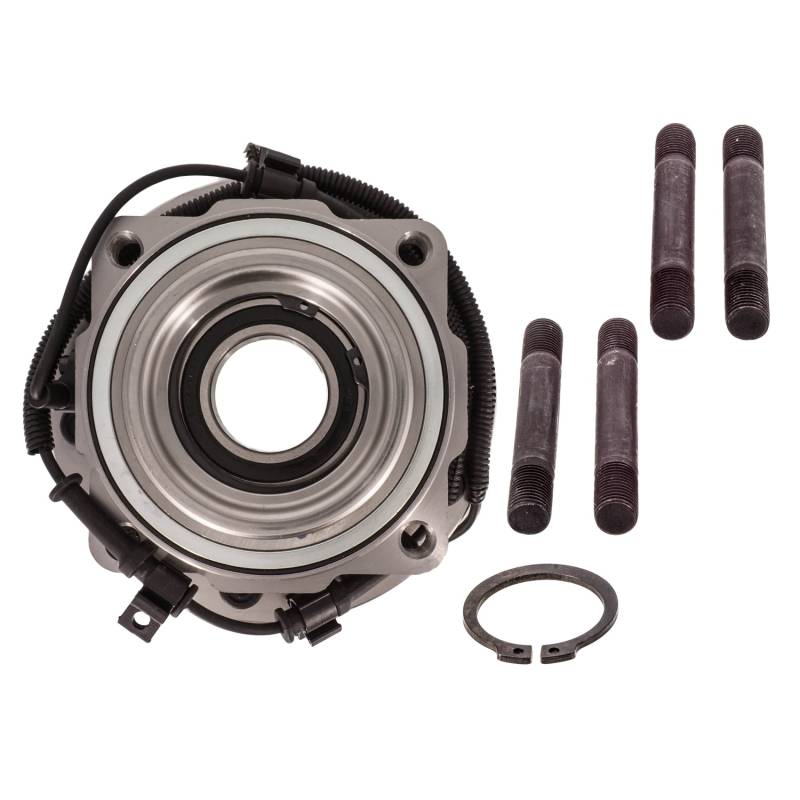

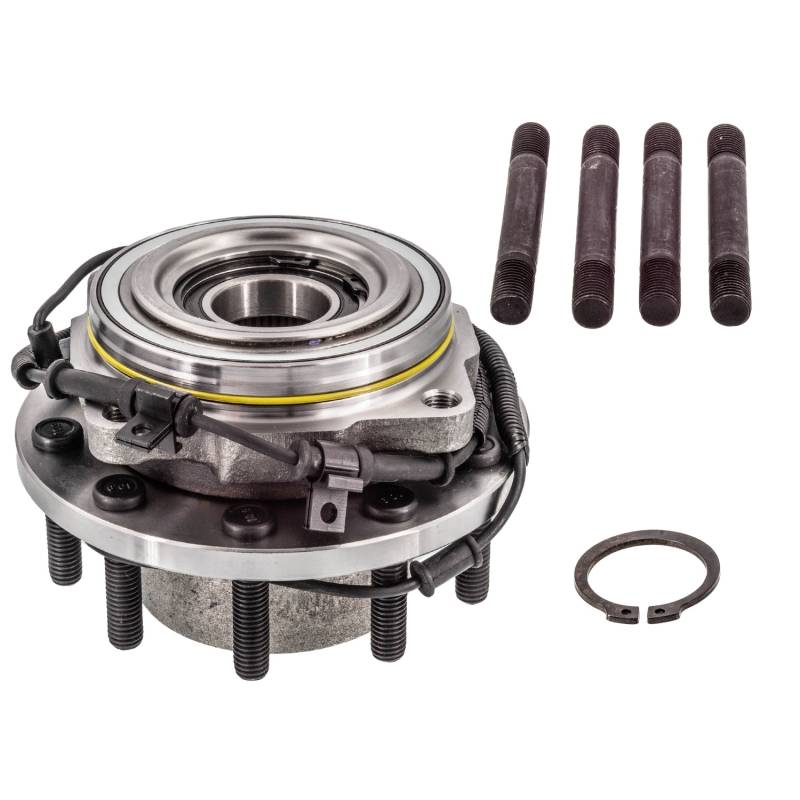

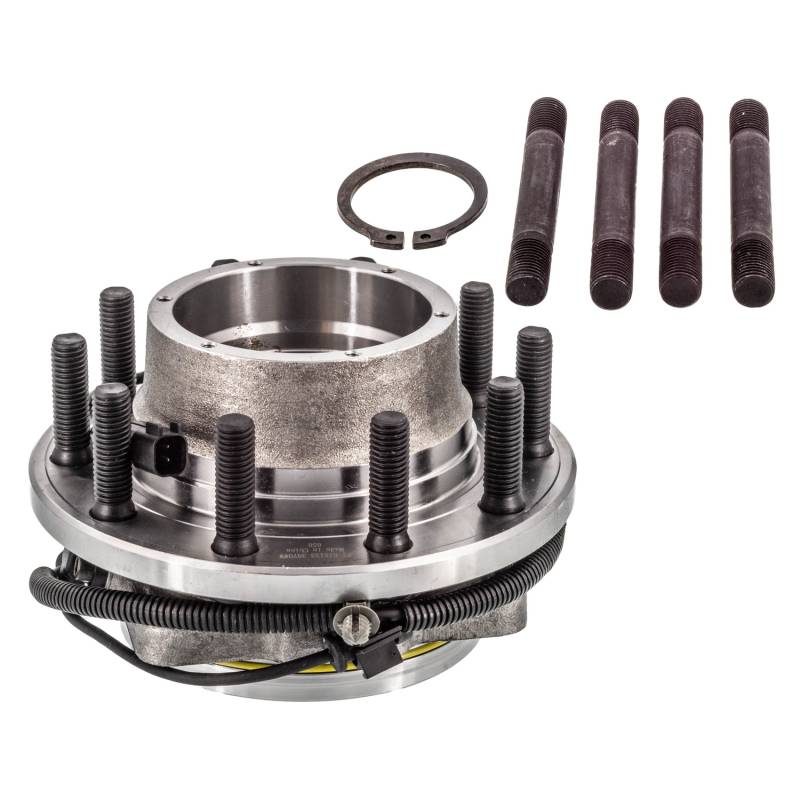

New Hub Assembly Compatible With Ford F-550 Super Duty F-450 Super Duty 6.7L 6.8L 2011 2012 2013

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

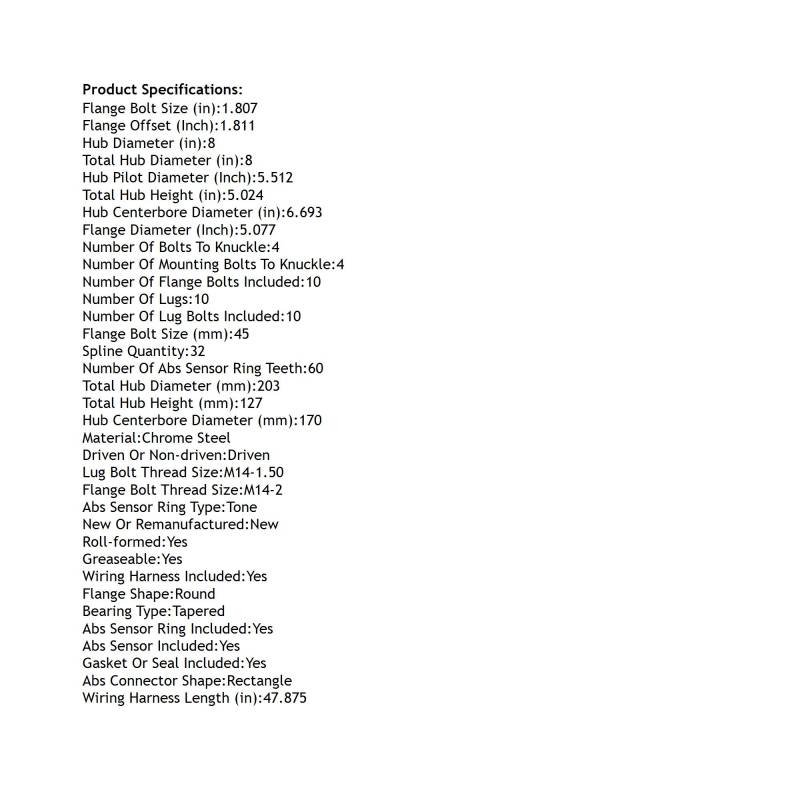

SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE
BEARING TYPE: TAPERED
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.807
FLANGE BOLT SIZE (MM): 45
FLANGE BOLT THREAD SIZE: M14-2
FLANGE DIAMETER (INCH): 5.077
FLANGE OFFSET (INCH): 1.811
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 6.693
HUB CENTERBORE DIAMETER (MM): 170
HUB DIAMETER (IN): 8
HUB PILOT DIAMETER (INCH): 5.512
LUG BOLT THREAD SIZE: M14-1.50
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 60
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 10
NUMBER OF LUG BOLTS INCLUDED: 10
NUMBER OF LUGS: 10
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: YES
SPLINE QUANTITY: 32
TOTAL HUB DIAMETER (IN): 8
TOTAL HUB DIAMETER (MM): 203
TOTAL HUB HEIGHT (IN): 5.024
TOTAL HUB HEIGHT (MM): 127
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 47.875

REPLACES:
AUTOPART INTERNATIONAL: 1411-480981
BCA: WE60624
CENTRIC PARTS: 40265038
FAG US: 102754
FORD: DC3Z1104D
GSP: 116133
MEVOTECH: MB40308
MOOG HUB ASSEMBLIES: 515133
MOTORCRAFT: HUB215 HUB218 DC3Z1104D
NAPA: PBR930803

APPLICATIONS:
FORD F-550 SUPER DUTY (2011-2016)
FORD F-450 SUPER DUTY (2015-2016)
