THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

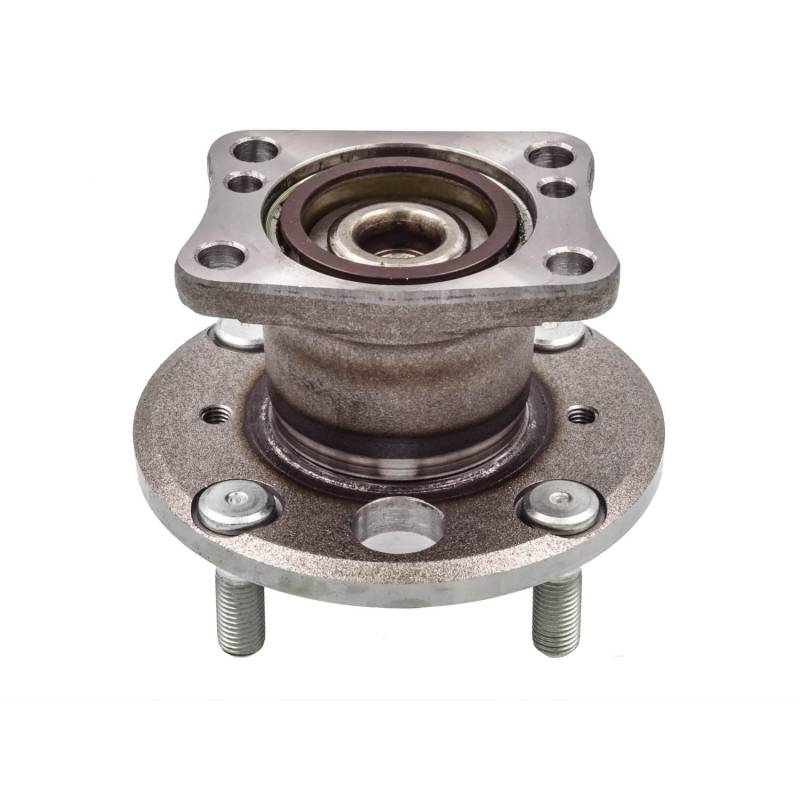

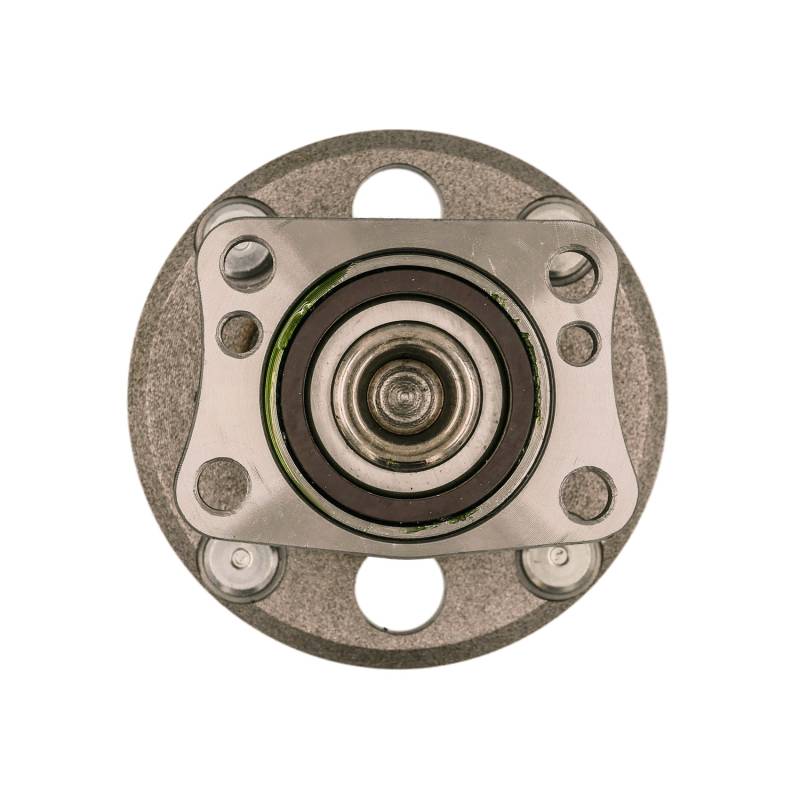

PRODUCT TYPE: HUB ASSEMBLY

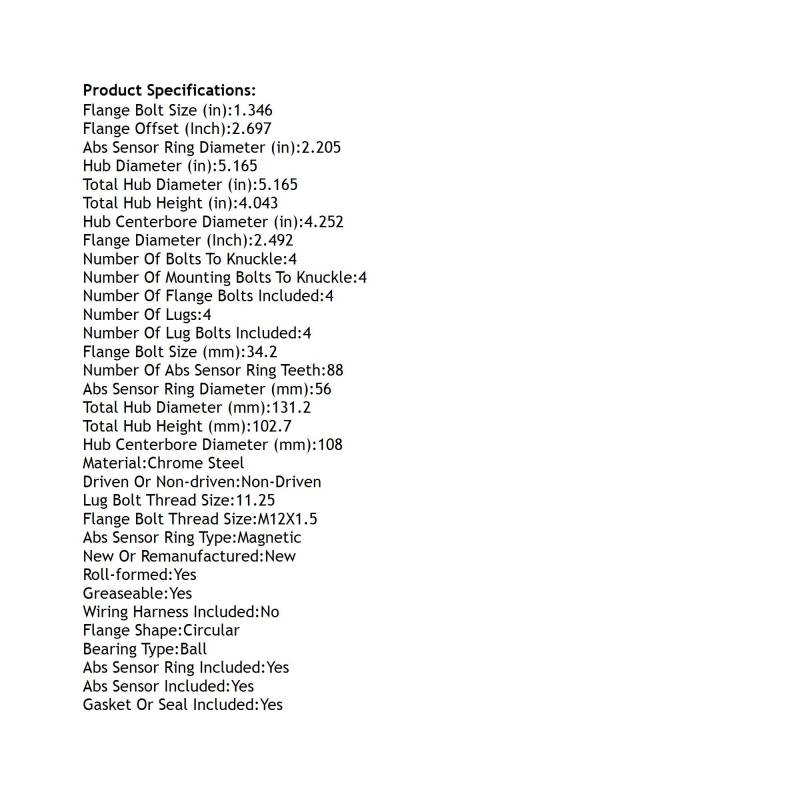

SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 2.205
ABS SENSOR RING DIAMETER (MM): 56
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.346
FLANGE BOLT SIZE (MM): 34.2
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 2.492
FLANGE OFFSET (INCH): 2.697
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.252
HUB CENTERBORE DIAMETER (MM): 108
HUB DIAMETER (IN): 5.165
LUG BOLT THREAD SIZE: 11.25
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 88
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 4
NUMBER OF LUG BOLTS INCLUDED: 4
NUMBER OF LUGS: 4
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: YES
TOTAL HUB DIAMETER (IN): 5.165
TOTAL HUB DIAMETER (MM): 131.2
TOTAL HUB HEIGHT (IN): 4.043
TOTAL HUB HEIGHT (MM): 102.7
WIRING HARNESS INCLUDED: NO
REPLACES:
AUTOPART INTERNATIONAL: 1411-480987
BCA: WE61097
CENTRIC PARTS: 40561008E
FORD: HUB226 DCPZ 1104 A DCPZ1104A
GSP: 113490
MEVOTECH: H512490
MOOG HUB ASSEMBLIES: 512490
MOTORCRAFT: HUB226 PT512490
NAPA: PBR930784
APPLICATIONS:
FORD FIESTA IKON (2011-2013)
FORD FIESTA (2011-2019)
