THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

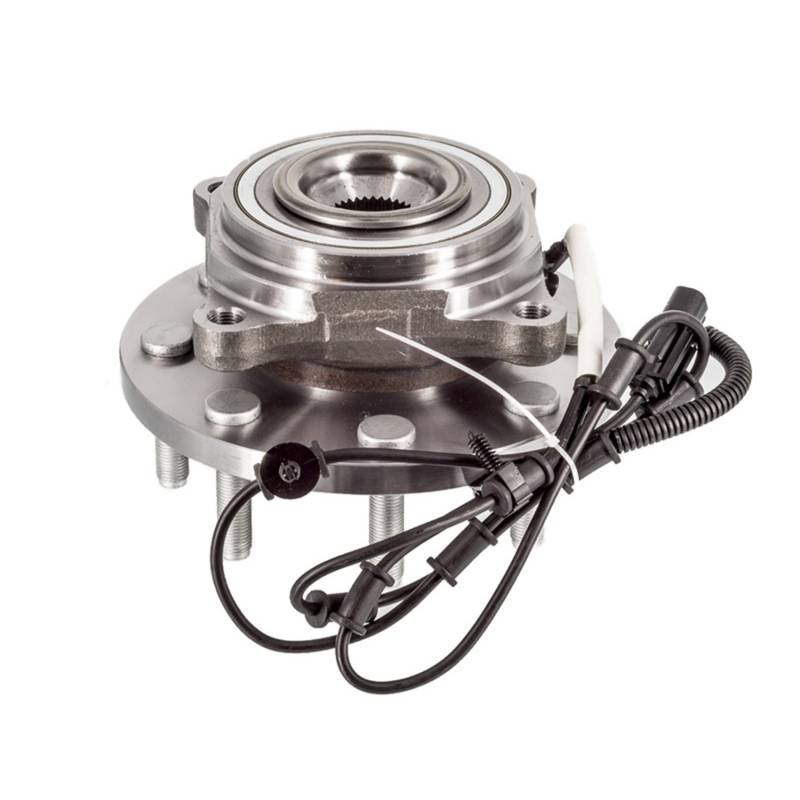

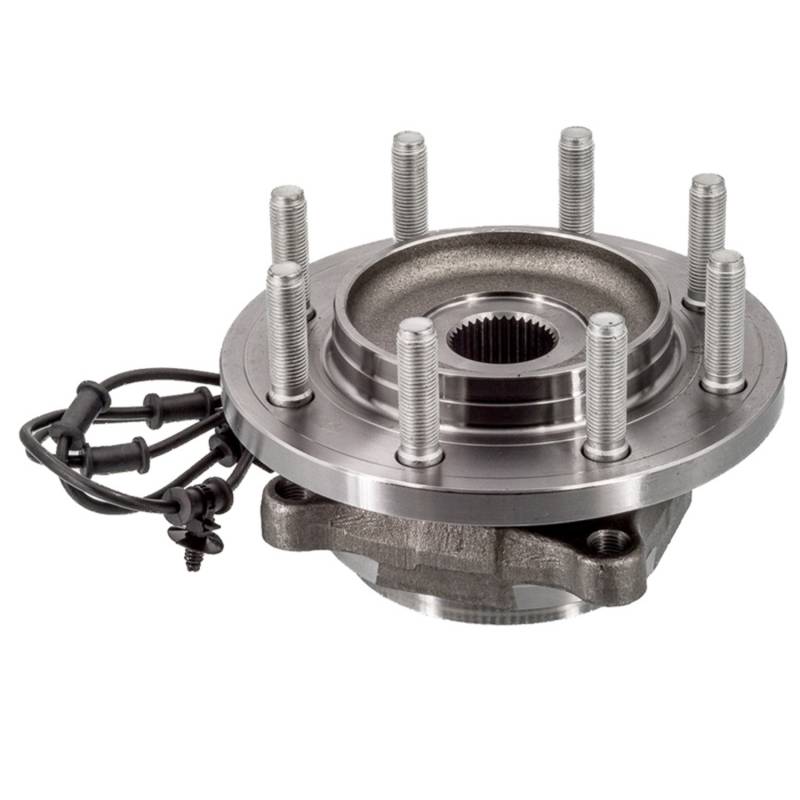

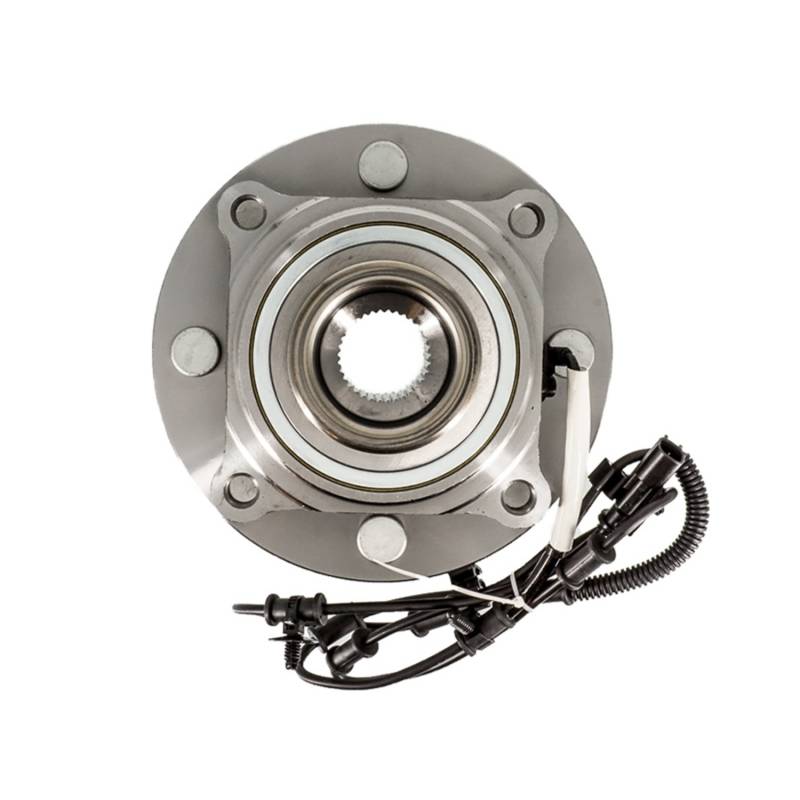

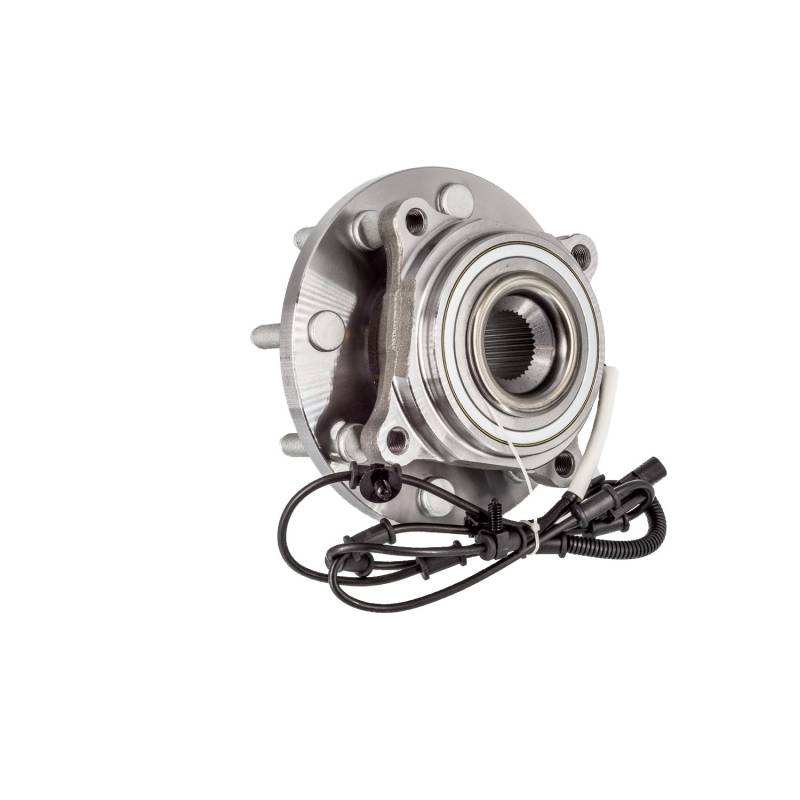

PRODUCT TYPE: HUB ASSEMBLY

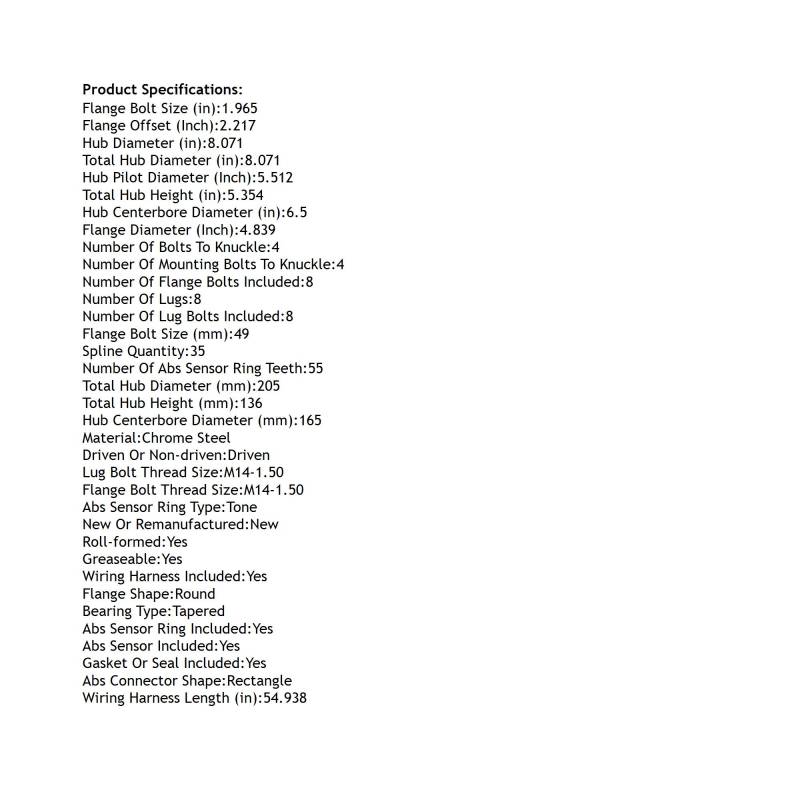

SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE
BEARING TYPE: TAPERED
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.965
FLANGE BOLT SIZE (MM): 49
FLANGE BOLT THREAD SIZE: M14-1.50
FLANGE DIAMETER (INCH): 4.839
FLANGE OFFSET (INCH): 2.217
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 6.5
HUB CENTERBORE DIAMETER (MM): 165
HUB DIAMETER (IN): 8.071
HUB PILOT DIAMETER (INCH): 5.512
LUG BOLT THREAD SIZE: M14-1.50
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 55
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 8
NUMBER OF LUG BOLTS INCLUDED: 8
NUMBER OF LUGS: 8
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: YES
SPLINE QUANTITY: 35
TOTAL HUB DIAMETER (IN): 8.071
TOTAL HUB DIAMETER (MM): 205
TOTAL HUB HEIGHT (IN): 5.354
TOTAL HUB HEIGHT (MM): 136
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 54.938
REPLACES:
AUTOPART INTERNATIONAL: 1411-556395
BCA: WE61904
FAG US: 103159 103160
GSP: 126162
MEVOTECH: MB25321
MOOG HUB ASSEMBLIES: 515162
NAPA: PBR930553
APPLICATIONS:
RAM 3500 (2013-2018)
RAM 2500 (2014-2018)
