New Hub Assembly Compatible With Ram 4500 5500 6.4L 6.7L 2011 2012 2013 2014 2015 2016 2017 2018 By

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

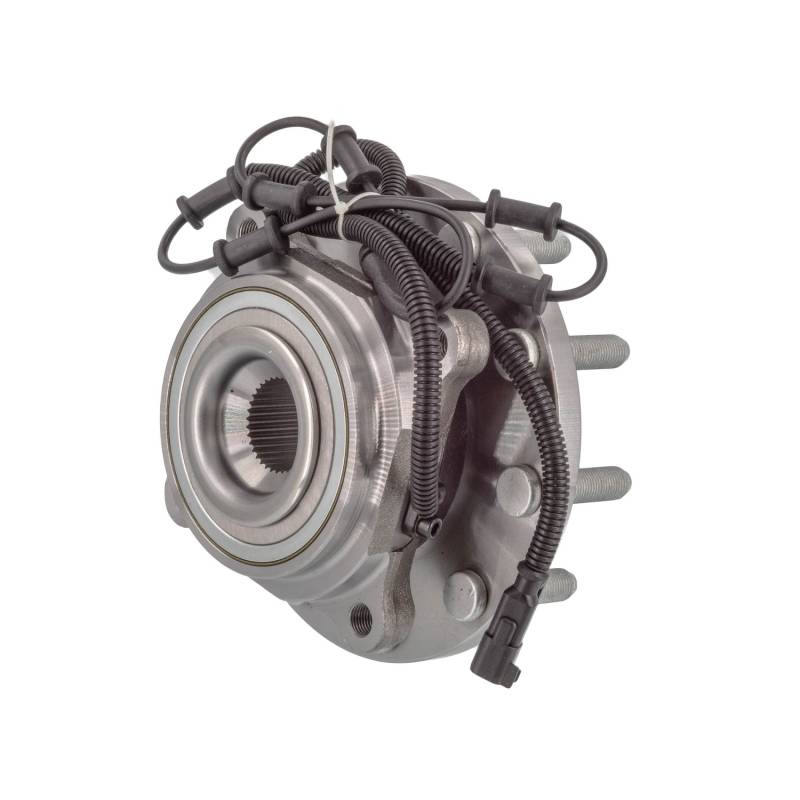

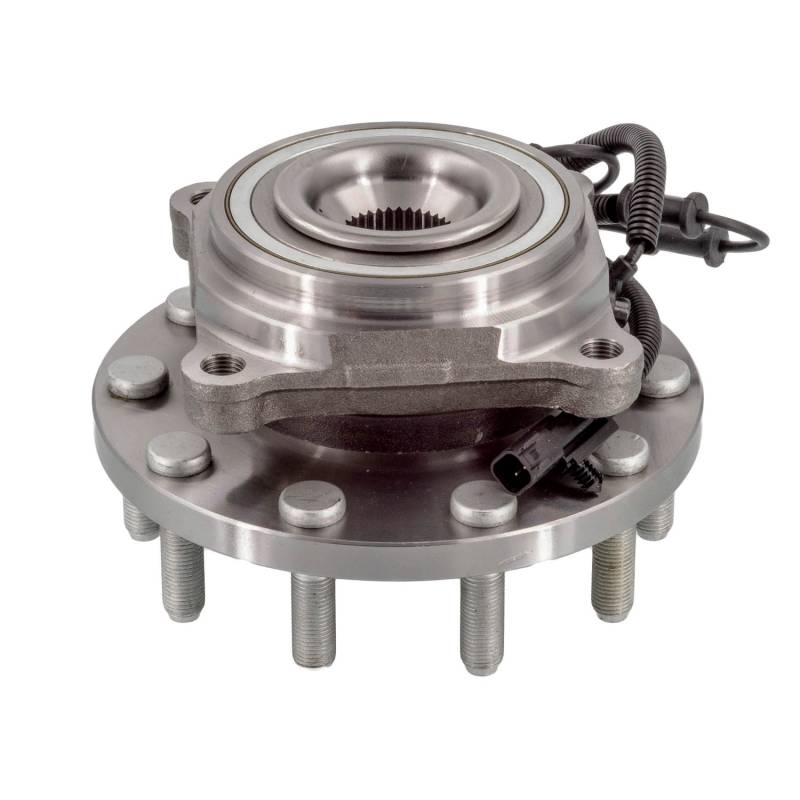

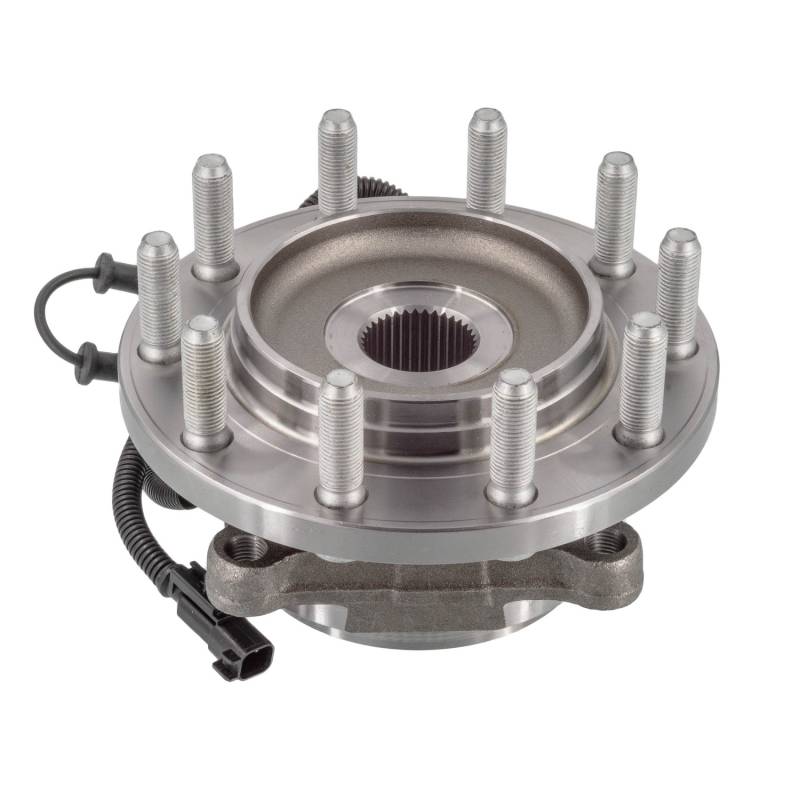

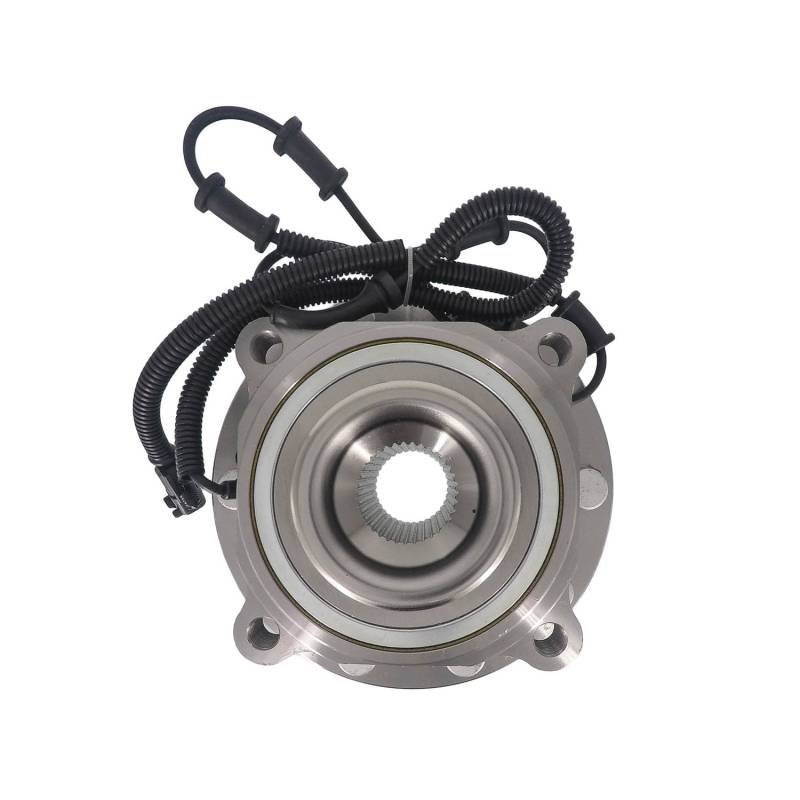

PRODUCT TYPE: HUB ASSEMBLY

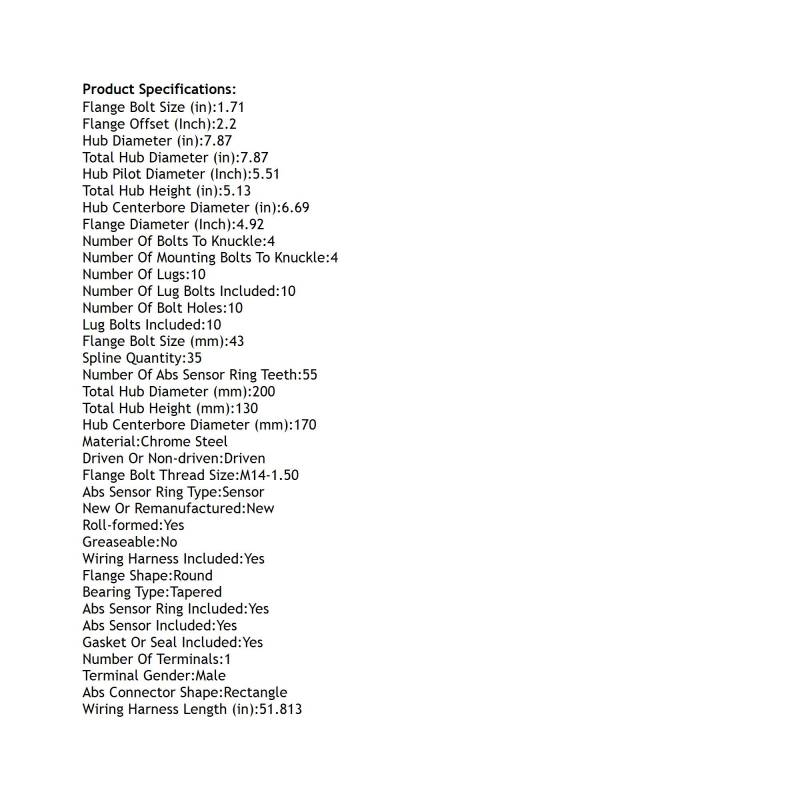

SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: TAPERED
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.71
FLANGE BOLT SIZE (MM): 43
FLANGE BOLT THREAD SIZE: M14-1.50
FLANGE DIAMETER (INCH): 4.92
FLANGE OFFSET (INCH): 2.2
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: NO
HUB CENTERBORE DIAMETER (IN): 6.69
HUB CENTERBORE DIAMETER (MM): 170
HUB DIAMETER (IN): 7.87
HUB PILOT DIAMETER (INCH): 5.51
LUG BOLTS INCLUDED: 10
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 55
NUMBER OF BOLT HOLES: 10
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF LUG BOLTS INCLUDED: 10
NUMBER OF LUGS: 10
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
SPLINE QUANTITY: 35
TERMINAL GENDER: MALE
TOTAL HUB DIAMETER (IN): 7.87
TOTAL HUB DIAMETER (MM): 200
TOTAL HUB HEIGHT (IN): 5.13
TOTAL HUB HEIGHT (MM): 130
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 51.813

REPLACES:
AUTOPART INTERNATIONAL: 1411-330203
BCA: WE61579
CENTRIC PARTS: 40267018
FAG US: 102153
GSP: 126102
MEVOTECH: H515102
MOOG HUB ASSEMBLIES: 515102
NAPA: PBR930508

APPLICATIONS:
RAM 4500 (2011-2018)
RAM 5500 (2011-2018)
