THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

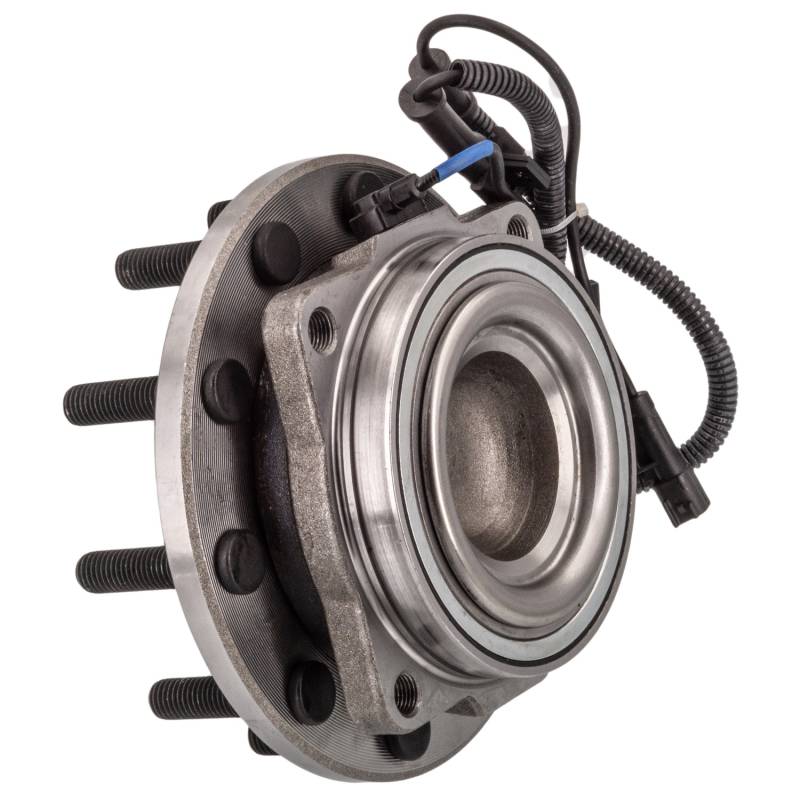

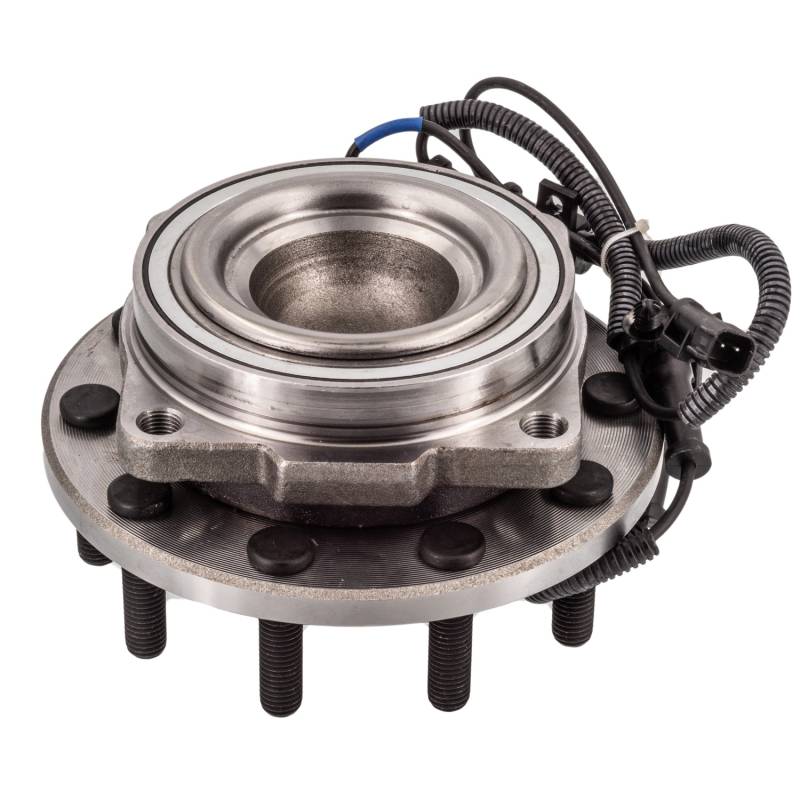

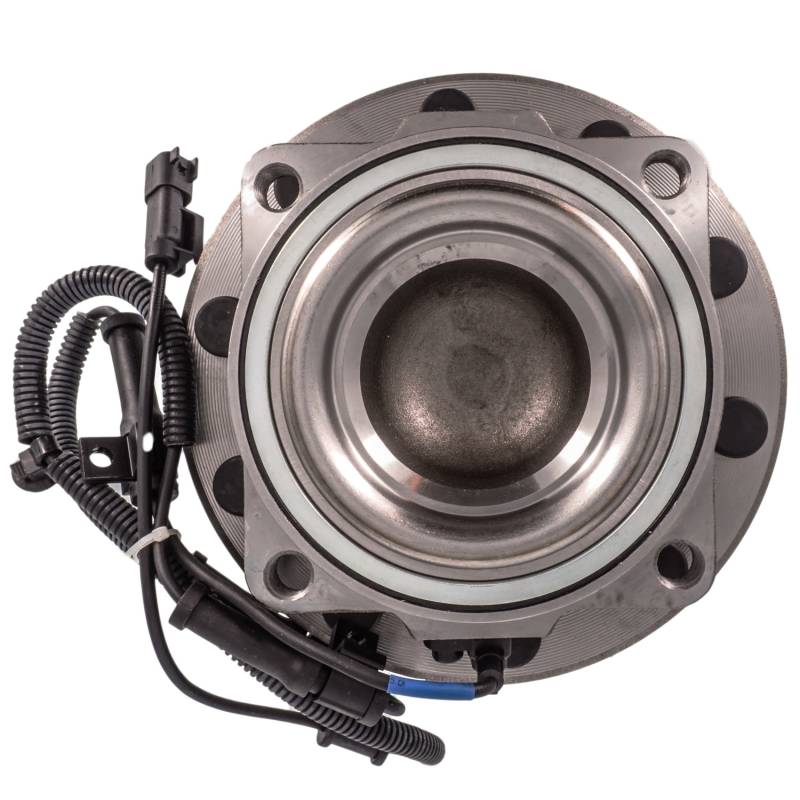

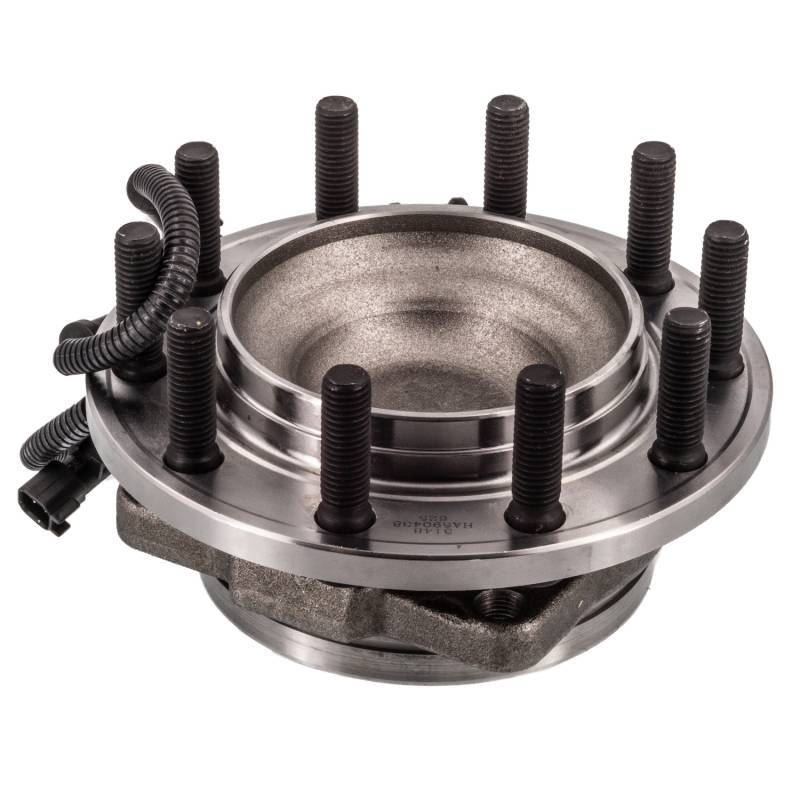

PRODUCT TYPE: HUB ASSEMBLY

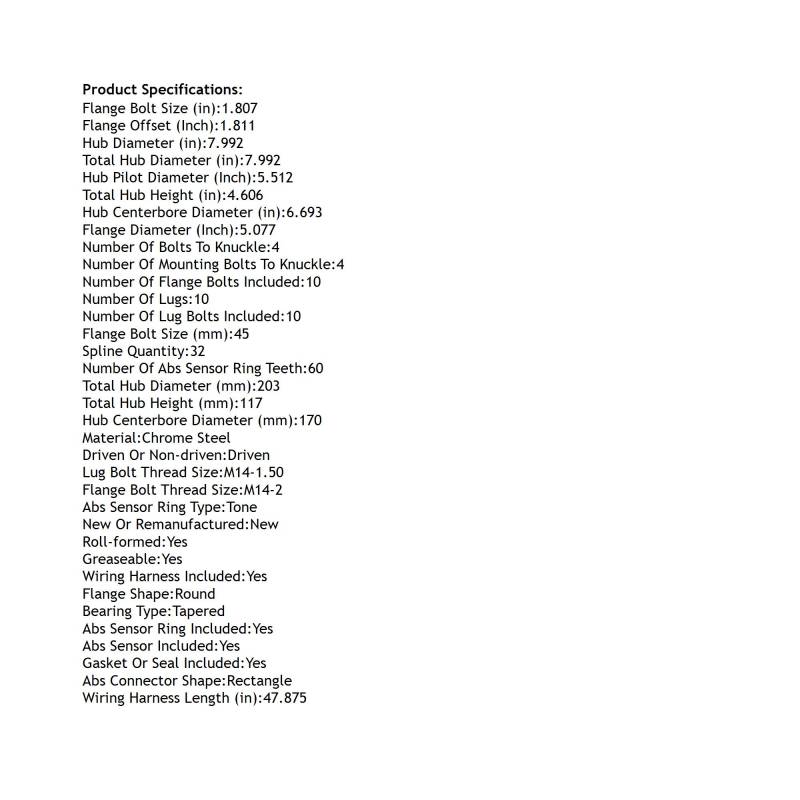

SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE
BEARING TYPE: TAPERED
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.807
FLANGE BOLT SIZE (MM): 45
FLANGE BOLT THREAD SIZE: M14-2
FLANGE DIAMETER (INCH): 5.077
FLANGE OFFSET (INCH): 1.811
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 6.693
HUB CENTERBORE DIAMETER (MM): 170
HUB DIAMETER (IN): 7.992
HUB PILOT DIAMETER (INCH): 5.512
LUG BOLT THREAD SIZE: M14-1.50
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 60
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 10
NUMBER OF LUG BOLTS INCLUDED: 10
NUMBER OF LUGS: 10
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: YES
SPLINE QUANTITY: 32
TOTAL HUB DIAMETER (IN): 7.992
TOTAL HUB DIAMETER (MM): 203
TOTAL HUB HEIGHT (IN): 4.606
TOTAL HUB HEIGHT (MM): 117
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 47.875
REPLACES:
AUTOPART INTERNATIONAL: 1411-480980
BCA: WE60627
CENTRIC PARTS: 40765006
FAG US: 102755
FORD: DC3Z1104C
GSP: 116132
MEVOTECH: MB40310
MOOG HUB ASSEMBLIES: 515132
MOTORCRAFT: HUB214 HUB217 PT515132 DC3Z1104C
NAPA: PBR930804
APPLICATIONS:
FORD F-450 SUPER DUTY (2011-2016)
FORD F-550 SUPER DUTY (2011-2016)
