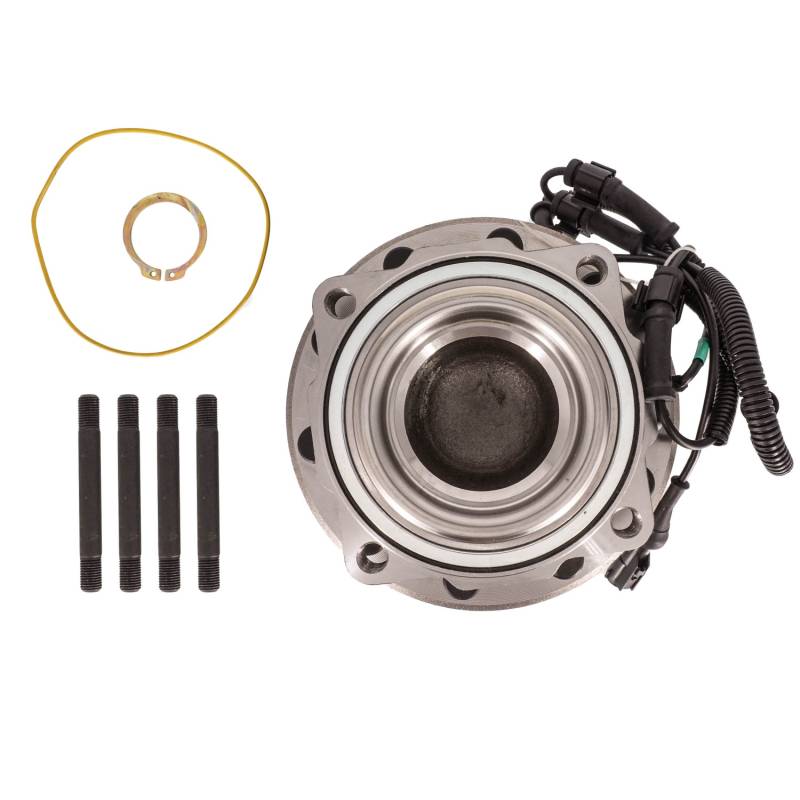

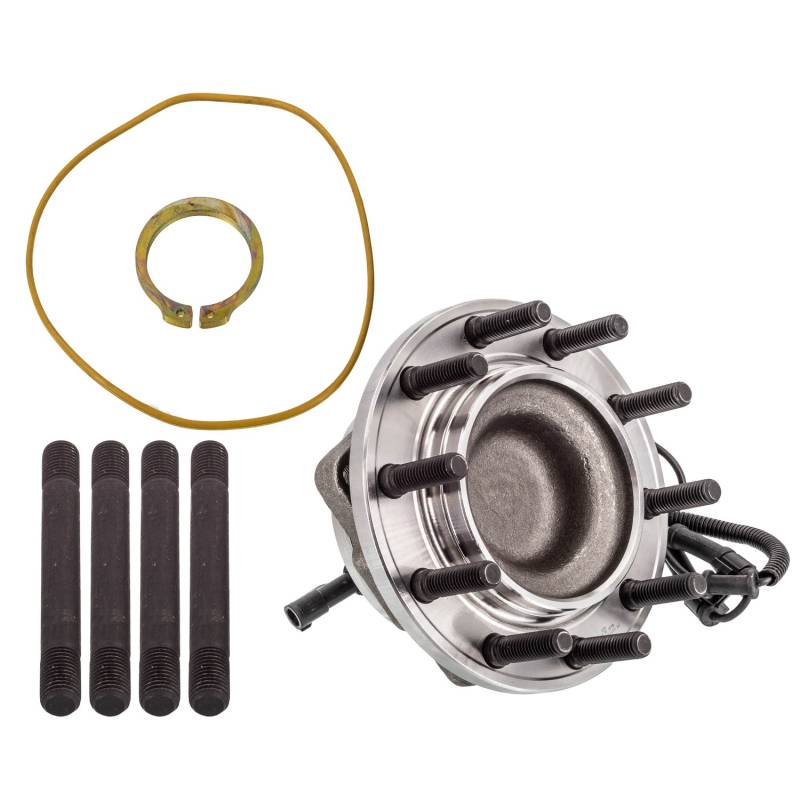

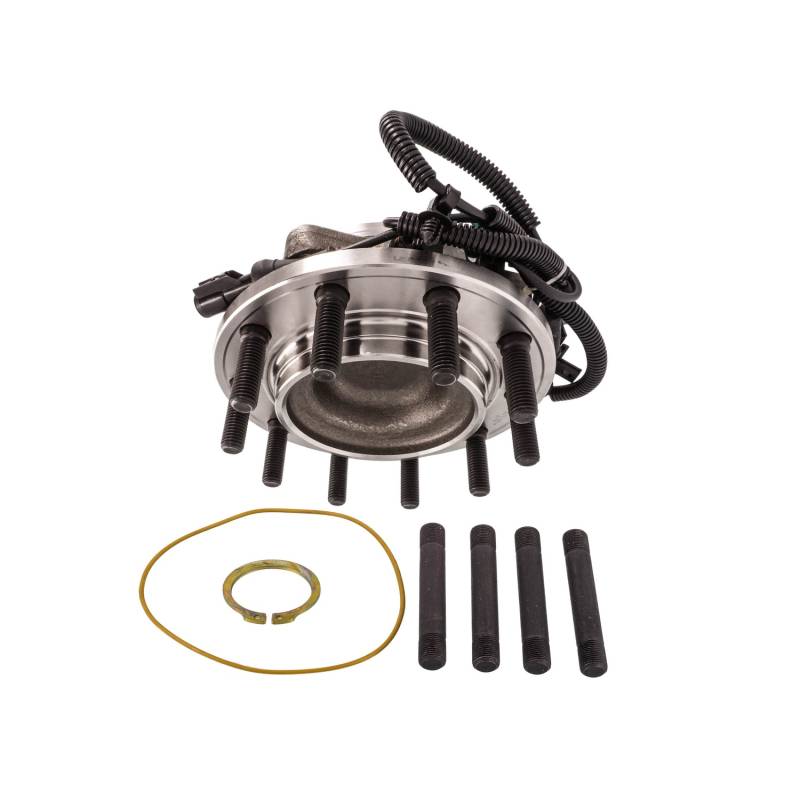

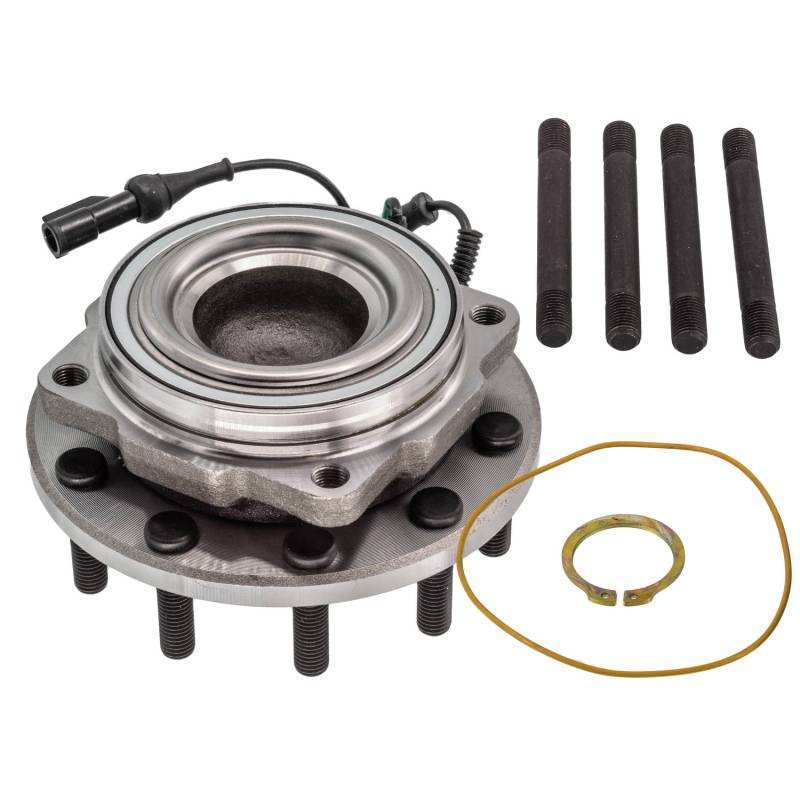

New Hub Assembly Compatible With Ford F-450 Super Duty F-550 Super Duty 6.0L 6.4L 6.8L 2005 2006

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

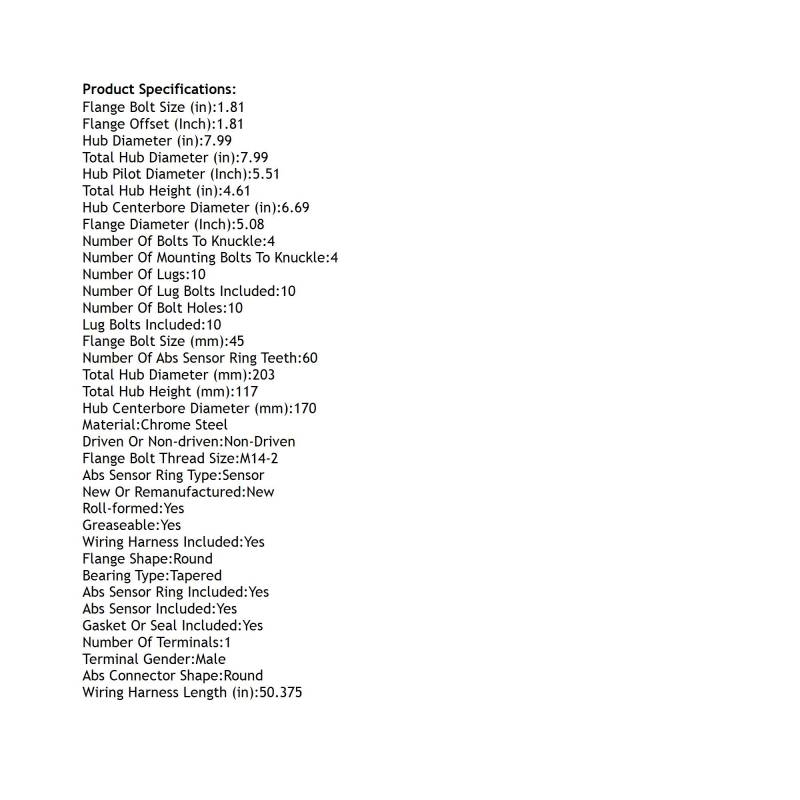

SPECIFICATIONS:
ABS CONNECTOR SHAPE: ROUND
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: TAPERED
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.81
FLANGE BOLT SIZE (MM): 45
FLANGE BOLT THREAD SIZE: M14-2
FLANGE DIAMETER (INCH): 5.08
FLANGE OFFSET (INCH): 1.81
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 6.69
HUB CENTERBORE DIAMETER (MM): 170
HUB DIAMETER (IN): 7.99
HUB PILOT DIAMETER (INCH): 5.51
LUG BOLTS INCLUDED: 10
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 60
NUMBER OF BOLT HOLES: 10
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF LUG BOLTS INCLUDED: 10
NUMBER OF LUGS: 10
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
TERMINAL GENDER: MALE
TOTAL HUB DIAMETER (IN): 7.99
TOTAL HUB DIAMETER (MM): 203
TOTAL HUB HEIGHT (IN): 4.61
TOTAL HUB HEIGHT (MM): 117
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 50.375

REPLACES:
AUTOPART INTERNATIONAL: 1411-256052
BCA: WE61406
CENTRIC PARTS: 40765004
FAG US: 102163
FORD: AC3Z1104C
GSP: 126115
MEVOTECH: H515115
MOOG HUB ASSEMBLIES: 515115
MOTORCRAFT: HUB135 HUB155 PT515115
NAPA: PBR930722

APPLICATIONS:
FORD F-450 SUPER DUTY (2005-2010)
FORD F-550 SUPER DUTY (2005-2010)
