THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

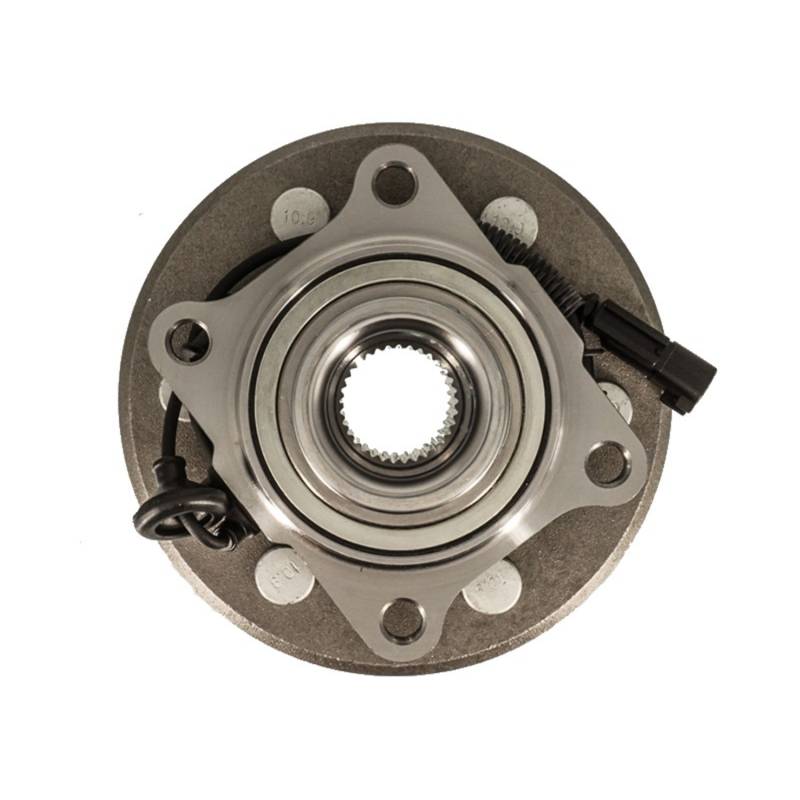

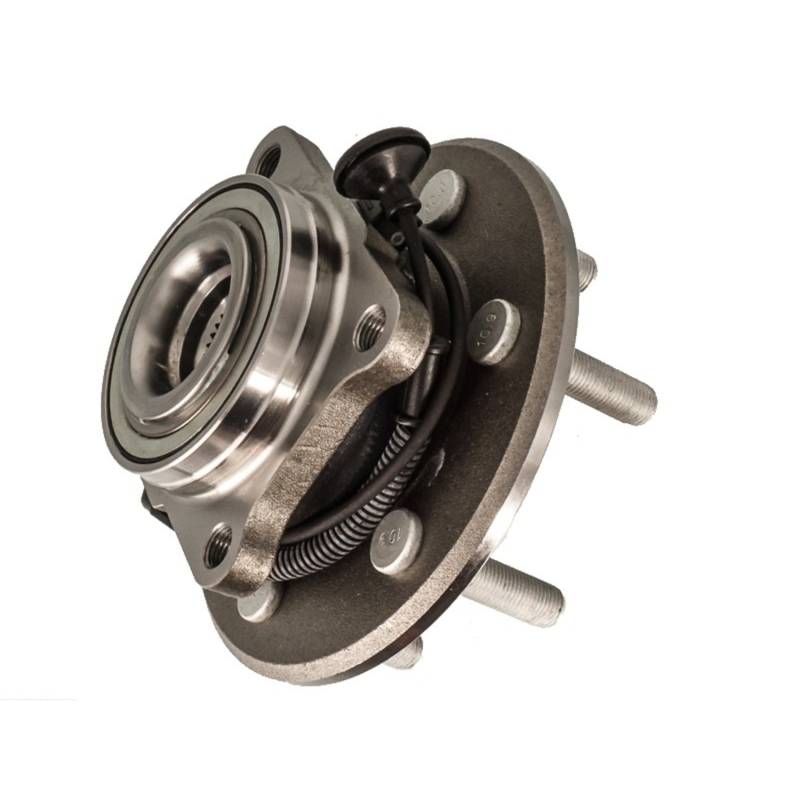

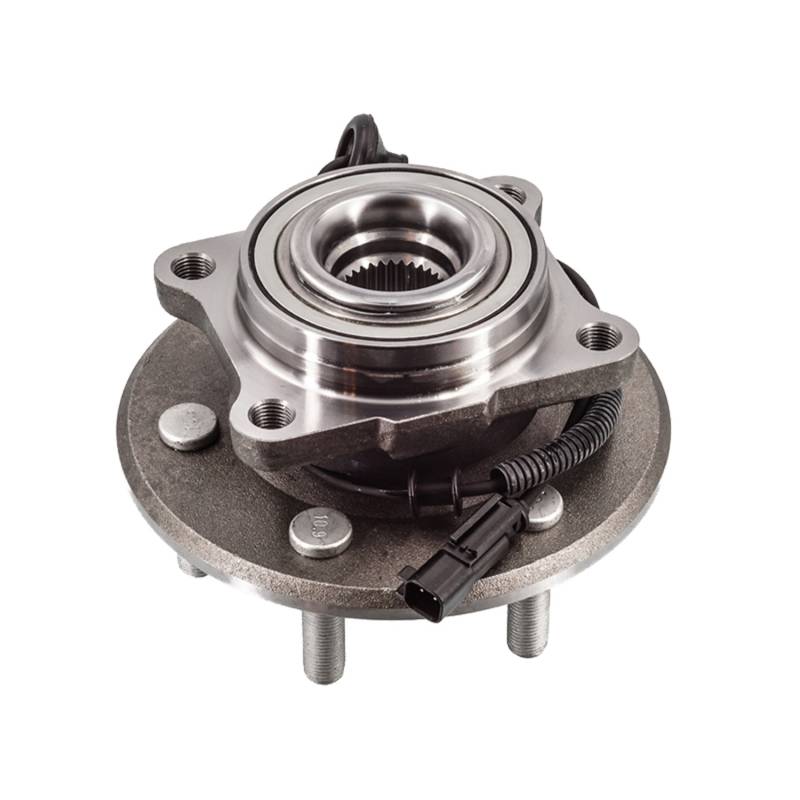

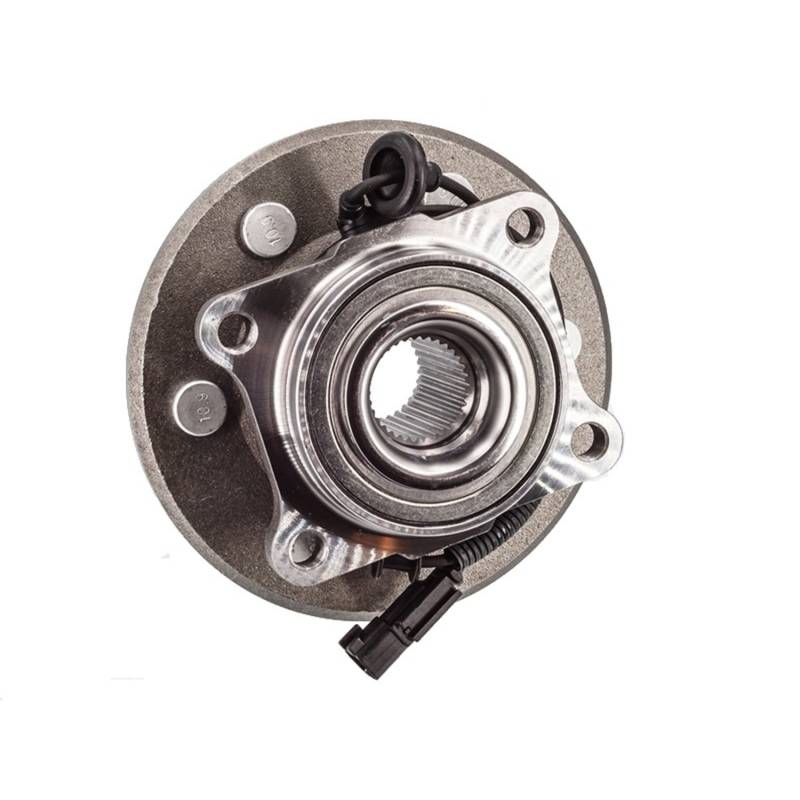

PRODUCT TYPE: HUB ASSEMBLY

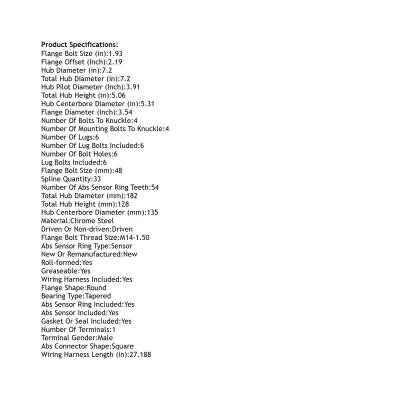

SPECIFICATIONS:
ABS CONNECTOR SHAPE: SQUARE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: TAPERED
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.93
FLANGE BOLT SIZE (MM): 48
FLANGE BOLT THREAD SIZE: M14-1.50
FLANGE DIAMETER (INCH): 3.54
FLANGE OFFSET (INCH): 2.19
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 5.31
HUB CENTERBORE DIAMETER (MM): 135
HUB DIAMETER (IN): 7.2
HUB PILOT DIAMETER (INCH): 3.91
LUG BOLTS INCLUDED: 6
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 54
NUMBER OF BOLT HOLES: 6
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF LUG BOLTS INCLUDED: 6
NUMBER OF LUGS: 6
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
SPLINE QUANTITY: 33
TERMINAL GENDER: MALE
TOTAL HUB DIAMETER (IN): 7.2
TOTAL HUB DIAMETER (MM): 182
TOTAL HUB HEIGHT (IN): 5.06
TOTAL HUB HEIGHT (MM): 128
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 27.188
REPLACES:
AUTOPART INTERNATIONAL: 1411-547800
CENTRIC PARTS: 40265042
FORD: FL1Z 1109 B
MEVOTECH: MB40323
MOOG HUB ASSEMBLIES: 541015
MOTORCRAFT: HUB405
NAPA: PBR930990
APPLICATIONS:
FORD EXPEDITION EL (2015-2017)
FORD EXPEDITION MAX (2015-2017)
FORD EXPEDITION PLATINUM (2015-2017)
FORD EXPEDITION (2015-2017)
LINCOLN NAVIGATOR (2015-2017)
