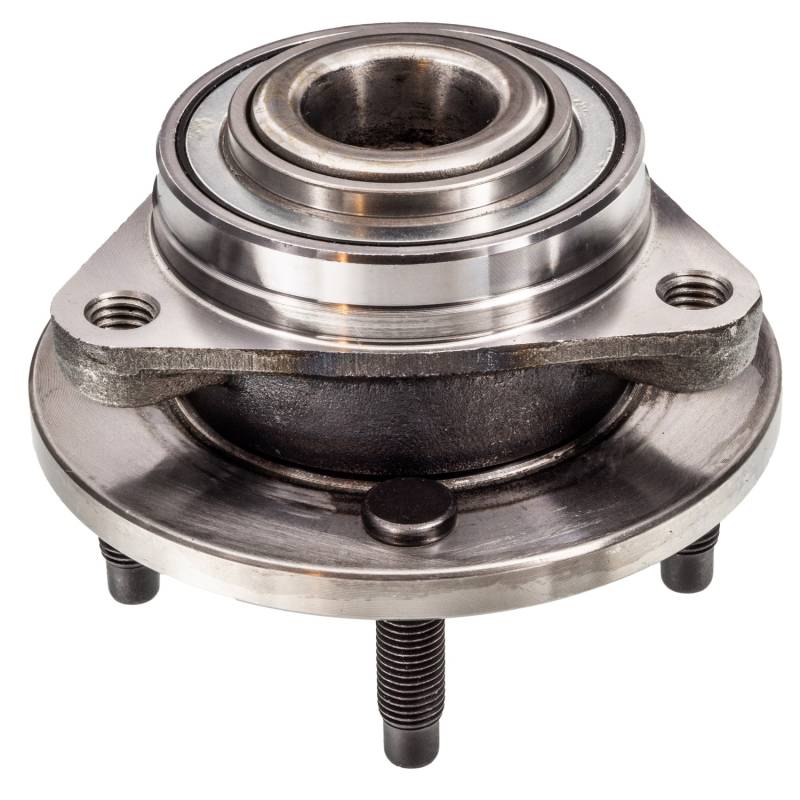

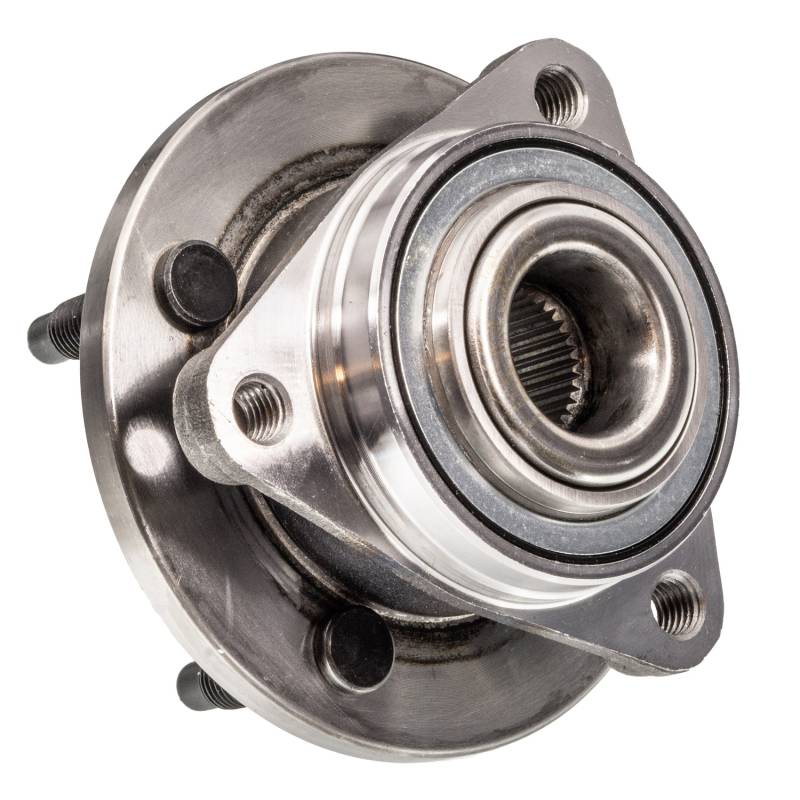

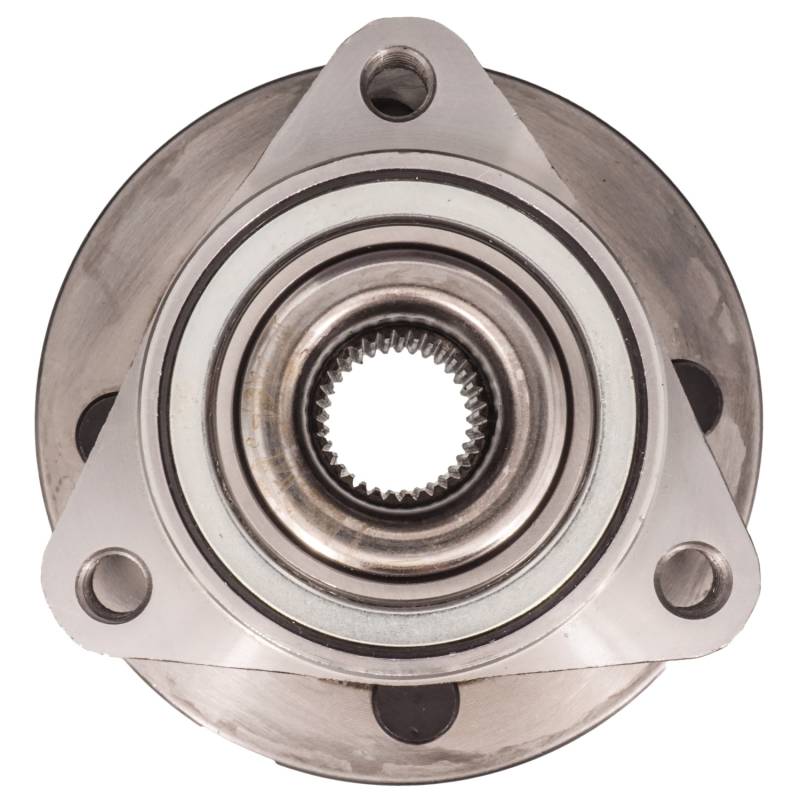

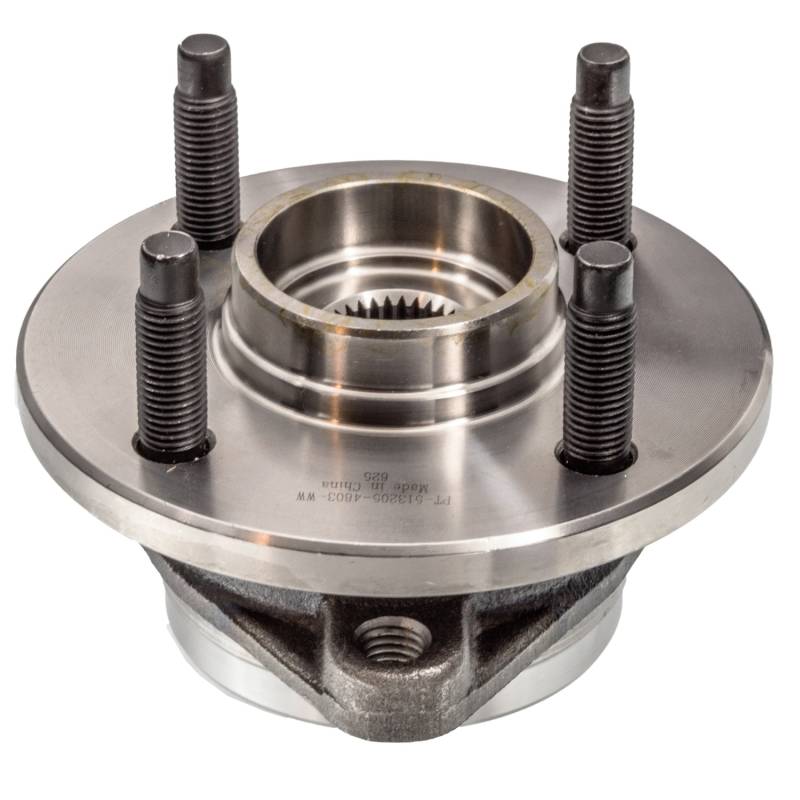

New Hub Assembly Compatible With Saturn Chevrolet Pontiac Ion Cobalt Pursuit G5 2.0L 2.2L 2.4L 2003

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.504
FLANGE BOLT SIZE (MM): 38.2
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 2.362
FLANGE OFFSET (INCH): 1.535
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 3.937
HUB CENTERBORE DIAMETER (MM): 100
HUB DIAMETER (IN): 5.189
HUB PILOT DIAMETER (INCH): 3.346
LUG BOLT THREAD SIZE: M12X1.75
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF FLANGE BOLTS INCLUDED: 4
NUMBER OF LUG BOLTS INCLUDED: 4
NUMBER OF LUGS: 4
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
ROLL-FORMED: YES
SPLINE QUANTITY: 33
TOTAL HUB DIAMETER (IN): 5.189
TOTAL HUB DIAMETER (MM): 131.8
TOTAL HUB HEIGHT (IN): 3.984
TOTAL HUB HEIGHT (MM): 101.2
WIRING HARNESS INCLUDED: NO

REPLACES:
OTHER PART NUMBER: PT513205
SKF: BR930315
TIMKEN: HA590069
ACDELCO: FW344
AUTOPART INTERNATIONAL: 1411-49099
BCA: WE60796
CENTRIC PARTS: 40062003
FAG US: 102212
GSP: 104205
MEVOTECH: H513205
MOOG HUB ASSEMBLIES: 513205
NAPA: PBR930315

APPLICATIONS:
SATURN ION (2003-2007)
CHEVROLET COBALT (2005-2010)
PONTIAC PURSUIT (2005-2006)
PONTIAC G5 (2007-2010)
