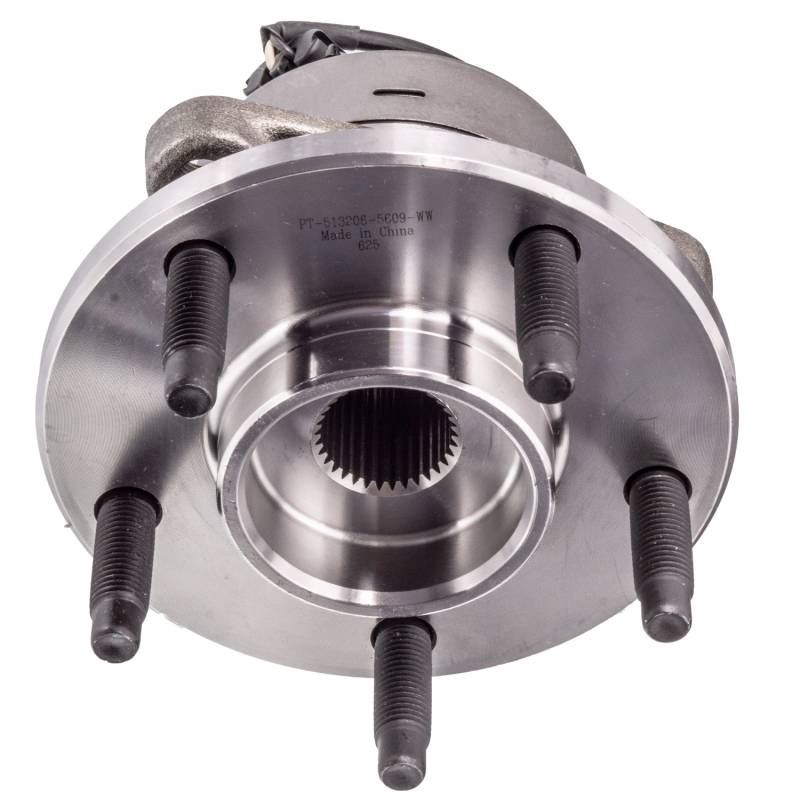

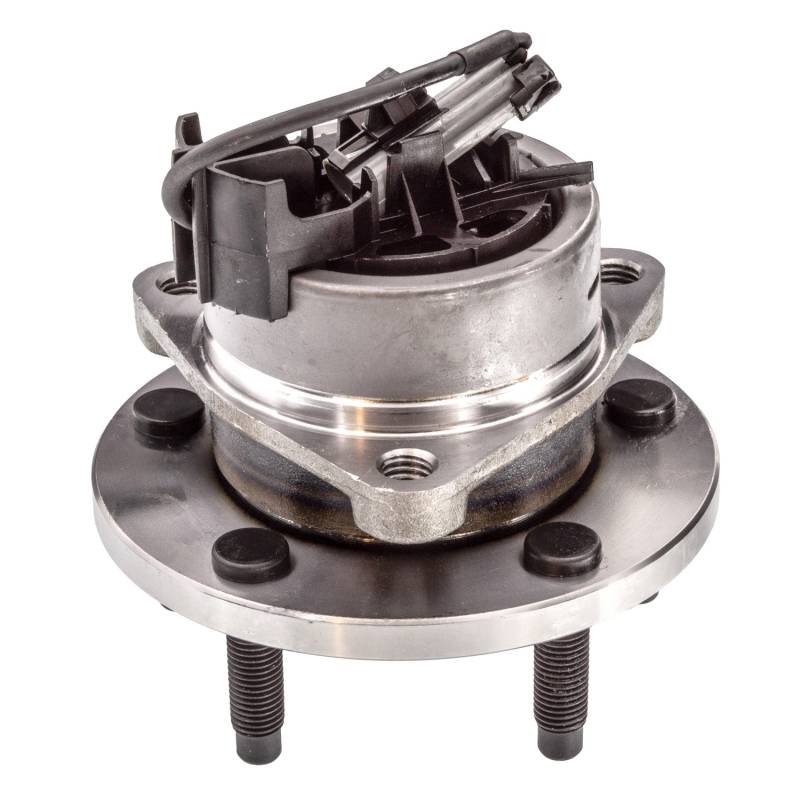

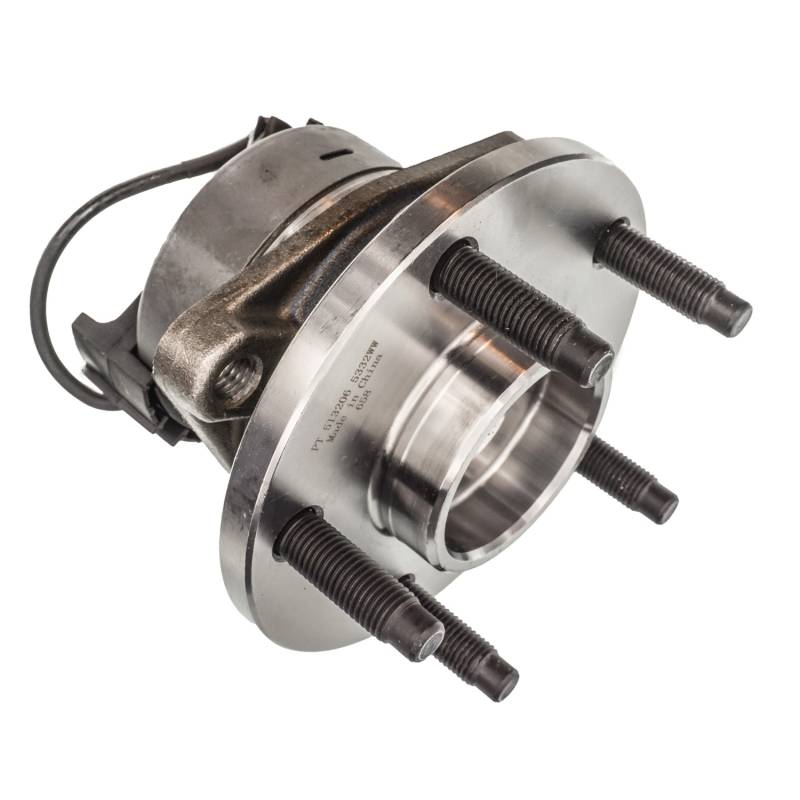

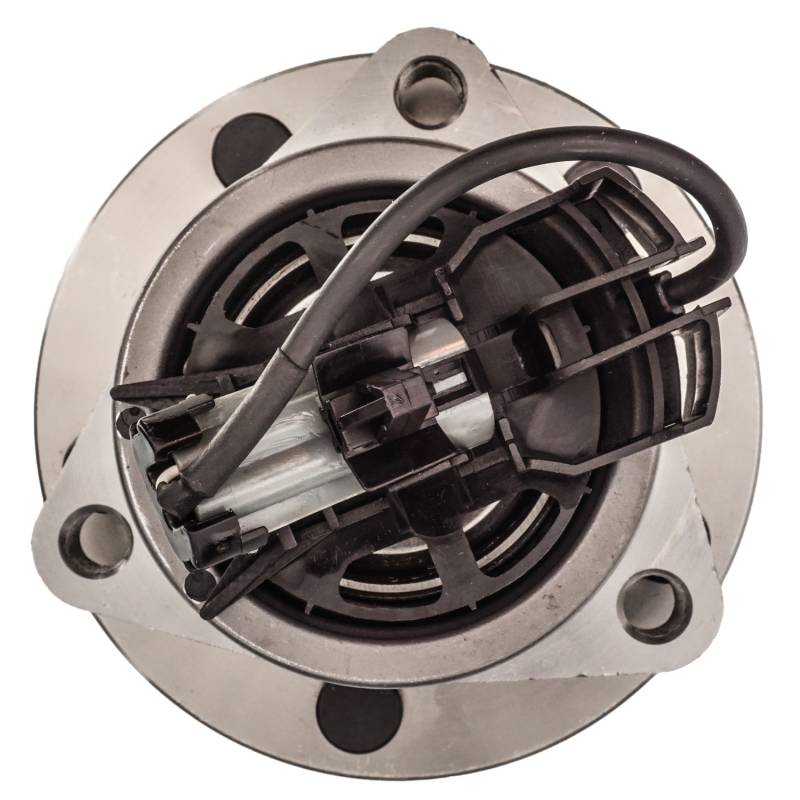

New Hub Assembly Compatible With Saturn Chevrolet Pontiac Ion Cobalt Pursuit Hhr G5 2.0L 2.2L 2.4L

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 3.228
ABS SENSOR RING DIAMETER (MM): 82
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE RING
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.504
FLANGE BOLT SIZE (MM): 38.2
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 2.575
FLANGE OFFSET (INCH): 1.535
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.331
HUB CENTERBORE DIAMETER (MM): 110
HUB DIAMETER (IN): 5.394
HUB PILOT DIAMETER (INCH): 3.346
LUG BOLT THREAD SIZE: M12X1.75
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 47
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
SPLINE QUANTITY: 33
TERMINAL GENDER: MALE
TOTAL HUB DIAMETER (IN): 5.394
TOTAL HUB DIAMETER (MM): 137
TOTAL HUB HEIGHT (IN): 5.126
TOTAL HUB HEIGHT (MM): 130.2
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 4.724

REPLACES:
ACDELCO: FW299
AUTOPART INTERNATIONAL: 1411-49181
BCA: WE60800
CENTRIC PARTS: 40262011
FAG US: 102040
GENERAL MOTORS: 22715554
GSP: 104206
MEVOTECH: H513206
MOOG HUB ASSEMBLIES: 513206
NAPA: PBR930433

APPLICATIONS:
SATURN ION (2003-2007)
CHEVROLET COBALT (2005-2010)
PONTIAC PURSUIT (2005-2006)
CHEVROLET HHR (2006-2011)
PONTIAC G5 (2007-2010)
