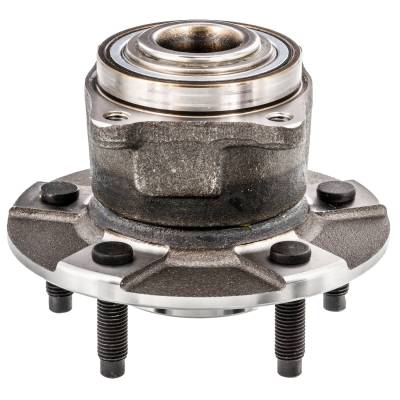

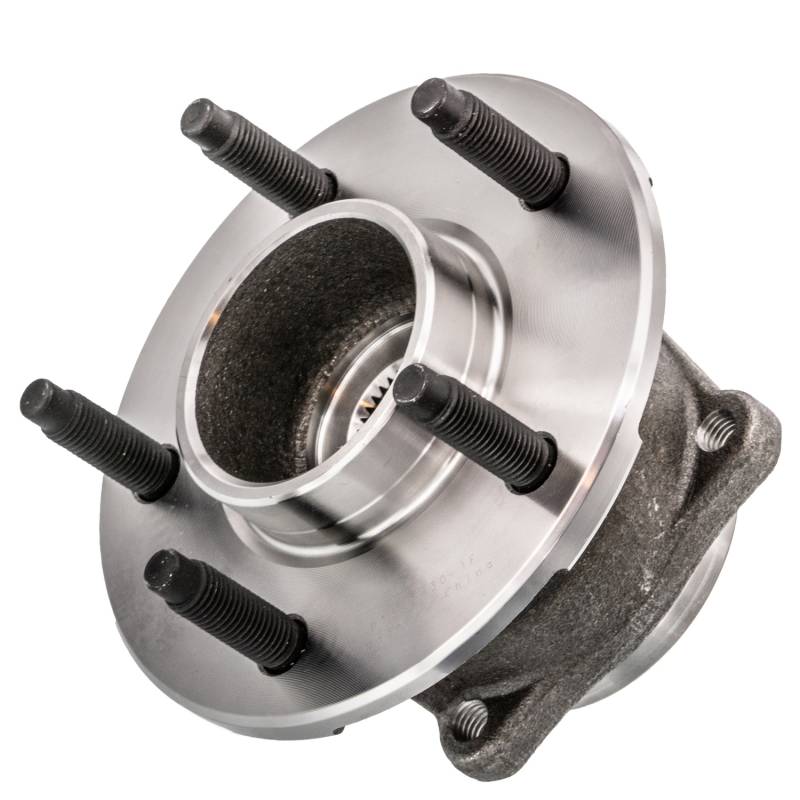

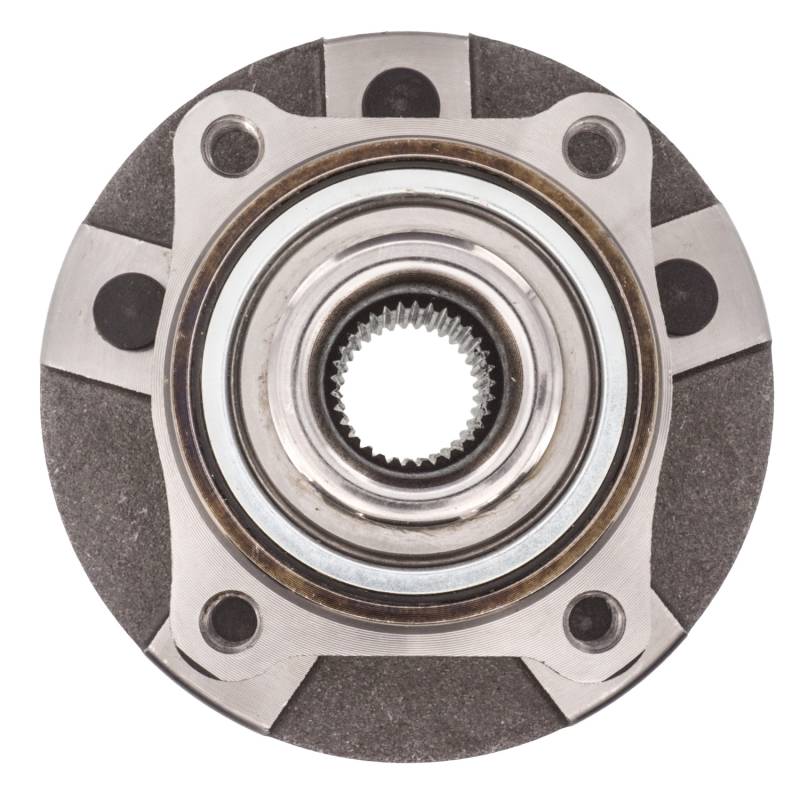

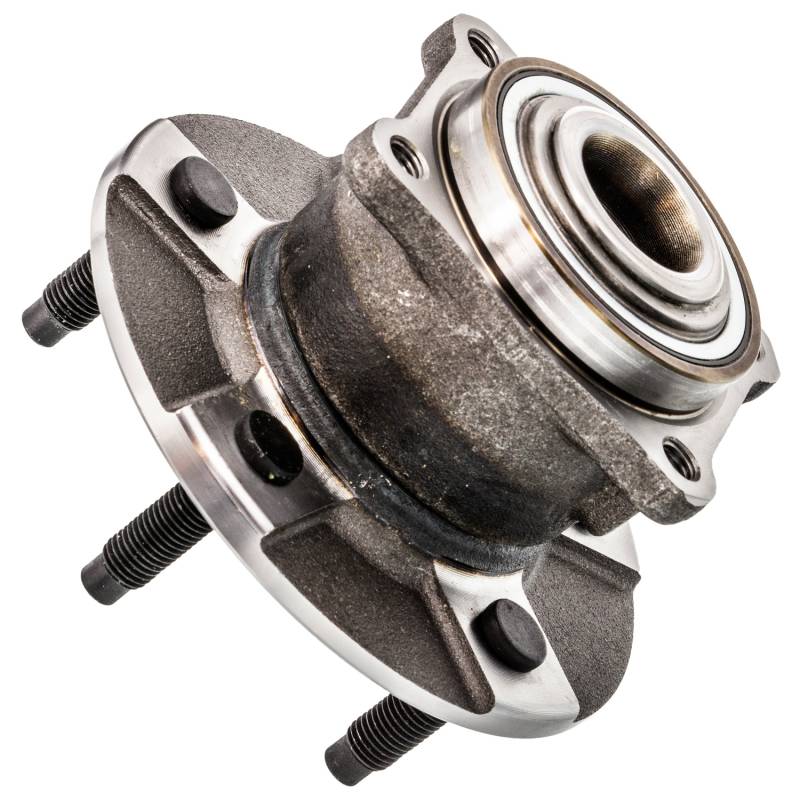

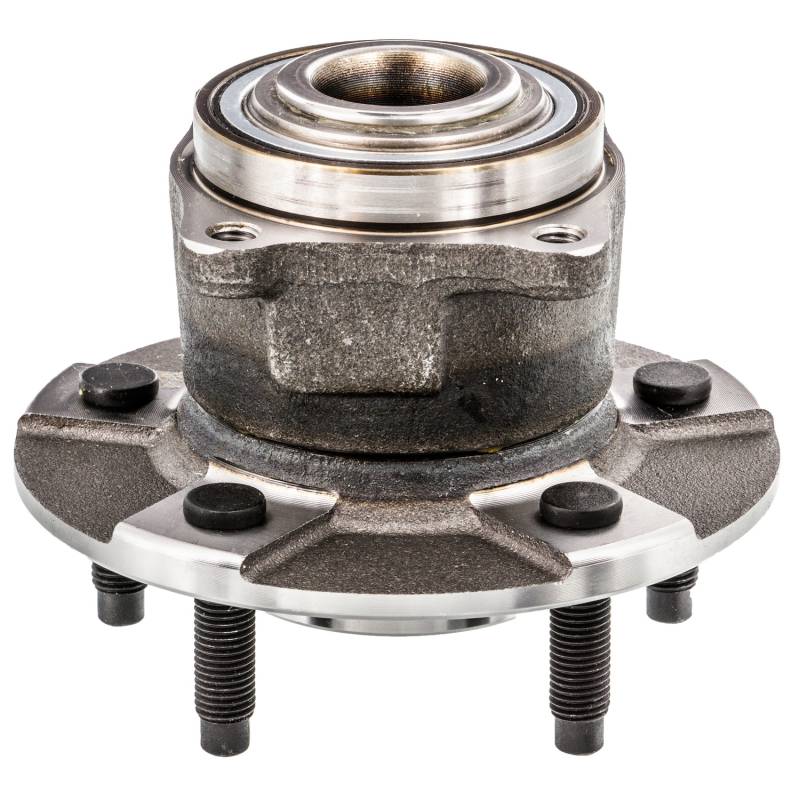

New Hub Assembly Compatible With Saturn Chevrolet Pontiac Vue Equinox Torrent 2002 2003 2004 2005

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

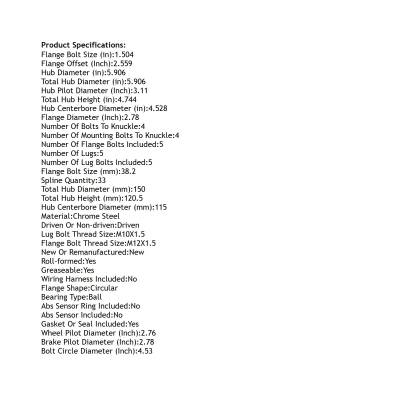

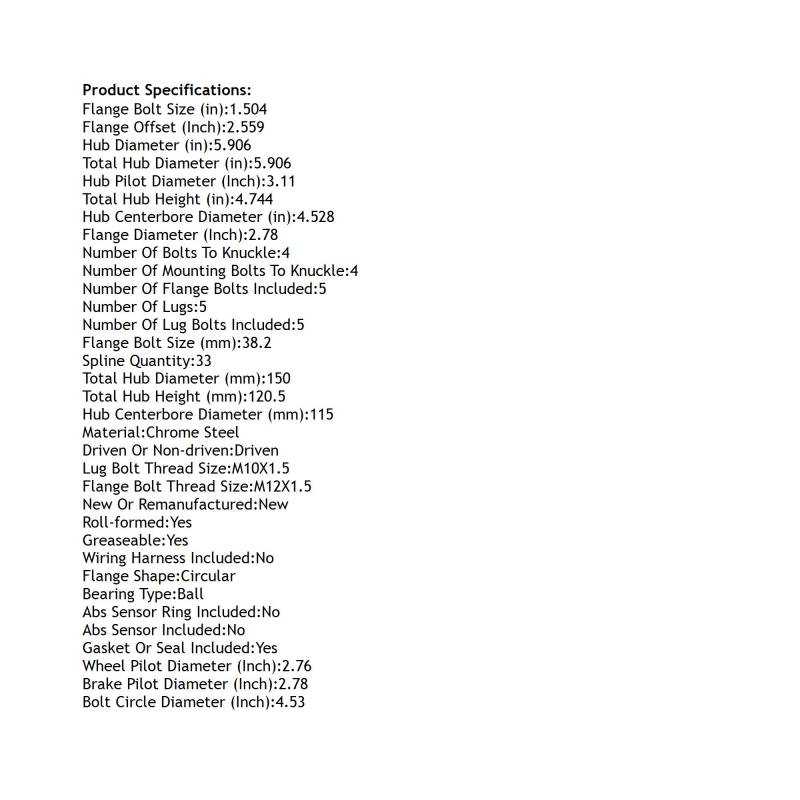

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
BEARING TYPE: BALL
BOLT CIRCLE DIAMETER (INCH): 4.53
BRAKE PILOT DIAMETER (INCH): 2.78
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.504
FLANGE BOLT SIZE (MM): 38.2
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 2.78
FLANGE OFFSET (INCH): 2.559
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.528
HUB CENTERBORE DIAMETER (MM): 115
HUB DIAMETER (IN): 5.906
HUB PILOT DIAMETER (INCH): 3.11
LUG BOLT THREAD SIZE: M10X1.5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: YES
SPLINE QUANTITY: 33
TOTAL HUB DIAMETER (IN): 5.906
TOTAL HUB DIAMETER (MM): 150
TOTAL HUB HEIGHT (IN): 4.744
TOTAL HUB HEIGHT (MM): 120.5
WHEEL PILOT DIAMETER (INCH): 2.76
WIRING HARNESS INCLUDED: NO

REPLACES:
OTHER PART NUMBER: PT512230
SKF: BR930328
TIMKEN: 512230
ACDELCO: RW20-105
AUTOPART INTERNATIONAL: 1411-19299
BCA: WE61476
CENTRIC PARTS: 40062005
FAG US: 102505
GSP: 103230
MEVOTECH: H512230
MOOG HUB ASSEMBLIES: 512230
NAPA: PBR930328

APPLICATIONS:
SATURN VUE (2002-2007)
CHEVROLET EQUINOX (2005-2005)
PONTIAC TORRENT (2006-2006)
