New Hub Assembly Compatible With Hyundai Santa Fe 2.4L 2.7L 3.5L 2001 2002 2003 2004 2005 2006 By

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

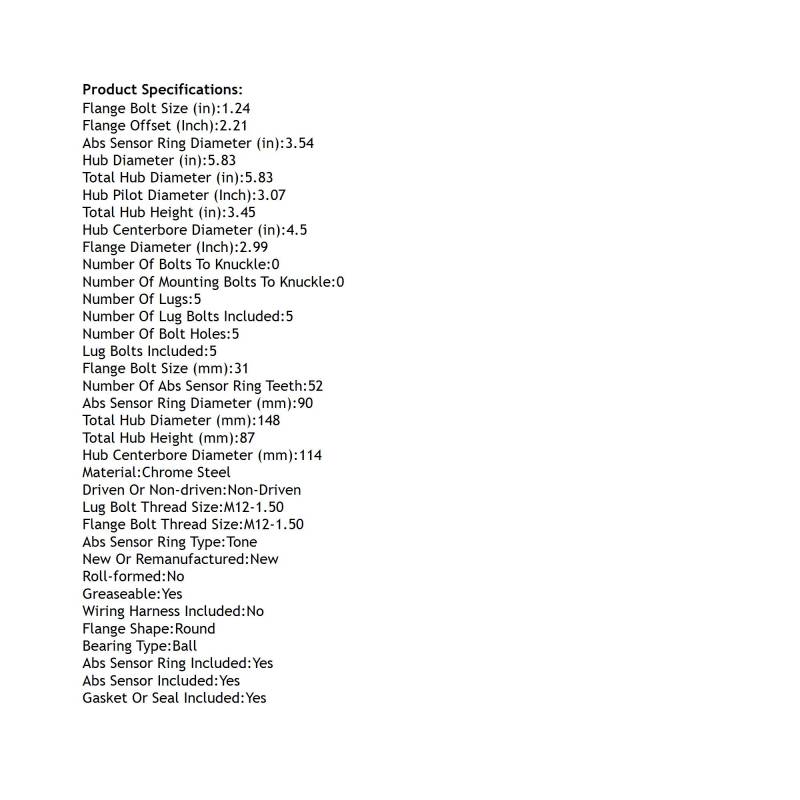

SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 3.54
ABS SENSOR RING DIAMETER (MM): 90
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.24
FLANGE BOLT SIZE (MM): 31
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 2.99
FLANGE OFFSET (INCH): 2.21
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114
HUB DIAMETER (IN): 5.83
HUB PILOT DIAMETER (INCH): 3.07
LUG BOLT THREAD SIZE: M12-1.50
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 52
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 0
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 0
ROLL-FORMED: NO
TOTAL HUB DIAMETER (IN): 5.83
TOTAL HUB DIAMETER (MM): 148
TOTAL HUB HEIGHT (IN): 3.45
TOTAL HUB HEIGHT (MM): 87
WIRING HARNESS INCLUDED: NO

REPLACES:
OTHER PART NUMBER: PT512196
SKF: BR930367
TIMKEN: 512196
AUTOPART INTERNATIONAL: 1411-258501
BCA: WE61026
BECK/ARNLEY: 051-6098
CENTRIC PARTS: 40651014E
FAG US: 101790
GSP: 373196
MEVOTECH: H512196
MOOG HUB ASSEMBLIES: 512196
NAPA: PBR930367
ZZZN: 52750-26000

APPLICATIONS:
HYUNDAI SANTA FE (2001-2006)
