THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

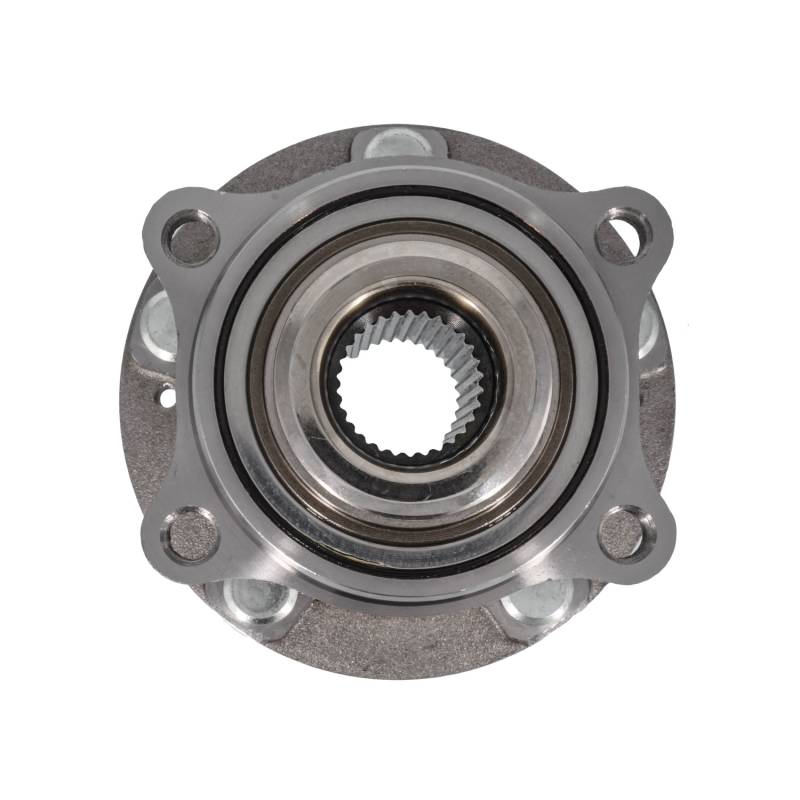

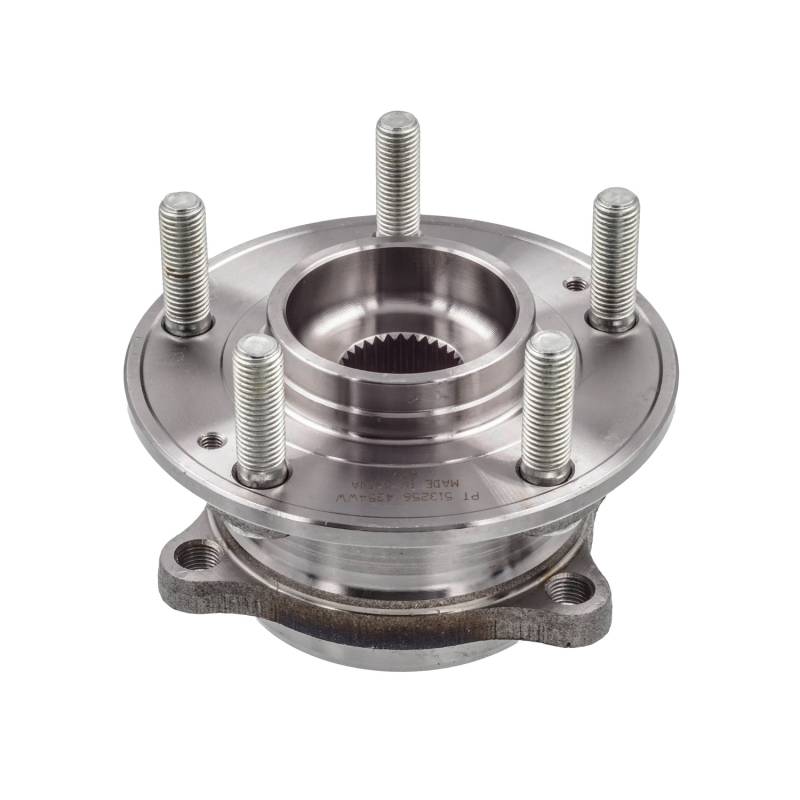

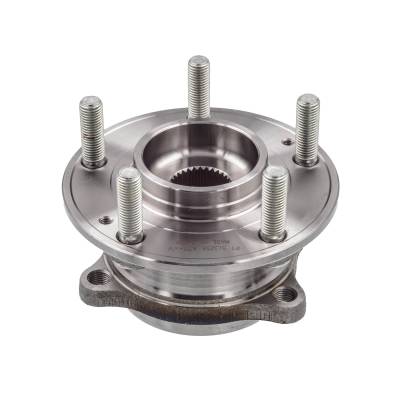

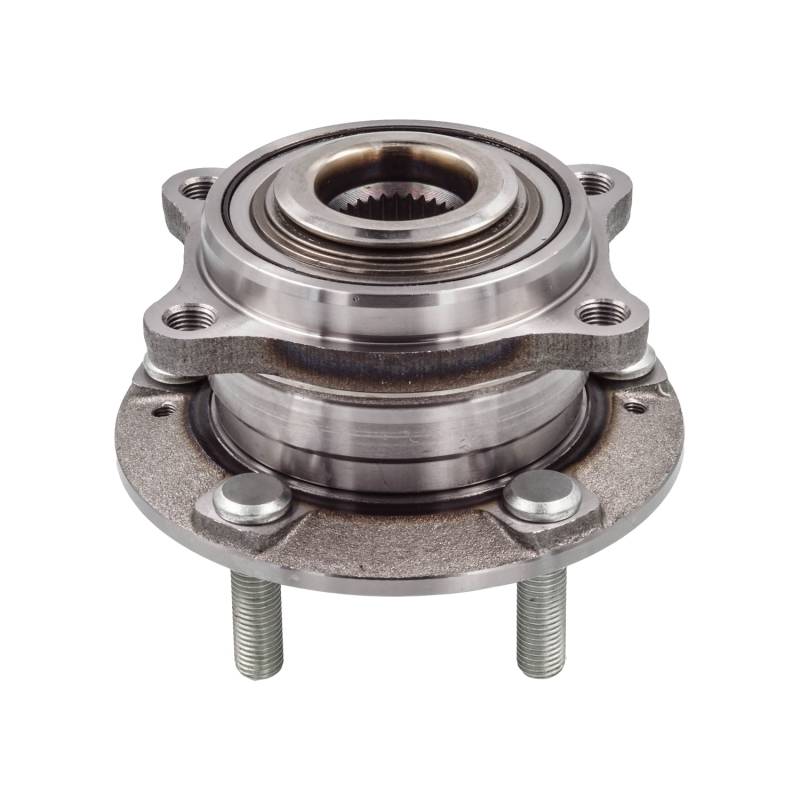

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

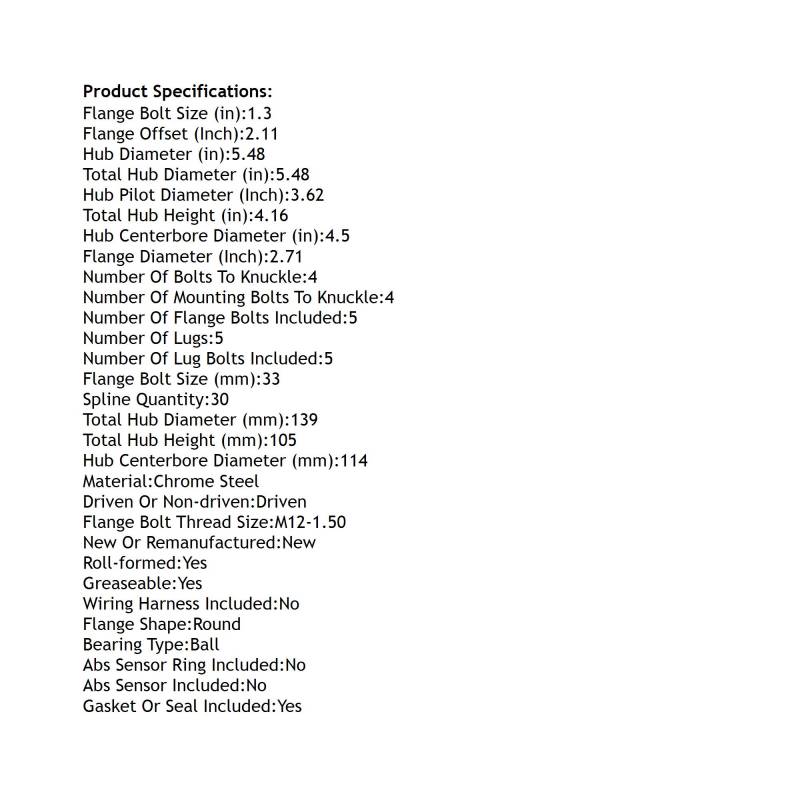

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.3
FLANGE BOLT SIZE (MM): 33
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 2.71
FLANGE OFFSET (INCH): 2.11
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114
HUB DIAMETER (IN): 5.48
HUB PILOT DIAMETER (INCH): 3.62
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: YES
SPLINE QUANTITY: 30
TOTAL HUB DIAMETER (IN): 5.48
TOTAL HUB DIAMETER (MM): 139
TOTAL HUB HEIGHT (IN): 4.16
TOTAL HUB HEIGHT (MM): 105
WIRING HARNESS INCLUDED: NO
REPLACES:
AUTOPART INTERNATIONAL: 1411-246648
BCA: WE60764
CENTRIC PARTS: 40051000
FAG US: 101890
GSP: 374256
MEVOTECH: H513256
MOOG HUB ASSEMBLIES: 513256
NAPA: PBR930647
APPLICATIONS:
HYUNDAI SANTA FE (2007-2009)
HYUNDAI VERACRUZ (2007-2009)
