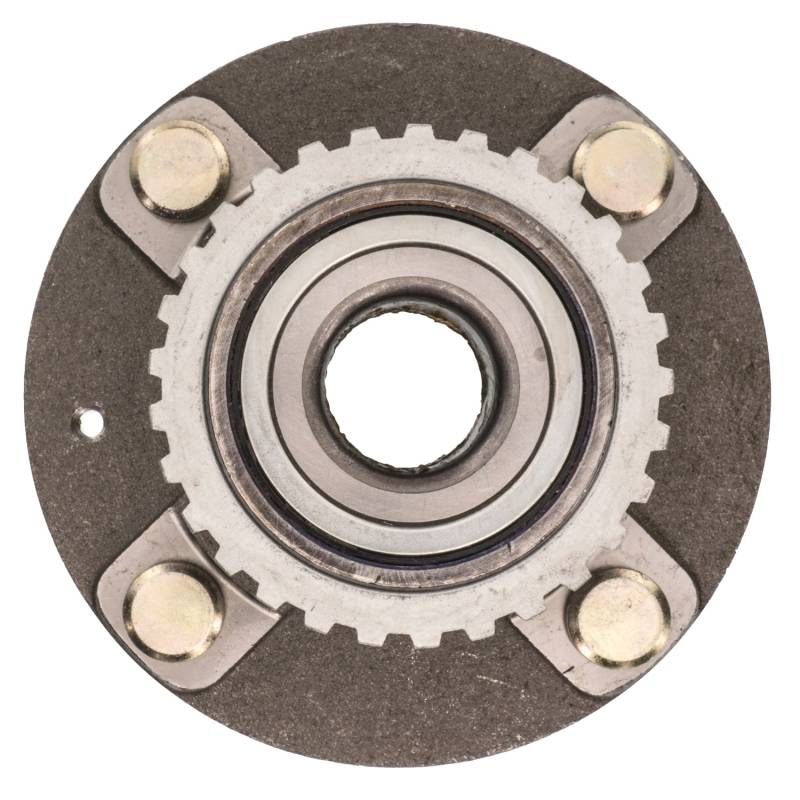

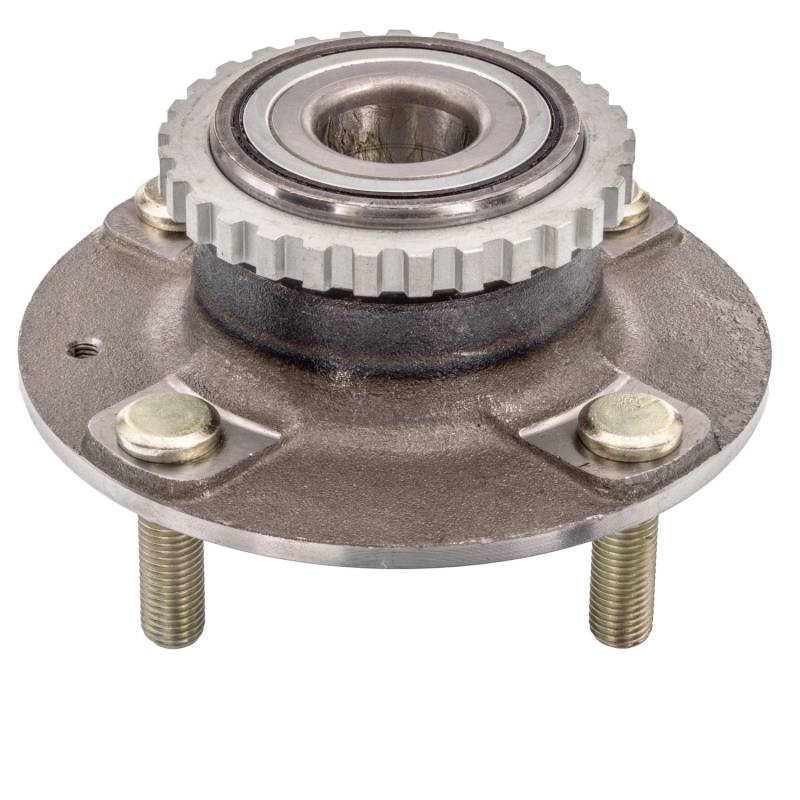

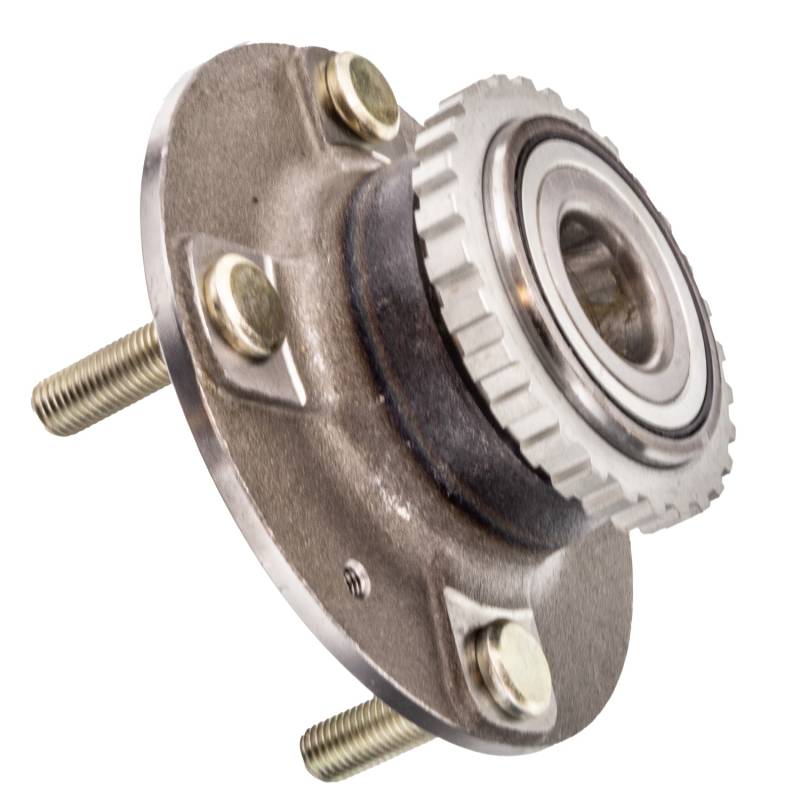

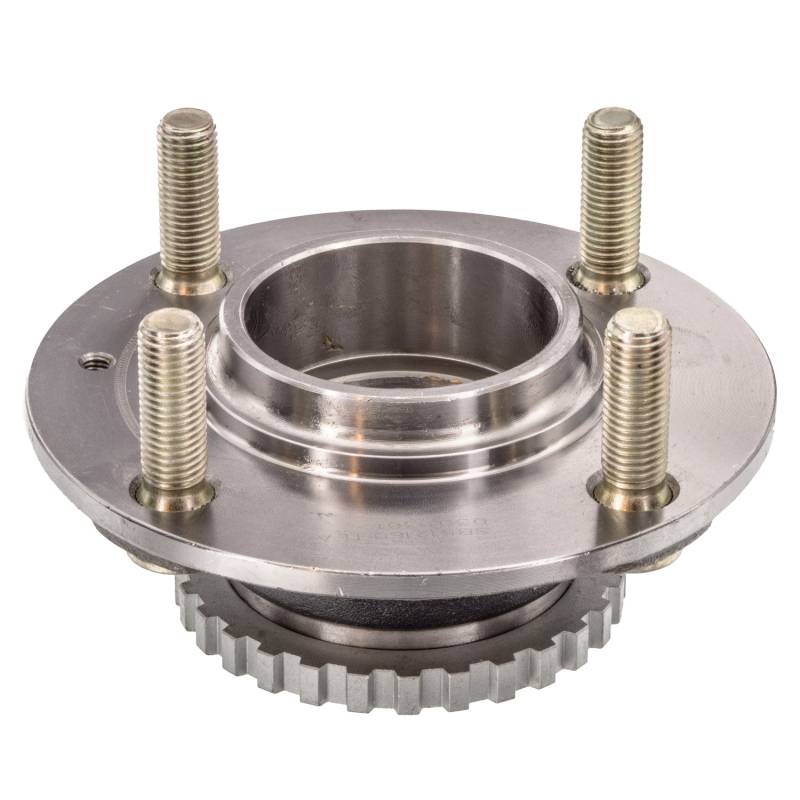

New Hub Assembly Compatible With Hyundai Elantra Tiburon 1.8L 2.0L 1996 1997 1998 1999 2000 2001 By

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

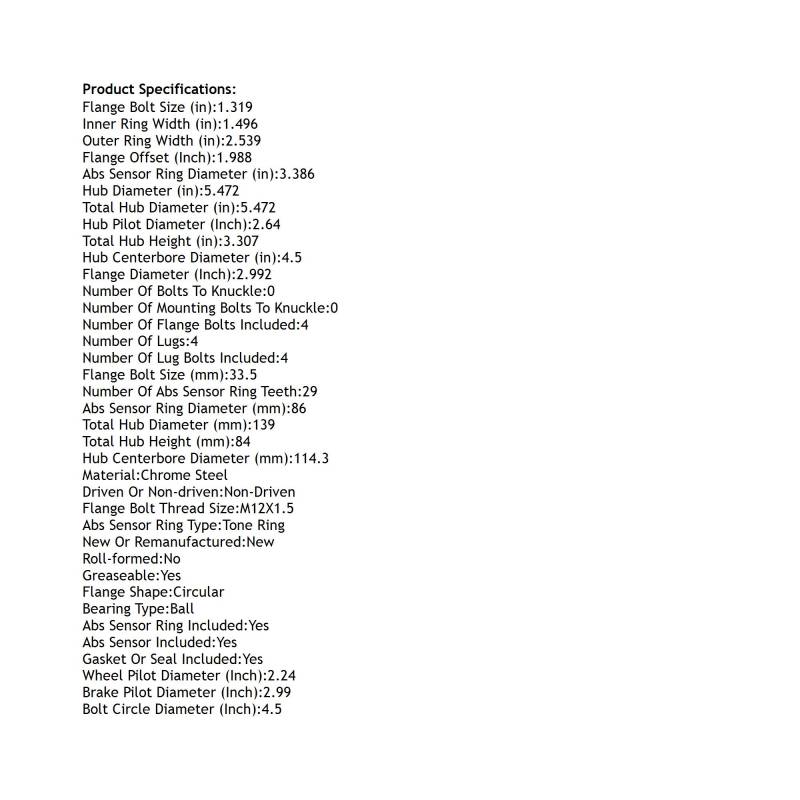

SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 3.386
ABS SENSOR RING DIAMETER (MM): 86
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE RING
BEARING TYPE: BALL
BOLT CIRCLE DIAMETER (INCH): 4.5
BRAKE PILOT DIAMETER (INCH): 2.99
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.319
FLANGE BOLT SIZE (MM): 33.5
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 2.992
FLANGE OFFSET (INCH): 1.988
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114.3
HUB DIAMETER (IN): 5.472
HUB PILOT DIAMETER (INCH): 2.64
INNER RING WIDTH (IN): 1.496
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 29
NUMBER OF BOLTS TO KNUCKLE: 0
NUMBER OF FLANGE BOLTS INCLUDED: 4
NUMBER OF LUG BOLTS INCLUDED: 4
NUMBER OF LUGS: 4
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 0
OUTER RING WIDTH (IN): 2.539
ROLL-FORMED: NO
TOTAL HUB DIAMETER (IN): 5.472
TOTAL HUB DIAMETER (MM): 139
TOTAL HUB HEIGHT (IN): 3.307
TOTAL HUB HEIGHT (MM): 84
WHEEL PILOT DIAMETER (INCH): 2.24

REPLACES:
OTHER PART NUMBER: PT512160
SKF: BR930270
TIMKEN: 512160
AUTOPART INTERNATIONAL: 1411-45727
BCA: WE61466
BECK/ARNLEY: 051-6206
CENTRIC PARTS: 40651004E
FAG US: 102314
GSP: 373160
MEVOTECH: H512160
MOOG HUB ASSEMBLIES: 512160
NAPA: PBR930270
ZZZN: 52710-29470 52710-29671

APPLICATIONS:
HYUNDAI ELANTRA (1996-2000)
HYUNDAI TIBURON (1997-2001)
