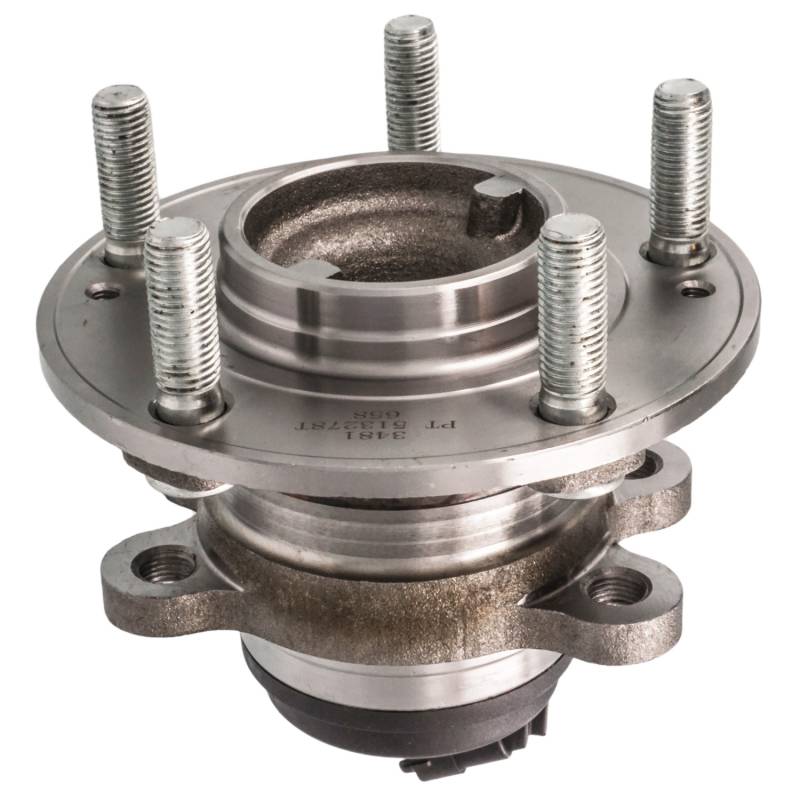

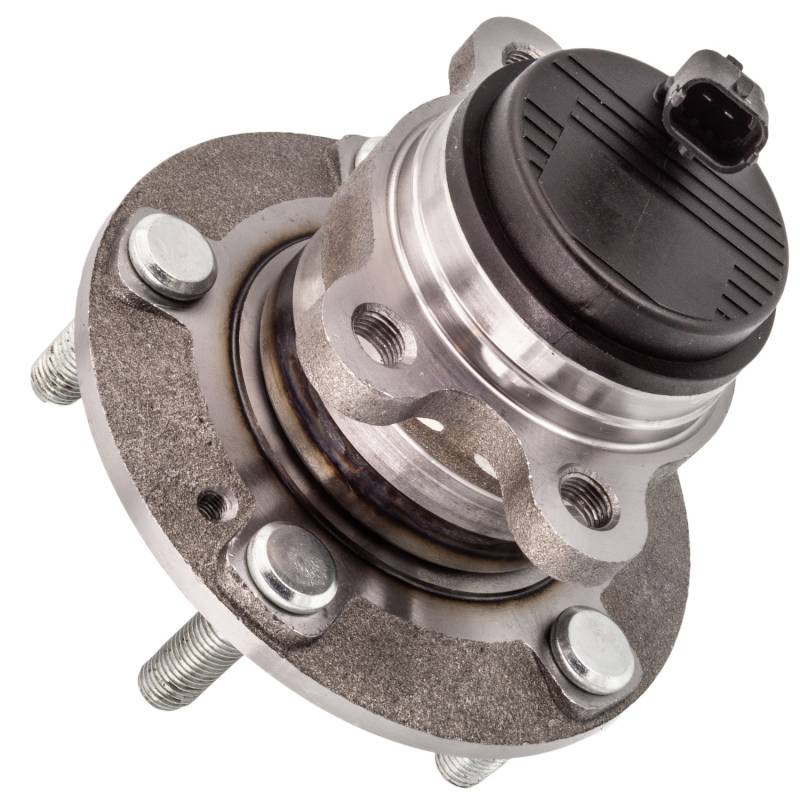

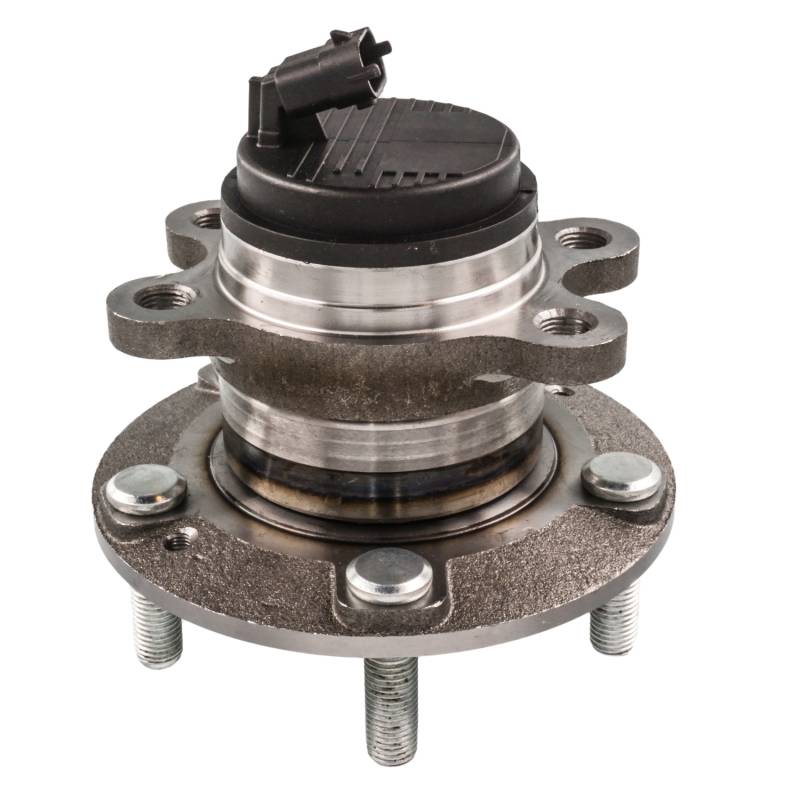

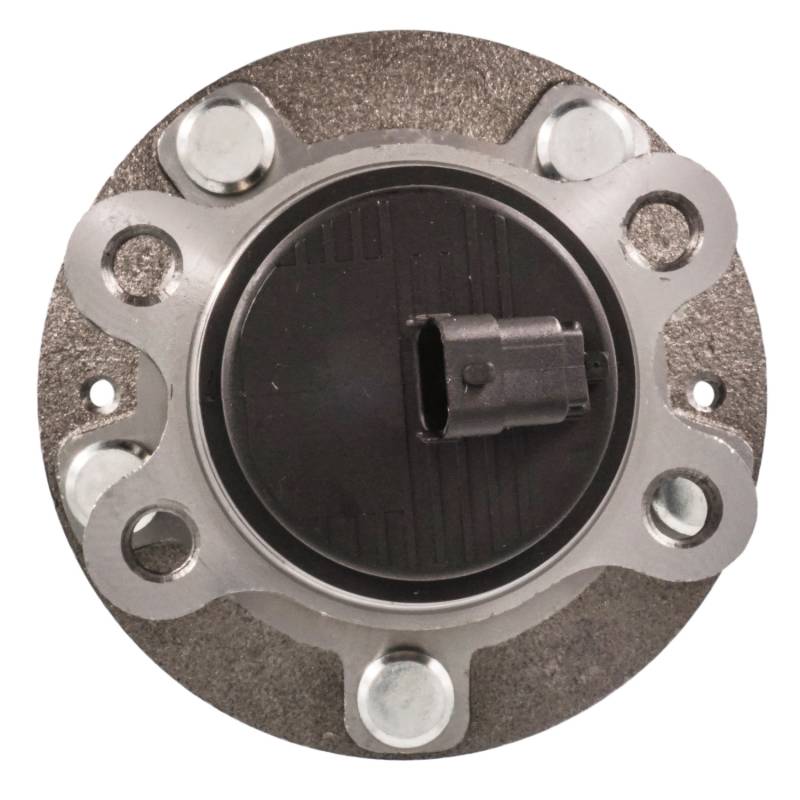

New Hub Assembly Compatible With Hyundai Genesis Coupe 2.0L 3.8L 2010 2011 2012 2013 2014 2015 2016

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

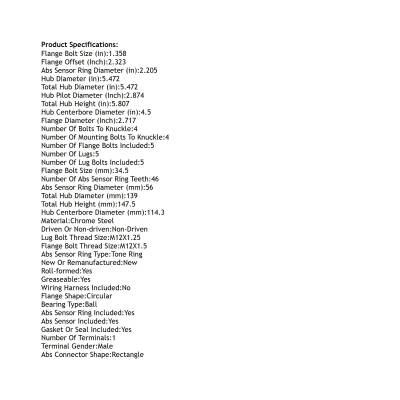

SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 2.205
ABS SENSOR RING DIAMETER (MM): 56
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE RING
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.358
FLANGE BOLT SIZE (MM): 34.5
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 2.717
FLANGE OFFSET (INCH): 2.323
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114.3
HUB DIAMETER (IN): 5.472
HUB PILOT DIAMETER (INCH): 2.874
LUG BOLT THREAD SIZE: M12X1.25
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 46
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
TERMINAL GENDER: MALE
TOTAL HUB DIAMETER (IN): 5.472
TOTAL HUB DIAMETER (MM): 139
TOTAL HUB HEIGHT (IN): 5.807
TOTAL HUB HEIGHT (MM): 147.5
WIRING HARNESS INCLUDED: NO

REPLACES:
AUTOPART INTERNATIONAL: 1411-425154
BCA: WE61387
BECK/ARNLEY: 051-6375
CENTRIC PARTS: 40751002
GSP: 374343
MEVOTECH: MB90301
MOOG HUB ASSEMBLIES: 513343
NAPA: PBR930846

APPLICATIONS:
HYUNDAI GENESIS COUPE (2010-2016)
