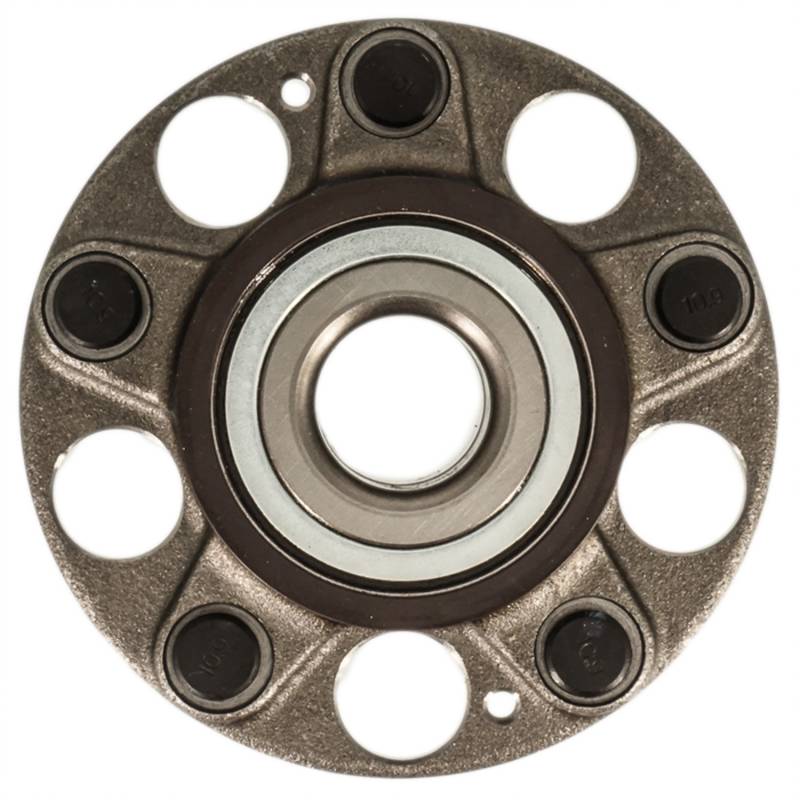

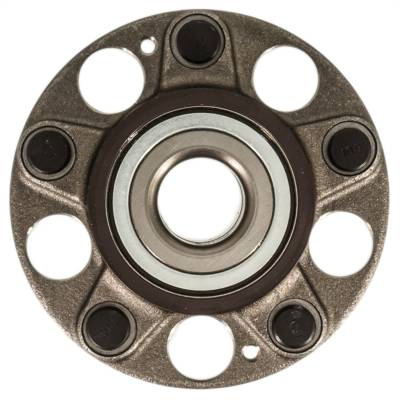

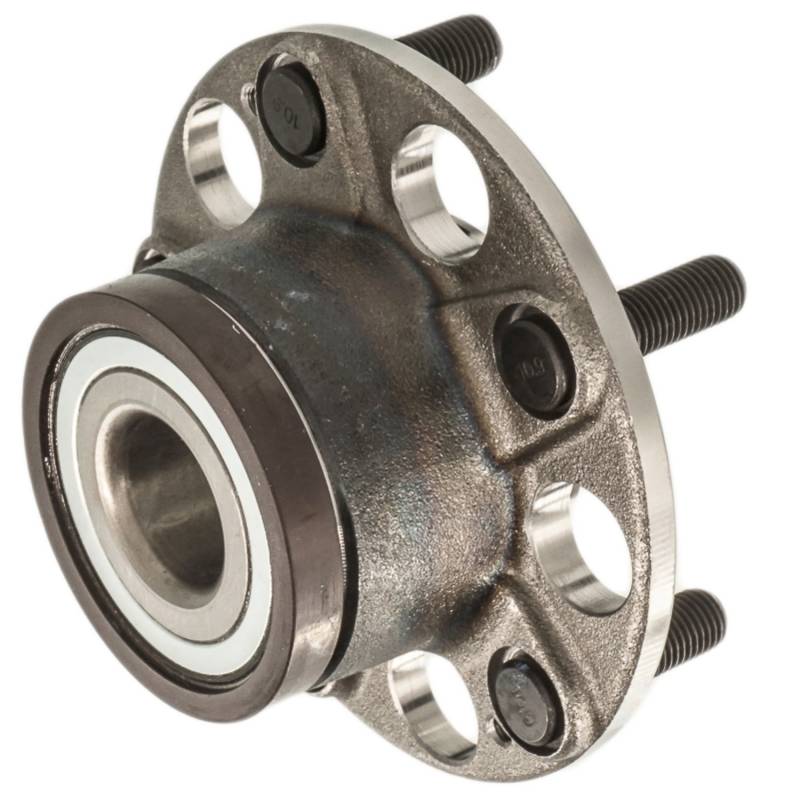

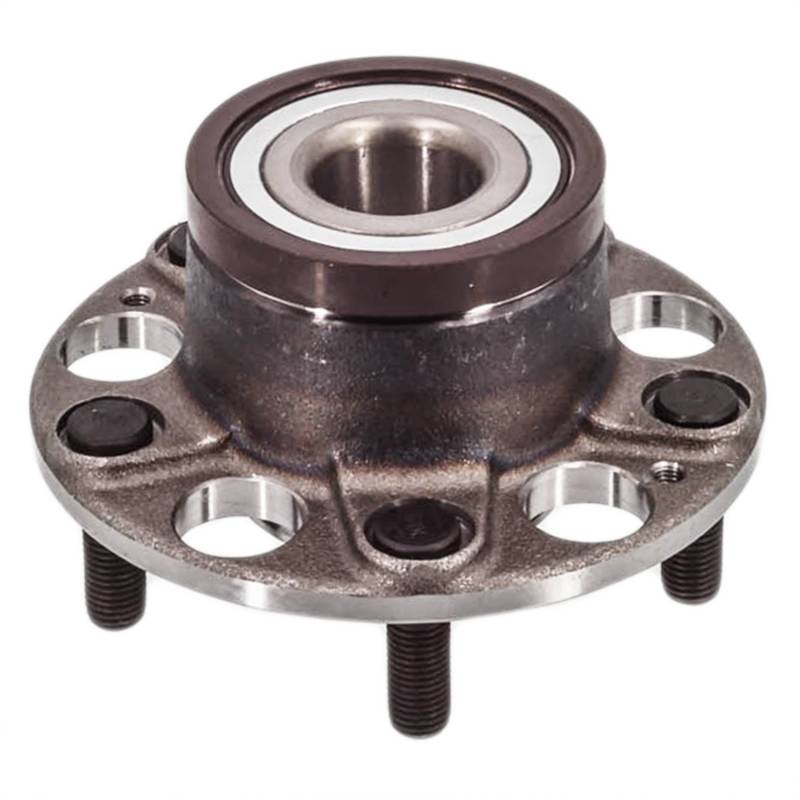

New Hub Assembly Compatible With Honda Cr-Z 1.5L 2011 2012 2013 2014 2015 2016 By Part Numbers

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

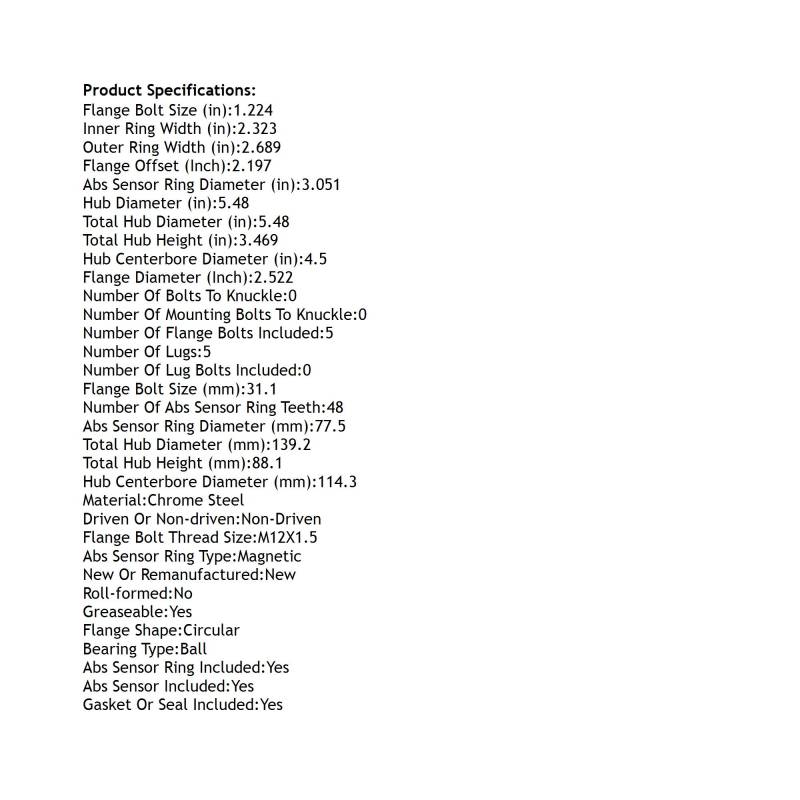

SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 3.051
ABS SENSOR RING DIAMETER (MM): 77.5
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.224
FLANGE BOLT SIZE (MM): 31.1
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 2.522
FLANGE OFFSET (INCH): 2.197
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114.3
HUB DIAMETER (IN): 5.48
INNER RING WIDTH (IN): 2.323
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 48
NUMBER OF BOLTS TO KNUCKLE: 0
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 0
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 0
OUTER RING WIDTH (IN): 2.689
ROLL-FORMED: NO
TOTAL HUB DIAMETER (IN): 5.48
TOTAL HUB DIAMETER (MM): 139.2
TOTAL HUB HEIGHT (IN): 3.469
TOTAL HUB HEIGHT (MM): 88.1

REPLACES:
OTHER PART NUMBER: PT512481
SKF: BR930833
TIMKEN: HA590434
AUTOPART INTERNATIONAL: 1411-480989
BCA: WE60591
BECK/ARNLEY: 051-6451
FAG US: 101802
GSP: 363481
MOOG HUB ASSEMBLIES: 512481
NAPA: PBR930833

APPLICATIONS:
HONDA CR-Z (2011-2016)
