New Hub Assembly Compatible With Honda Element 2.4L 2003 2004 2005 2006 2007 2008 2009 2010 2011 By

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

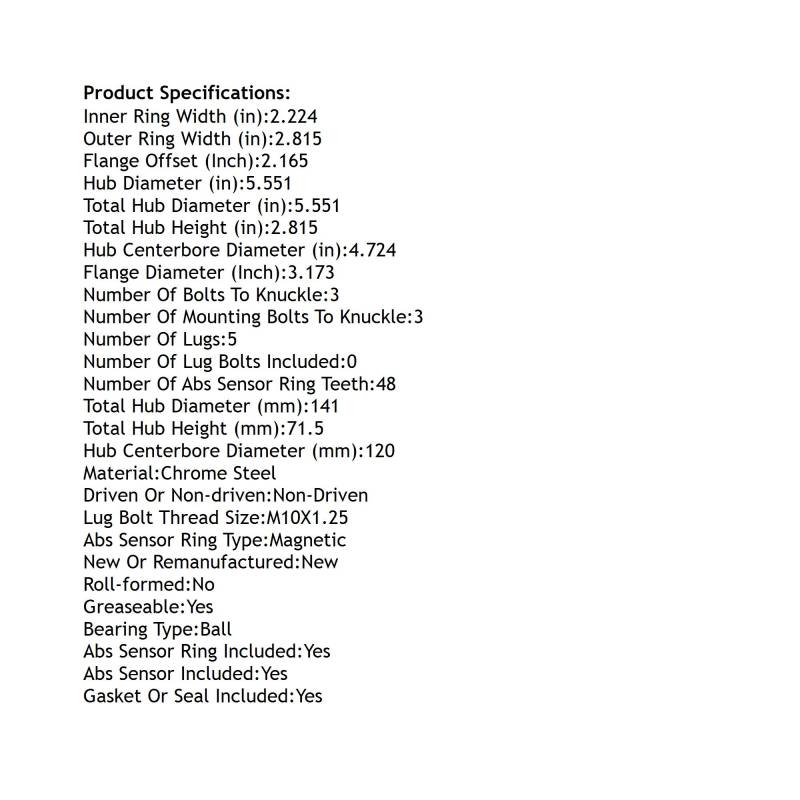

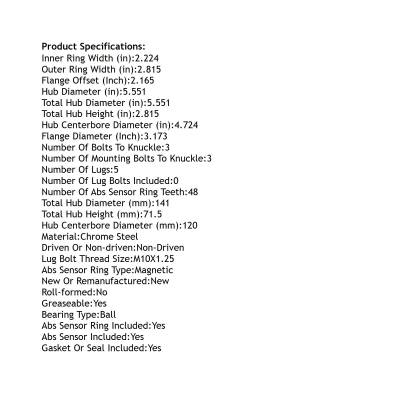

SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE DIAMETER (INCH): 3.173
FLANGE OFFSET (INCH): 2.165
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.724
HUB CENTERBORE DIAMETER (MM): 120
HUB DIAMETER (IN): 5.551
INNER RING WIDTH (IN): 2.224
LUG BOLT THREAD SIZE: M10X1.25
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 48
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF LUG BOLTS INCLUDED: 0
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
OUTER RING WIDTH (IN): 2.815
ROLL-FORMED: NO
TOTAL HUB DIAMETER (IN): 5.551
TOTAL HUB DIAMETER (MM): 141
TOTAL HUB HEIGHT (IN): 2.815
TOTAL HUB HEIGHT (MM): 71.5

REPLACES:
OTHER PART NUMBER: PT512262
SKF: BR930319
TIMKEN: BM500014
BCA: WE60583
BECK/ARNLEY: 051-4260
CENTRIC PARTS: 40540016
FAG US: 102509
GSP: 363262
MEVOTECH: H512262
MOOG HUB ASSEMBLIES: 512262
NAPA: PBR930319

APPLICATIONS:
HONDA ELEMENT (2003-2011)
