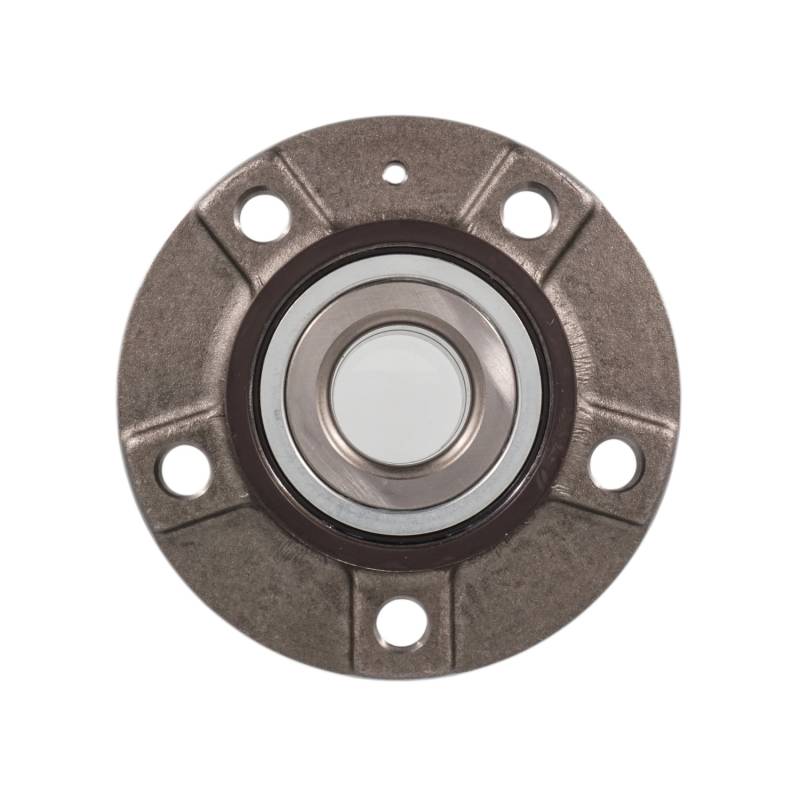

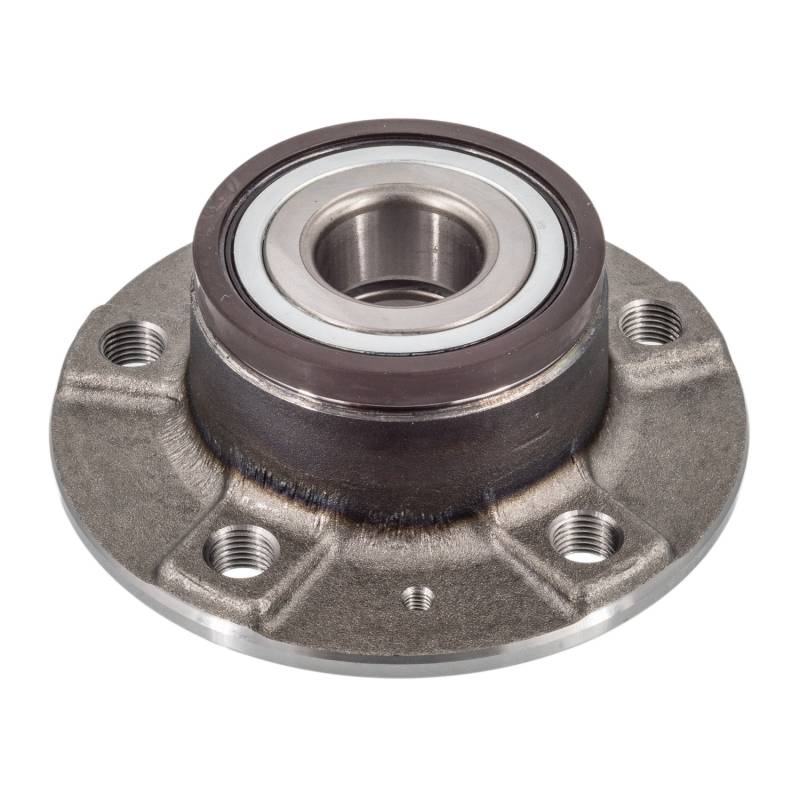

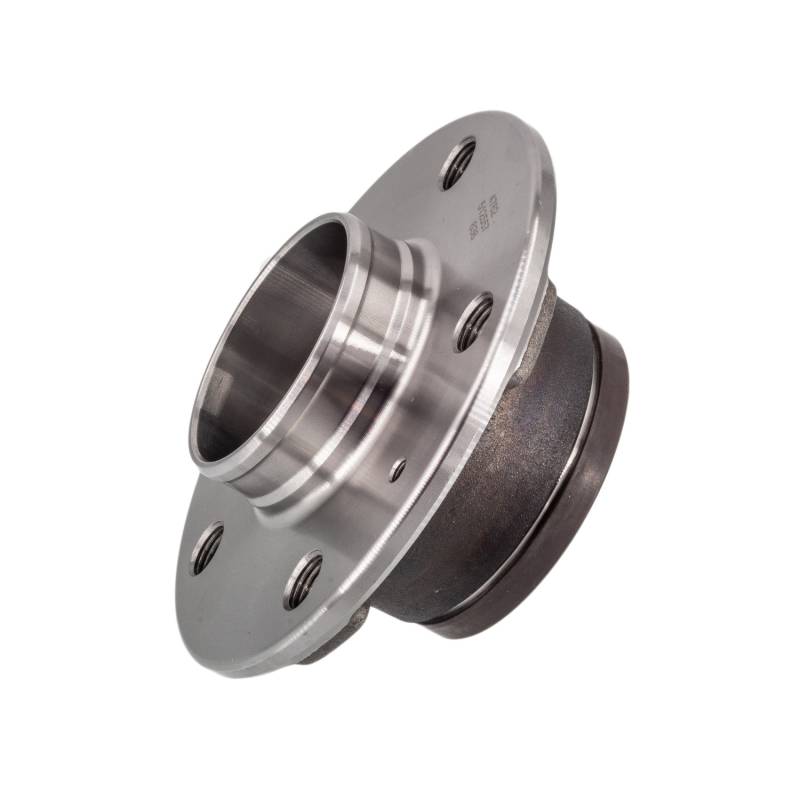

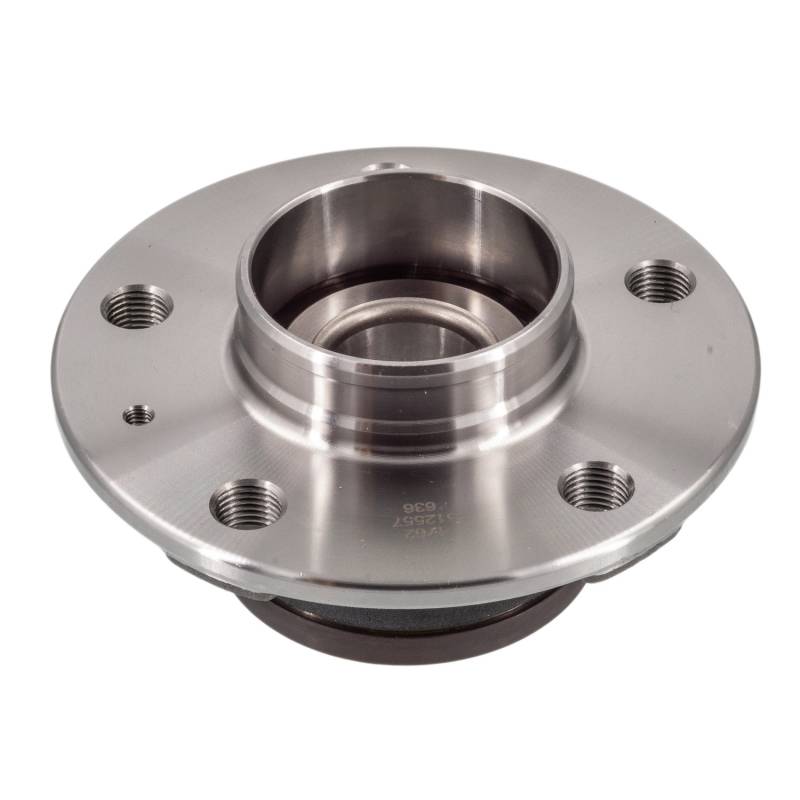

New Hub Assembly Compatible With Audi A4 Quattro A4 A5 Quattro A5 A6 Quattro A6 A4 Allroad 2010 2011

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 3.15
ABS SENSOR RING DIAMETER (MM): 80
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT THREAD SIZE: M14X1.5
FLANGE DIAMETER (INCH): 2.677
FLANGE OFFSET (INCH): 1.913
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.409
HUB CENTERBORE DIAMETER (MM): 112
HUB DIAMETER (IN): 5.583
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 96
NUMBER OF BOLTS TO KNUCKLE: 0
NUMBER OF FLANGE BOLTS INCLUDED: 4
NUMBER OF LUG BOLTS INCLUDED: 0
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 0
ROLL-FORMED: NO
TOTAL HUB DIAMETER (IN): 5.583
TOTAL HUB DIAMETER (MM): 141.8
TOTAL HUB HEIGHT (IN): 2.768
TOTAL HUB HEIGHT (MM): 70.3
WIRING HARNESS INCLUDED: NO

REPLACES:
OTHER PART NUMBER: PT512557
SKF: BR930877
TIMKEN: HA590469
AUTOPART INTERNATIONAL: 1411-634580
BCA: WE60688
CENTRIC PARTS: 40633005
FVP: WH590469
MOOG HUB ASSEMBLIES: 512557
NAPA: PBR930877

APPLICATIONS:
AUDI A4 QUATTRO (2010-2015)
AUDI A4 (2010-2015)
AUDI A5 QUATTRO (2010-2014)
AUDI A5 (2010-2014)
AUDI A6 QUATTRO (2012-2017)
AUDI A6 (2012-2017)
AUDI A4 ALLROAD (2013-2015)
