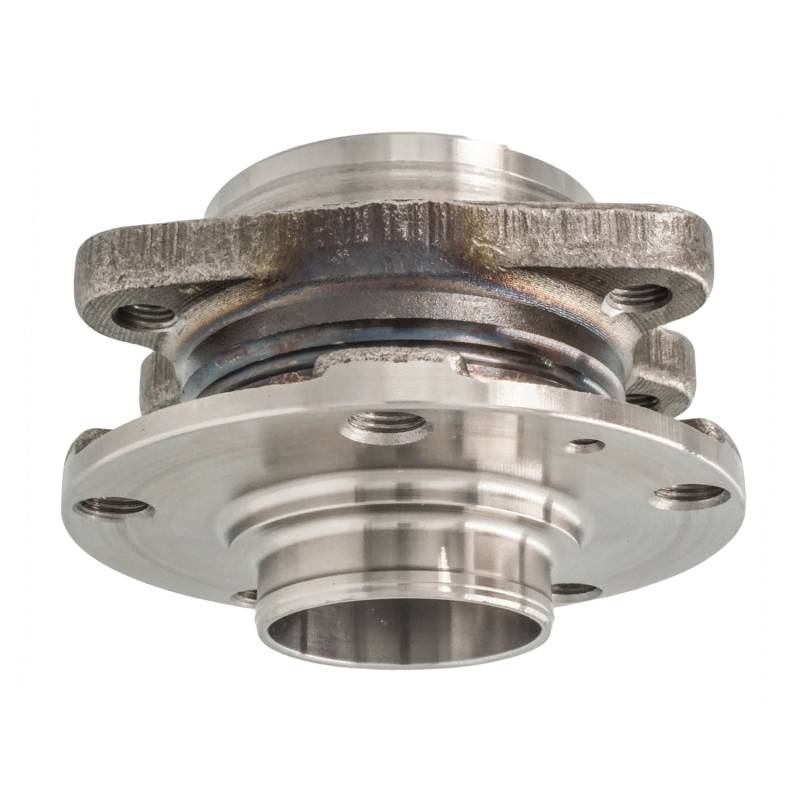

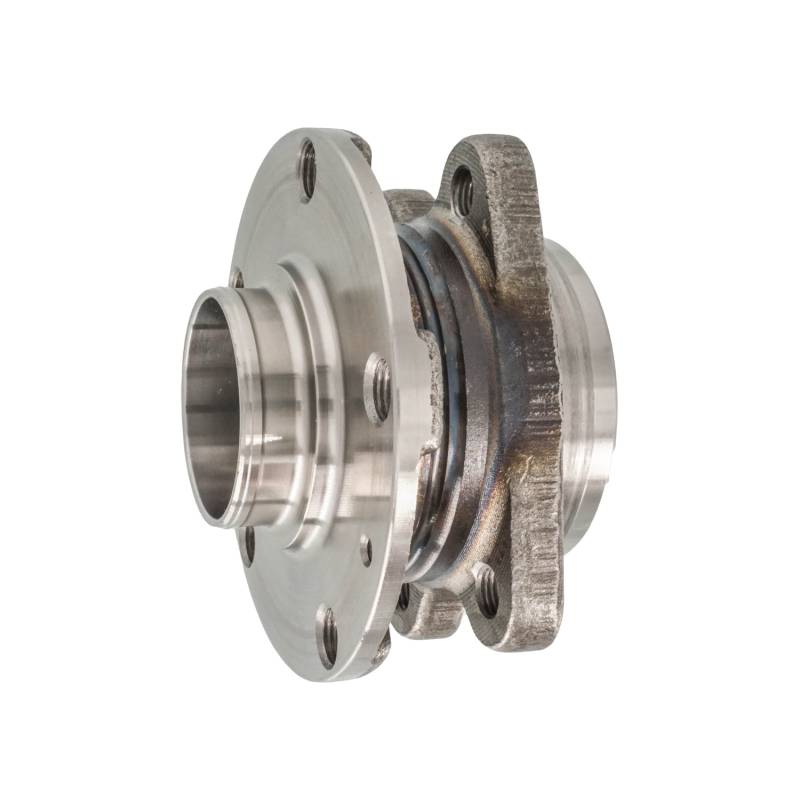

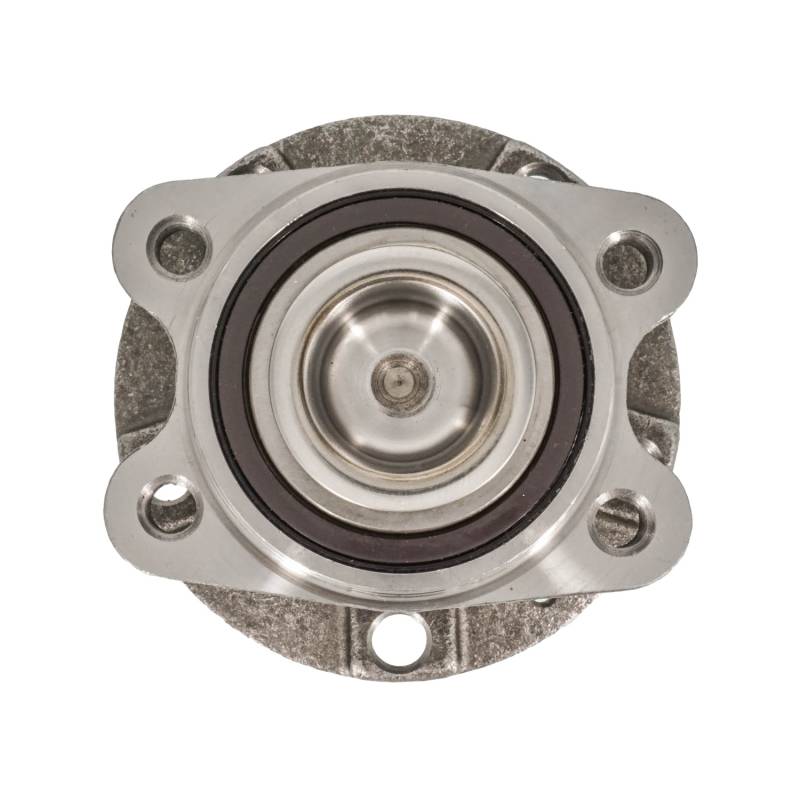

New Hub Assembly Compatible With Audi A6 Quattro A6 2006 2007 2008 2009 2010 2011 By Part Numbers

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT THREAD SIZE: M14X1.5
FLANGE DIAMETER (INCH): 2.677
FLANGE OFFSET (INCH): 1.89
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.409
HUB CENTERBORE DIAMETER (MM): 112
HUB DIAMETER (IN): 5.146
HUB PILOT DIAMETER (INCH): 3.346
LUG BOLT THREAD SIZE: M12X1.5
LUG BOLTS INCLUDED: 4
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 48
NUMBER OF BOLT HOLES: 4
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 4
NUMBER OF LUGS: 4
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: YES
TOTAL HUB DIAMETER (IN): 5.146
TOTAL HUB DIAMETER (MM): 130.7
TOTAL HUB HEIGHT (IN): 3.642
TOTAL HUB HEIGHT (MM): 92.5

REPLACES:
AUTOPART INTERNATIONAL: 1411-256350
BECK/ARNLEY: 051-6427
CENTRIC PARTS: 40633003
FAG US: 805368D
GSP: 233426
MEVOTECH: H512426
MOOG HUB ASSEMBLIES: 512426
NAPA: PBR930718

APPLICATIONS:
AUDI A6 QUATTRO (2006-2011)
AUDI A6 (2006-2011)
