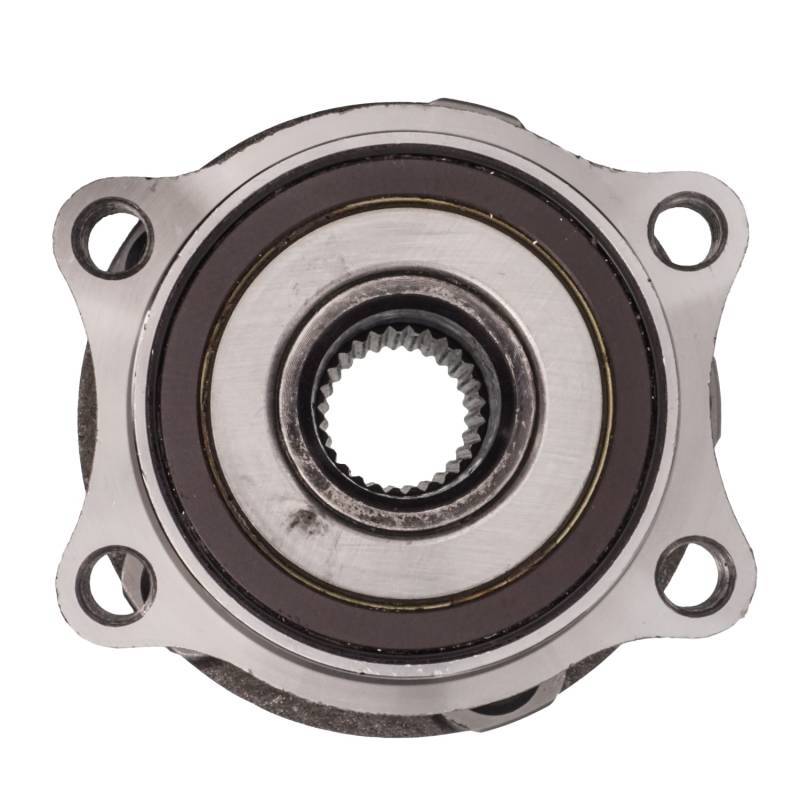

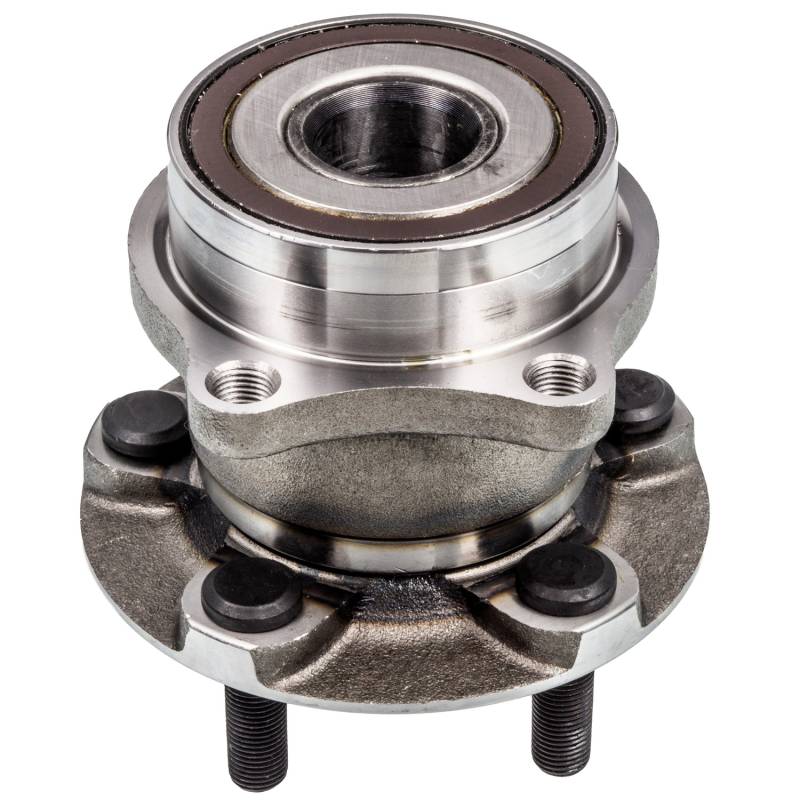

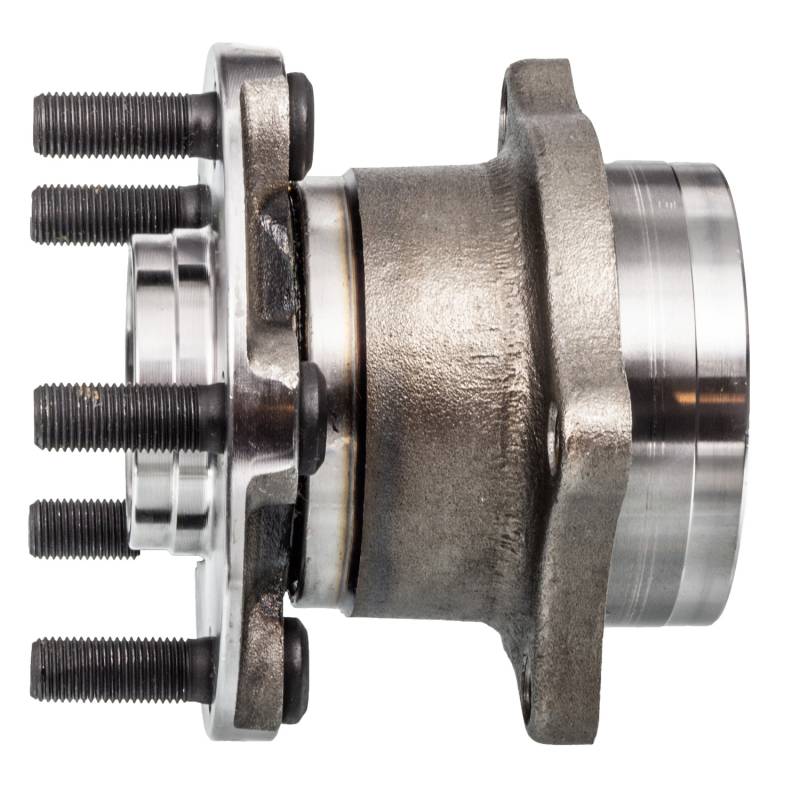

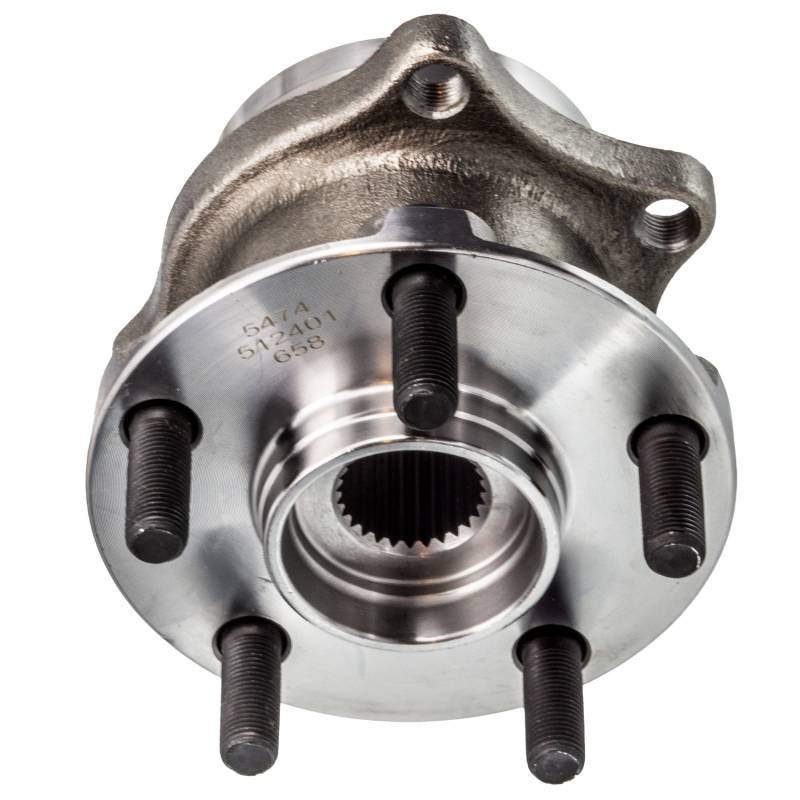

New Hub Assembly Compatible With Subaru Scion Toyota Impreza Forester Legacy Outback Fr-S Brz Wrx

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: ENCODER
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE DIAMETER (INCH): 5.349
FLANGE OFFSET (INCH): 2.549
FLANGE SHAPE: SQUARE
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.74
HUB CENTERBORE DIAMETER (MM): 120
HUB DIAMETER (IN): 5.35
HUB PILOT DIAMETER (INCH): 3.31
LUG BOLT THREAD SIZE: M12-1.50
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: NO
SPLINE QUANTITY: 27
TOTAL HUB DIAMETER (IN): 5.35
TOTAL HUB DIAMETER (MM): 135
TOTAL HUB HEIGHT (IN): 6.457
TOTAL HUB HEIGHT (MM): 164
WIRING HARNESS INCLUDED: NO

REPLACES:
OTHER PART NUMBER: PT512401
SKF: BR930766
TIMKEN: HA590313
AUTOPART INTERNATIONAL: 1411-425339
BCA: WE60543
BECK/ARNLEY: 051-6361
CENTRIC PARTS: 40147002
FAG US: 101955
GSP: 663401
MEVOTECH: H512401
MOOG HUB ASSEMBLIES: 512401
NAPA: PBR930766

APPLICATIONS:
SUBARU IMPREZA (2008-2014)
SUBARU FORESTER (2009-2013)
SUBARU LEGACY (2010-2014)
SUBARU OUTBACK (2010-2014)
SCION FR-S (2013-2016)
SUBARU BRZ (2013-2023)
SUBARU WRX STI (2013-2014)
SUBARU WRX (2013-2013)
TOYOTA 86 (2017-2020)
SUBARU CROSSTREK (2020-2023)
TOYOTA GR86 (2022-2023)
