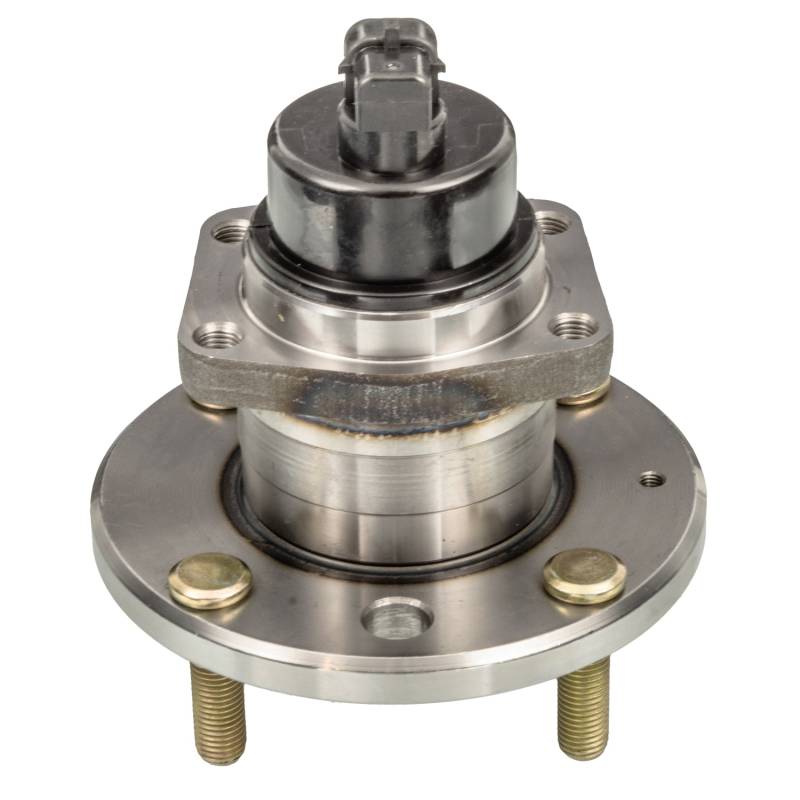

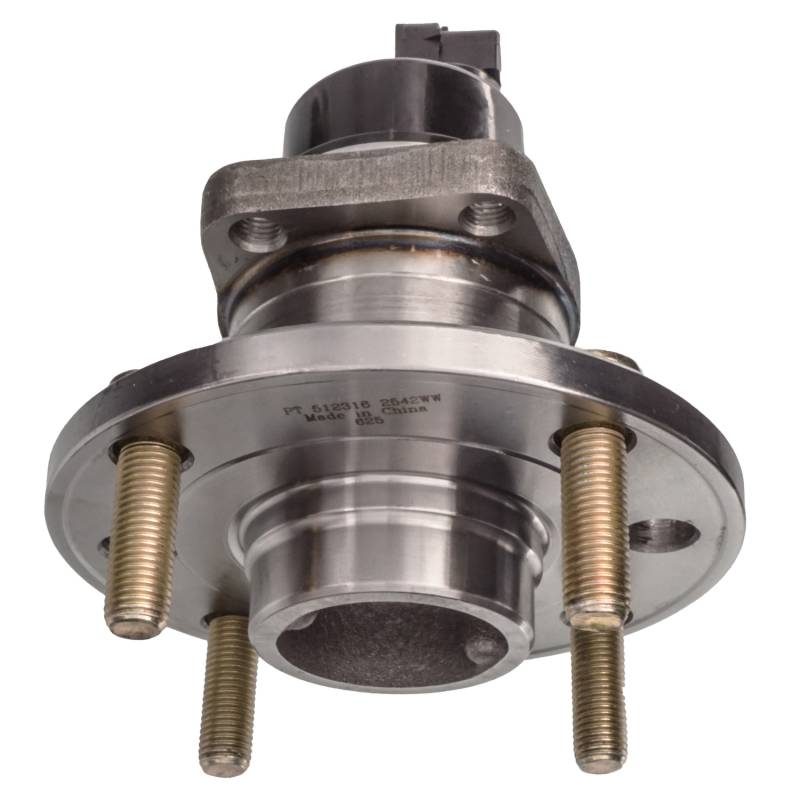

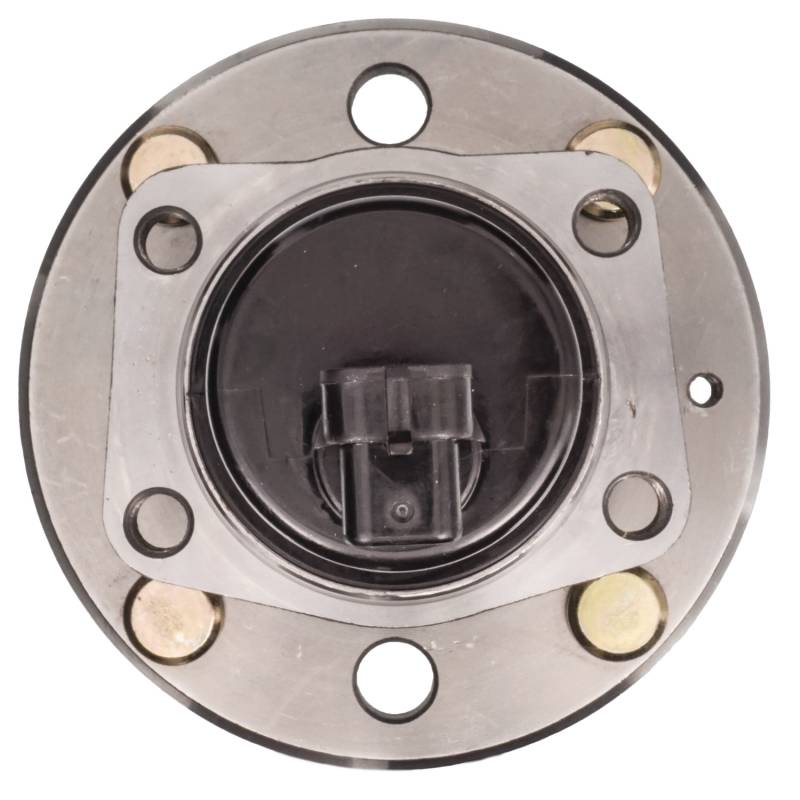

New Hub Assembly Compatible With Suzuki Forenza Verona Reno 2.0L 2.5L 2004 2005 2006 2007 2008 By

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

SPECIFICATIONS:
ABS CONNECTOR SHAPE: OVAL
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 1.535
ABS SENSOR RING DIAMETER (MM): 39
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.59
FLANGE BOLT SIZE (MM): 40
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 2.362
FLANGE OFFSET (INCH): 2.48
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114
HUB DIAMETER (IN): 5.48
HUB PILOT DIAMETER (INCH): 2.224
LUG BOLT THREAD SIZE: M10-1.25
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 47
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 4
NUMBER OF LUG BOLTS INCLUDED: 4
NUMBER OF LUGS: 4
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 1
ROLL-FORMED: NO
SPLINE QUANTITY: 30
TERMINAL GENDER: FEMALE
TOTAL HUB DIAMETER (IN): 5.48
TOTAL HUB DIAMETER (MM): 139
TOTAL HUB HEIGHT (IN): 6.508
TOTAL HUB HEIGHT (MM): 165
WIRING HARNESS INCLUDED: NO

REPLACES:
AUTOPART INTERNATIONAL: 1411-09876
BCA: WE61294
CENTRIC PARTS: 40748000E
FAG US: 102126
GSP: 103316
MEVOTECH: H512316
MOOG HUB ASSEMBLIES: 512316
NAPA: PBR930469

APPLICATIONS:
SUZUKI FORENZA (2004-2008)
SUZUKI VERONA (2004-2006)
SUZUKI RENO (2005-2008)
