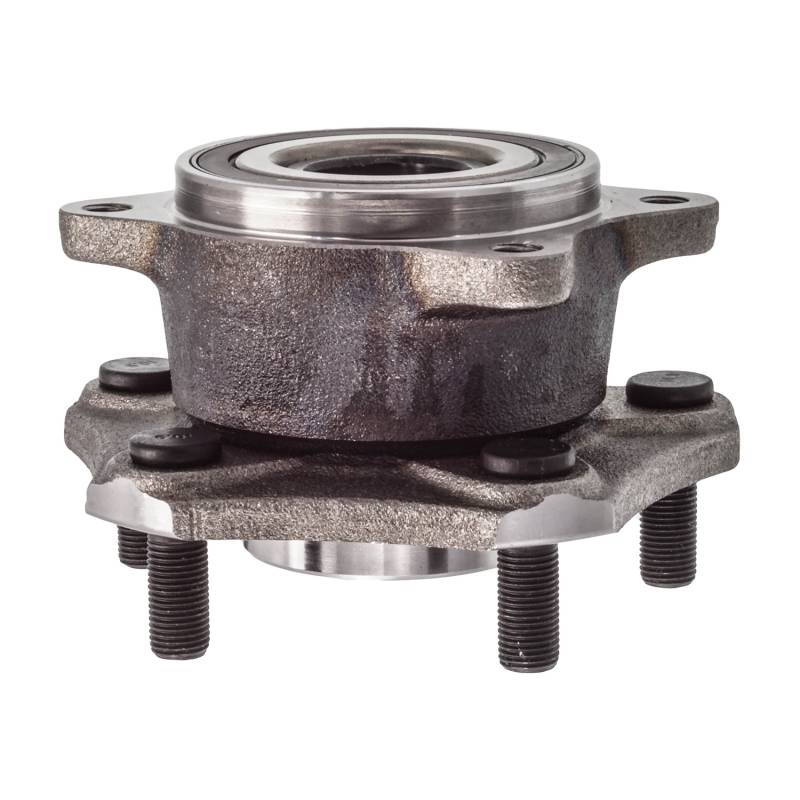

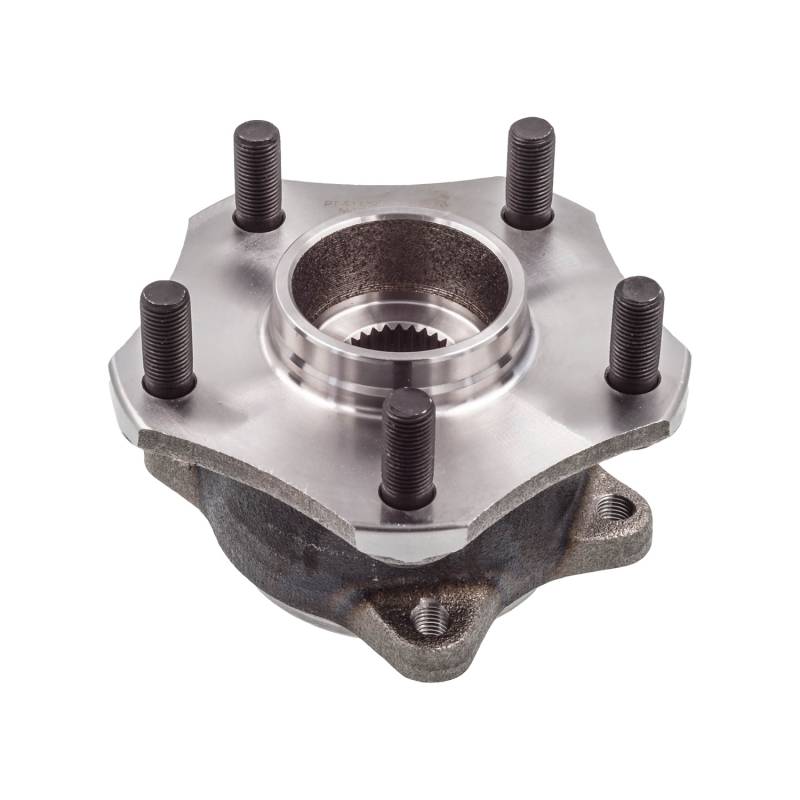

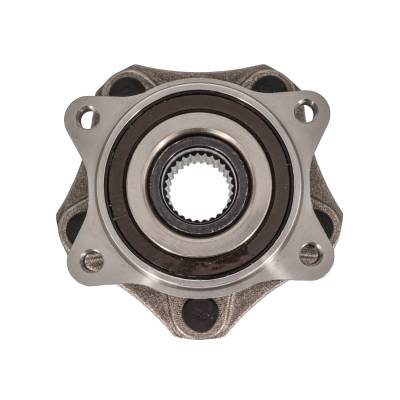

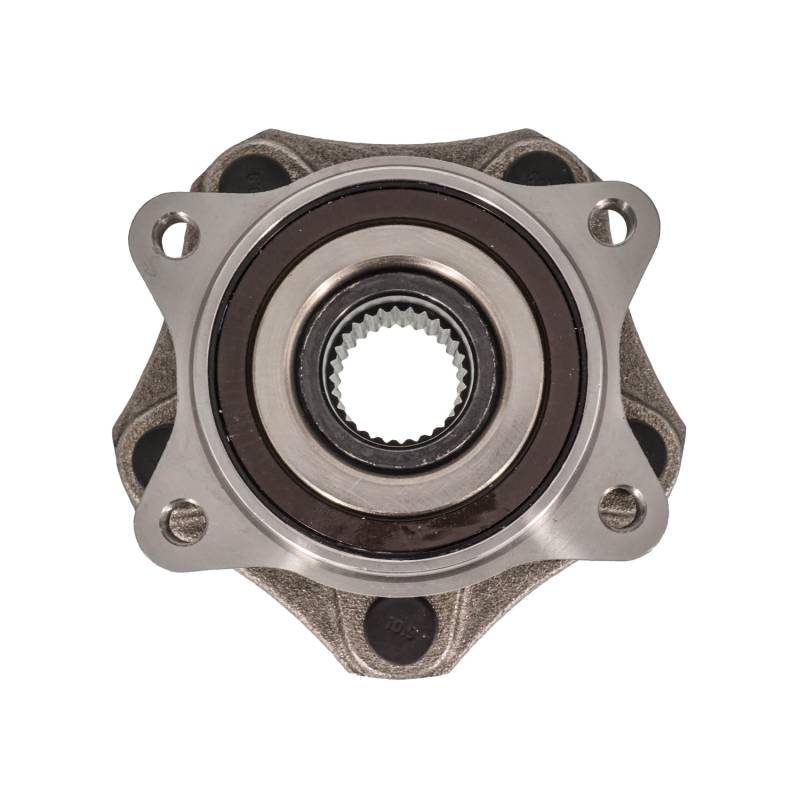

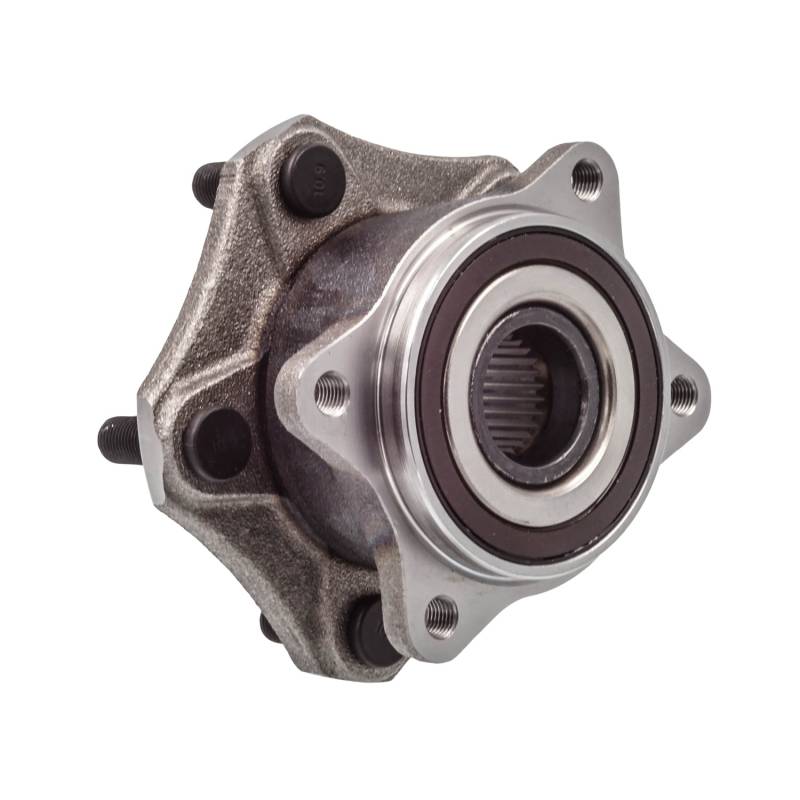

New Hub Assembly Compatible With Suzuki Grand Vitara Kizashi 2.4L 2.7L 3.2L 2006 2007 2008 2009 2010

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.26
FLANGE BOLT SIZE (MM): 32
FLANGE BOLT THREAD SIZE: M12-1.25
FLANGE DIAMETER (INCH): 2.68
FLANGE OFFSET (INCH): 1.6
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114
HUB DIAMETER (IN): 5.68
HUB PILOT DIAMETER (INCH): 3.31
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: NO
SPLINE QUANTITY: 28
TOTAL HUB DIAMETER (IN): 5.68
TOTAL HUB DIAMETER (MM): 144
TOTAL HUB HEIGHT (IN): 4
TOTAL HUB HEIGHT (MM): 101
WIRING HARNESS INCLUDED: NO

REPLACES:
AUTOPART INTERNATIONAL: 1411-425243
BCA: WE60579
BECK/ARNLEY: 051-6344
CENTRIC PARTS: 40148001
FAG US: 101851
GSP: 684290
MEVOTECH: H513290
MOOG HUB ASSEMBLIES: 513290
NAPA: PBR930816

APPLICATIONS:
SUZUKI GRAND VITARA (2006-2013)
SUZUKI KIZASHI (2010-2013)
