THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

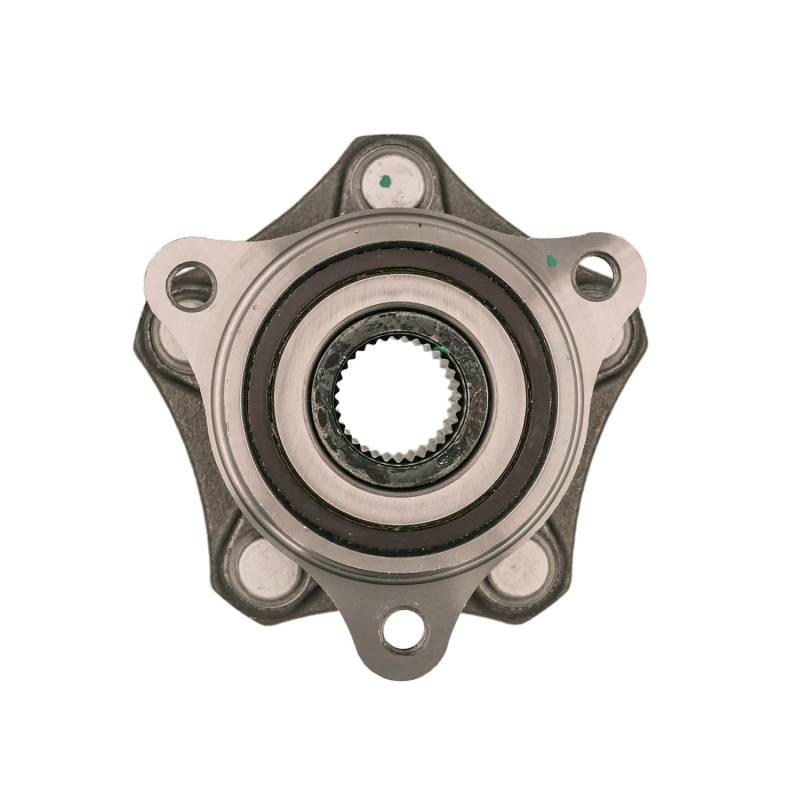

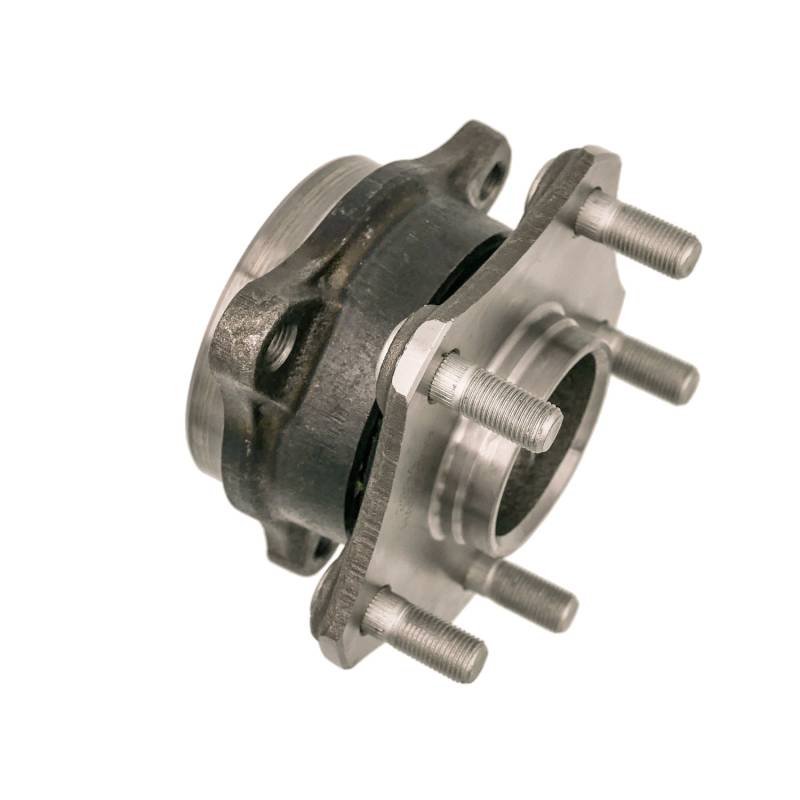

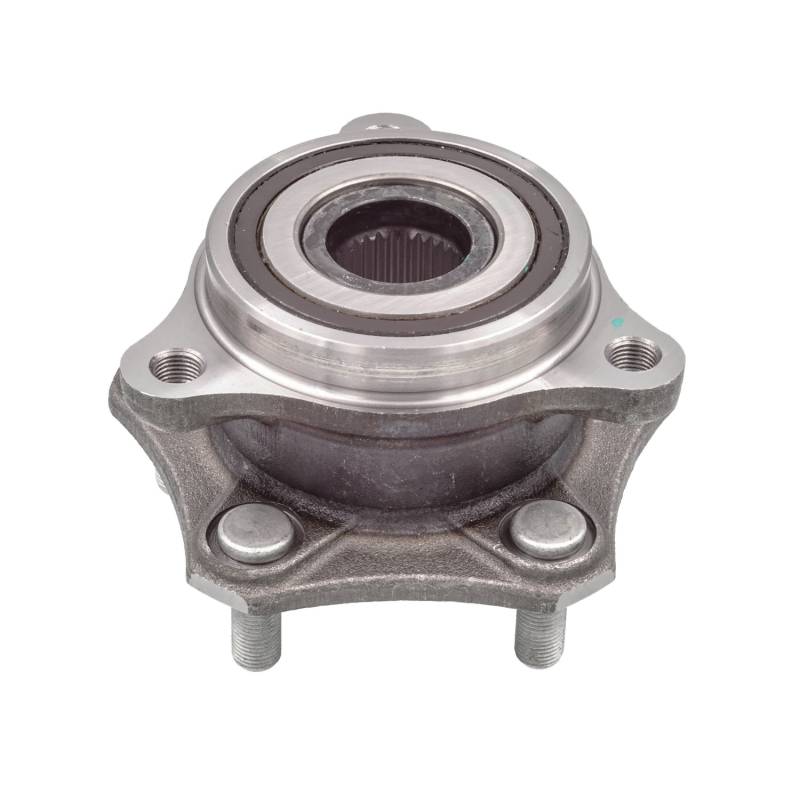

PRODUCT TYPE: HUB ASSEMBLY
SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.476
FLANGE BOLT SIZE (MM): 37
FLANGE BOLT THREAD SIZE: M12-1.25
FLANGE DIAMETER (INCH): 2.439
FLANGE OFFSET (INCH): 1.921
FLANGE SHAPE: TRIANGLE
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114
HUB DIAMETER (IN): 5.669
HUB PILOT DIAMETER (INCH): 3.543
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
ROLL-FORMED: NO
SPLINE QUANTITY: 31
TOTAL HUB DIAMETER (IN): 5.669
TOTAL HUB DIAMETER (MM): 144
TOTAL HUB HEIGHT (IN): 3.555
TOTAL HUB HEIGHT (MM): 90
WIRING HARNESS INCLUDED: NO
REPLACES:
AUTOPART INTERNATIONAL: 1411-425241
BCA: WE60577
FAG US: 102311
GSP: 694333
MEVOTECH: H513333
MOOG HUB ASSEMBLIES: 513333
NAPA: PBR930821
APPLICATIONS:
SUZUKI KIZASHI (2010-2013)
