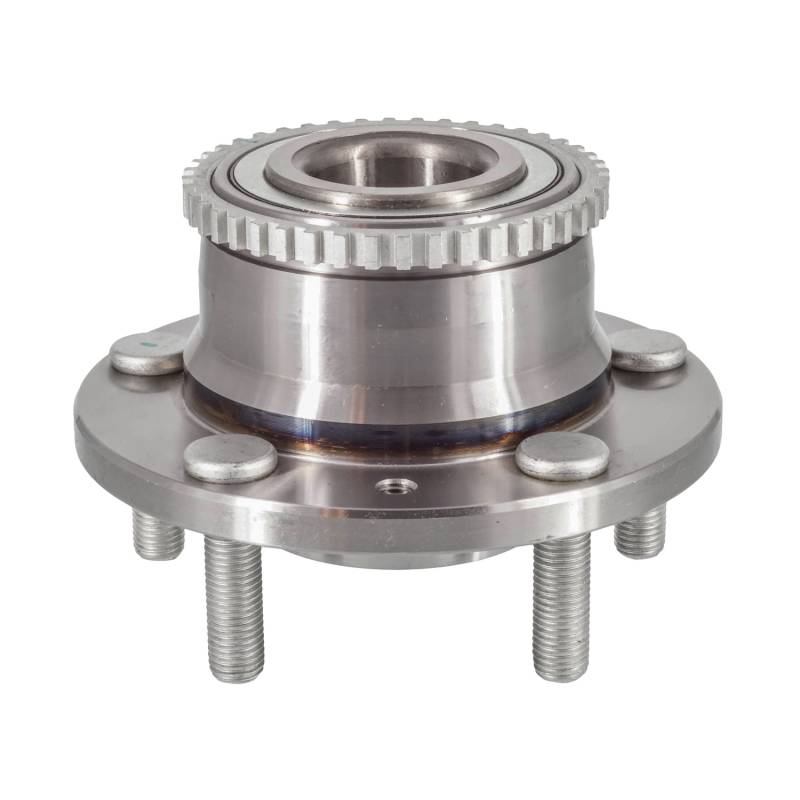

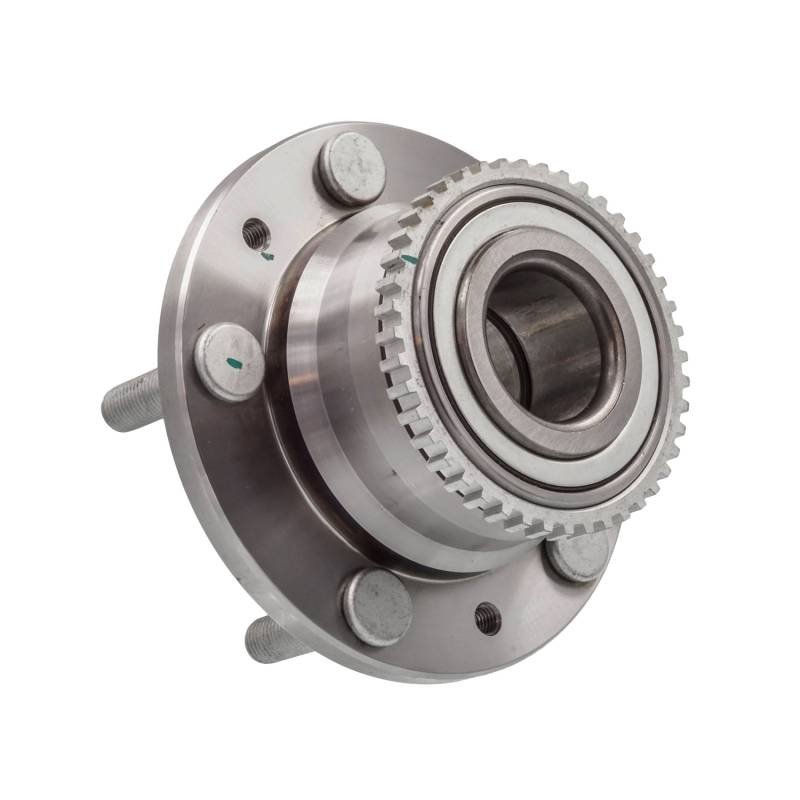

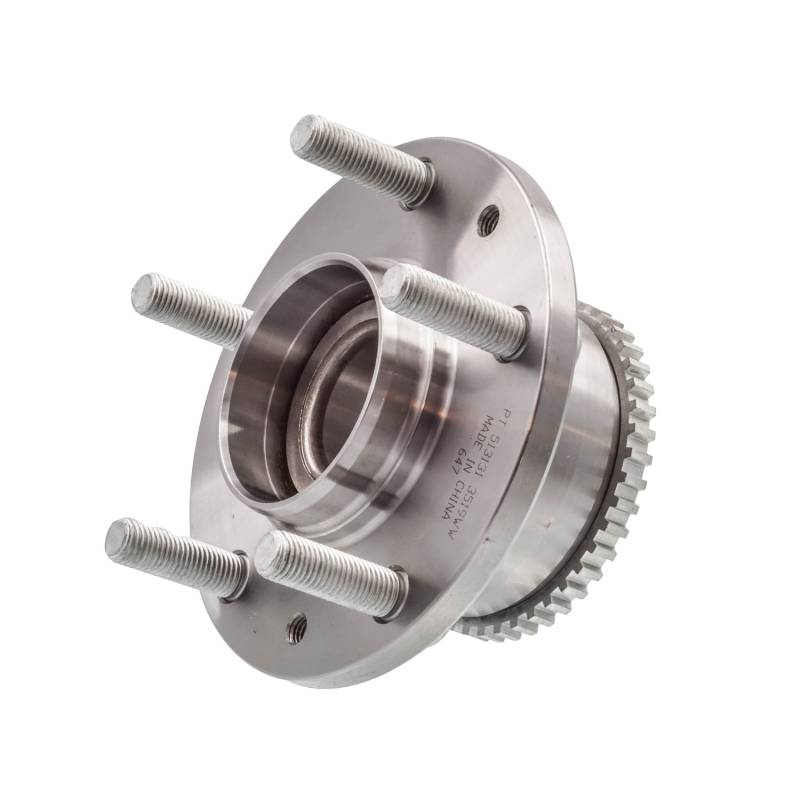

New Hub Assembly Compatible With Mazda Mpv 929 2.6L 3.0L 1989 1990 1991 1992 1993 1994 1995 1996

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

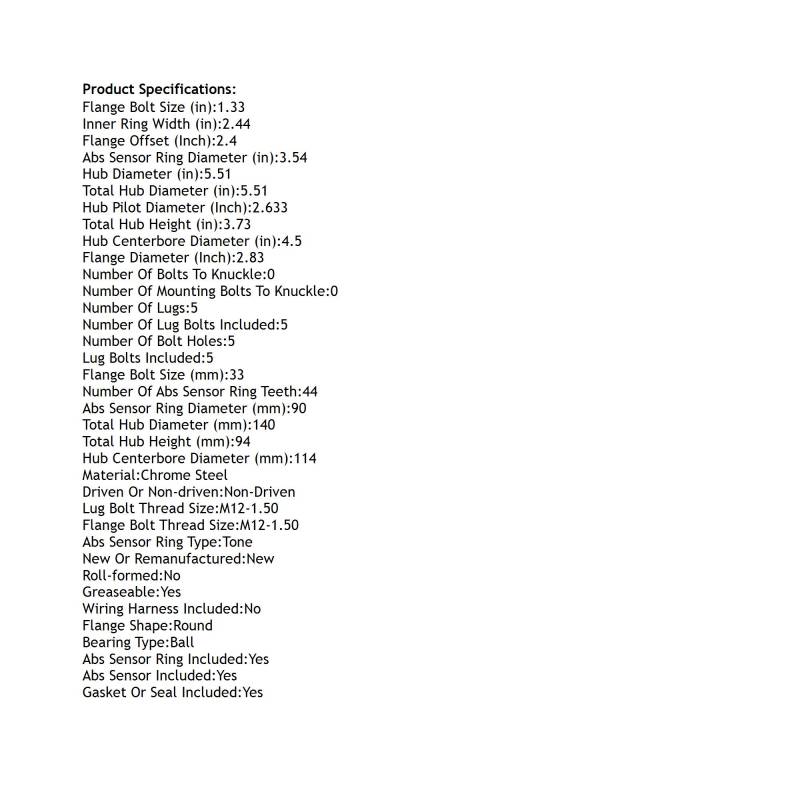

SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 3.54
ABS SENSOR RING DIAMETER (MM): 90
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.33
FLANGE BOLT SIZE (MM): 33
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 2.83
FLANGE OFFSET (INCH): 2.4
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114
HUB DIAMETER (IN): 5.51
HUB PILOT DIAMETER (INCH): 2.633
INNER RING WIDTH (IN): 2.44
LUG BOLT THREAD SIZE: M12-1.50
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 44
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 0
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 0
ROLL-FORMED: NO
TOTAL HUB DIAMETER (IN): 5.51
TOTAL HUB DIAMETER (MM): 140
TOTAL HUB HEIGHT (IN): 3.73
TOTAL HUB HEIGHT (MM): 94
WIRING HARNESS INCLUDED: NO

REPLACES:
OTHER PART NUMBER: PT513131
SKF: BR930114
TIMKEN: 513131
AUTOPART INTERNATIONAL: 1411-45792
BCA: WE60558
BECK/ARNLEY: 051-6063
CENTRIC PARTS: 40645004
GSP: 474131
MEVOTECH: H513131
MOOG HUB ASSEMBLIES: 513131
NAPA: PBR930114

APPLICATIONS:
MAZDA MPV (1989-1998)
MAZDA 929 (1992-1995)
