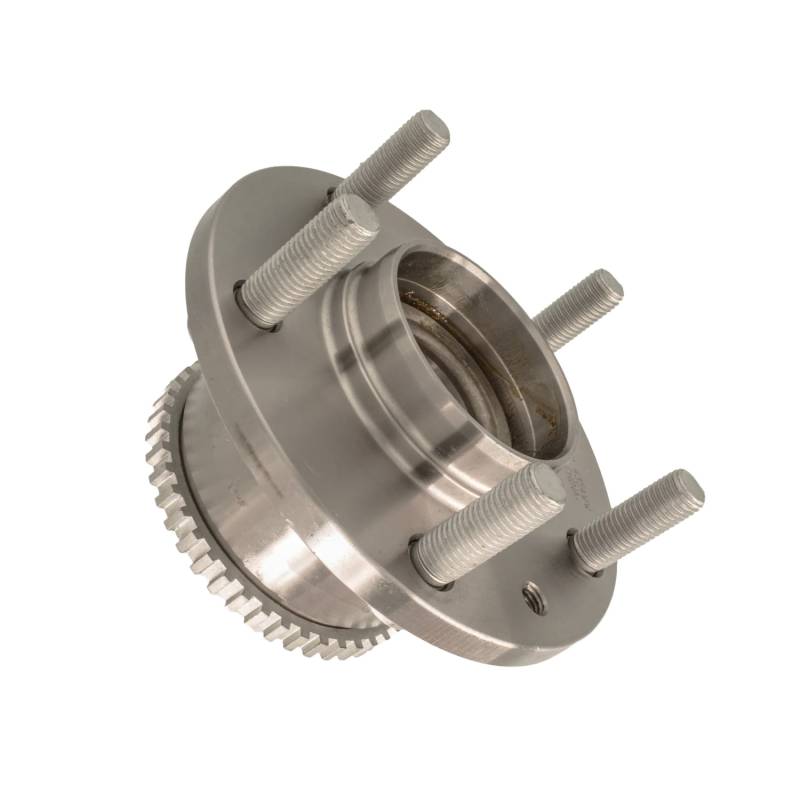

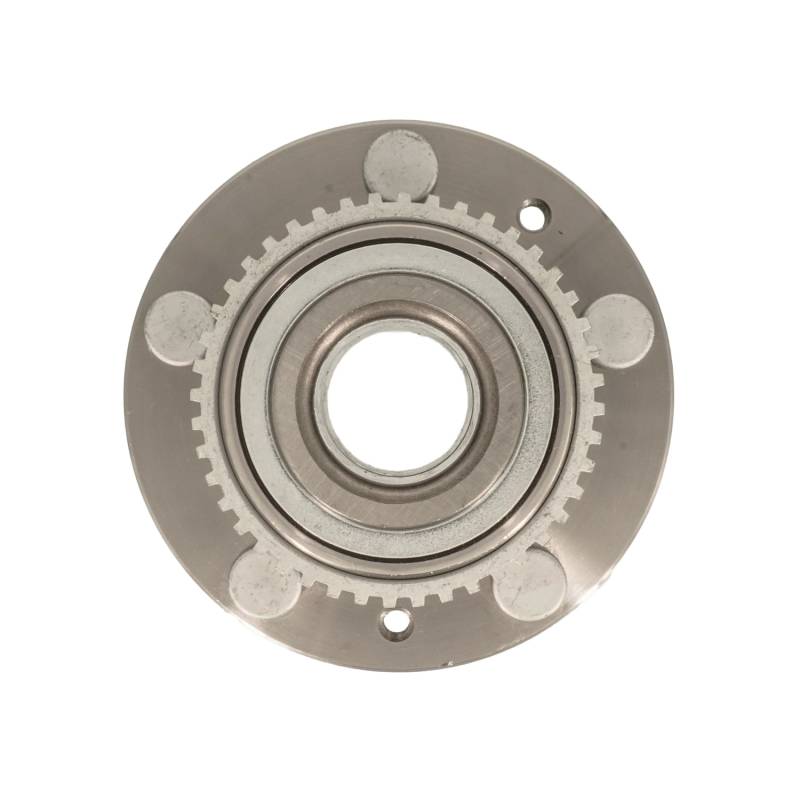

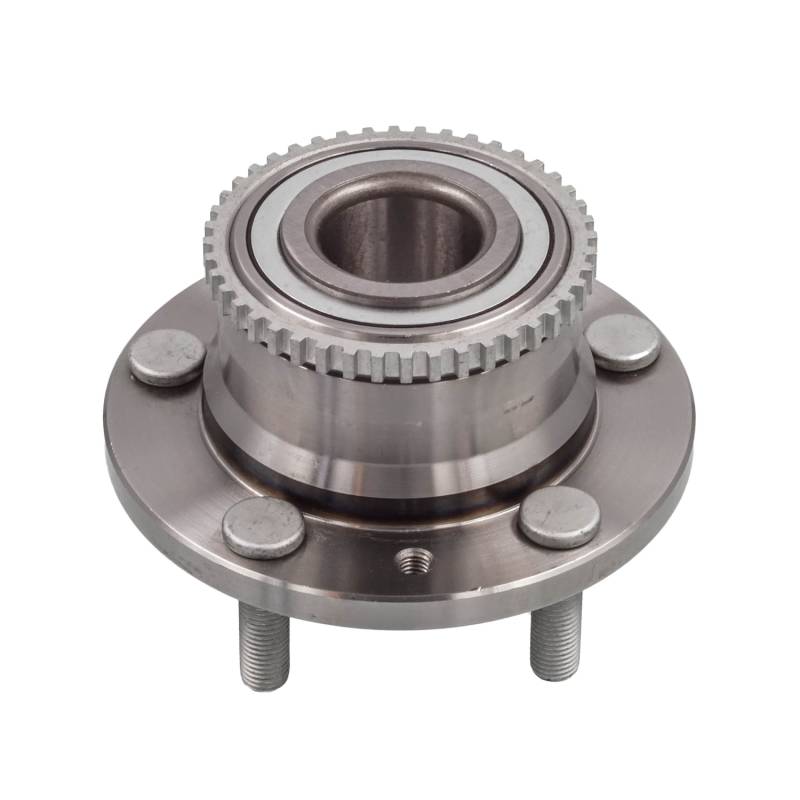

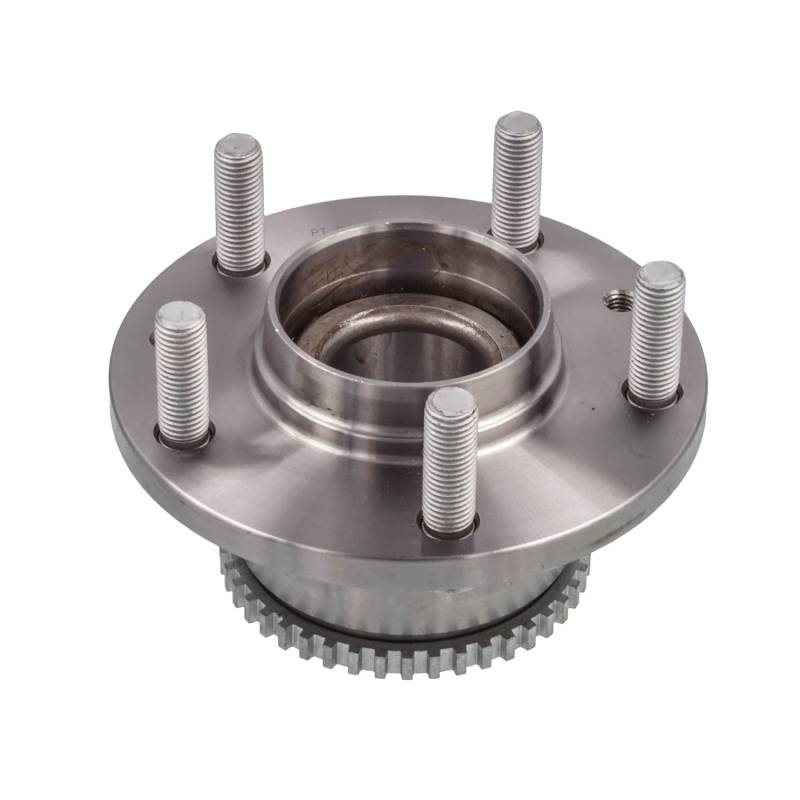

New Hub Assembly Compatible With Mazda Mpv Protege Millenia Protege5 2000 2001 2002 2003 2004 2005

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

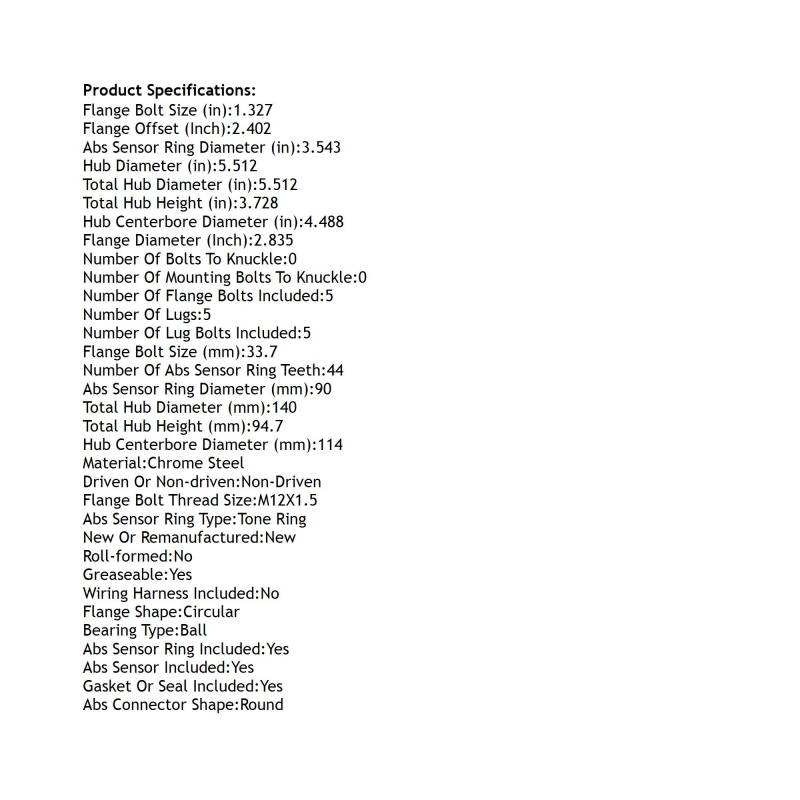

SPECIFICATIONS:
ABS CONNECTOR SHAPE: ROUND
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 3.543
ABS SENSOR RING DIAMETER (MM): 90
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE RING
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.327
FLANGE BOLT SIZE (MM): 33.7
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 2.835
FLANGE OFFSET (INCH): 2.402
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.488
HUB CENTERBORE DIAMETER (MM): 114
HUB DIAMETER (IN): 5.512
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 44
NUMBER OF BOLTS TO KNUCKLE: 0
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 0
ROLL-FORMED: NO
TOTAL HUB DIAMETER (IN): 5.512
TOTAL HUB DIAMETER (MM): 140
TOTAL HUB HEIGHT (IN): 3.728
TOTAL HUB HEIGHT (MM): 94.7
WIRING HARNESS INCLUDED: NO

REPLACES:
OTHER PART NUMBER: PT512269
SKF: BR930114
TIMKEN: 512269
AUTOPART INTERNATIONAL: 1411-09821
BCA: WE60558
BECK/ARNLEY: 051-6085
CENTRIC PARTS: 40645004
FAG US: 102448
MEVOTECH: H512269
MOOG HUB ASSEMBLIES: 512269
NAPA: PBR930114
ZZZN: G14V-26-15XA G14V-26-15XB G1G14V-26-15X

APPLICATIONS:
MAZDA MPV (2000-2006)
MAZDA PROTEGE (2000-2003)
MAZDA MILLENIA (2001-2002)
MAZDA PROTEGE5 (2002-2003)
