THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

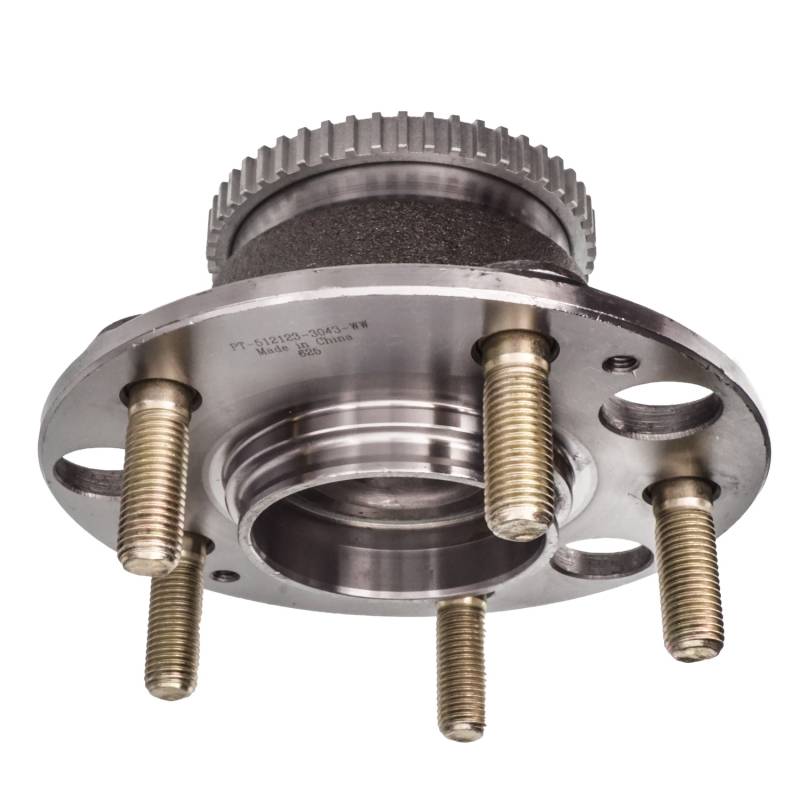

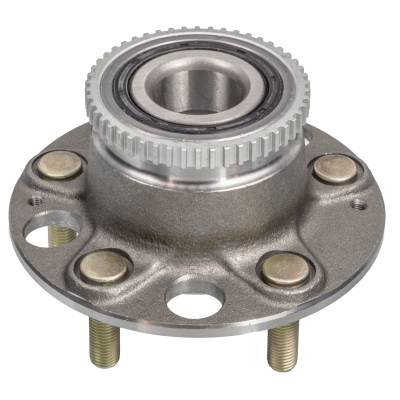

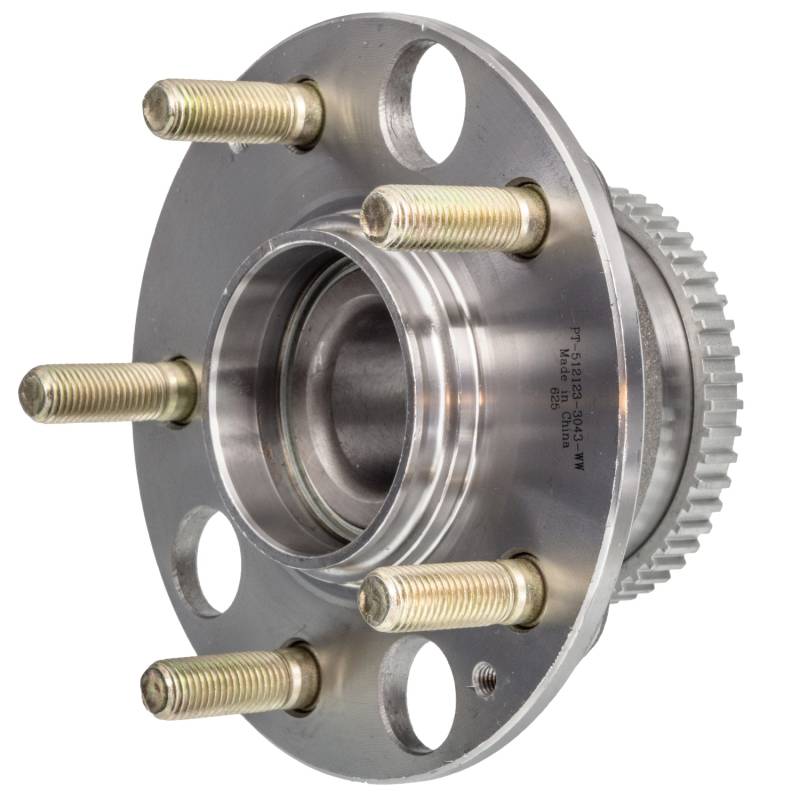

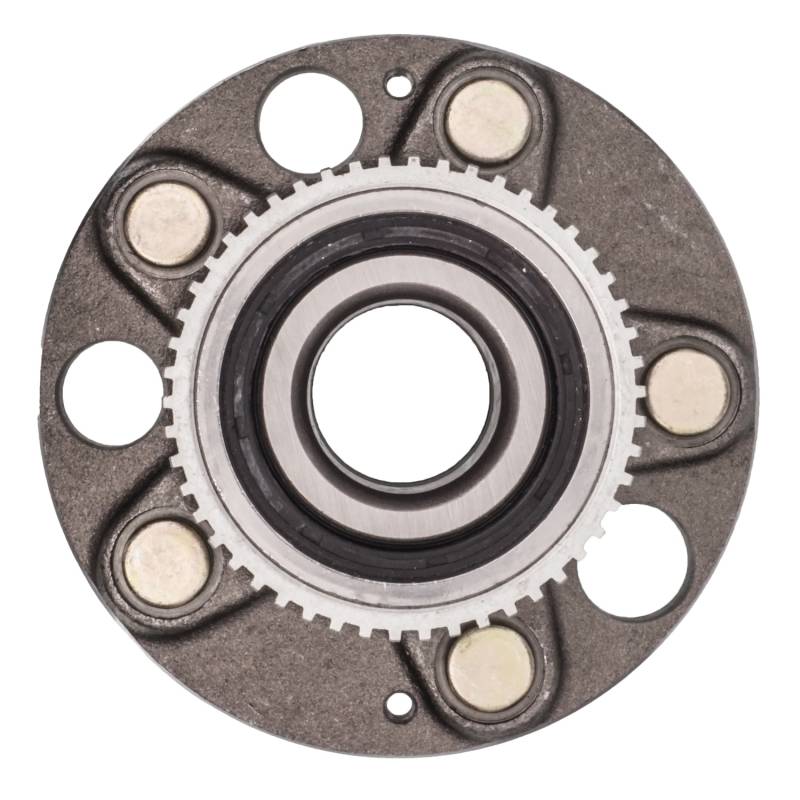

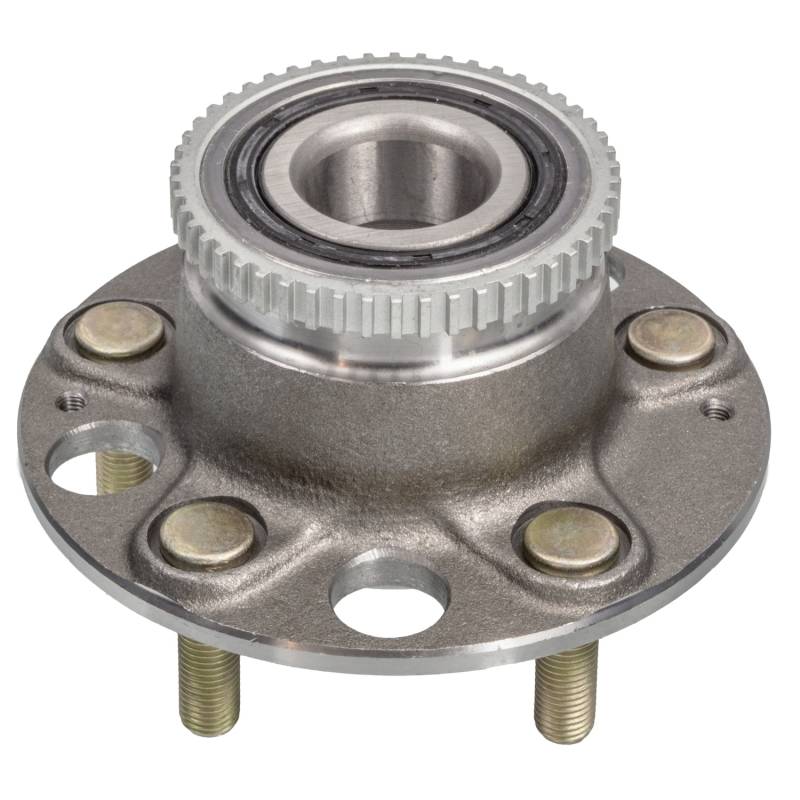

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

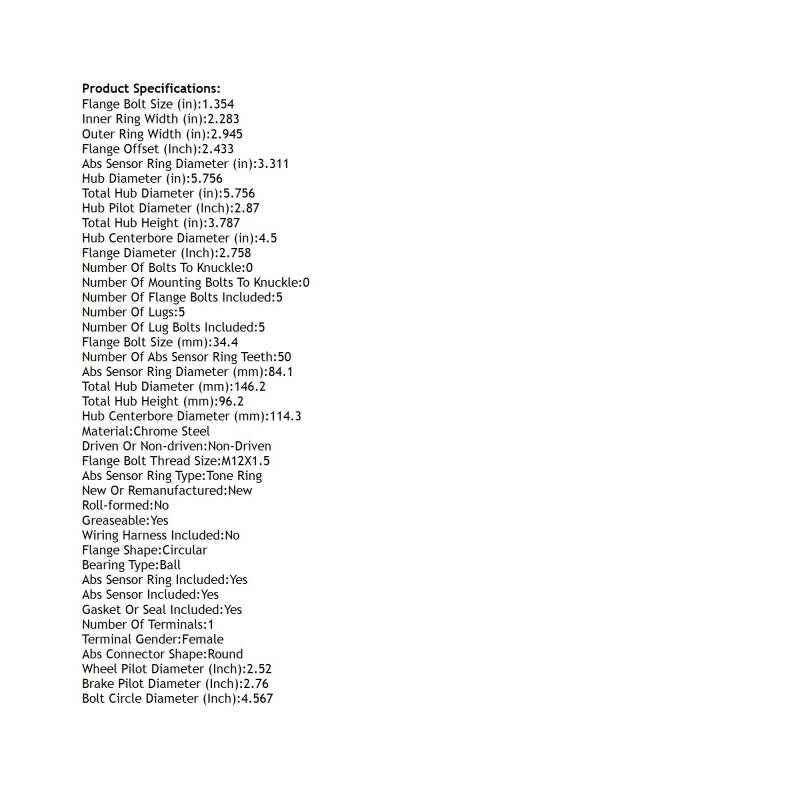

SPECIFICATIONS:
ABS CONNECTOR SHAPE: ROUND
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 3.311
ABS SENSOR RING DIAMETER (MM): 84.1
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE RING
BEARING TYPE: BALL
BOLT CIRCLE DIAMETER (INCH): 4.567
BRAKE PILOT DIAMETER (INCH): 2.76
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.354
FLANGE BOLT SIZE (MM): 34.4
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 2.758
FLANGE OFFSET (INCH): 2.433
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114.3
HUB DIAMETER (IN): 5.756
HUB PILOT DIAMETER (INCH): 2.87
INNER RING WIDTH (IN): 2.283
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 50
NUMBER OF BOLTS TO KNUCKLE: 0
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 0
NUMBER OF TERMINALS: 1
OUTER RING WIDTH (IN): 2.945
ROLL-FORMED: NO
TERMINAL GENDER: FEMALE
TOTAL HUB DIAMETER (IN): 5.756
TOTAL HUB DIAMETER (MM): 146.2
TOTAL HUB HEIGHT (IN): 3.787
TOTAL HUB HEIGHT (MM): 96.2
WHEEL PILOT DIAMETER (INCH): 2.52
REPLACES:
OTHER PART NUMBER: PT512123
SKF: BR930185
AUTOPART INTERNATIONAL: 1411-45661
BCA: WE60507
BECK/ARNLEY: 051-6072
CENTRIC PARTS: 40640004E
FAG US: 102482
GSP: 213123
MEVOTECH: H512123
MOOG HUB ASSEMBLIES: 512123
NAPA: PBR930185
APPLICATIONS:
ACURA RL (1996-2001)
HONDA ODYSSEY (1998-1998)
ISUZU OASIS (1998-1998)
