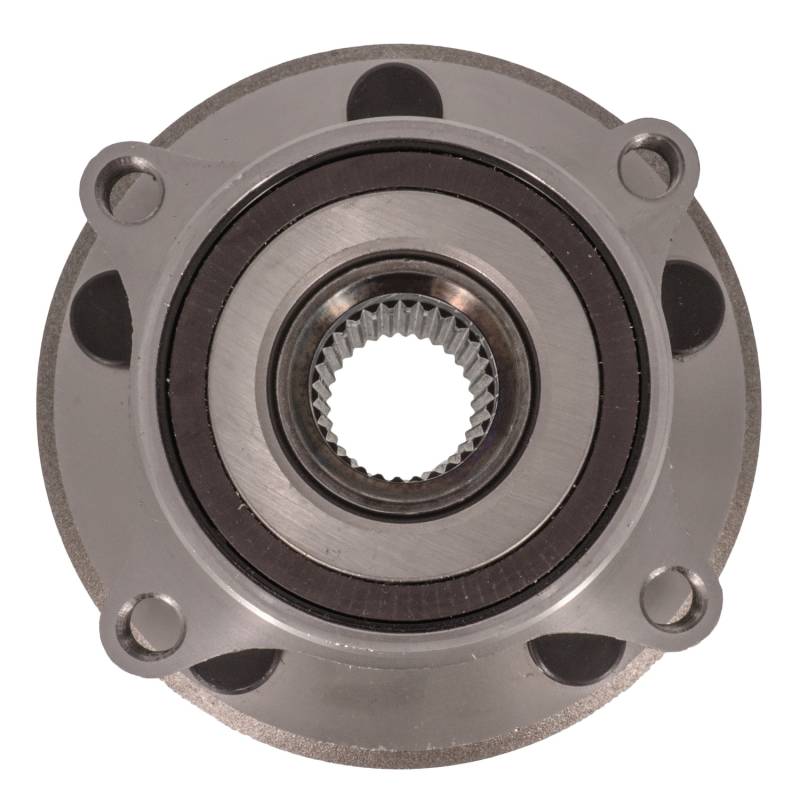

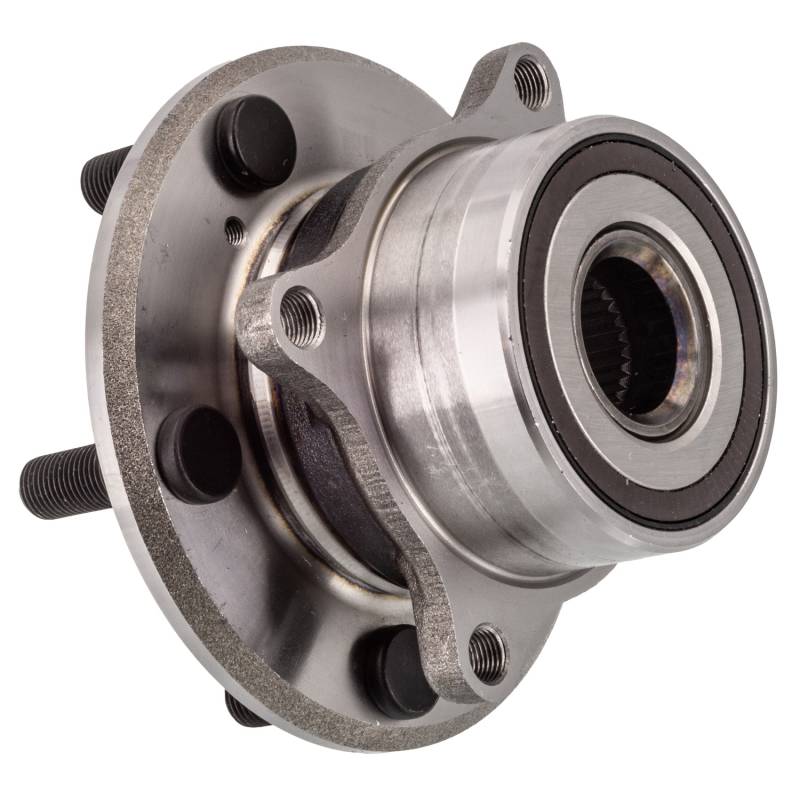

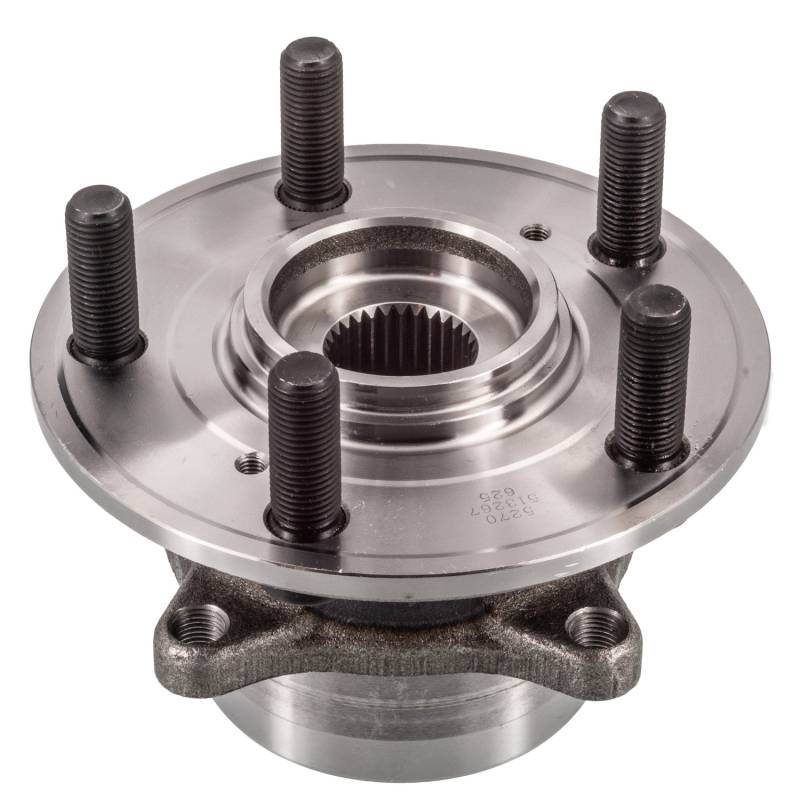

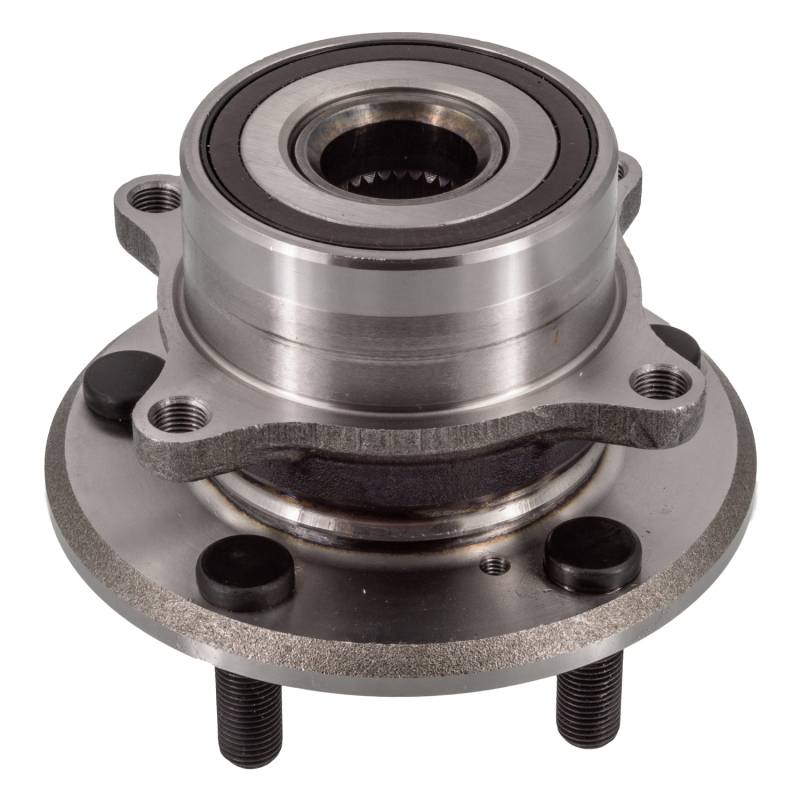

New Hub Assembly Compatible With Acura Honda Mdx Pilot Zdx 3.5L 3.7L 2006 2007 2008 2009 2010 2011

PT513267-PIO

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $137.08
Sale: $78.33
Save: 43%
Save: $58.75
Qty:
Free Shipping!

Description

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 3.22835
ABS SENSOR RING DIAMETER (MM): 82
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: ENCODER
BEARING TYPE: BALL
BOLT CIRCLE DIAMETER (INCH): 4.72
BRAKE PILOT DIAMETER (INCH): 2.75
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.38976
FLANGE BOLT SIZE (MM): 35.3
FLANGE BOLT THREAD SIZE: M14X1.25
FLANGE DIAMETER (INCH): 5.98
FLANGE OFFSET (INCH): 1.86
FLANGE SHAPE: RECTANGLE
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.72441
HUB CENTERBORE DIAMETER (MM): 120
HUB DIAMETER (IN): 5.98
HUB PILOT DIAMETER (INCH): 3.49
LUG BOLT THREAD SIZE: M12X1.25
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 96
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: NO
SPLINE QUANTITY: 30
TOTAL HUB DIAMETER (IN): 5.97244
TOTAL HUB DIAMETER (MM): 151.7
TOTAL HUB HEIGHT (IN): 4.66535
TOTAL HUB HEIGHT (MM): 118.5
WHEEL PILOT DIAMETER (INCH): 2.52
WIRING HARNESS INCLUDED: NO

REPLACES:
AUTOPART INTERNATIONAL: 1411-247702
BCA: WE60513
BECK/ARNLEY: 051-6406 051-6408
CENTRIC PARTS: 40040003
FAG US: 102221
GSP: 214267
MEVOTECH: H513267
MOOG HUB ASSEMBLIES: 513267
NAPA: PBR930720
ZZZN: 44300-STX-A01

APPLICATIONS:
ACURA MDX (2006-2013)
HONDA PILOT (2009-2015)
ACURA ZDX (2010-2013)
