THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

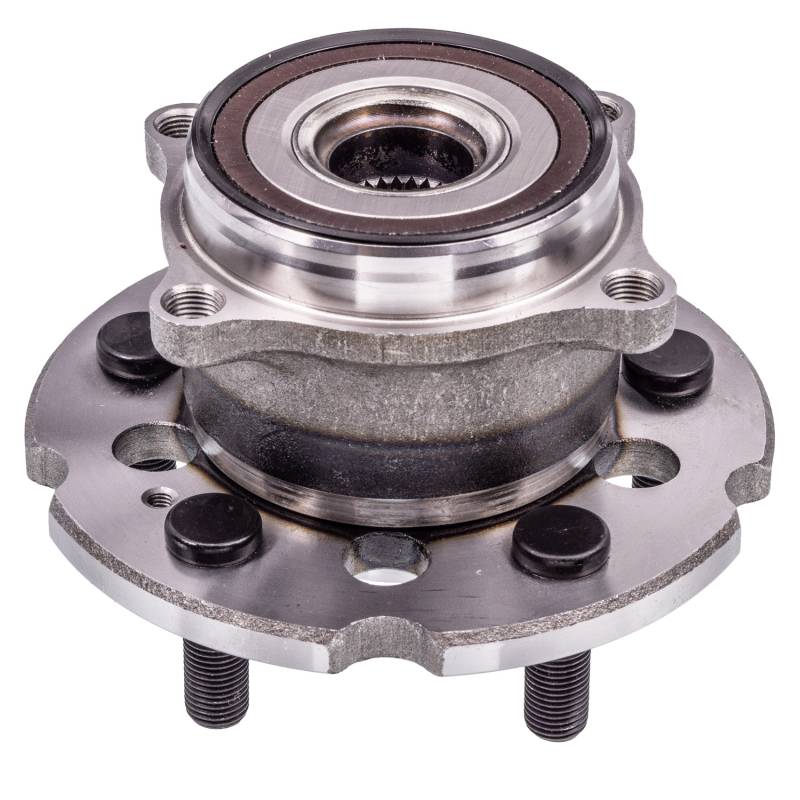

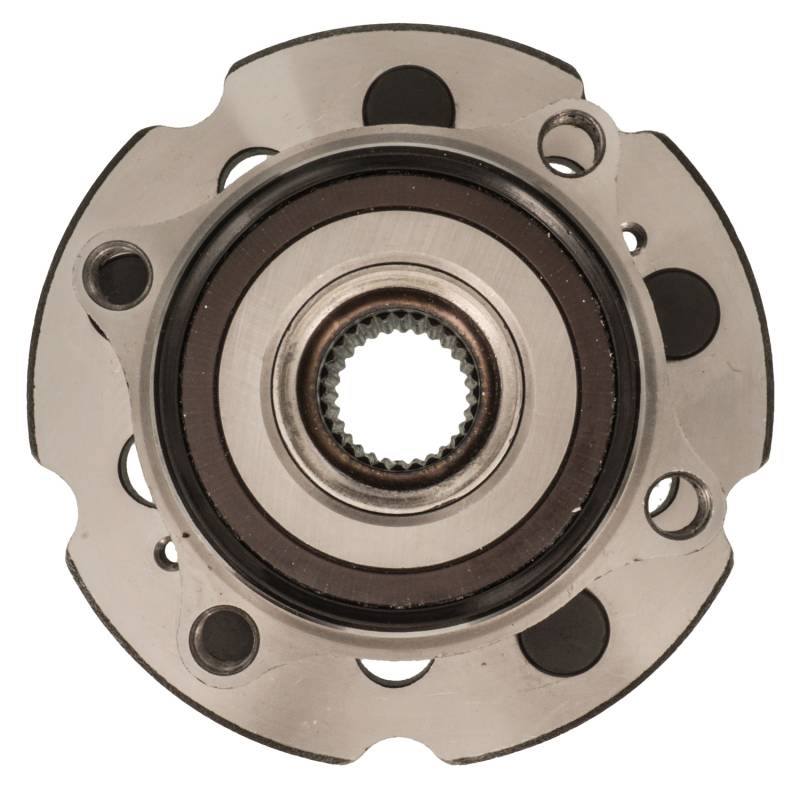

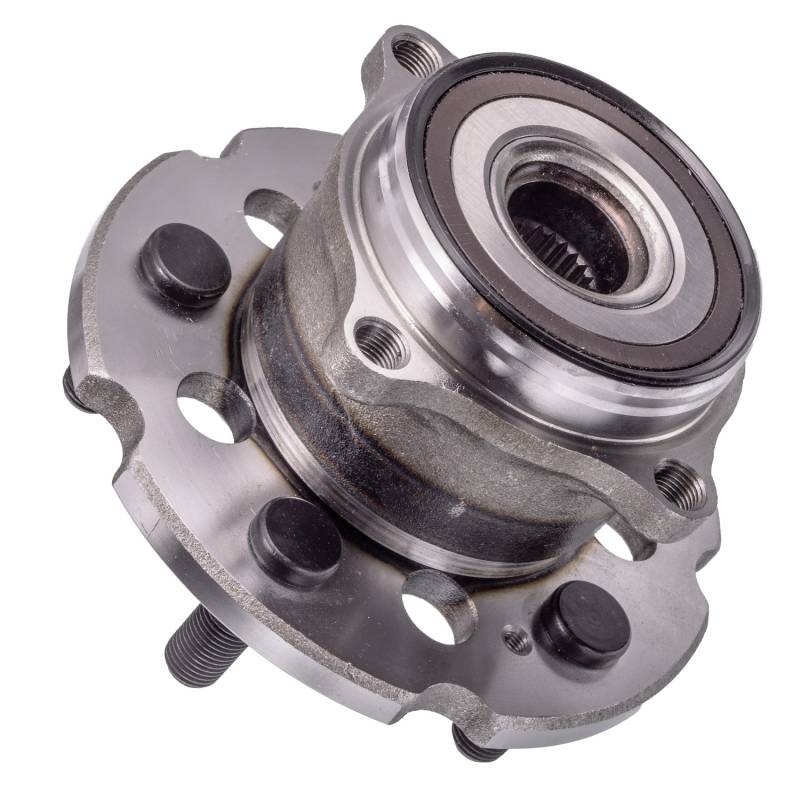

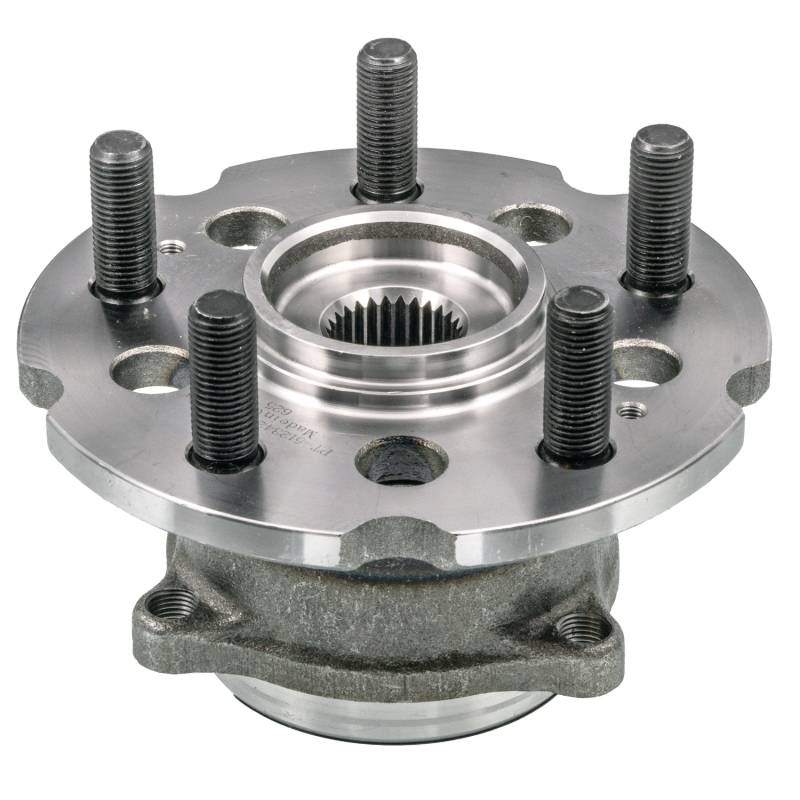

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

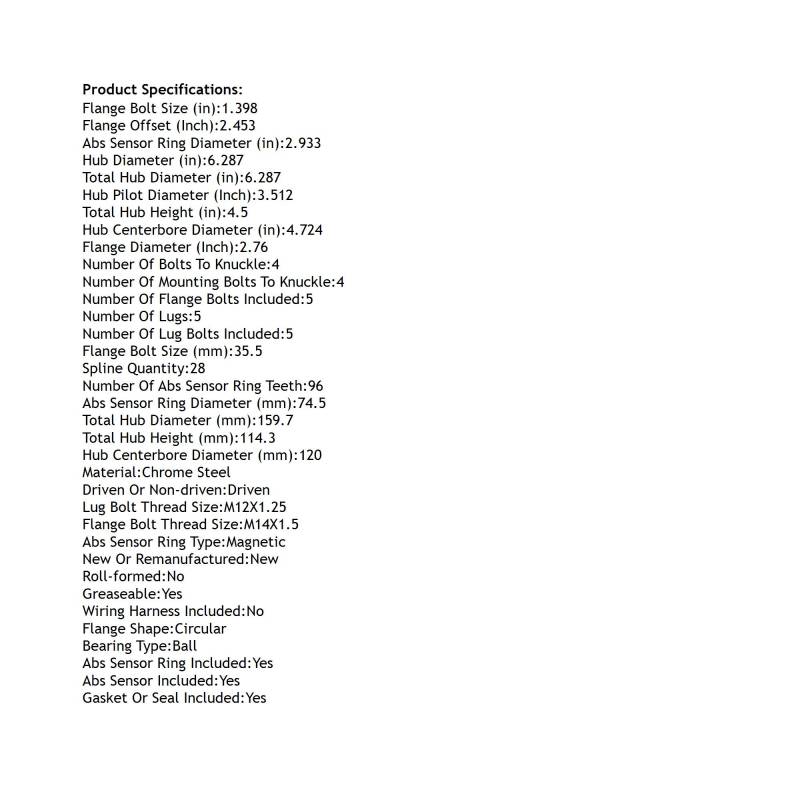

SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 2.933
ABS SENSOR RING DIAMETER (MM): 74.5
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.398
FLANGE BOLT SIZE (MM): 35.5
FLANGE BOLT THREAD SIZE: M14X1.5
FLANGE DIAMETER (INCH): 2.76
FLANGE OFFSET (INCH): 2.453
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.724
HUB CENTERBORE DIAMETER (MM): 120
HUB DIAMETER (IN): 6.287
HUB PILOT DIAMETER (INCH): 3.512
LUG BOLT THREAD SIZE: M12X1.25
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 96
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: NO
SPLINE QUANTITY: 28
TOTAL HUB DIAMETER (IN): 6.287
TOTAL HUB DIAMETER (MM): 159.7
TOTAL HUB HEIGHT (IN): 4.5
TOTAL HUB HEIGHT (MM): 114.3
WIRING HARNESS INCLUDED: NO
REPLACES:
AUTOPART INTERNATIONAL: 1411-247701
BCA: WE60514
BECK/ARNLEY: 051-6406
CENTRIC PARTS: 40040004
FAG US: 102533
GSP: 363342
MEVOTECH: H512342
MOOG HUB ASSEMBLIES: 512342
NAPA: PBR930728
APPLICATIONS:
ACURA MDX (2007-2013)
HONDA PILOT (2009-2015)
ACURA ZDX (2010-2013)
