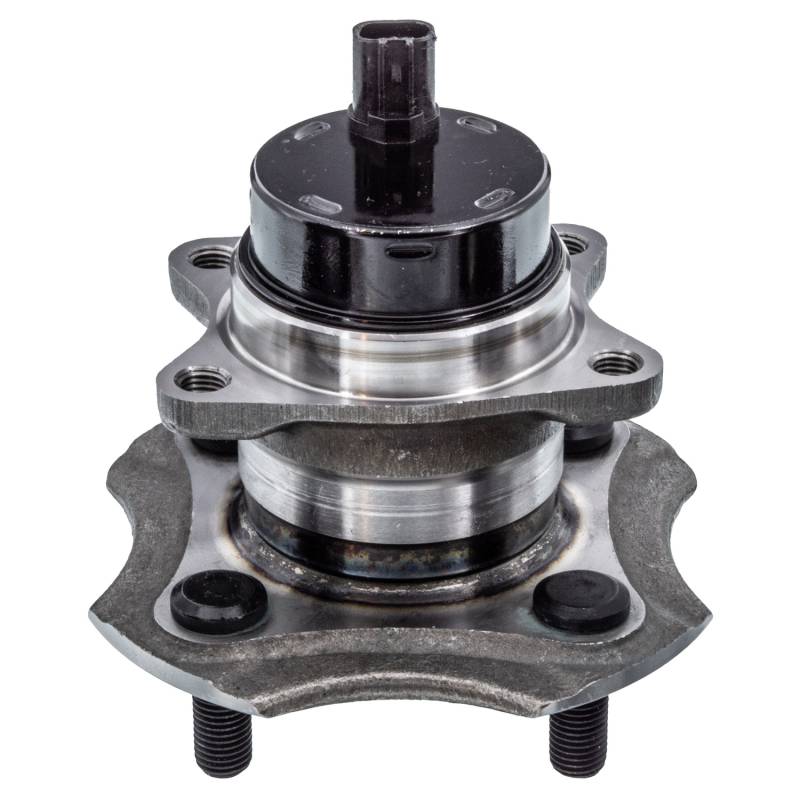

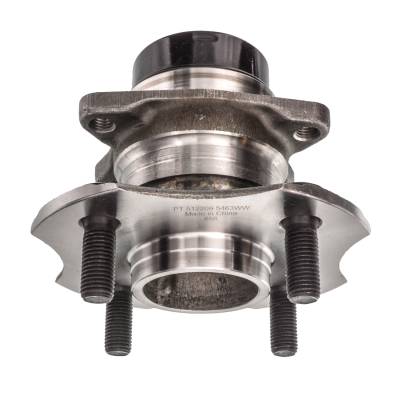

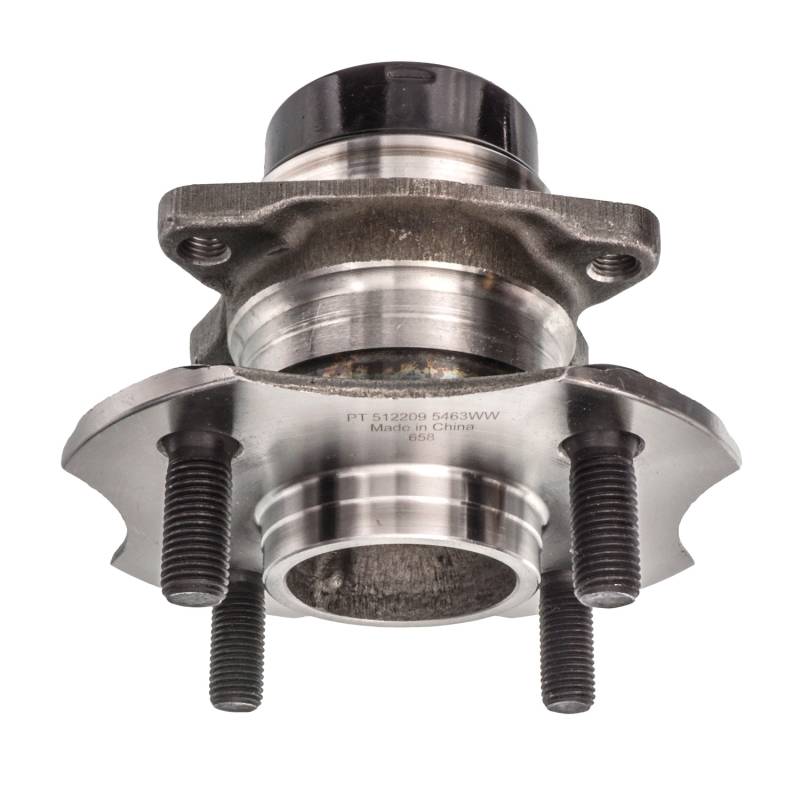

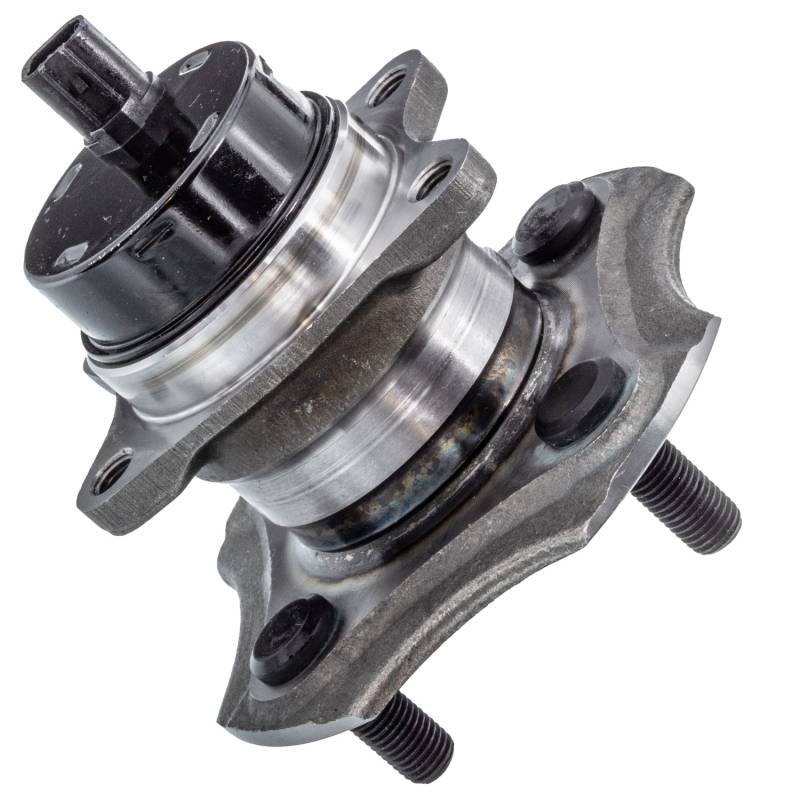

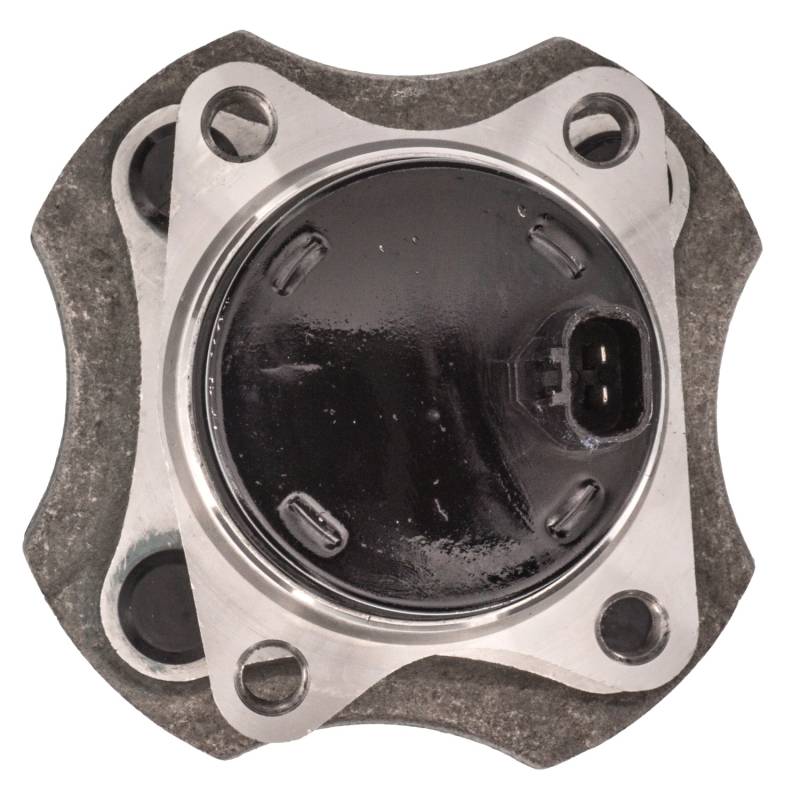

New Hub Assembly Compatible With Toyota Scion Echo Xa Xb 1.5L 2000 2001 2002 2003 2004 2005 2006 By

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

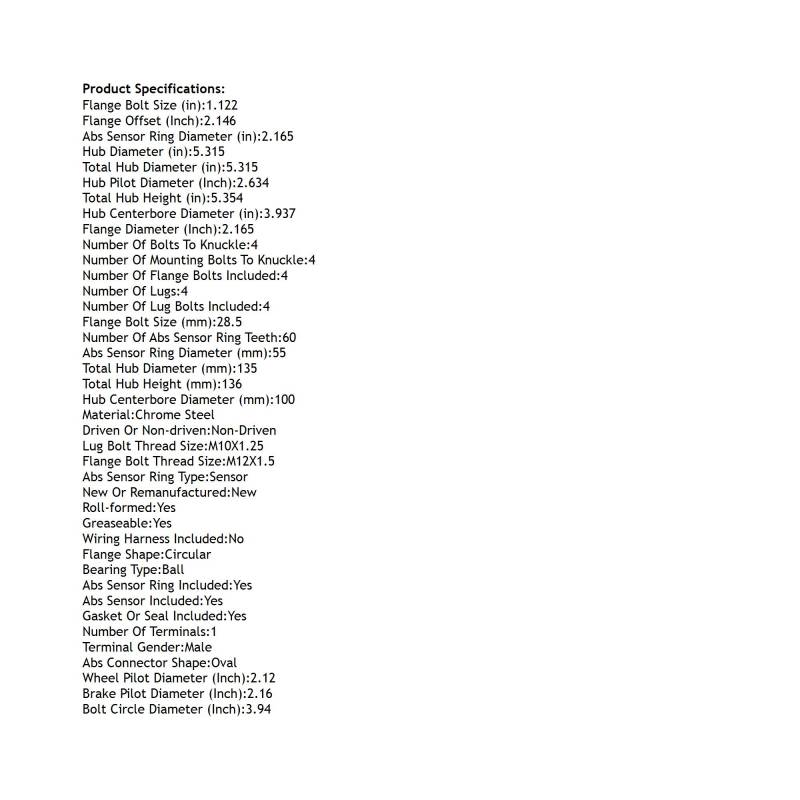

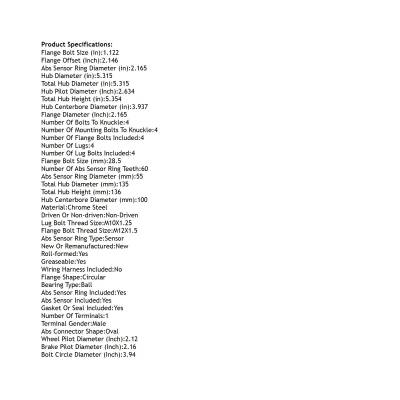

SPECIFICATIONS:
ABS CONNECTOR SHAPE: OVAL
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 2.165
ABS SENSOR RING DIAMETER (MM): 55
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: BALL
BOLT CIRCLE DIAMETER (INCH): 3.94
BRAKE PILOT DIAMETER (INCH): 2.16
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.122
FLANGE BOLT SIZE (MM): 28.5
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 2.165
FLANGE OFFSET (INCH): 2.146
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 3.937
HUB CENTERBORE DIAMETER (MM): 100
HUB DIAMETER (IN): 5.315
HUB PILOT DIAMETER (INCH): 2.634
LUG BOLT THREAD SIZE: M10X1.25
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 60
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 4
NUMBER OF LUG BOLTS INCLUDED: 4
NUMBER OF LUGS: 4
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
TERMINAL GENDER: MALE
TOTAL HUB DIAMETER (IN): 5.315
TOTAL HUB DIAMETER (MM): 135
TOTAL HUB HEIGHT (IN): 5.354
TOTAL HUB HEIGHT (MM): 136
WHEEL PILOT DIAMETER (INCH): 2.12
WIRING HARNESS INCLUDED: NO

REPLACES:
OTHER PART NUMBER: PT512209
SKF: BR930358
TIMKEN: HA594245
AUTOPART INTERNATIONAL: 1411-44915
BCA: WE60942
BECK/ARNLEY: 051-6091
CENTRIC PARTS: 40744005
FAG US: 102144
GSP: 693209
MEVOTECH: H512209
MOOG HUB ASSEMBLIES: 512209
NAPA: PBR930358

APPLICATIONS:
TOYOTA ECHO (2000-2005)
SCION XA (2004-2006)
SCION XB (2004-2006)
