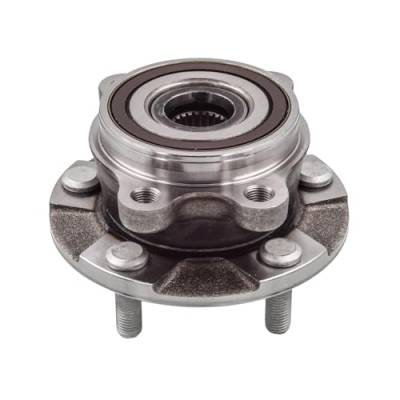

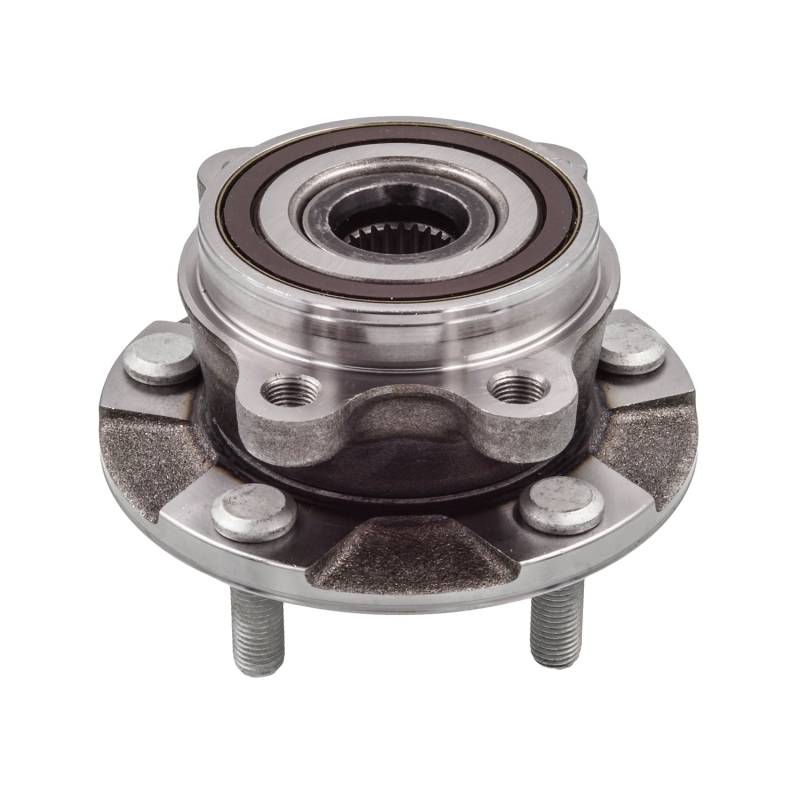

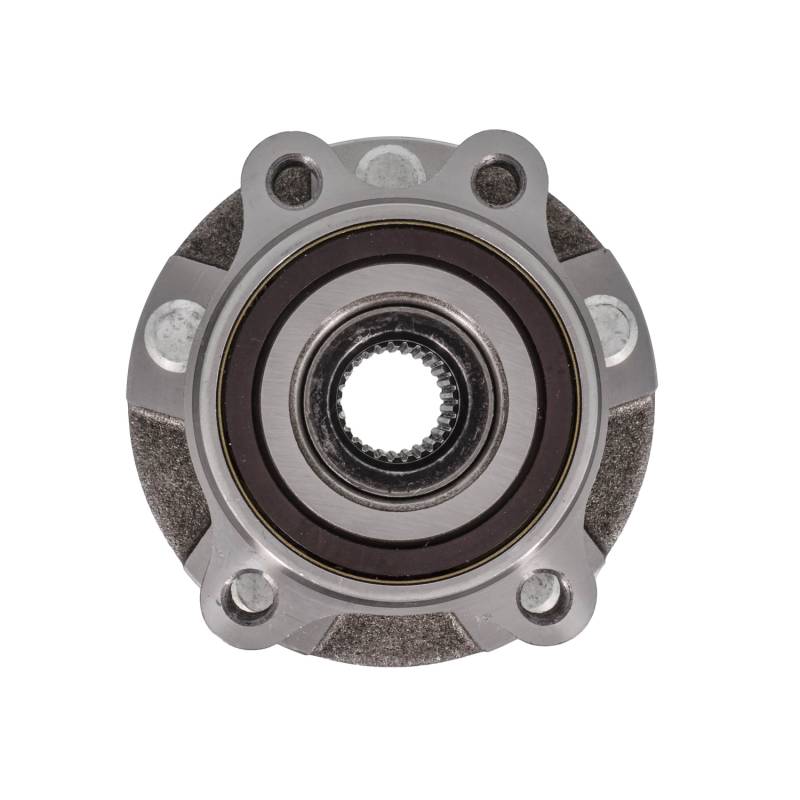

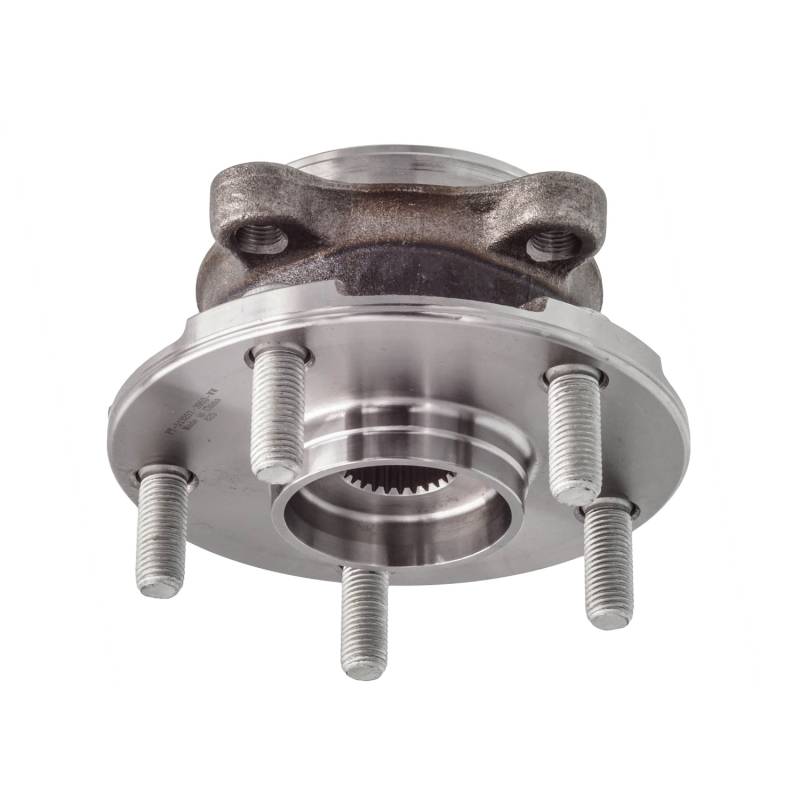

New Hub Assembly Compatible With Toyota Scion Lexus Rav4 Xb Hs250h Tc Prius V Im Corolla Im 1.8L

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

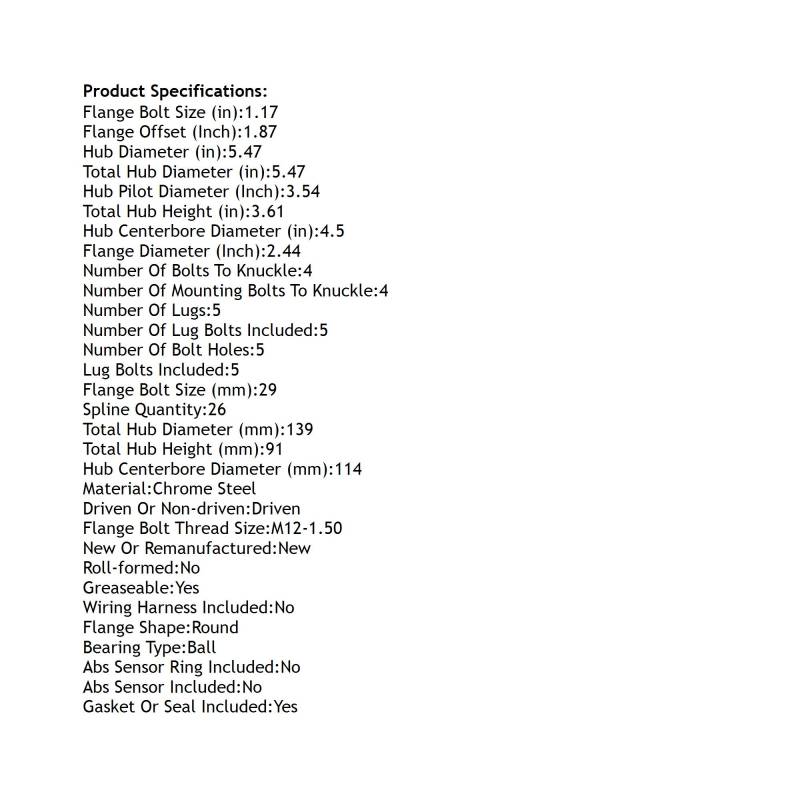

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.17
FLANGE BOLT SIZE (MM): 29
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 2.44
FLANGE OFFSET (INCH): 1.87
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114
HUB DIAMETER (IN): 5.47
HUB PILOT DIAMETER (INCH): 3.54
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: NO
SPLINE QUANTITY: 26
TOTAL HUB DIAMETER (IN): 5.47
TOTAL HUB DIAMETER (MM): 139
TOTAL HUB HEIGHT (IN): 3.61
TOTAL HUB HEIGHT (MM): 91
WIRING HARNESS INCLUDED: NO

REPLACES:
OTHER PART NUMBER: PT513257
SKF: BR930615
TIMKEN: HA590165
AUTOPART INTERNATIONAL: 1411-246649
BCA: WE60803
BECK/ARNLEY: 051-6199
CENTRIC PARTS: 40044003
FAG US: 101850
GSP: 694257
MEVOTECH: H513257
MOOG HUB ASSEMBLIES: 513257
NAPA: PBR930615

APPLICATIONS:
TOYOTA RAV4 (2006-2012)
SCION XB (2008-2015)
LEXUS HS250H (2010-2012)
SCION TC (2011-2016)
TOYOTA PRIUS V (2012-2018)
SCION IM (2016-2016)
TOYOTA COROLLA IM (2017-2018)
