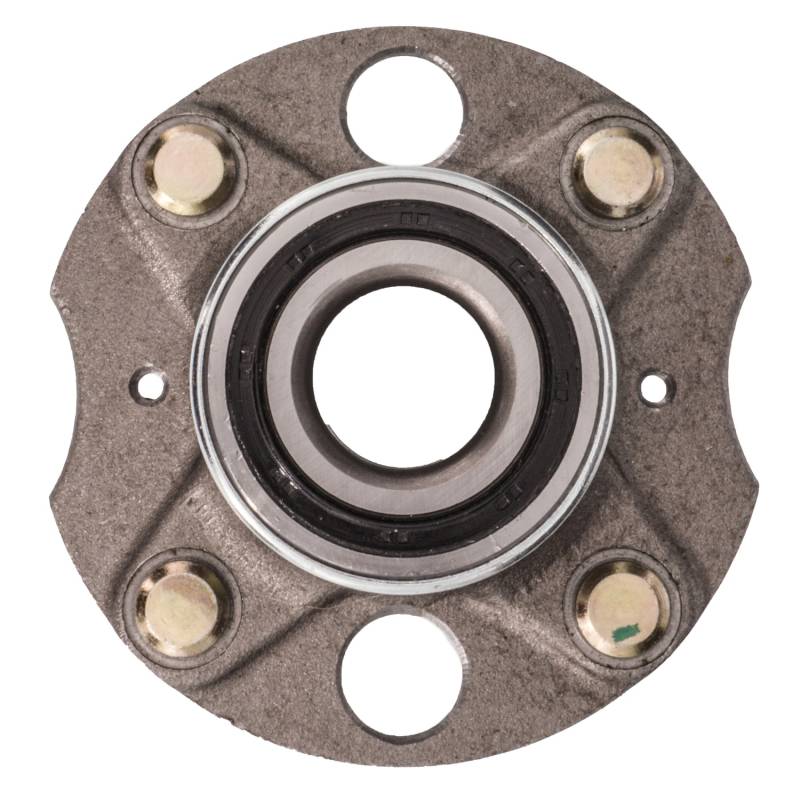

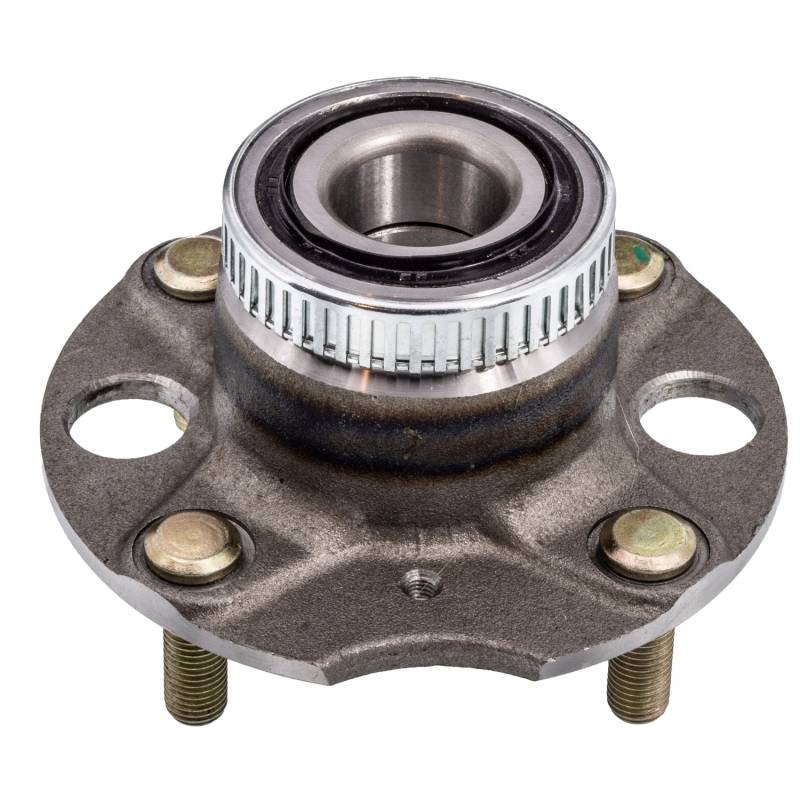

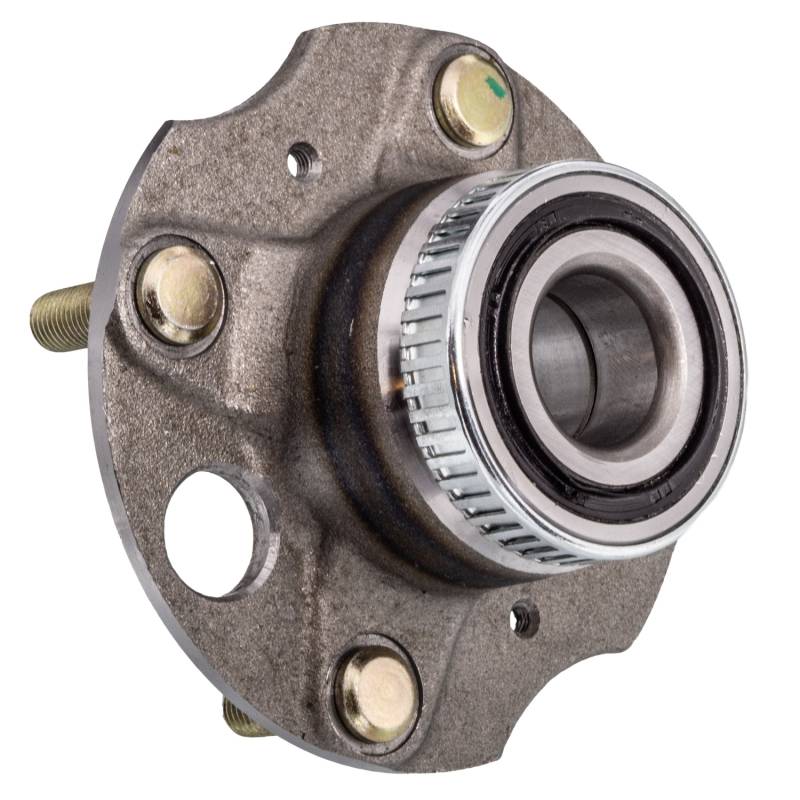

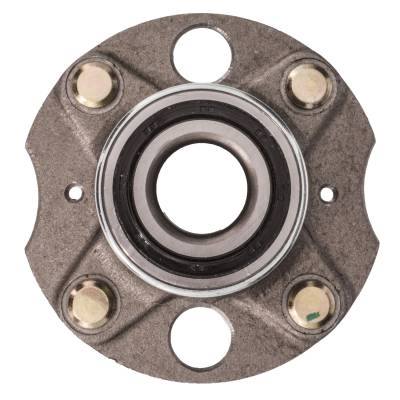

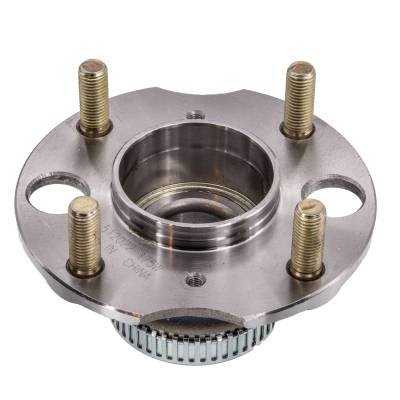

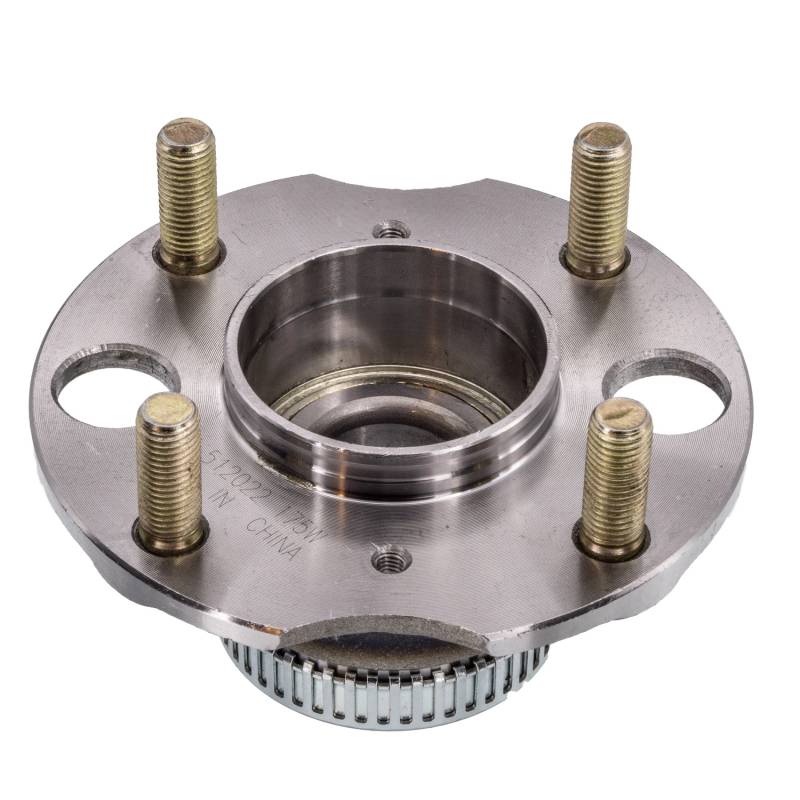

New Hub Assembly Compatible With Honda Prelude 2.2L 2.3L 1992 1993 1994 1995 1996 By Part Numbers

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

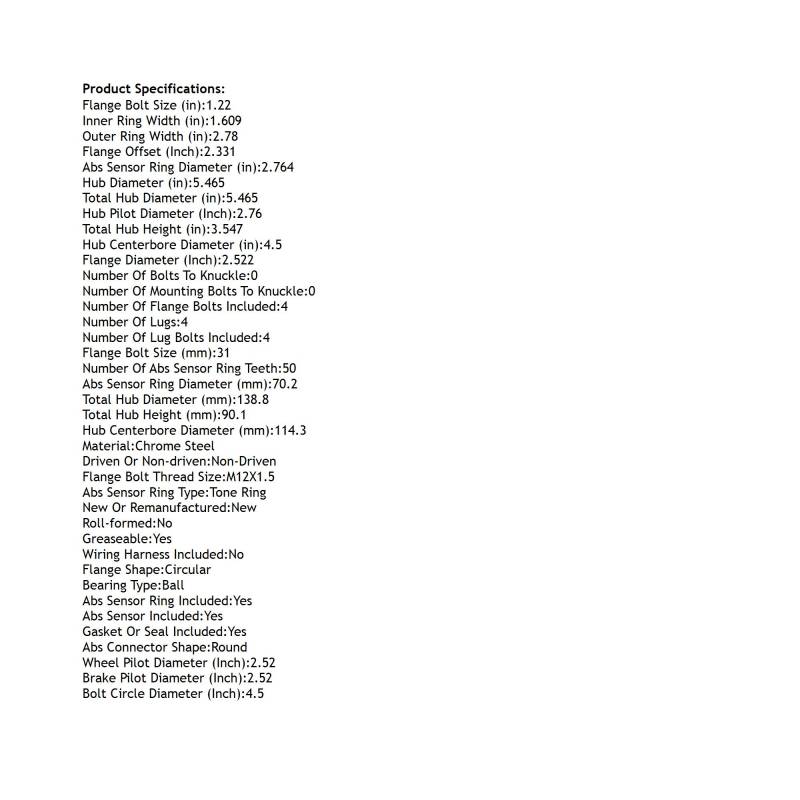

SPECIFICATIONS:
ABS CONNECTOR SHAPE: ROUND
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 2.764
ABS SENSOR RING DIAMETER (MM): 70.2
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE RING
BEARING TYPE: BALL
BOLT CIRCLE DIAMETER (INCH): 4.5
BRAKE PILOT DIAMETER (INCH): 2.52
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.22
FLANGE BOLT SIZE (MM): 31
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 2.522
FLANGE OFFSET (INCH): 2.331
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114.3
HUB DIAMETER (IN): 5.465
HUB PILOT DIAMETER (INCH): 2.76
INNER RING WIDTH (IN): 1.609
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 50
NUMBER OF BOLTS TO KNUCKLE: 0
NUMBER OF FLANGE BOLTS INCLUDED: 4
NUMBER OF LUG BOLTS INCLUDED: 4
NUMBER OF LUGS: 4
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 0
OUTER RING WIDTH (IN): 2.78
ROLL-FORMED: NO
TOTAL HUB DIAMETER (IN): 5.465
TOTAL HUB DIAMETER (MM): 138.8
TOTAL HUB HEIGHT (IN): 3.547
TOTAL HUB HEIGHT (MM): 90.1
WHEEL PILOT DIAMETER (INCH): 2.52
WIRING HARNESS INCLUDED: NO

REPLACES:
OTHER PART NUMBER: PT512022
SKF: BR930183
TIMKEN: 512022
AUTOPART INTERNATIONAL: 1411-45169
BCA: WE60457
CENTRIC PARTS: 40640021E
FAG US: 101067
GSP: 363022
MEVOTECH: H512022
MOOG HUB ASSEMBLIES: 512022
NAPA: PBR930183

APPLICATIONS:
HONDA PRELUDE (1992-1996)
