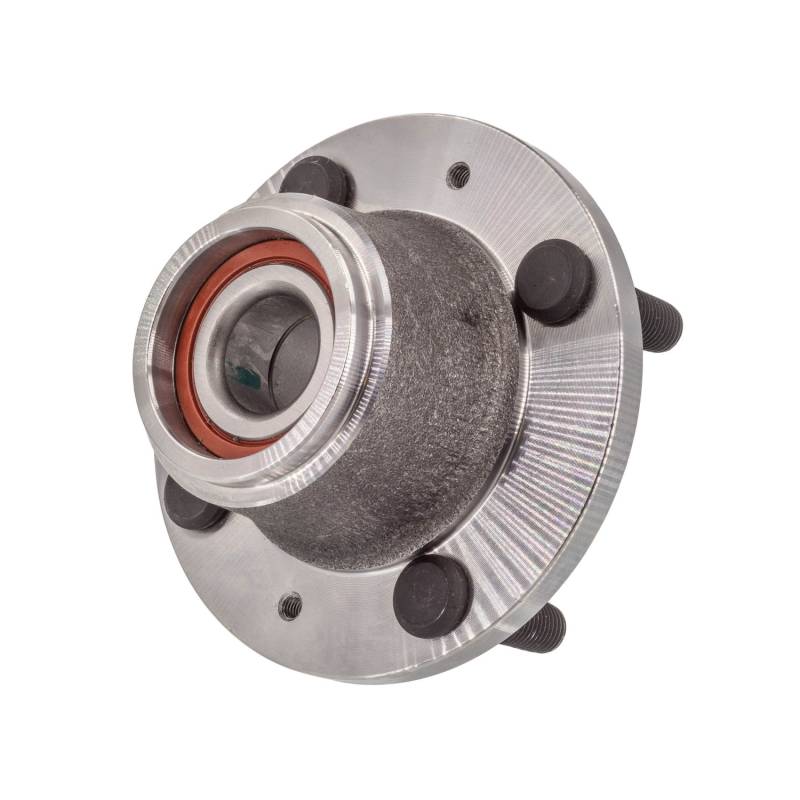

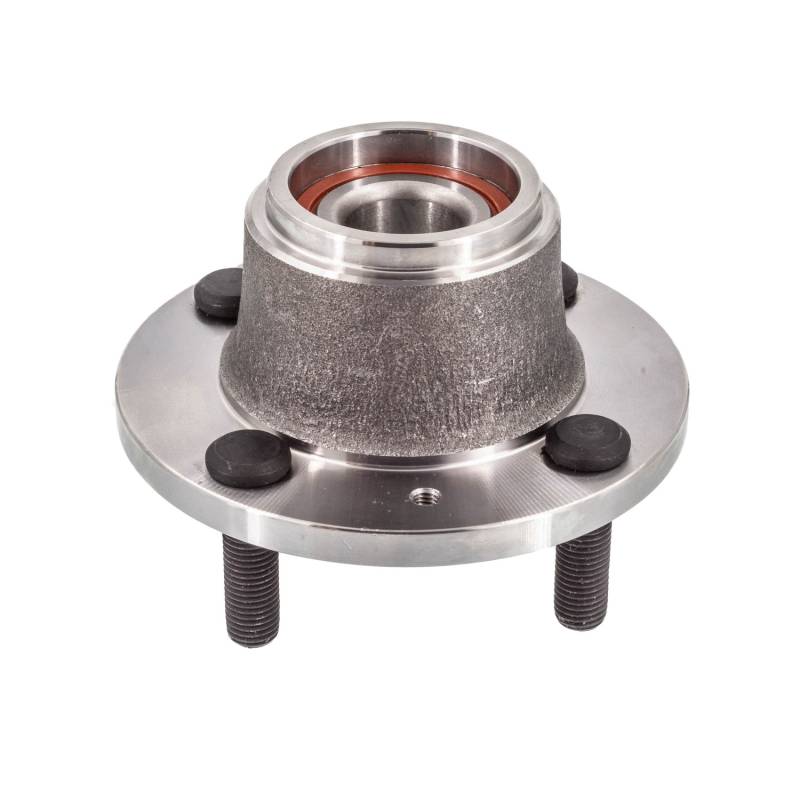

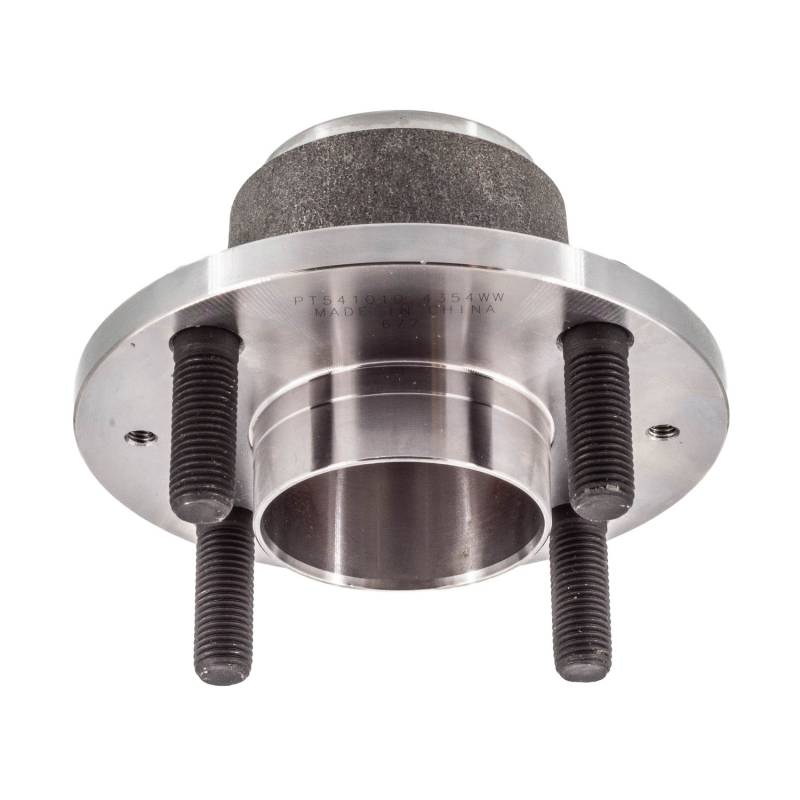

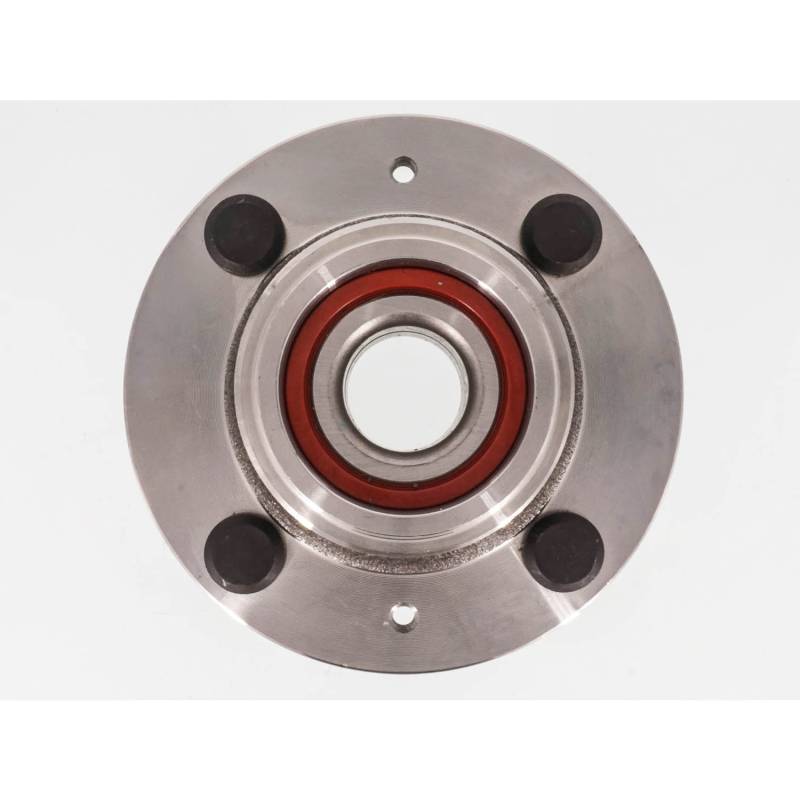

New Hub Assembly Compatible With Chevrolet Suzuki Pontiac Aveo Swift+ Aveo5 G3 Wave G3 Spark Spark

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

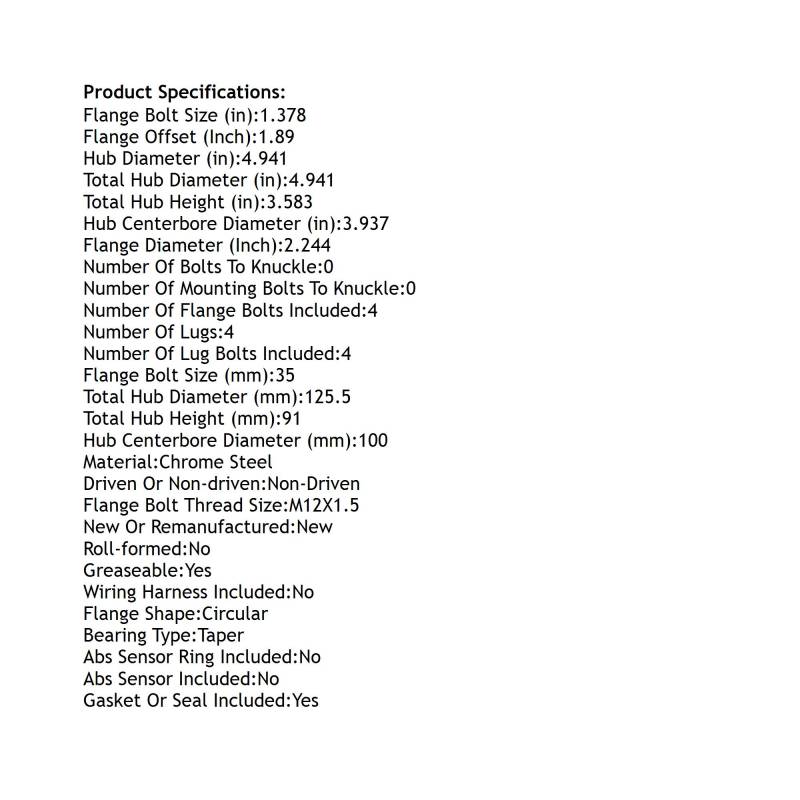

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
BEARING TYPE: TAPER
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.378
FLANGE BOLT SIZE (MM): 35
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 2.244
FLANGE OFFSET (INCH): 1.89
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 3.937
HUB CENTERBORE DIAMETER (MM): 100
HUB DIAMETER (IN): 4.941
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLTS TO KNUCKLE: 0
NUMBER OF FLANGE BOLTS INCLUDED: 4
NUMBER OF LUG BOLTS INCLUDED: 4
NUMBER OF LUGS: 4
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 0
ROLL-FORMED: NO
TOTAL HUB DIAMETER (IN): 4.941
TOTAL HUB DIAMETER (MM): 125.5
TOTAL HUB HEIGHT (IN): 3.583
TOTAL HUB HEIGHT (MM): 91
WIRING HARNESS INCLUDED: NO

REPLACES:
OTHER PART NUMBER: PT541010
TIMKEN: HA590421
ACDELCO: RW20-89
AUTOPART INTERNATIONAL: 1411-423164
CENTRIC PARTS: 41062001
GENERAL MOTORS: 95903587
GSP: 102010
MEVOTECH: MB50304
MOOG HUB ASSEMBLIES: 541010

APPLICATIONS:
CHEVROLET AVEO (2004-2011)
SUZUKI SWIFT+ (2004-2007)
CHEVROLET AVEO5 (2007-2011)
PONTIAC G3 WAVE (2009-2009)
PONTIAC G3 (2009-2010)
CHEVROLET SPARK (2013-2015)
CHEVROLET SPARK EV (2014-2015)
