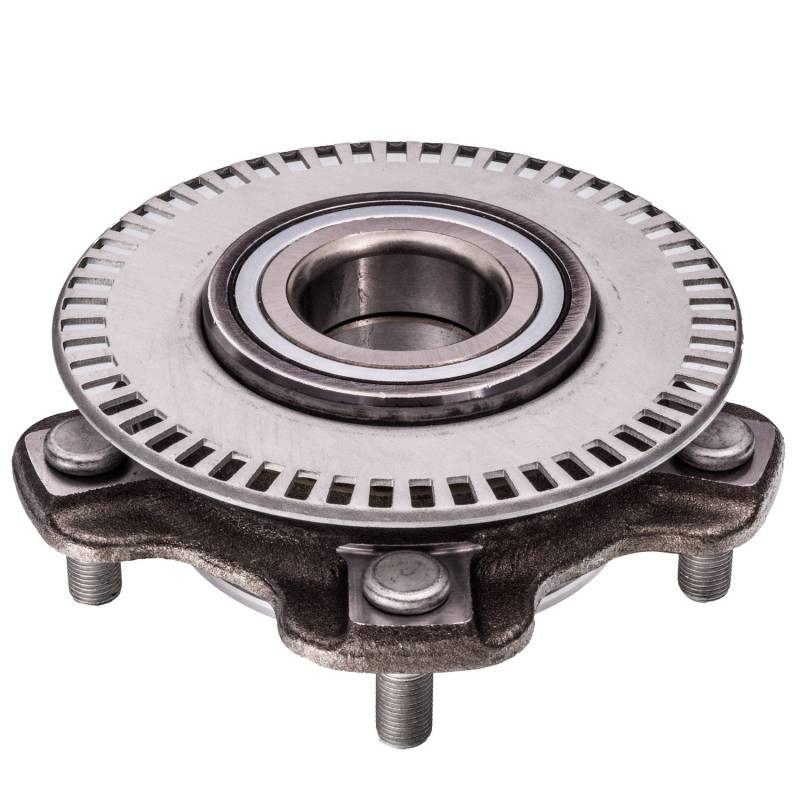

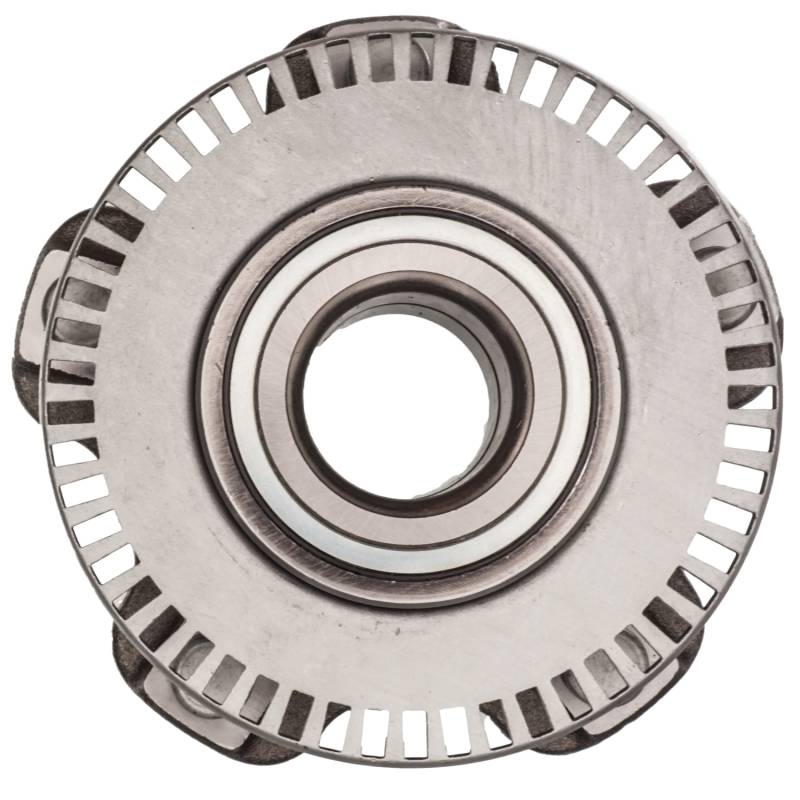

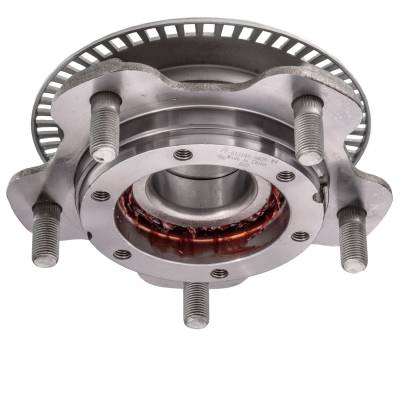

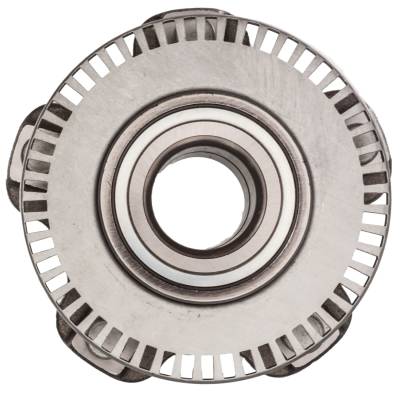

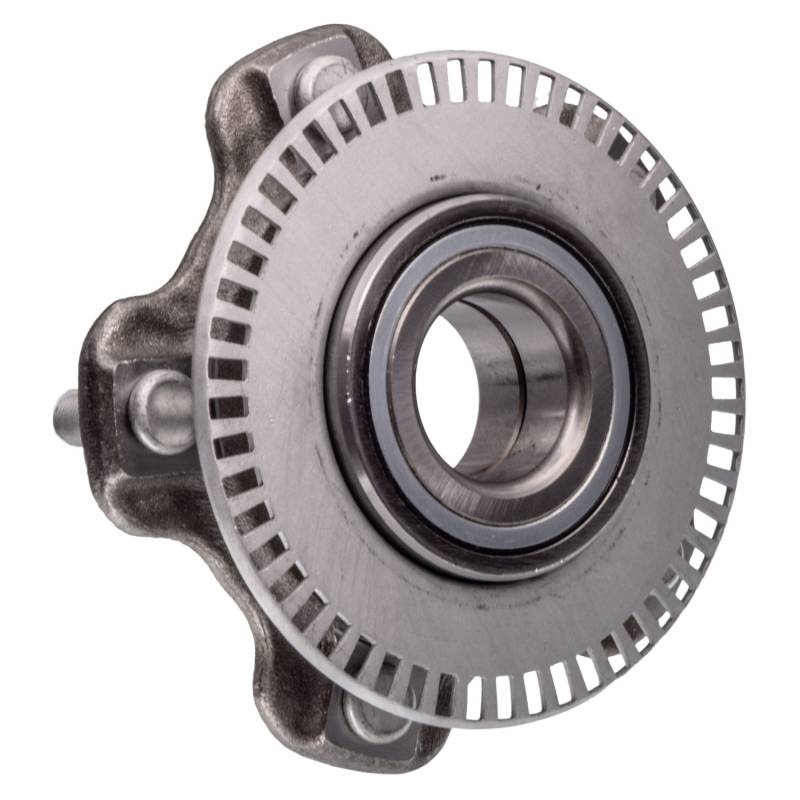

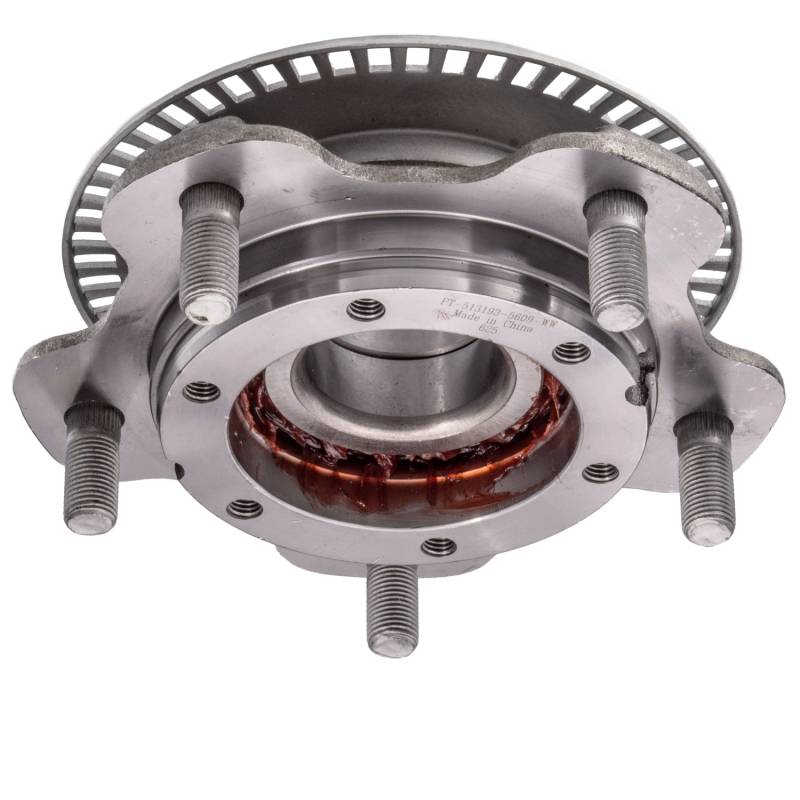

New Hub Assembly Compatible With Chevrolet Suzuki Tracker Grand Vitara Vitara Xl-7 2001 2002 2003

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

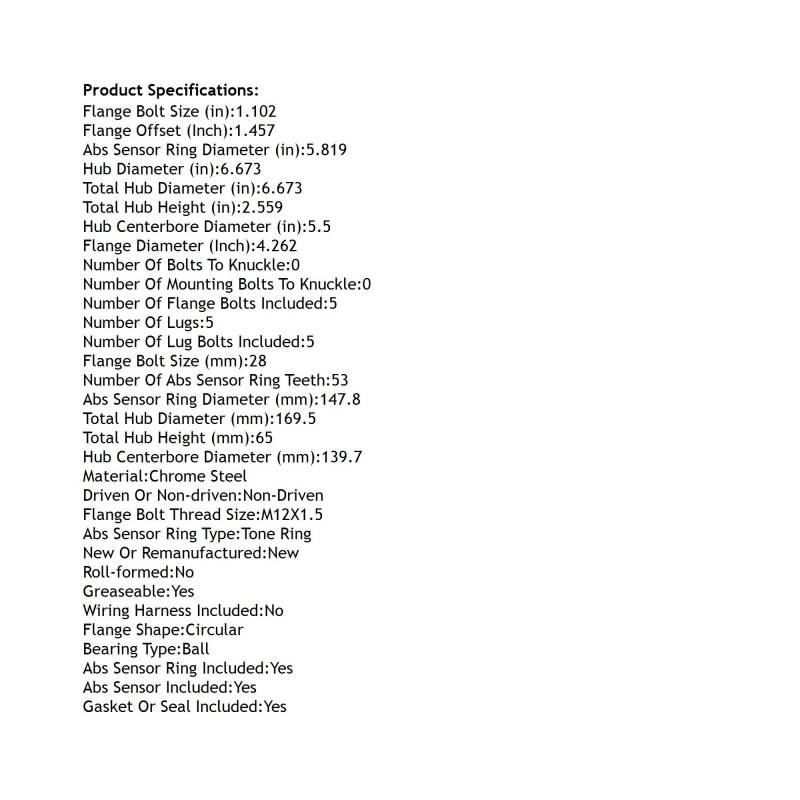

SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 5.819
ABS SENSOR RING DIAMETER (MM): 147.8
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE RING
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.102
FLANGE BOLT SIZE (MM): 28
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 4.262
FLANGE OFFSET (INCH): 1.457
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 5.5
HUB CENTERBORE DIAMETER (MM): 139.7
HUB DIAMETER (IN): 6.673
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 53
NUMBER OF BOLTS TO KNUCKLE: 0
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 0
ROLL-FORMED: NO
TOTAL HUB DIAMETER (IN): 6.673
TOTAL HUB DIAMETER (MM): 169.5
TOTAL HUB HEIGHT (IN): 2.559
TOTAL HUB HEIGHT (MM): 65
WIRING HARNESS INCLUDED: NO

REPLACES:
OTHER PART NUMBER: PT513193
SKF: BR930308
TIMKEN: 513193
AUTOPART INTERNATIONAL: 1411-01577
BCA: WE61145
BECK/ARNLEY: 051-6213 051-6254
CENTRIC PARTS: 40648000E
FAG US: 102035
GSP: 104193
MEVOTECH: H513193
MOOG HUB ASSEMBLIES: 513193
NAPA: PBR930308

APPLICATIONS:
CHEVROLET TRACKER (2001-2004)
SUZUKI GRAND VITARA (2001-2005)
SUZUKI VITARA (2001-2004)
SUZUKI XL-7 (2002-2006)
