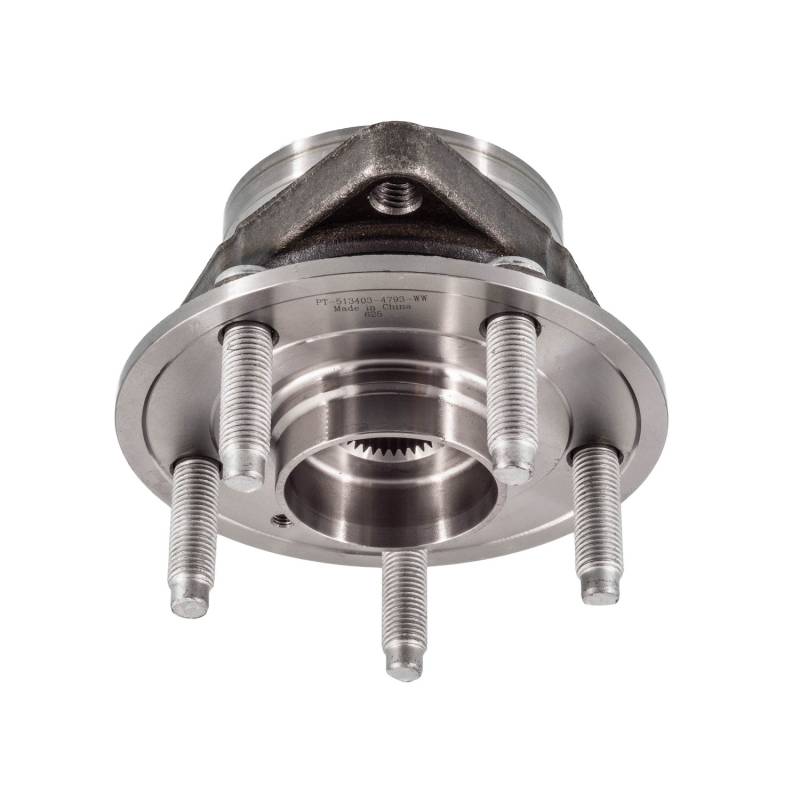

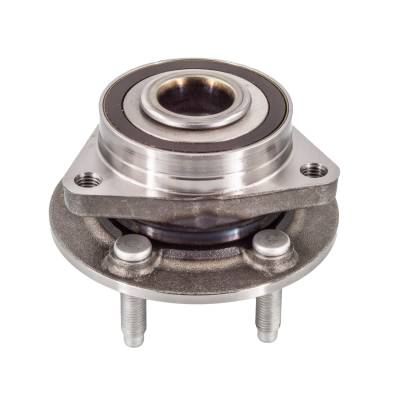

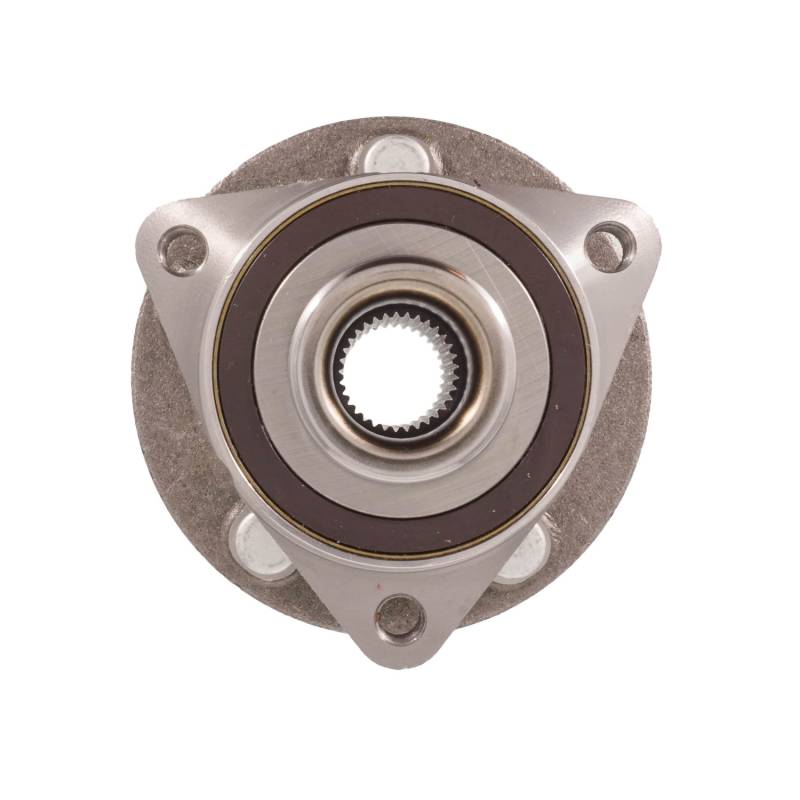

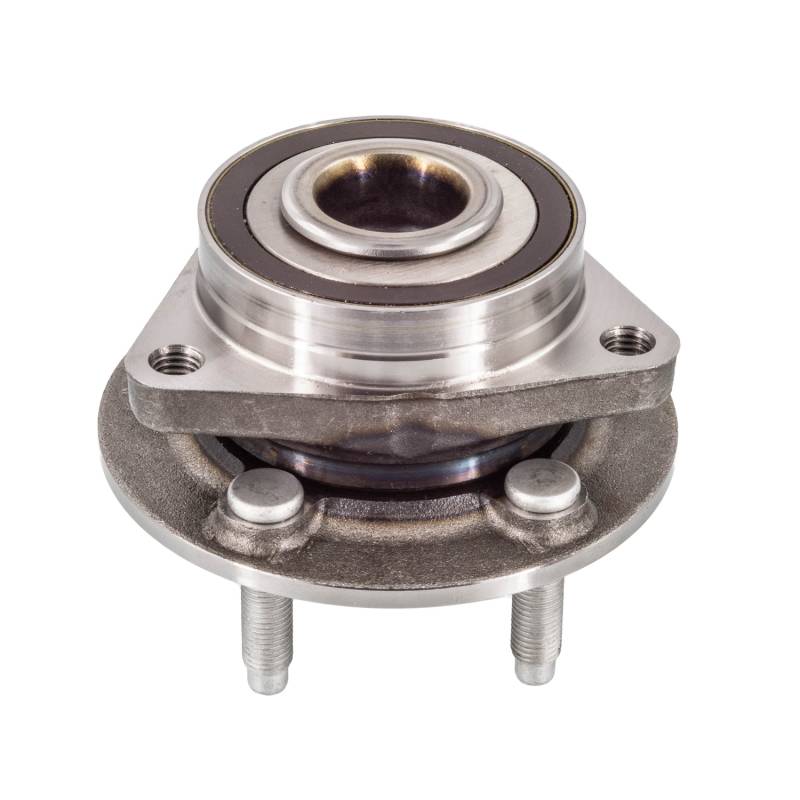

New Hub Assembly Compatible With Chevrolet Volt Bolt Ev Bolt Euv 1.5L 2016 2017 2018 2019 2020 2021

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

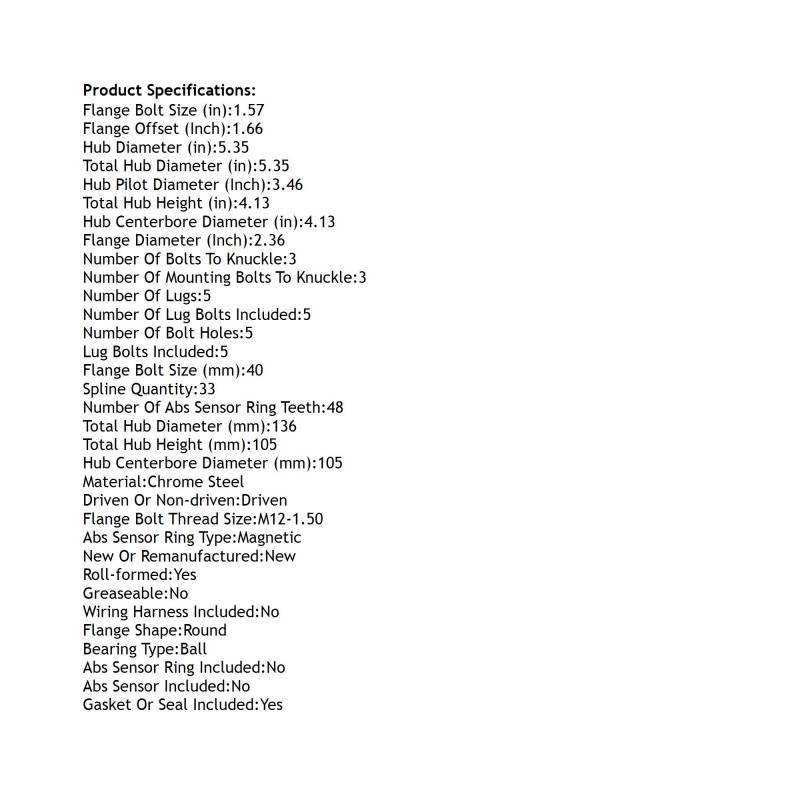

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.57
FLANGE BOLT SIZE (MM): 40
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 2.36
FLANGE OFFSET (INCH): 1.66
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: NO
HUB CENTERBORE DIAMETER (IN): 4.13
HUB CENTERBORE DIAMETER (MM): 105
HUB DIAMETER (IN): 5.35
HUB PILOT DIAMETER (INCH): 3.46
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 48
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
ROLL-FORMED: YES
SPLINE QUANTITY: 33
TOTAL HUB DIAMETER (IN): 5.35
TOTAL HUB DIAMETER (MM): 136
TOTAL HUB HEIGHT (IN): 4.13
TOTAL HUB HEIGHT (MM): 105
WIRING HARNESS INCLUDED: NO

REPLACES:
ACDELCO: FW442
AUTOPART INTERNATIONAL: 1411-605231
BCA: WE61832
CENTRIC PARTS: 40162009
MOOG HUB ASSEMBLIES: 513403
NAPA: PBR930960

APPLICATIONS:
CHEVROLET VOLT (2016-2019)
CHEVROLET BOLT EV (2017-2023)
CHEVROLET BOLT EUV (2022-2023)
