New Hub Assembly Compatible With Chevrolet Oldsmobile Pontiac Malibu Cutlass Supreme Cutlass Alero

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

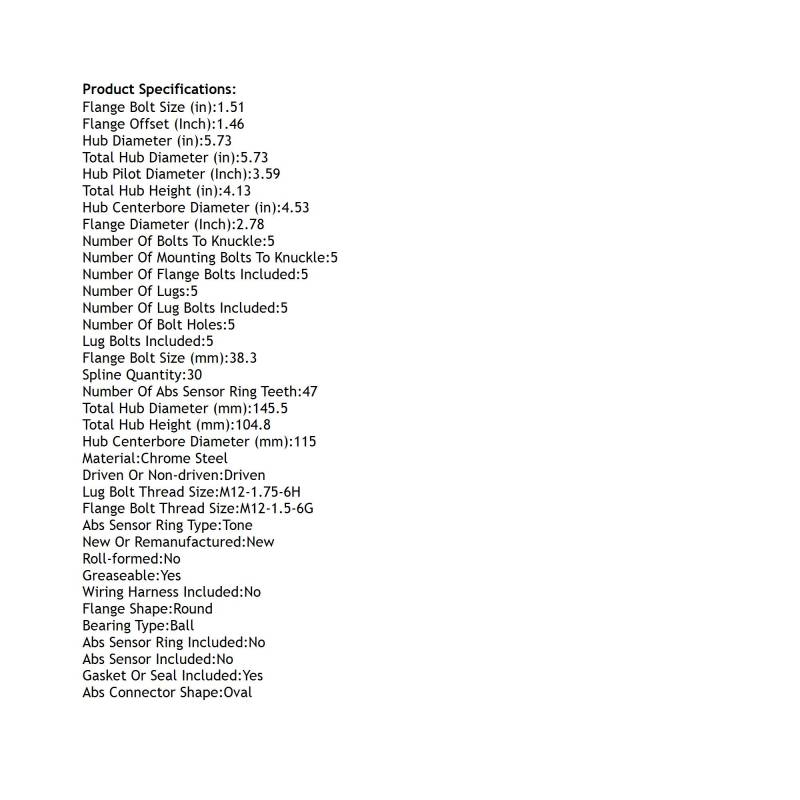

SPECIFICATIONS:
ABS CONNECTOR SHAPE: OVAL
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
ABS SENSOR RING TYPE: TONE
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.51
FLANGE BOLT SIZE (MM): 38.3
FLANGE BOLT THREAD SIZE: M12-1.5-6G
FLANGE DIAMETER (INCH): 2.78
FLANGE OFFSET (INCH): 1.46
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.53
HUB CENTERBORE DIAMETER (MM): 115
HUB DIAMETER (IN): 5.73
HUB PILOT DIAMETER (INCH): 3.59
LUG BOLT THREAD SIZE: M12-1.75-6H
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 47
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 5
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 5
ROLL-FORMED: NO
SPLINE QUANTITY: 30
TOTAL HUB DIAMETER (IN): 5.73
TOTAL HUB DIAMETER (MM): 145.5
TOTAL HUB HEIGHT (IN): 4.13
TOTAL HUB HEIGHT (MM): 104.8
WIRING HARNESS INCLUDED: NO

REPLACES:
OTHER PART NUMBER: PT513137
SKF: BR930080
TIMKEN: 513137
ACDELCO: FW153
AUTOPART INTERNATIONAL: 1411-45582
BCA: WE60735
CENTRIC PARTS: 40262014
FAG US: 102031
GENERAL MOTORS: 88957259
GSP: 104137HD
MEVOTECH: H513137
MOOG HUB ASSEMBLIES: 513137
NAPA: PBR930080

APPLICATIONS:
CHEVROLET MALIBU (1997-2003)
OLDSMOBILE CUTLASS SUPREME (1997-1997)
OLDSMOBILE CUTLASS (1997-1999)
OLDSMOBILE ALERO (1999-2004)
PONTIAC GRAND AM (1999-2005)
CHEVROLET CLASSIC (2004-2005)
