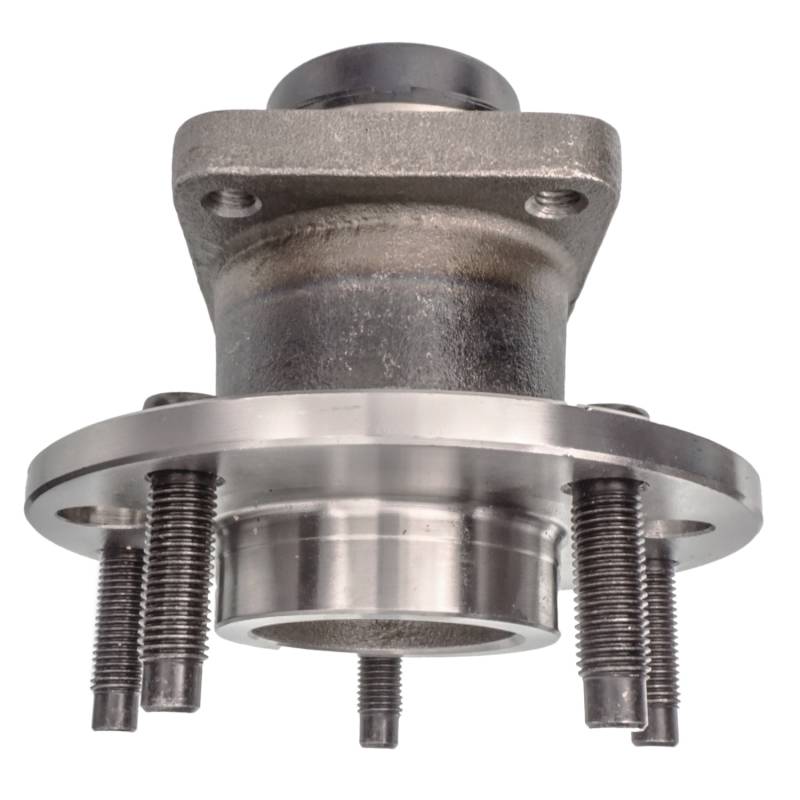

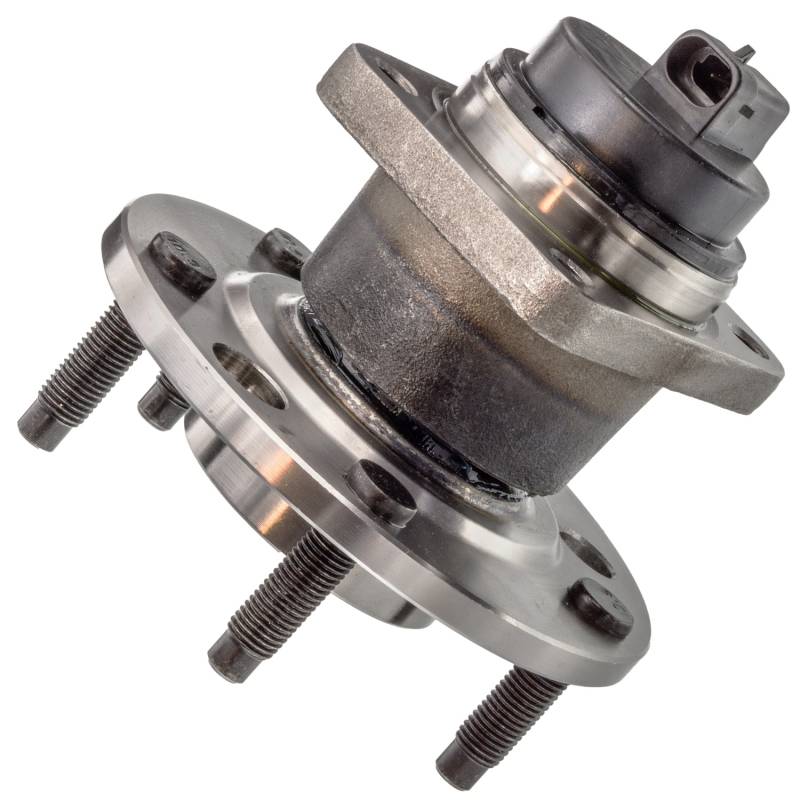

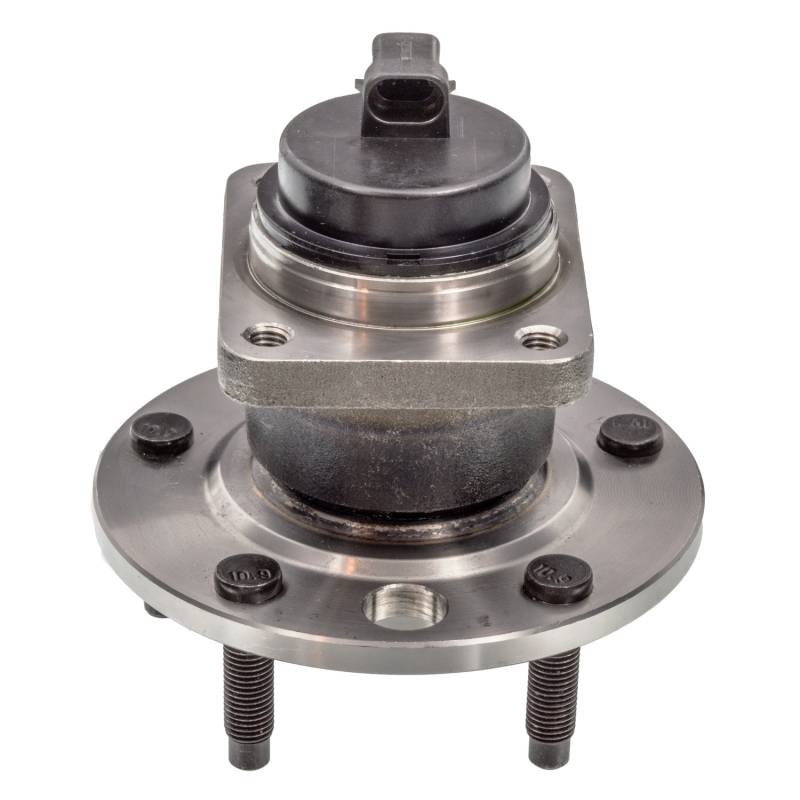

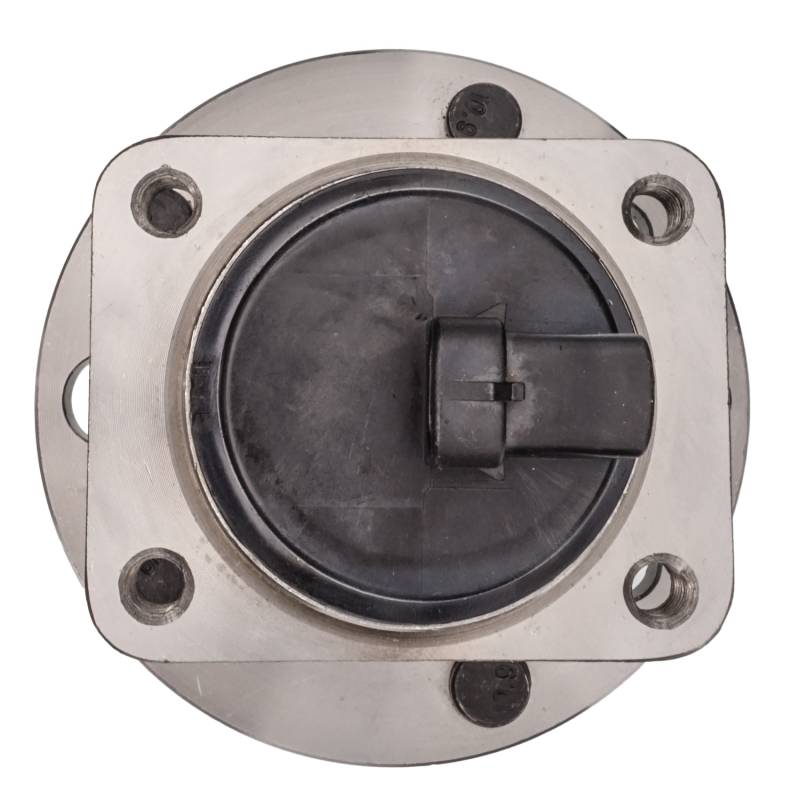

New Hub Assembly Compatible With Chevrolet Pontiac Camaro Firebird 3.4L 3.8L 5.7L 1993 1994 1995

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

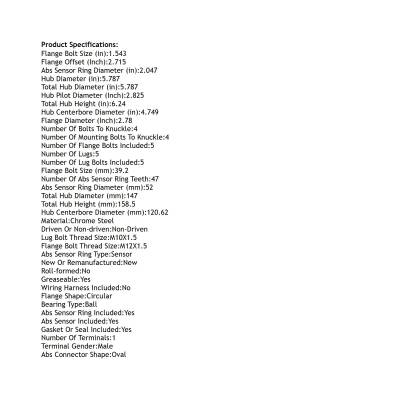

SPECIFICATIONS:
ABS CONNECTOR SHAPE: OVAL
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 2.047
ABS SENSOR RING DIAMETER (MM): 52
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.543
FLANGE BOLT SIZE (MM): 39.2
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 2.78
FLANGE OFFSET (INCH): 2.715
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.749
HUB CENTERBORE DIAMETER (MM): 120.62
HUB DIAMETER (IN): 5.787
HUB PILOT DIAMETER (INCH): 2.825
LUG BOLT THREAD SIZE: M10X1.5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 47
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 1
ROLL-FORMED: NO
TERMINAL GENDER: MALE
TOTAL HUB DIAMETER (IN): 5.787
TOTAL HUB DIAMETER (MM): 147
TOTAL HUB HEIGHT (IN): 6.24
TOTAL HUB HEIGHT (MM): 158.5
WIRING HARNESS INCLUDED: NO

REPLACES:
AUTOPART INTERNATIONAL: 1411-02147
BCA: WE60844
CENTRIC PARTS: 40762019
FAG US: 102062
GSP: 104090
MEVOTECH: H513090
MOOG HUB ASSEMBLIES: 513090
NAPA: PBR930186

APPLICATIONS:
CHEVROLET CAMARO (1993-2002)
PONTIAC FIREBIRD (1993-2002)
