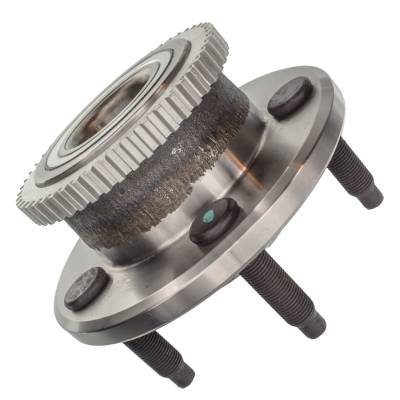

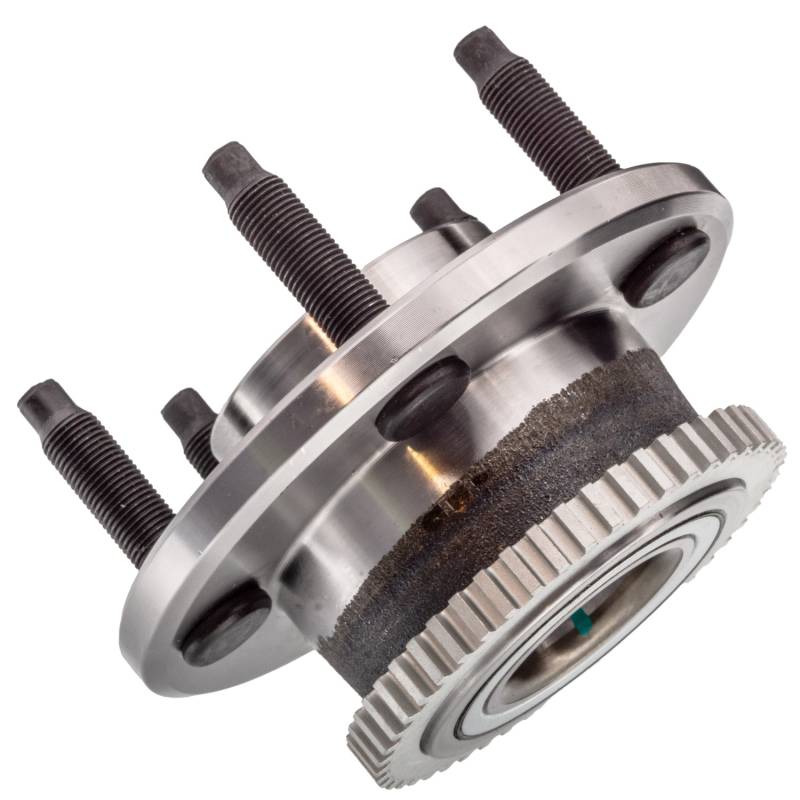

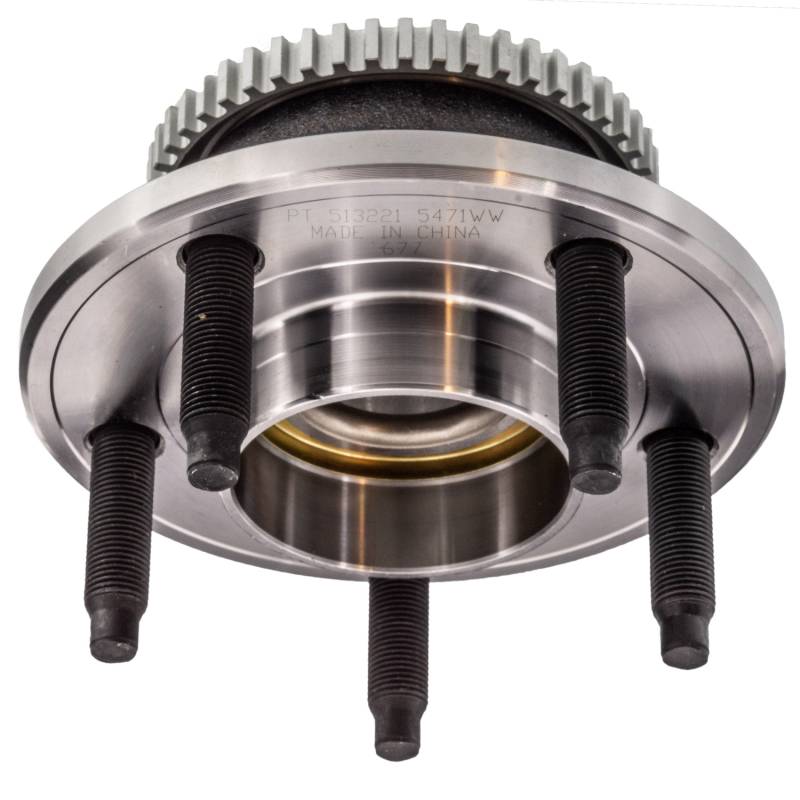

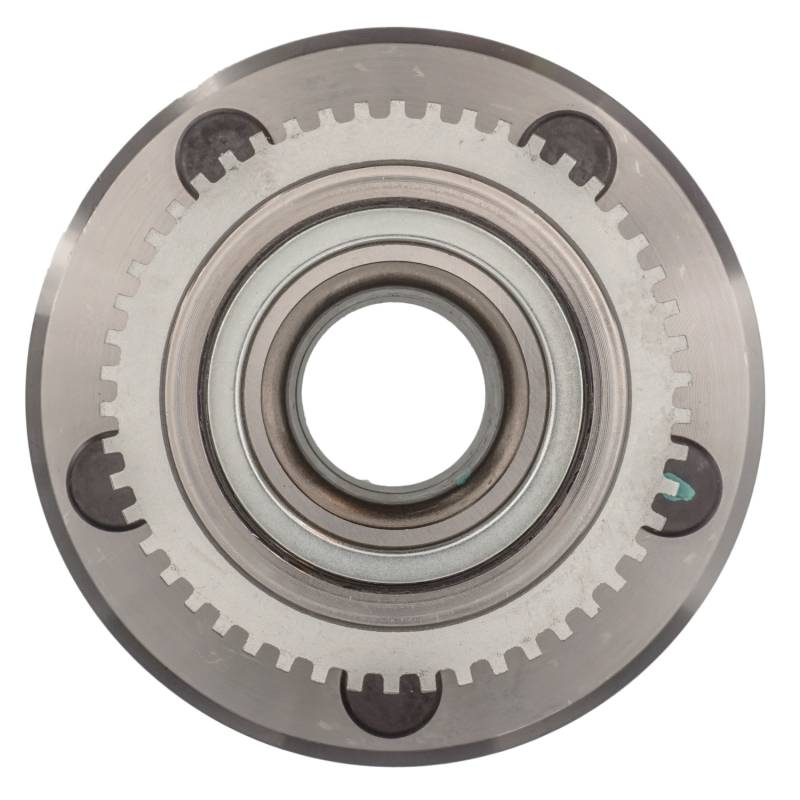

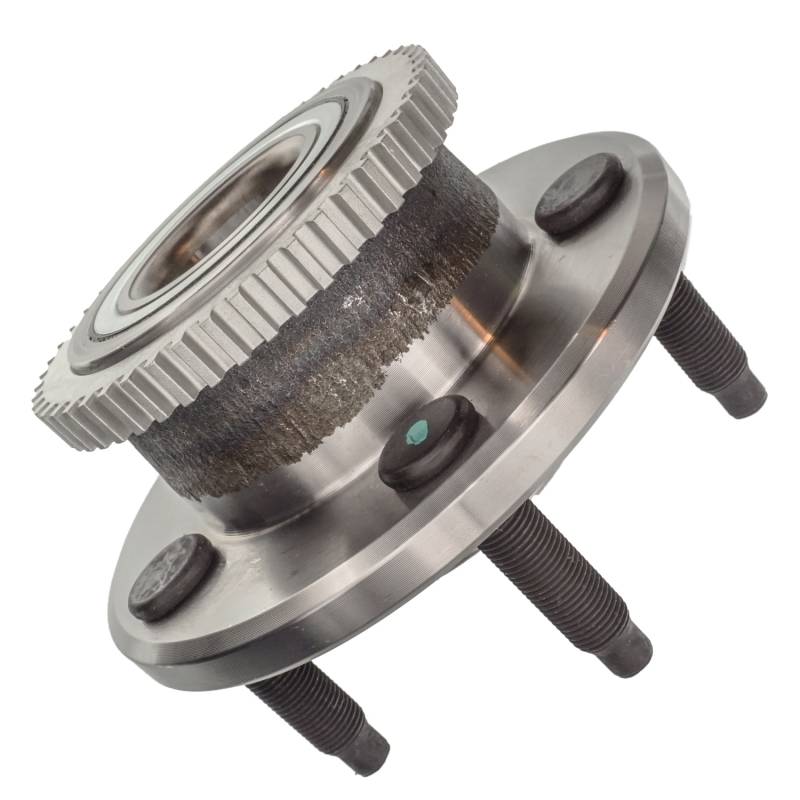

New Hub Assembly Compatible With Ford Mustang 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 By

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

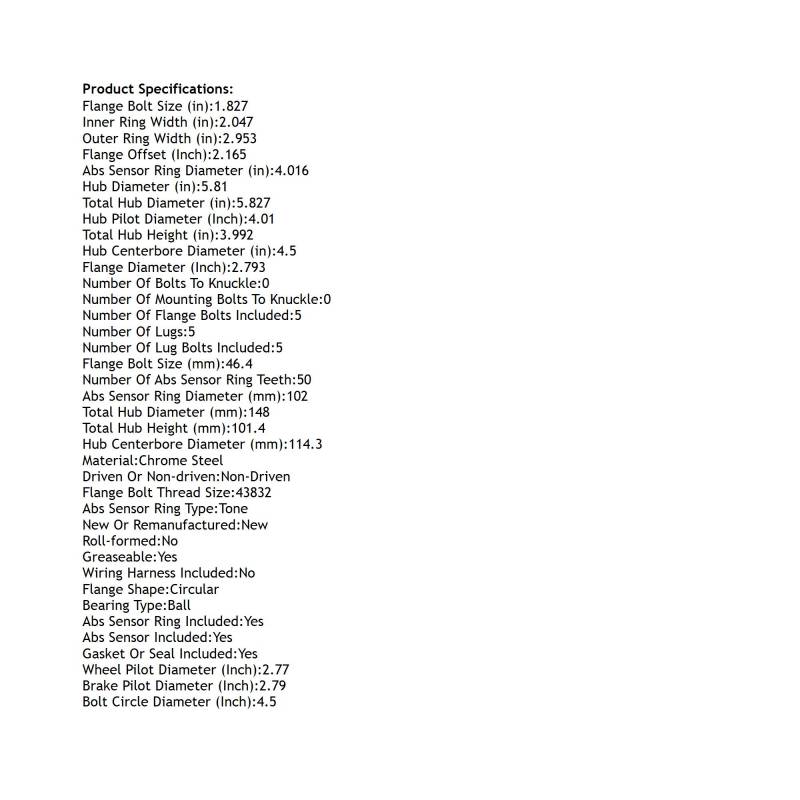

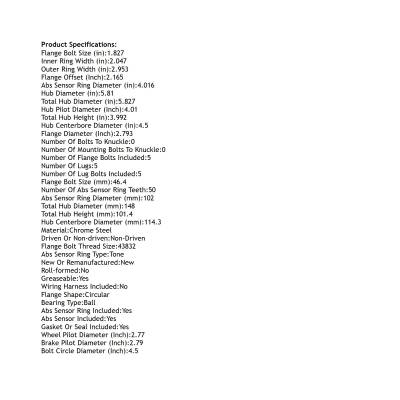

SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 4.016
ABS SENSOR RING DIAMETER (MM): 102
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE
BEARING TYPE: BALL
BOLT CIRCLE DIAMETER (INCH): 4.5
BRAKE PILOT DIAMETER (INCH): 2.79
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.827
FLANGE BOLT SIZE (MM): 46.4
FLANGE BOLT THREAD SIZE: 43832
FLANGE DIAMETER (INCH): 2.793
FLANGE OFFSET (INCH): 2.165
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114.3
HUB DIAMETER (IN): 5.81
HUB PILOT DIAMETER (INCH): 4.01
INNER RING WIDTH (IN): 2.047
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 50
NUMBER OF BOLTS TO KNUCKLE: 0
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 0
OUTER RING WIDTH (IN): 2.953
ROLL-FORMED: NO
TOTAL HUB DIAMETER (IN): 5.827
TOTAL HUB DIAMETER (MM): 148
TOTAL HUB HEIGHT (IN): 3.992
TOTAL HUB HEIGHT (MM): 101.4
WHEEL PILOT DIAMETER (INCH): 2.77
WIRING HARNESS INCLUDED: NO

REPLACES:
OTHER PART NUMBER: PT513221
SKF: BR930494
TIMKEN: HA590017
AUTOPART INTERNATIONAL: 1411-09846
BCA: WE60587
CENTRIC PARTS: 40661004
FAG US: 102215
FORD: 4R3Z 1104 B
GSP: 114221
MEVOTECH: H513221
MOOG HUB ASSEMBLIES: 513221
MOTORCRAFT: HUB17 HUB273 PT513221
NAPA: PBR930494

APPLICATIONS:
FORD MUSTANG (2005-2014)
