THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

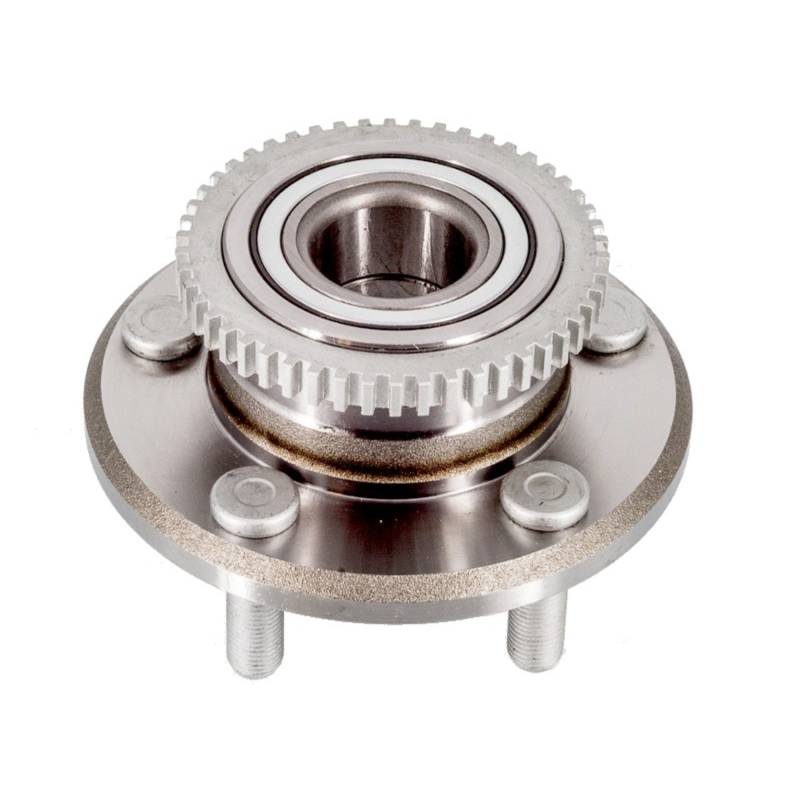

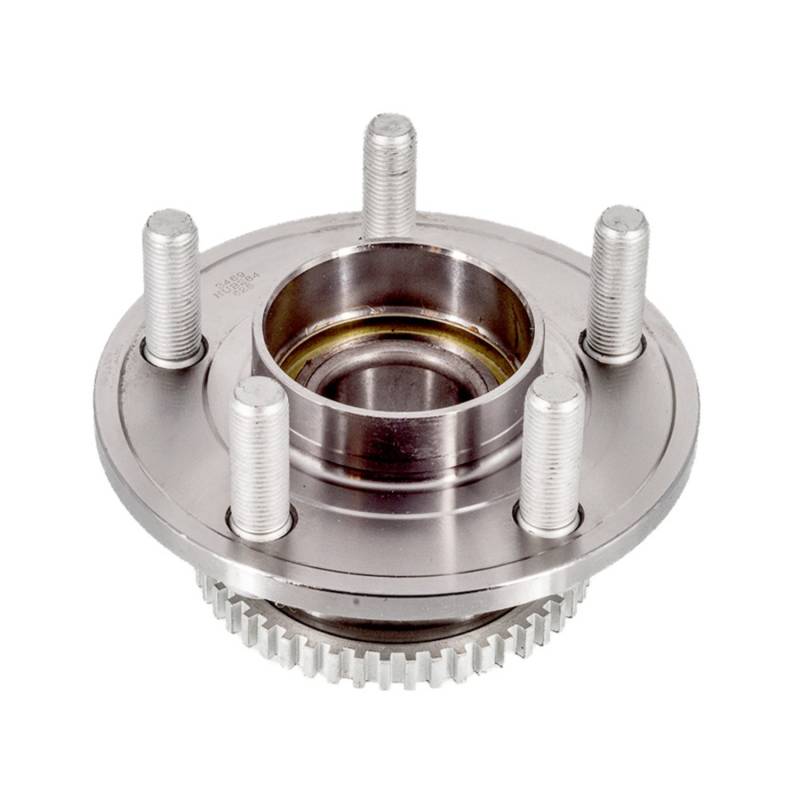

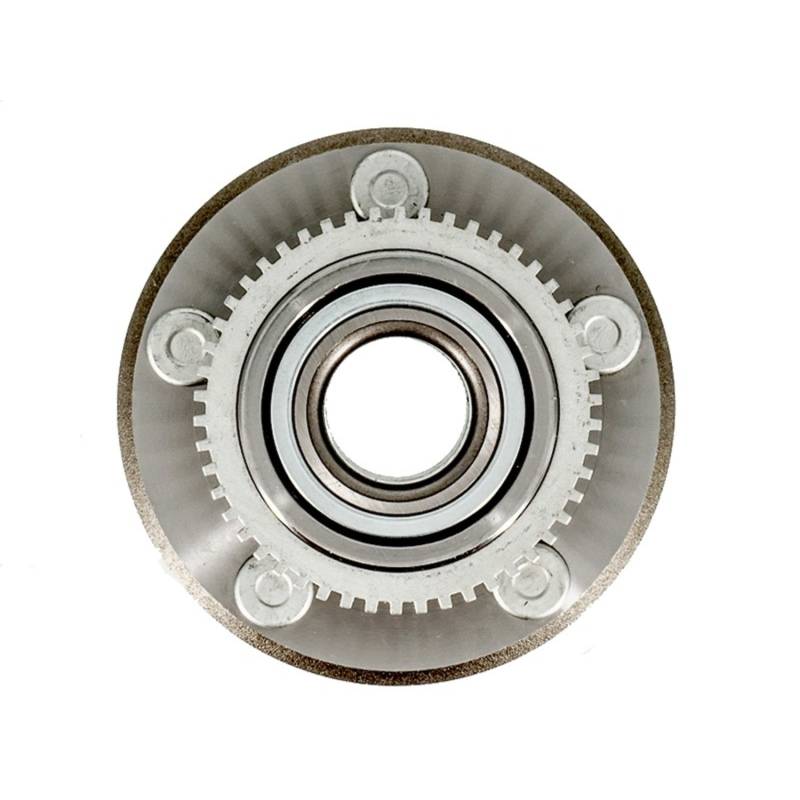

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE
SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.5
FLANGE BOLT SIZE (MM): 38
FLANGE BOLT THREAD SIZE: M14-1.50
FLANGE DIAMETER (INCH): 2.8
FLANGE OFFSET (INCH): 1.81
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114
HUB DIAMETER (IN): 5.75
HUB PILOT DIAMETER (INCH): 3.58
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 50
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: NO
SPLINE QUANTITY: 32
TOTAL HUB DIAMETER (IN): 5.75
TOTAL HUB DIAMETER (MM): 146
TOTAL HUB HEIGHT (IN): 4.11
TOTAL HUB HEIGHT (MM): 104
WIRING HARNESS INCLUDED: NO
REPLACES:
AUTOPART INTERNATIONAL: 1411-583307
FORD: FR3Z 1104 A
GSP: 114346
MEVOTECH: MB40318
MOOG HUB ASSEMBLIES: 513346
MOTORCRAFT: HUB284 PT513346
NAPA: PBR930953
APPLICATIONS:
FORD MUSTANG (2015-2023)
