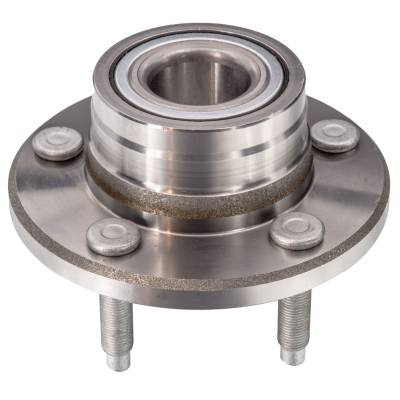

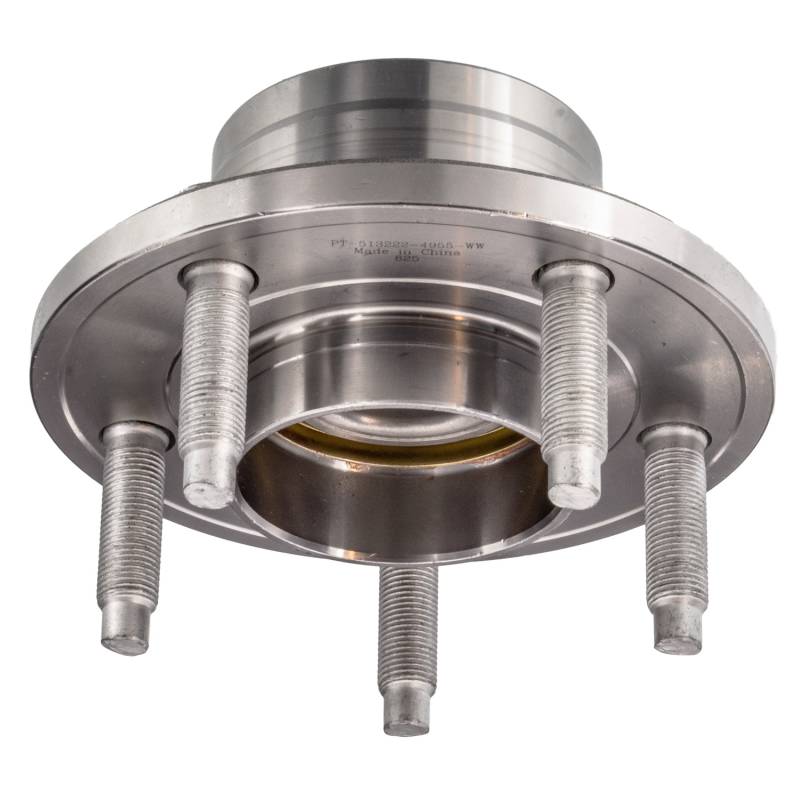

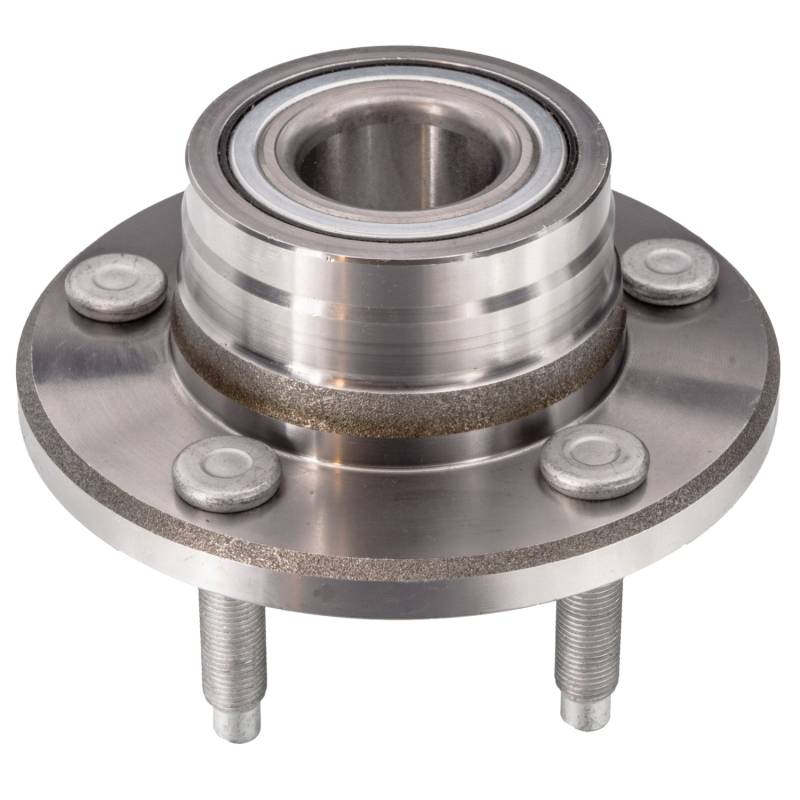

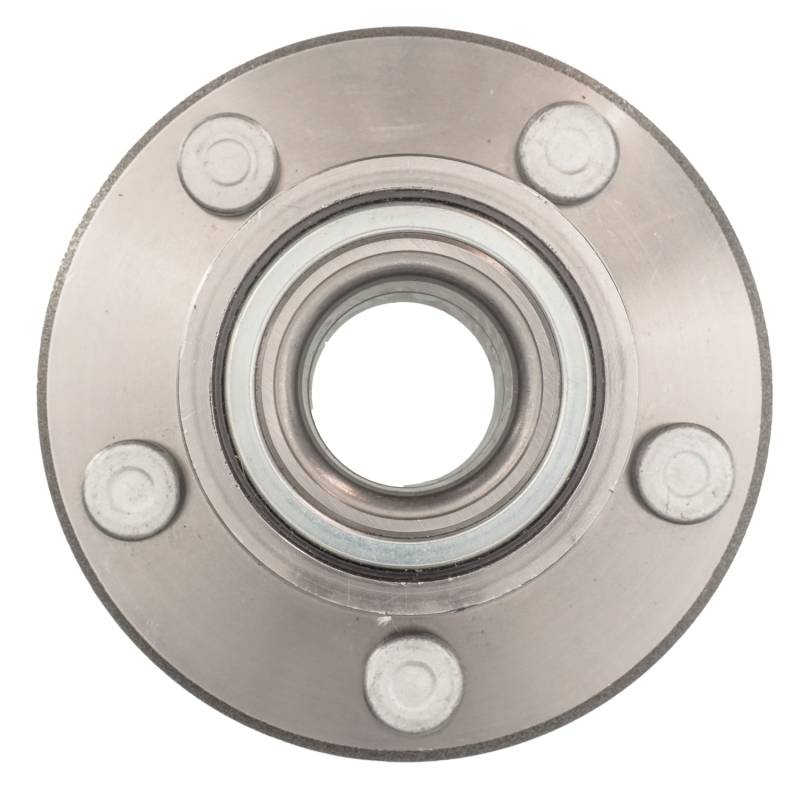

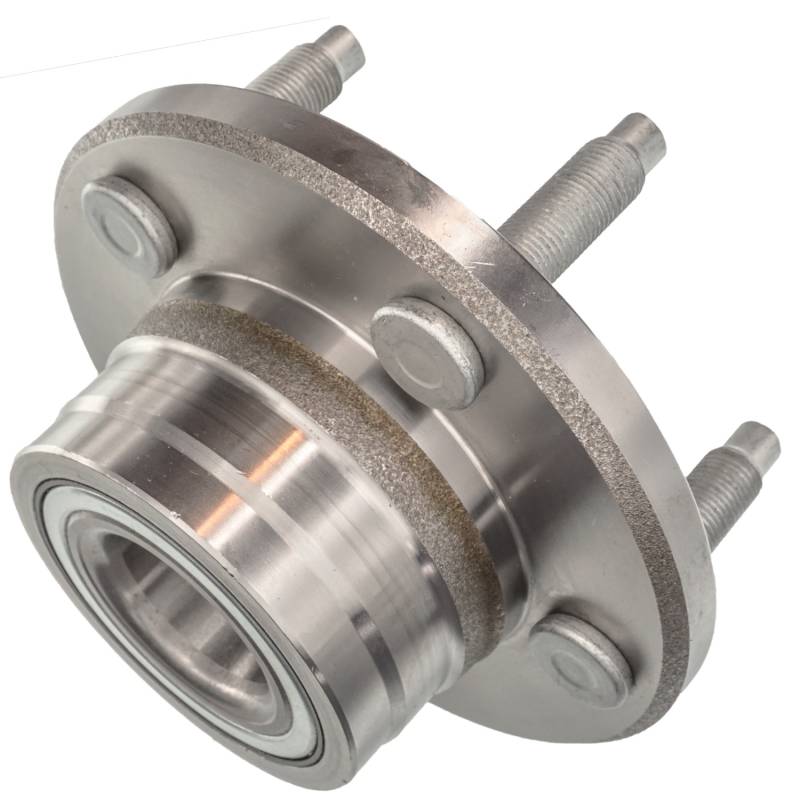

New Hub Assembly Compatible With Ford Mustang 4.0L 4.6L 5.4L 2005 2006 2007 2008 2009 By Part

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

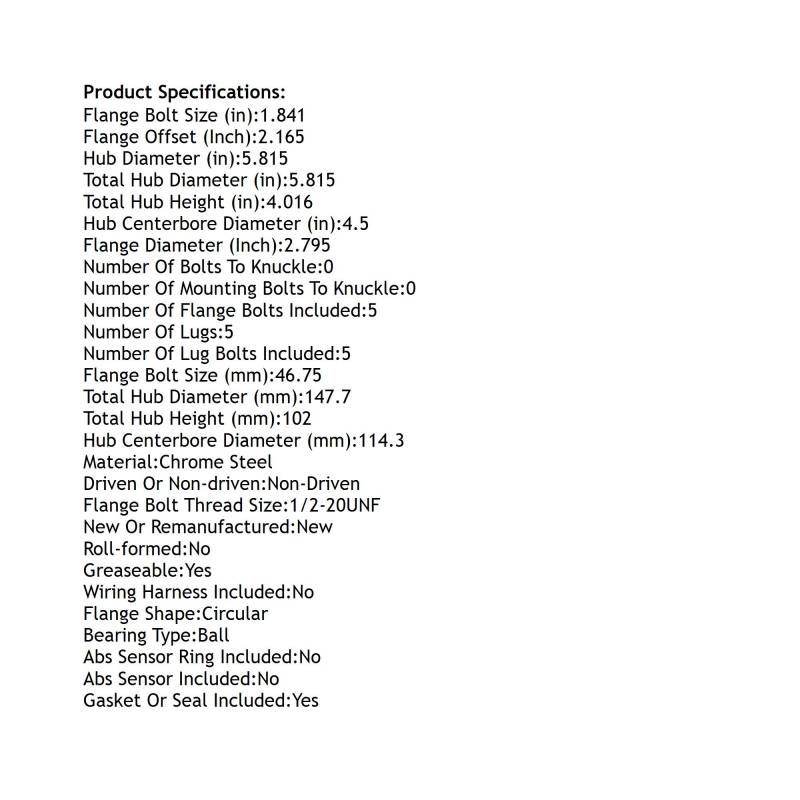

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.841
FLANGE BOLT SIZE (MM): 46.75
FLANGE BOLT THREAD SIZE: 1/2-20UNF
FLANGE DIAMETER (INCH): 2.795
FLANGE OFFSET (INCH): 2.165
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114.3
HUB DIAMETER (IN): 5.815
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLTS TO KNUCKLE: 0
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 0
ROLL-FORMED: NO
TOTAL HUB DIAMETER (IN): 5.815
TOTAL HUB DIAMETER (MM): 147.7
TOTAL HUB HEIGHT (IN): 4.016
TOTAL HUB HEIGHT (MM): 102
WIRING HARNESS INCLUDED: NO

REPLACES:
OTHER PART NUMBER: PT513222
SKF: BR930493
TIMKEN: HA590026
AUTOPART INTERNATIONAL: 1411-09847
BCA: WE60586
CENTRIC PARTS: 40561001
FAG US: 102216
FORD: 4R3Z 1104 AB
GSP: 114222
MEVOTECH: H513222
MOOG HUB ASSEMBLIES: 513222
MOTORCRAFT: HUB18
NAPA: PBR930493

APPLICATIONS:
FORD MUSTANG (2005-2009)
