THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

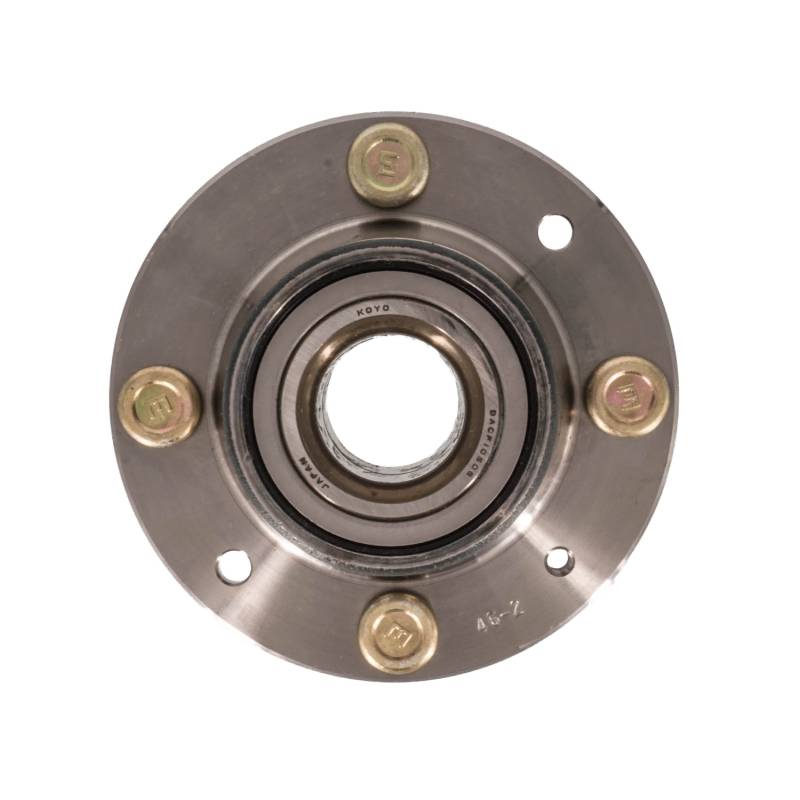

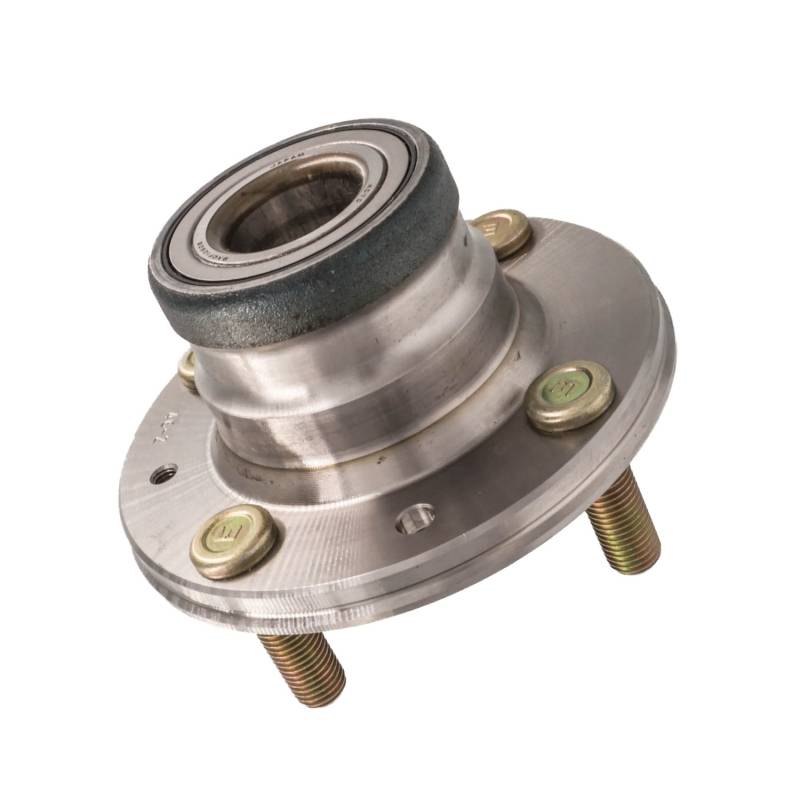

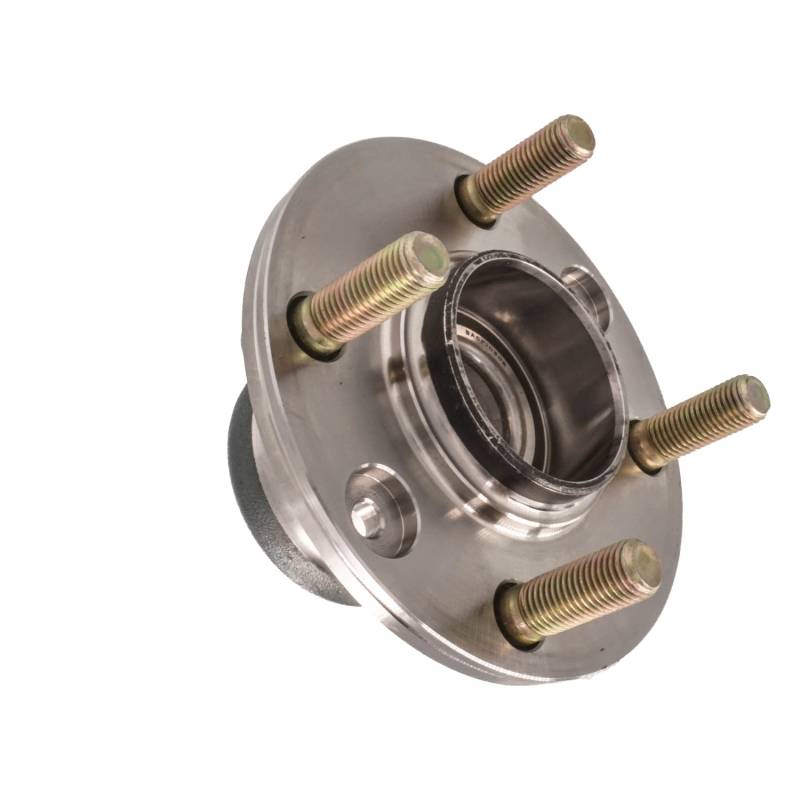

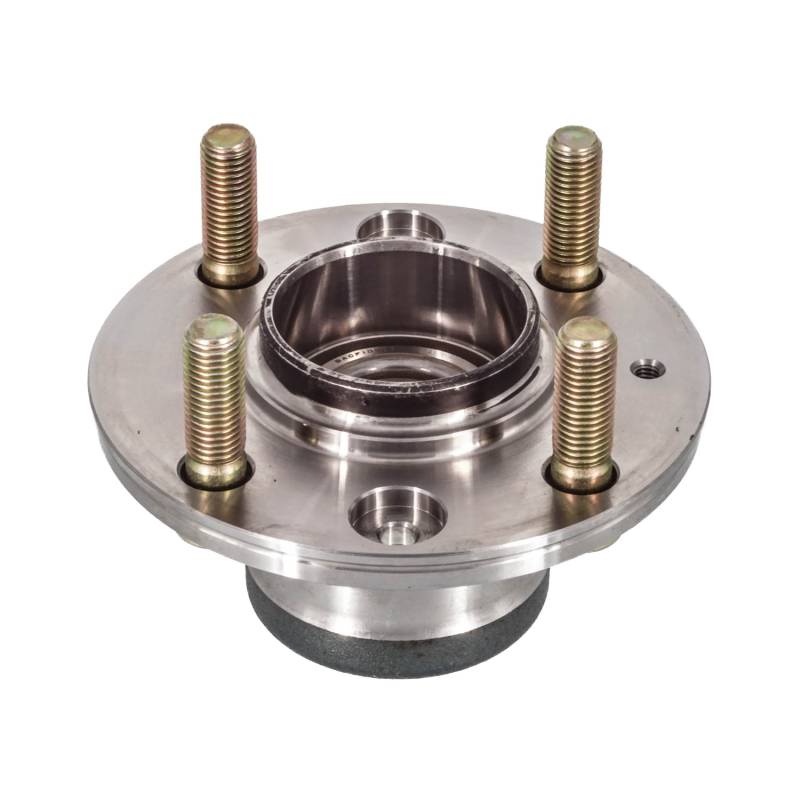

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

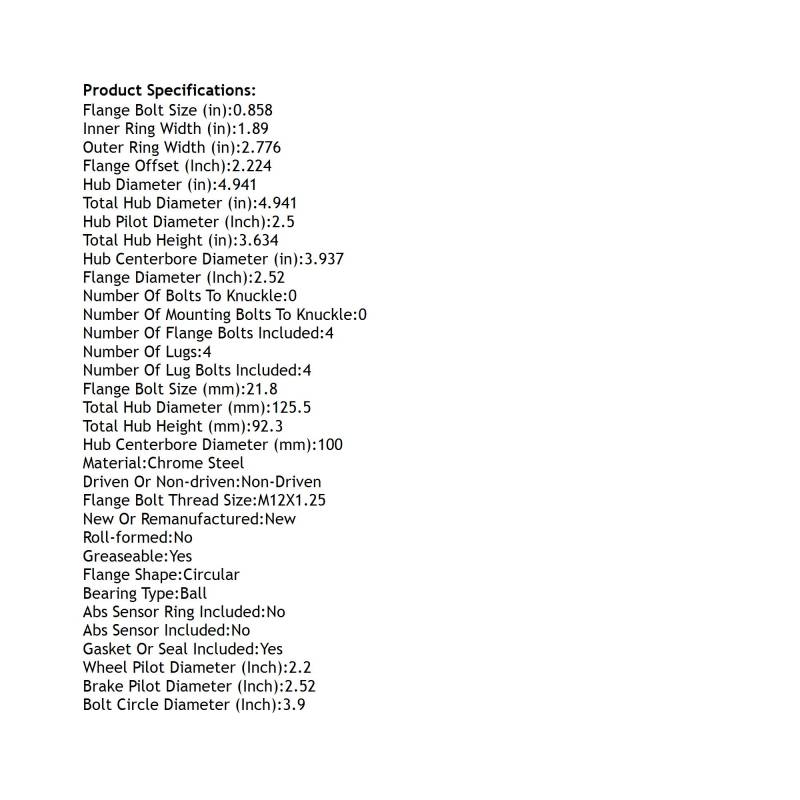

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
BEARING TYPE: BALL
BOLT CIRCLE DIAMETER (INCH): 3.9
BRAKE PILOT DIAMETER (INCH): 2.52
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 0.858
FLANGE BOLT SIZE (MM): 21.8
FLANGE BOLT THREAD SIZE: M12X1.25
FLANGE DIAMETER (INCH): 2.52
FLANGE OFFSET (INCH): 2.224
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 3.937
HUB CENTERBORE DIAMETER (MM): 100
HUB DIAMETER (IN): 4.941
HUB PILOT DIAMETER (INCH): 2.5
INNER RING WIDTH (IN): 1.89
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLTS TO KNUCKLE: 0
NUMBER OF FLANGE BOLTS INCLUDED: 4
NUMBER OF LUG BOLTS INCLUDED: 4
NUMBER OF LUGS: 4
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 0
OUTER RING WIDTH (IN): 2.776
ROLL-FORMED: NO
TOTAL HUB DIAMETER (IN): 4.941
TOTAL HUB DIAMETER (MM): 125.5
TOTAL HUB HEIGHT (IN): 3.634
TOTAL HUB HEIGHT (MM): 92.3
WHEEL PILOT DIAMETER (INCH): 2.2
REPLACES:
OTHER PART NUMBER: PT512185
SKF: BR930268
TIMKEN: 512185
AUTOPART INTERNATIONAL: 1411-45895
BCA: WE61469
CENTRIC PARTS: 40546010E
FAG US: 102495
GSP: 513185
MEVOTECH: H512185
MOOG HUB ASSEMBLIES: 512185
NAPA: PBR930268
APPLICATIONS:
MITSUBISHI MIRAGE (1997-1999)
